Euro-Pro Dressmaker 998B Sewing Center User Manual

Introducció

Welcome to the user manual for your Euro-Pro Dressmaker 998B Sewing Center. This compact and easy-to-use sewing machine is designed to simplify your sewing tasks, from mending to basic projects. Please read this manual thoroughly before operating your machine to ensure safe and efficient use.

Instruccions importants de seguretat

Quan utilitzeu un aparell elèctric, sempre s'han de seguir les precaucions bàsiques de seguretat, com ara les següents:

• Llegiu totes les instruccions abans d’utilitzar aquesta màquina de cosir.
• Mantingueu els dits allunyats de totes les parts en moviment. Es requereix una cura especial al voltant de l’agulla de la màquina de cosir.
• Always unplug the sewing machine from the electrical outlet when removing covers, lubricating, or when making any other adjustments mentioned in the instruction manual.
• Never operate the sewing machine with any air openings blocked. Keep air openings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
• No utilitzar a l'aire lliure.
• No permetre que es faci servir com a joguina. Cal fer molta atenció quan aquesta màquina de cosir la fan servir o prop de nens.
• Utilitzeu aquesta màquina de cosir només per al seu ús previst, tal com es descriu en aquest manual. Utilitzeu només els fitxers adjunts recomanats pel fabricant que figuren en aquest manual.
• No feu servir mai aquesta màquina de cosir si té un cable o endoll malmès, si no funciona correctament, si s’ha deixat caure o s’ha fet malbé o s’ha caigut a l’aigua.
• No deixeu caure ni introduïu cap objecte a cap obertura.

Contingut del paquet

Your Euro-Pro Dressmaker 998B Sewing Center package should include:

• Euro-Pro Dressmaker 998B Sewing Machine
• Adaptador d'alimentació
• 100-piece sewing accessories kit
• Pre-threaded setup (machine comes pre-threaded)

Característiques del producte

The Euro-Pro Dressmaker 998B Sewing Center is equipped with features designed for ease of use and versatility:

• Disseny compacte i portàtil: Its small size allows for easy storage and transport.
• Pre-threaded Operation: The machine comes pre-threaded, making it ready for immediate use.
• Easy Drop-in Bobbin: Simplifies bobbin changes and reduces tangles.
• Control de doble velocitat: Offers flexibility for different fabric types and sewing needs.
• Llum integrada: Illuminates the sewing area for improved visibility.
• Versatile Fabric Handling: Capable of sewing various fabrics, from delicate silk to heavy denim, with consistent stitch control.
• Opcions d'energia: Can be powered by the included AC adapter or 4 AA batteries (not included) for cordless operation.

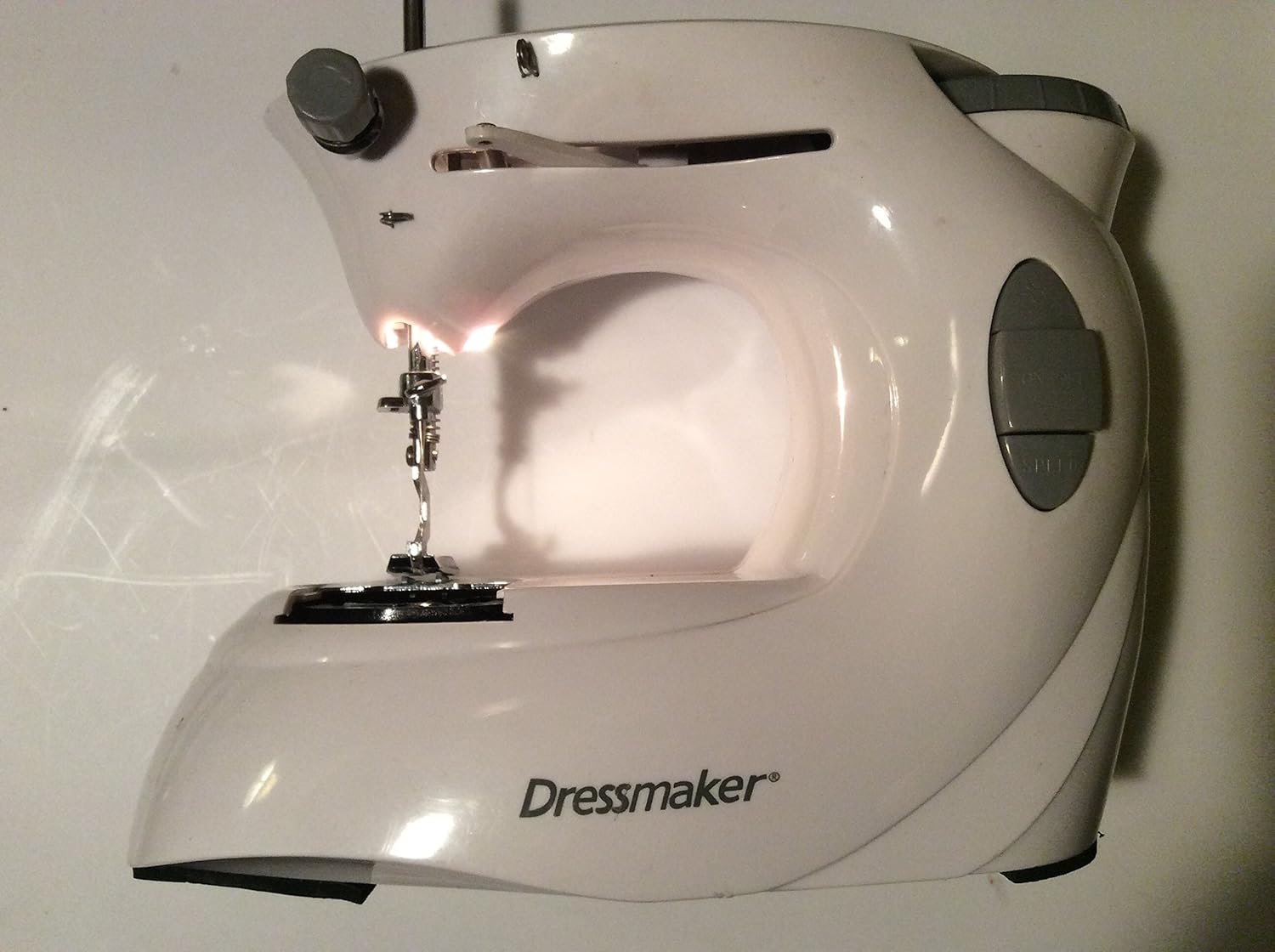

Image: The Euro-Pro Dressmaker 998B Sewing Machine, showing its compact design and the illuminated sewing area. The "Dressmaker" logo is visible on the front base.

Configuració

1. Desembalatge: Traieu amb cura la màquina de cosir i tots els accessoris de l'embalatge. Conserveu l'embalatge per a futurs emmagatzematges o transports.
2. Connexió d'alimentació:
   • Adaptador de CA: Insert the small end of the power adapter into the DC input jack on the machine. Plug the other end into a standard electrical outlet.
   • Funcionament amb bateria: If using batteries, open the battery compartment (usually on the bottom or back) and insert 4 AA batteries, ensuring correct polarity. Close the compartment securely.
3. Col·locació: Place the sewing machine on a stable, flat surface with adequate lighting.
4. Initial Threading Check: Although the machine comes pre-threaded, it is good practice to familiarize yourself with the threading path. Ensure the upper thread is correctly routed and the bobbin is properly seated in its drop-in compartment.

Instruccions de funcionament

Funcionament bàsic

1. Encès/apagat: Locate the ON/OFF switch, typically on the side or front panel. Switch it to "ON" to power the machine. The integrated light will illuminate.
2. Control de velocitat: The machine features dual speed control. Select "LOW" for slower, more precise stitching, or "HIGH" for faster sewing. This control is usually a switch or button near the power switch.
3. Col·locació de la tela: Lift the presser foot using the lever located behind the needle bar. Place your fabric under the presser foot, aligning the edge with the desired seam allowance. Lower the presser foot.
4. Començant a cosir: Gently press the foot pedal (if included) or activate the start button on the machine. Guide the fabric smoothly as the machine stitches. Do not pull or push the fabric forcefully.
5. Ending a Seam: When you reach the end of your seam, stop the machine. Lift the presser foot. Gently pull the fabric away from the needle, leaving a few inches of thread. Cut the threads using scissors or the built-in thread cutter (if available).

Canviar la bobina

The Euro-Pro Dressmaker 998B features an easy drop-in bobbin system:

1. Ensure the machine is turned OFF and unplugged.
2. Locate the bobbin cover plate, usually a clear plastic cover on the needle plate. Slide or lift it to open.
3. Remove the empty bobbin.
4. Insert a new, wound bobbin into the bobbin case, ensuring the thread unwinds in the correct direction (refer to markings on the bobbin case or machine).
5. Pull the bobbin thread through the tension spring and into the thread guide slot.
6. Replace the bobbin cover plate securely.

Canvi de l'agulla

Always use the correct type and size of needle for your fabric. Replace bent or dull needles immediately.

1. Apagueu i desconnecteu la màquina.
2. Baixeu el peu de premsa.
3. Afluixeu l'agulla clamp screw (usually on the side of the needle bar) by turning it counter-clockwise.
4. Carefully pull the old needle straight down and out.
5. Insert the new needle with the flat side facing the back of the machine. Push it up as far as it will go into the needle clamp.
6. Apretar l'agulla clamp cargol de manera segura.

Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim de la teva màquina de cosir.

• Neteja: Regularly clean lint and dust from the bobbin area and feed dogs using a small brush or lint remover. Always unplug the machine before cleaning.
• Lubricació: Refer to the specific lubrication points in your machine's detailed diagram (if provided in a physical manual). Use only sewing machine oil.
• Substitució de l'agulla: Change your needle frequently, especially after 8-10 hours of sewing or when it shows signs of dullness or bending.
• Emmagatzematge: When not in use, store the machine in a dry, dust-free environment. Use a dust cover if available.

Resolució de problemes

This section addresses common issues you might encounter with your sewing machine.

Especificacions

Garantia i Suport

The Euro-Pro Dressmaker 998B Sewing Center comes with a one-year warranty from the date of purchase, covering defects in materials and workmanship under normal use.

For warranty claims, technical support, or replacement parts, please contact Shark customer service. Keep your proof of purchase for warranty validation.

Note: Warranty terms may vary by region. Please refer to the warranty card included with your product for specific details.
