Dorman HELP! 03374 Cable Tip Repair Kit User Manual

1. Producte acabatview

The Dorman HELP! 03374 Cable Tip Repair Kit is designed to provide a universal solution for repairing damaged or worn cable tips. This kit allows for the restoration of proper cable function without the need to replace the entire cable assembly, offering a practical and economical repair option for various automotive applications.

This kit typically includes components necessary to create a new, secure cable end connection.

2. Components del kit

The Dorman HELP! 03374 Cable Tip Repair Kit contains the following essential components:

• Cable Tip (U-shaped metal piece): This component is designed to form the new end of the cable, providing a secure attachment point.
• Retaining Pin (Cylindrical pin): Used in conjunction with the cable tip to crimp and secure the cable within the tip.

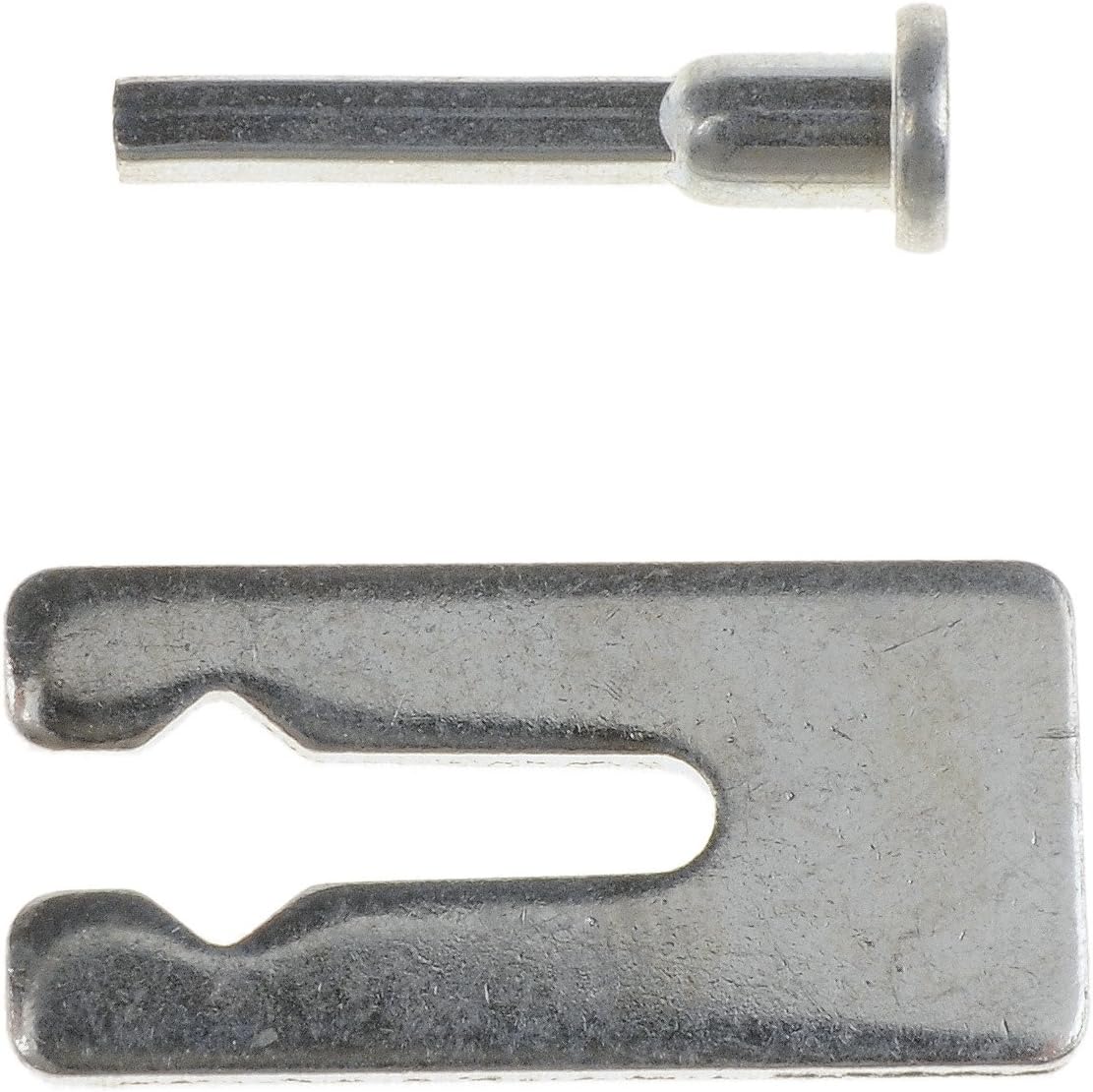

Figura 2.1: Mésview of the Dorman 03374 Cable Tip Repair Kit components, showing the U-shaped cable tip and the retaining pin.

Figura 2.2: superior view of the Dorman 03374 Cable Tip Repair Kit components, illustrating their shape and relative sizes.

3. Instruccions d'instal·lació

This section outlines the general procedure for installing the Dorman 03374 Cable Tip Repair Kit. Specific vehicle applications may vary, and it is recommended to consult a vehicle-specific service manual if available.

3.1 Eines necessàries (no incloses)

• Wire cutters or snips
• Crimping tool (pliers or specialized crimpers)
• Small hammer (optional, for final seating)
• Ulleres de seguretat

3.2 Passos d'instal·lació

1. Prepareu el cable: Carefully cut off the damaged or worn cable tip. Ensure the remaining cable end is clean and free of frayed wires. If necessary, strip a small amount of insulation to expose the bare cable strands, typically 1/4 to 1/2 inch, depending on the cable tip design.
2. Insert Cable into Tip: Slide the prepared end of the cable into the opening of the U-shaped cable tip. Ensure the cable is fully seated within the tip's channel.
3. Position Retaining Pin: Place the cylindrical retaining pin into the designated slot or hole within the U-shaped cable tip, over the cable. The pin should align to secure the cable within the tip.
4. Crimp the Tip: Using a crimping tool or strong pliers, carefully crimp the U-shaped cable tip around the cable and the retaining pin. Apply firm, even pressure to ensure a secure and tight connection. The goal is to deform the tip slightly to grip the cable and pin firmly.
5. Verifica la connexió: After crimping, gently pull on the cable to ensure the new tip is securely attached and does not slip. The connection should be robust and stable.
6. Funcionalitat de prova: Reconnect the cable to its intended component and test its operation to ensure proper functionality.

4. Ús i aplicació

The Dorman 03374 Cable Tip Repair Kit is intended for use in repairing various automotive cables where the original tip has failed or become damaged. Common applications include, but are not limited to, speedometer cables, throttle cables, and other control cables requiring a secure end connection.

This kit provides a universal repair solution, making it suitable for a wide range of vehicles and cable types, provided the dimensions are compatible.

5. Manteniment

The Dorman 03374 Cable Tip Repair Kit itself requires no maintenance once installed. However, regular inspection of all cable connections in your vehicle is recommended as part of routine vehicle maintenance. Check for signs of wear, corrosion, or loosening at all cable attachment points, including the repaired tip.

If the repaired tip shows signs of wear or damage, it should be replaced to ensure continued safe and reliable operation.

6. Solució De Problemes

If issues arise after installing the Dorman 03374 Cable Tip Repair Kit, consider the following:

• Cable Slips Out of Tip: This indicates an insufficient crimp. Ensure the cable is properly seated and apply more pressure with the crimping tool. The tip must be securely deformed around the cable and pin.
• Cable Functionality Issues: Verify that the cable length is correct after the repair and that there are no kinks or obstructions in the cable path. Ensure the cable is properly routed and connected at both ends.
• Tip Does Not Fit: Confirm that the cable diameter is compatible with the repair kit. This kit is designed for specific cable sizes.

If problems persist, it may be necessary to replace the entire cable assembly or seek professional assistance.

7. Especificacions

8. Informació de la garantia

Specific warranty details for the Dorman HELP! 03374 Cable Tip Repair Kit are not provided in this manual. For comprehensive warranty information, please refer to the official Dorman Products website or contact Dorman customer service directly. Retain your proof of purchase for any warranty claims.

9. Atenció al client

For technical assistance, product inquiries, or support regarding the Dorman HELP! 03374 Cable Tip Repair Kit, please contact Dorman Products customer service. Contact information can typically be found on the official Dorman Products weblloc (www.dormanproducts.com).

When contacting support, please have your product model number (03374) and any relevant purchase details ready.
