Manual d'usuari del connector de transmissió Dorman 800-605

1. Introducció

This manual provides essential information for the proper installation, operation, and maintenance of the Dorman 800-605 Transmission Connector. This product is designed as a direct replacement for specific GM applications, ensuring a reliable connection for transmission lines. Please read this manual thoroughly before installation to ensure safe and effective use.

2. Informació de seguretat

Observeu sempre les següents precaucions de seguretat durant la instal·lació i la manipulació:

• Wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when working with automotive fluids and components.
• Ensure the vehicle is properly supported on jack stands or a lift before working underneath it.
• Allow the transmission and engine to cool down before beginning work to avoid burns from hot fluids or components.
• Be aware of potential fluid leaks. Have appropriate containers ready to catch any draining transmission fluid.
• Si teniu dubtes sobre algun pas del procés d'instal·lació, consulteu un tècnic d'automoció qualificat.
• Dispose of old fluids and parts responsibly according to local regulations.

3. Producte acabatview

The Dorman 800-605 Transmission Connector is a precision-engineered component designed to provide a secure and leak-free connection for transmission cooler lines to the radiator or transmission housing. It features a durable construction and is pre-treated with thread sealant for ease of installation.

Característiques principals:

• Plug and Play design for straightforward installation.
• Direct replacement for original equipment (OE) connectors.
• Pre-applied thread sealant for a reliable seal.

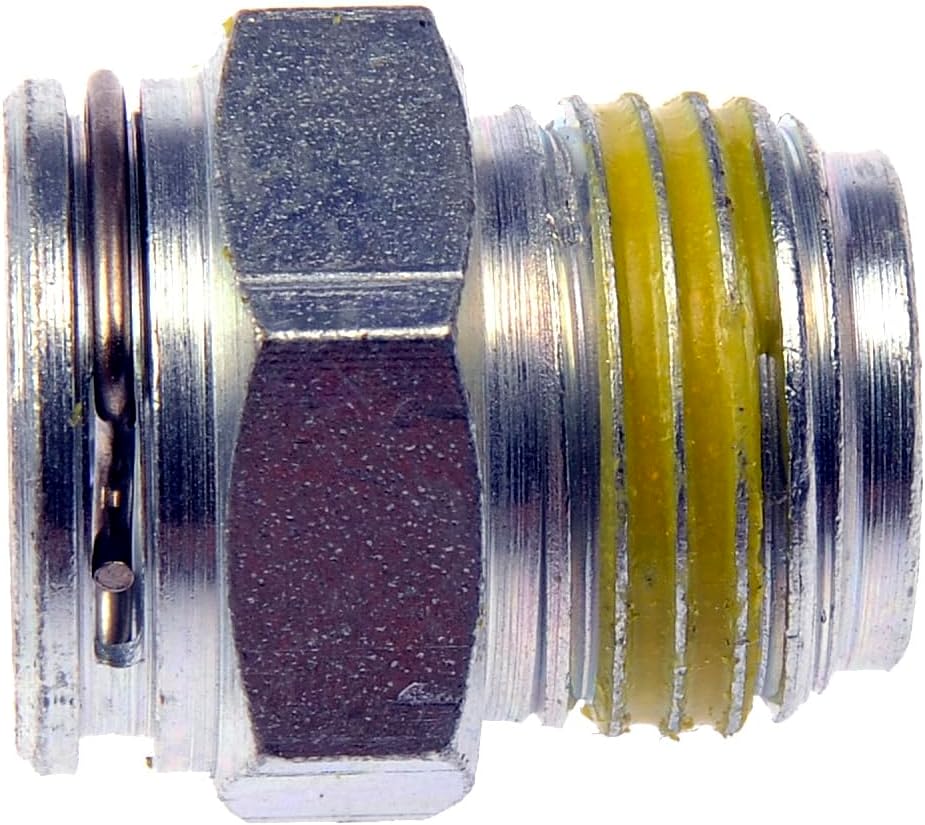

Figura 3.1: Angle view of the Dorman 800-605 Transmission Connector, showing the threaded end with sealant and the quick-connect end.

Figura 3.2: Frontal view of the Dorman 800-605 Transmission Connector, highlighting the quick-connect mechanism for the transmission line.

Figura 3.3: lateral view of the Dorman 800-605 Transmission Connector, showing the overall profile i dimensions.

4. Configuració i instal·lació

This section outlines the general steps for installing the Dorman 800-605 Transmission Connector. Specific vehicle repair procedures may vary. Always refer to your vehicle's service manual for detailed instructions.

Eines i materials necessaris:

• Socket wrench set (appropriate size for the connector)
• Drain pan for transmission fluid
• Draps nets
• New transmission fluid (if topping off or refilling)
• Guants i ulleres de seguretat

Passos d'instal·lació:

1. Preparar el vehicle: Park the vehicle on a level surface and engage the parking brake. Allow the engine and transmission to cool completely. Raise the vehicle safely using a lift or jack stands to access the transmission cooler lines and radiator/transmission housing.
2. Locate and Disconnect Old Connector: Identify the transmission cooler line connected to the old fitting. Place a drain pan underneath to catch any fluid. Use the appropriate tool to disconnect the transmission line from the old connector. Be prepared for some fluid to leak out.
3. Elimina el connector antic: Using a socket wrench, carefully unthread and remove the old transmission connector from the radiator or transmission housing. Note that factory fittings can be very tight and may require significant torque to remove. Ensure the threads in the radiator/housing are clean and free of debris.
4. Install New Dorman Connector: The Dorman 800-605 connector comes with pre-applied thread sealant. Carefully thread the new connector into the radiator or transmission housing by hand to ensure it starts correctly. Then, use a socket wrench to tighten it to the manufacturer's specified torque. Do not overtighten.
5. Connect Transmission Line: Push the transmission cooler line firmly into the new Dorman connector until it clicks into place, indicating a secure connection. Gently pull on the line to confirm it is seated properly and cannot be easily pulled out.
6. Comproveu si hi ha fuites: Lower the vehicle. Start the engine and allow it to reach operating temperature. Check for any transmission fluid leaks around the newly installed connector. If leaks are present, shut off the engine immediately and re-check the connection.
7. Comprovar el nivell de líquid: After installation and leak check, verify the transmission fluid level according to your vehicle's service manual and add fluid if necessary.

5. Funcionament

The Dorman 800-605 Transmission Connector is a passive component that facilitates the flow of transmission fluid. Once correctly installed, its operation is integrated into the vehicle's transmission cooling system. No user interaction is required for its operation beyond proper installation.

6. Manteniment

The Dorman 800-605 Transmission Connector is designed for long-term durability and typically requires no specific maintenance after proper installation. However, it is recommended to periodically inspect the connection point during routine vehicle maintenance for any signs of:

• Fuites de fluids
• Corrosió
• Physical damage to the connector or the transmission line.

Address any issues promptly to prevent potential transmission damage.

7. Solució De Problemes

If you encounter issues after installing the Dorman 800-605 Transmission Connector, consider the following:

If troubleshooting steps do not resolve the issue, contact Dorman customer support or a certified mechanic.

8. Especificacions

9. Garantia i Suport

For information regarding product warranty, returns, or technical support, please refer to the official Dorman website or contact Dorman customer service directly. Keep your purchase receipt as proof of purchase.

Dorman Customer Service: Si us plau, visiteu dormanproducts.com/pages/contact-us per obtenir informació de contacte i recursos de suport.
