Panasonic D-dock SD Stereo System SC-PM730SD Instruction Manual

1. Introducció

This manual provides essential information for the safe and efficient operation of your Panasonic D-dock SD Stereo System, model SC-PM730SD. Please read these instructions thoroughly before using the unit and retain them for future reference.

2. Producte acabatview

The Panasonic SC-PM730SD is a versatile stereo system featuring a 5-CD changer, MD player, SD card slot for recording and playback, AM/FM radio, and a cassette deck. It is designed for high-quality audio playback and convenient digital recording.

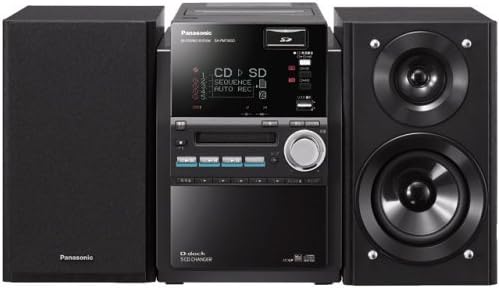

Figure 2.1: Complete Panasonic SC-PM730SD Stereo System with main unit and two speakers.

Figure 2.2: Front panel of the main unit, displaying the screen, CD tray, and various control buttons.

Figure 2.3: All components included with the SC-PM730SD system, including the main unit, remote control, and antenna.

3. Configuració

3.1 Desembalatge i col·locació

• Traieu amb cura tots els components de l'embalatge.
• Place the main unit and speakers on a stable, flat surface. Ensure adequate ventilation around the unit.
• Mantingueu la unitat allunyada de la llum solar directa, de fonts de calor i de la humitat.

3.2 Connexió dels altaveus

Connect the supplied speakers to the speaker terminals on the rear of the main unit. Ensure correct polarity (red to red, black to black) for optimal sound quality.

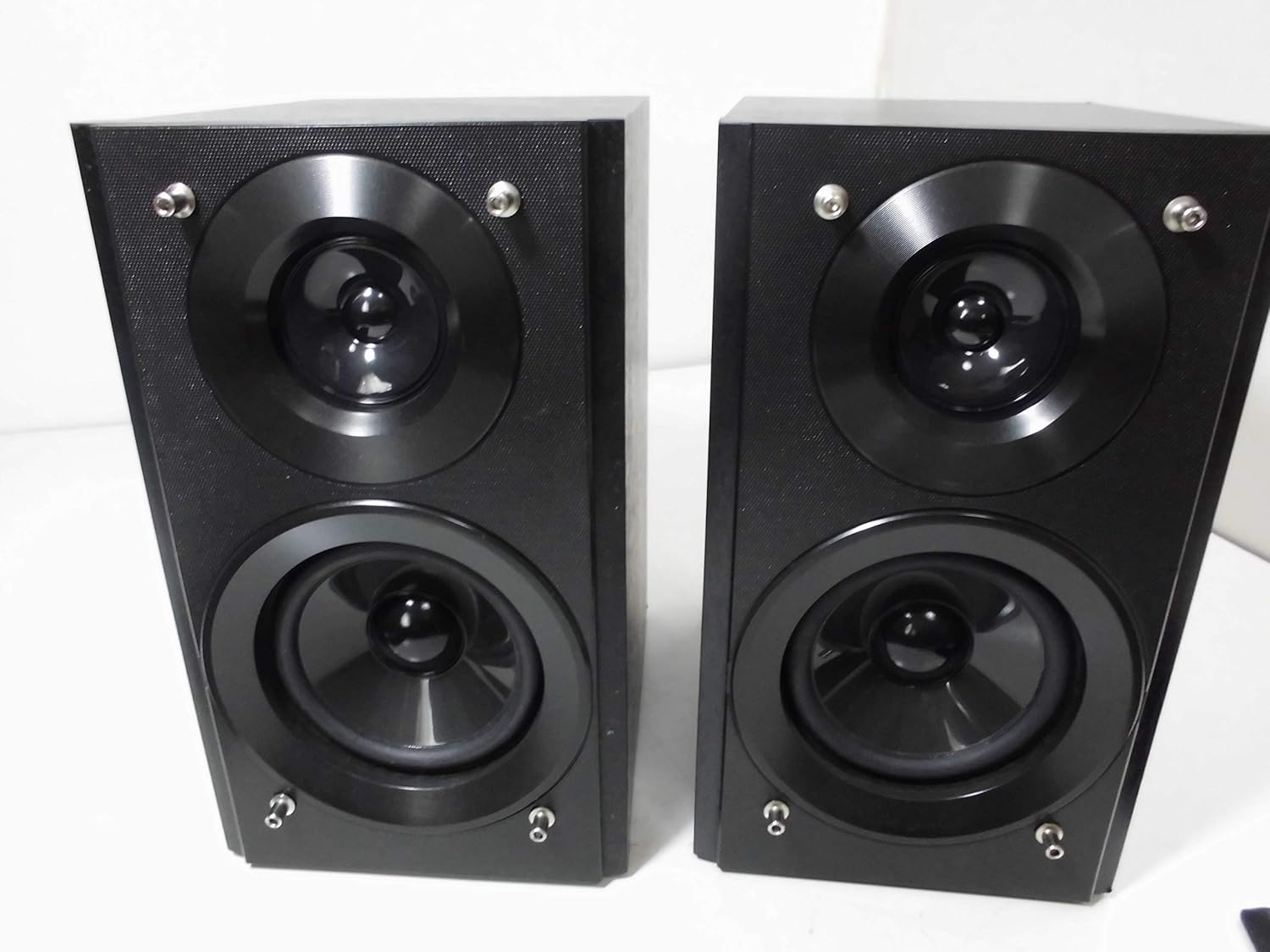

Figure 3.1: The two-way speakers included with the system.

3.3 Connexió de l'antena

Connect the FM antenna to the FM antenna terminal and the AM loop antenna to the AM antenna terminals on the rear of the unit for radio reception.

3.4 Connexió d'alimentació

Plug the power cord into an AC outlet. The unit is now ready for operation.

Figure 3.2: Rear panel connections, including speaker terminals, antenna inputs, and power input.

4. Instruccions de funcionament

4.1 Encès/Apagat

• Premeu el botó PODER button on the unit or remote control to turn the system on or off.

4.2 Reproducció de CD

• Premeu el botó CD botó per seleccionar la funció CD.
• Open the CD tray and place up to 5 CDs.
• Premeu JUGAR per iniciar la reproducció.

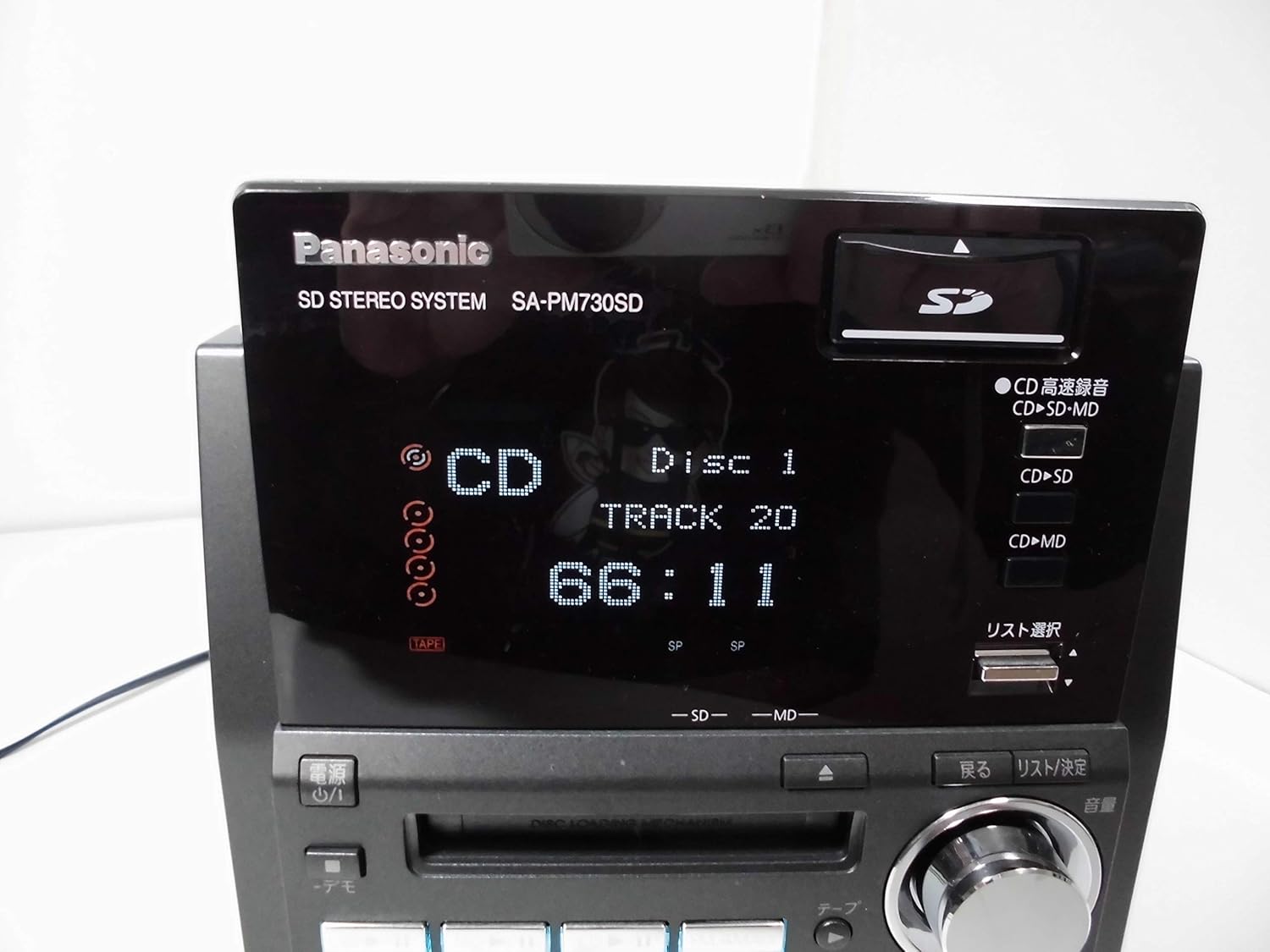

Figure 4.1: The display showing CD playback details, including disc and track number, and elapsed time.

4.3 MD Playback

• Premeu el botó MD per seleccionar la funció MD.
• Insert an MD into the MD slot.
• Premeu JUGAR per iniciar la reproducció.

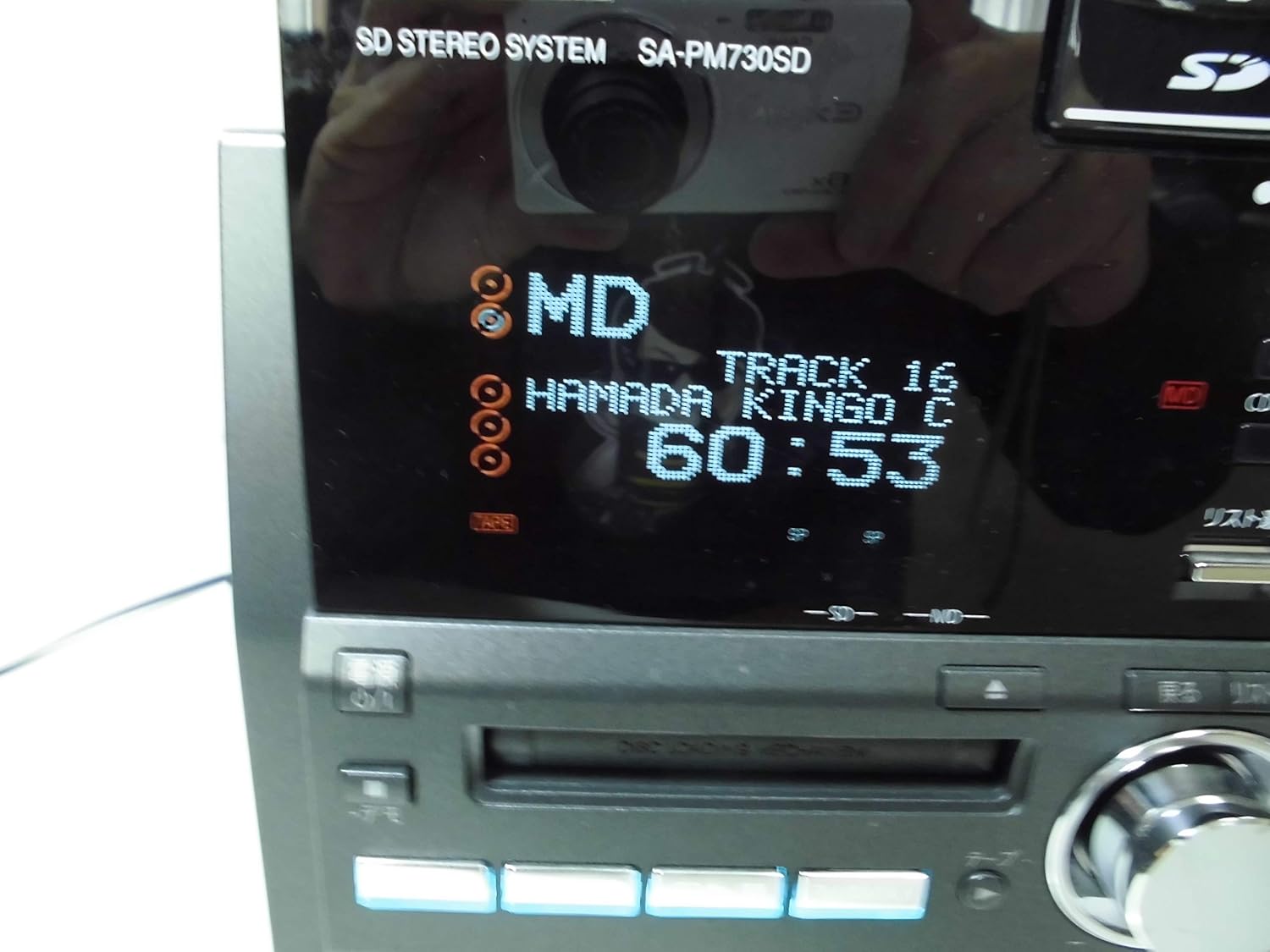

Figure 4.2: The display showing MD playback details, including track number and elapsed time.

4.4 SD Card Playback

• Inseriu una targeta SD a la ranura per a targetes SD.
• Premeu el botó SD button to select the SD function.
• Use the navigation buttons to select desired tracks or albums.
• Premeu JUGAR per iniciar la reproducció.
• Note: A miniSD adapter is required for miniSD cards.

4.5 Funcionament de la ràdio

• Premeu el botó SINTONIZADOR/BANDA botó per seleccionar la ràdio FM o AM.
• Use the tuning buttons to find desired stations.
• Premeu el botó PRESET buttons to store or recall favorite stations.

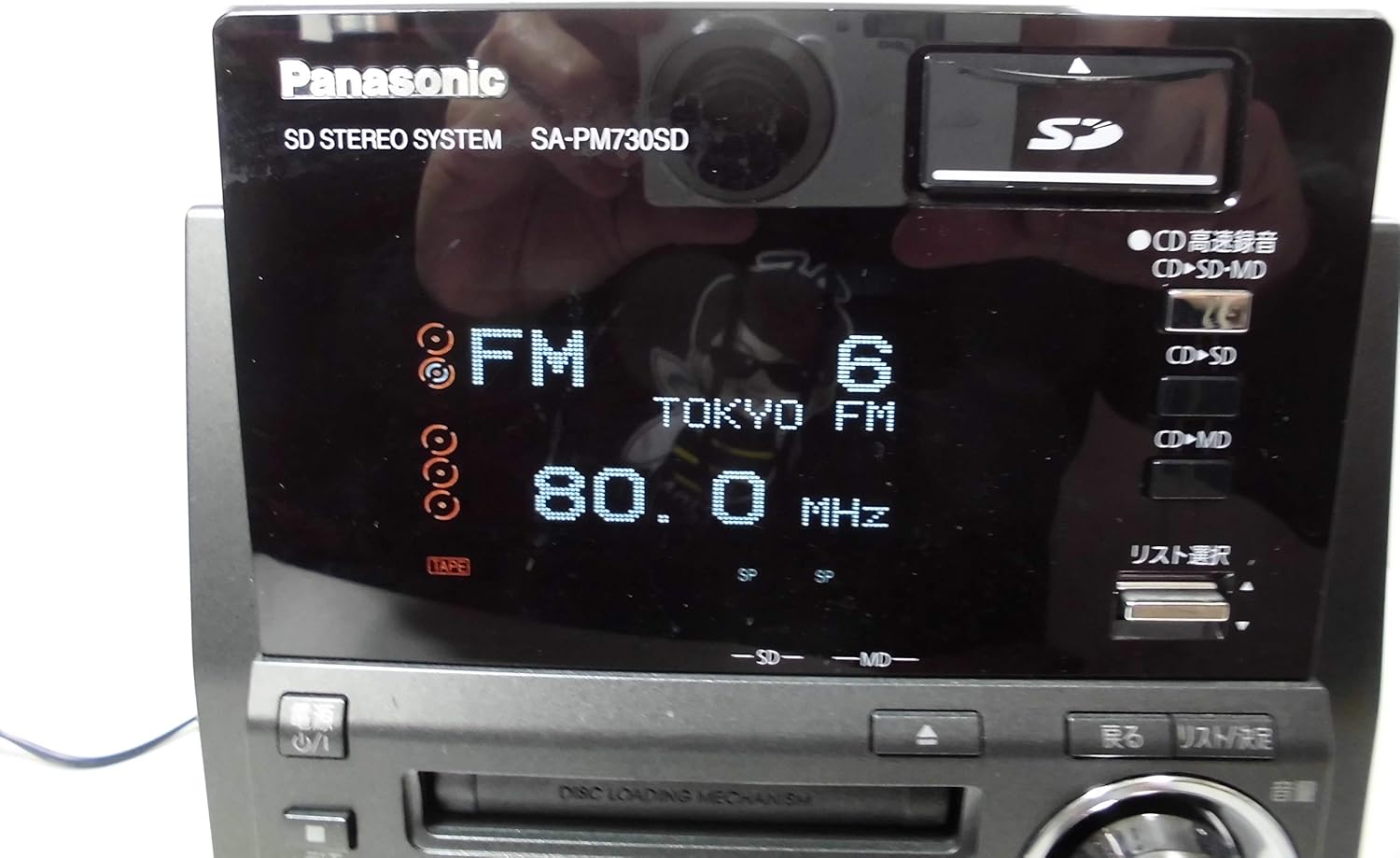

Figure 4.3: The display showing FM radio frequency and station name.

4.6 Reproducció de cassets

• Premeu el botó CINTA button to select the cassette function.
• Open the cassette deck and insert a cassette tape.
• Premeu JUGAR per iniciar la reproducció.

Figure 4.4: The cassette deck opened, ready for tape insertion.

5. Funcions d'enregistrament

The SC-PM730SD offers various recording options, including direct recording to SD cards without a PC.

5.1 CD to SD/MD Recording

• One-Button 5-CD Recording: Load up to 5 CDs. Press the dedicated recording button (often labeled 'One-Button' or 'CD-SD/MD Rec') to initiate continuous high-speed recording from all loaded CDs to an SD card or MD.
• CD to SD/MD Continuous Recording: This feature allows simultaneous recording to both SD and MD from a CD source.
• High-Speed CD to MD Recording: CD to MD recording can be performed at speeds up to 6x.

5.2 Recording from MD, Radio, or Tape to SD

• Select the desired source (MD, Radio, or Tape).
• Inseriu una targeta SD.
• Premeu el botó REGISTRAR button to begin recording the audio from the selected source to the SD card.

5.3 Notes on High-Speed Recording

• Recordings from sources other than CD to MD or CD to SD will be analog recordings.
• After a high-speed recording session, approximately 74 minutes must pass before the same CD can be high-speed recorded again. This applies even if recording is stopped midway. Normal speed recording is still possible during this period.
• Up to 24 different CDs can be high-speed recorded within approximately 74 minutes. The 25th CD cannot be high-speed recorded within this timeframe.
• High-speed recording from CD to MD/SD memory card may not always reach maximum speed or may not be possible depending on the disc condition and other factors. CD-RW discs will record at 2x speed.
• High-speed recording is not possible when recording WMA/MP3 files or when the unit is switched to analog recording mode.
• High-speed recording does not always achieve maximum speeds (7x/6x/5x) due to inherent speed variations between the inner and outer circumference of the CD.
• Audio is not audible during high-speed recording.
• For an 80-minute MD, recording times are: up to 320 minutes in LP4 mode, up to 160 minutes in LP2 mode, and up to 80 minutes in SP mode.

6. Audio Quality Features

The SC-PM730SD is engineered to deliver high-quality sound through its advanced speaker design and audio processing.

• AAC Re-Master: This technology enhances the quality of SD audio, bringing it closer to CD-level fidelity.
• 2-Way Speakers: The system includes 2-way speakers designed for a balanced audio output.
• PP Mica Cone Tweeter: Utilizes a PP mica cone tweeter to produce clear and transparent high frequencies.
• PP Aramid Fiber Woofer: Features a PP aramid fiber woofer, which incorporates aramid fibers into the diaphragm to reproduce vocal ranges with enhanced clarity.

7. Display and Remote Control

The system is designed for user-friendliness with its intuitive display and remote control.

• Large 5-Line Display: The main unit features a large display capable of showing 5 lines of text, making information easy to read and navigate.
• Large Remote Control: The included remote control is designed for ease of use, with clear buttons and Japanese language display for intuitive operation.

8. Manteniment

8.1 Neteja de la unitat

• Netegeu la unitat amb un drap suau i sec.
• Do not use abrasive cloths, waxes, or solvents.

8.2 CD/MD/Cassette Care

• Manipuleu els CD i els MD per les vores per evitar empremtes dactilars i ratllades.
• Keep cassette tapes away from magnetic fields.

9. Solució De Problemes

If you experience issues with your SC-PM730SD, refer to the following common solutions:

• Sense energia: Ensure the power cord is securely plugged into both the unit and the AC outlet.
• Sense so: Check speaker connections, volume level, and ensure the correct input source is selected.
• Problemes de reproducció de discs: Assegureu-vos que el disc estigui net i no tingui ratllades. Proveu-ne un altre.
• Radio Reception Poor: Adjust the position of the FM and AM antennas.
• Problemes de gravació: Verify that the SD card or MD has sufficient free space and is not write-protected. Refer to the 'Notes on High-Speed Recording' section for specific limitations.

Si els problemes persisteixen, consulteu un tècnic de servei qualificat.

10. Especificacions

11. Garantia i Suport

Per obtenir informació sobre la garantia i assistència al client, consulteu la targeta de garantia inclosa amb el producte o visiteu el lloc web oficial de Panasonic. weblloc web. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
