SpeakerCraft AIM7 MT One In-Wall Speaker System User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your SpeakerCraft AIM7 MT One In-Wall Speaker System. Please read this manual thoroughly before beginning installation to ensure proper setup and optimal performance. The SpeakerCraft AIM7 MT One is designed and engineered in the USA to deliver high-quality audio performance within an in-wall configuration.

2. Producte acabatview

The SpeakerCraft AIM7 MT One is an in-wall speaker system featuring a 7-inch speaker size and a pivoting tweeter for directional sound. It is designed for a 1.0 surround sound channel configuration and offers a maximum output power of 150 Watts with a 6 Ohm impedance. Its wired connectivity ensures a stable audio signal.

Figura 1: Davant view of the SpeakerCraft AIM7 MT One In-Wall Speaker. This image displays the speaker's white frame, the central black speaker cone, and the small, adjustable tweeter located in the lower right quadrant, designed for in-wall installation.

3. Informació de seguretat

• Seguretat elèctrica: Always disconnect power to the installation area before performing any wiring. Consult a qualified electrician if you are unsure about electrical connections.
• Ubicació de la instal·lació: Ensure the wall cavity is free of electrical wires, plumbing, and other obstructions before cutting. Use a stud finder to locate studs and avoid them.
• Pes: The speaker weighs approximately 10 pounds. Ensure the mounting surface can safely support this weight.
• Eines: Use appropriate safety gear, such as eye protection, when using power tools for installation.
• Humitat: This product is not waterproof. Avoid installation in areas exposed to moisture or high humidity.

4. Instal·lació i configuració

Proper installation is crucial for optimal sound performance and safety. Follow these steps carefully.

4.1 Eines necessàries

• Cercador de sementals
• Llapis
• Cinta mètrica
• Serra de guix o ganivet multiusos
• Pelacables
• Tornavís (cap Phillips)
• Speaker wire (appropriate gauge for length)

4.2 Ubicació de muntatge

Select a location in the wall that is free of obstructions and provides adequate space for the speaker. Consider acoustic properties and listening area for best sound dispersion.

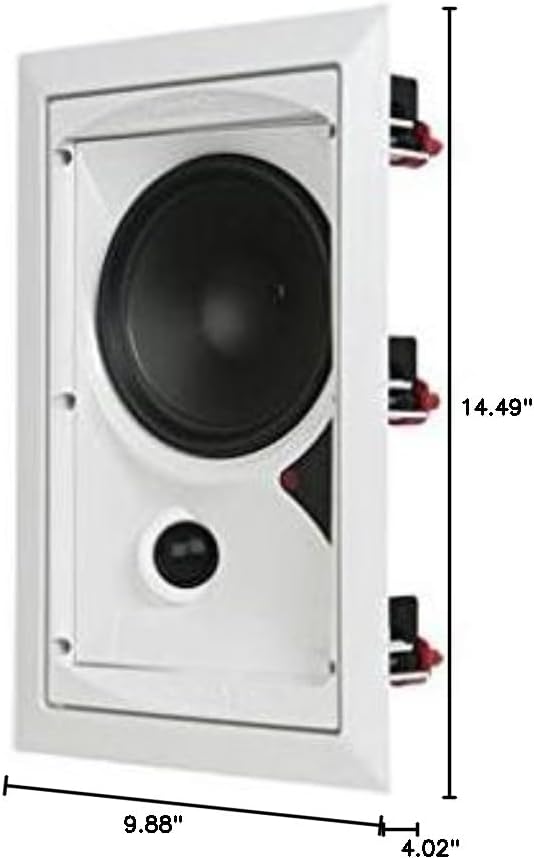

Figura 2: Dimensions of the SpeakerCraft AIM7 MT One In-Wall Speaker. The image shows the speaker's height (14.49 inches), width (9.88 inches), and depth (4.02 inches), along with the mounting clamps on the side.

• Dimensions del producte: 4.02"D x 9.88"W x 14.49"H. Ensure sufficient depth within the wall cavity.
• Plantilla retallada: A cutout template is typically provided with the speaker for precise wall opening. If not available, carefully trace the inner frame of the speaker onto the wall, ensuring a snug fit.

4.3 Cablejat

1. Passa el cable de l'altaveu des del teu amplifier or receiver to the chosen speaker location. Leave enough slack for connection.
2. Strip approximately 1/2 inch of insulation from the ends of the speaker wires.
3. Connect the positive (+) terminal of the speaker to the positive (+) terminal of your amplifier, and the negative (-) terminal of the speaker to the negative (-) terminal of your amplifier. Ensure correct polarity for all speakers in your system.

4.4 Instal·lació d'altaveus

1. After cutting the opening in the wall, feed the speaker wires through the opening.
2. Connect the speaker wires to the binding posts on the back of the speaker.
3. Carefully insert the speaker into the wall opening.
4. Tighten the mounting screws (usually located on the front baffle) which will engage the dog-leg clamps to secure the speaker firmly to the drywall. Do not overtighten.
5. Adjust the pivoting tweeter to direct high frequencies towards the primary listening area.

5. Funcionament

Once installed and wired, your SpeakerCraft AIM7 MT One speakers are ready for use.

• Encès: Enceneu el vostre amplifier/receiver and select the appropriate audio source.
• Control de volum: Ajusteu el nivell de volum del vostre amplifier/receiver. Start at a low volume and gradually increase it to a comfortable listening level.
• Ajust de so: Si el teu amplifier has tone controls (bass/treble) or an equalizer, you can use these to fine-tune the sound to your preference. The pivoting tweeter allows for directional adjustment of high frequencies.

6. Manteniment

The SpeakerCraft AIM7 MT One speakers require minimal maintenance.

• Neteja: Gently wipe the speaker grille and frame with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Eliminació de la reixa: If necessary, the grille can be carefully removed for cleaning or painting. Use a small hook or bent paperclip to gently pull the grille away from the frame.
• Condicions ambientals: Avoid exposing the speakers to extreme temperatures or direct sunlight for extended periods.

7. Solució De Problemes

8. Especificacions

9. Garantia i Suport

The SpeakerCraft AIM7 MT One In-Wall Speaker System comes with a Garantia limitada. For specific terms and conditions of your warranty, please refer to the documentation included with your purchase or visit the official SpeakerCraft weblloc.

For technical support, service, or further inquiries, please contact SpeakerCraft customer service. Contact information can typically be found on the manufacturer's weblloc.
