Introducció
This manual provides detailed instructions for the installation and care of your Leviton 88018 1-Gang .406 Inch Cable Wallplate. This standard-sized wallplate is designed to provide a clean, finished appearance for a single cable pass-through in residential or commercial settings. Constructed from durable thermoset plastic with a smooth white finish, it is suitable for various applications.
Informació important de seguretat
WARNING: To avoid fire, shock, or death; turn off power at circuit breaker or fuse box and test that power is off before wiring!
Always follow local electrical codes and regulations. If you are unsure about any part of these instructions, consult a qualified electrician. This product is intended for indoor use only. Do not use if the product appears damaged.
Configuració i instal·lació
Eines necessàries:
- Screwdriver (Phillips or Flathead, depending on existing screws)
- Ulleres de seguretat
- Wire cutters/strippers (if cable modification is needed)
Passos d'instal·lació:
- Step 1: Disconnect Power. Locate the circuit breaker or fuse that supplies power to the outlet box where the wallplate will be installed. Turn off the power completely. Verify power is off using a voltage provador.
- Step 2: Remove Existing Wallplate (if applicable). Carefully unscrew and remove any existing wallplate from the electrical box. If there are any wires, ensure they are safely tucked into the box.
- Step 3: Prepare Cable. Guide the cable (e.g., telephone, coaxial) through the .406 inch diameter hole in the new Leviton 88018 wallplate. Ensure sufficient cable length is available for connection to your device.
-
Step 4: Mount the Wallplate. Align the Leviton 88018 wallplate over the electrical box. Use the provided screws to secure the wallplate to the box. Do not overtighten.
Imatge: Frontal view of the Leviton 88018 1-Gang .406 Inch Cable Wallplate, showing the single cable opening and screw holes.
- Step 5: Secure Cable (Optional). If your cable requires additional securing within the wall or box, ensure it is done according to best practices to prevent strain on the wallplate.
- Step 6: Restore Power. Once the wallplate is securely installed and all connections are made, restore power at the circuit breaker or fuse box.
Instruccions de funcionament
The Leviton 88018 wallplate is a passive component designed to provide a finished opening for a single cable. No operational steps are required beyond proper installation. Its function is to provide a neat and secure pass-through for your cable.
Manteniment
To maintain the appearance and functionality of your wallplate:
- Clean the wallplate with a soft, slightly damp tela.
- Eviteu utilitzar netejadors abrasius, productes químics agressius o dissolvents, ja que poden danyar l'acabat.
- Ensure the area around the cable opening remains clear of dust and debris.
Resolució de problemes
- Problem: Wallplate does not fit the electrical box.
- Solució: Verify that the electrical box is a standard single-gang size. The Leviton 88018 is a standard size wallplate. Check the dimensions of your box against the product specifications.
- Problem: Cable does not pass through the hole.
- Solució: Ensure your cable's diameter is no larger than .406 inches. This wallplate is designed for specific cable sizes. Do not force the cable, as this may damage the wallplate or the cable.
- Problem: Wallplate feels loose after installation.
- Solució: Ensure the mounting screws are tightened securely. Do not overtighten, as this can crack the wallplate. If the electrical box is recessed, you may need longer screws or spacers.
Especificacions
| Atribut | Detall |
|---|---|
| Número de model | 88018 |
| Marca | Leviton |
| Material | Thermoset Plastic |
| Color | Blanc |
| Configuració | 1-Gang, Single Hole |
| Diàmetre del forat | 0.406 polzades |
| Dimensions del producte (amplada x alçada) | 2.75 cm x 4.5 cm |
| Pes de l'article | 0.09 lliures |
| Aprovacions | UL, CSA |
| UPC | 078477444351 |

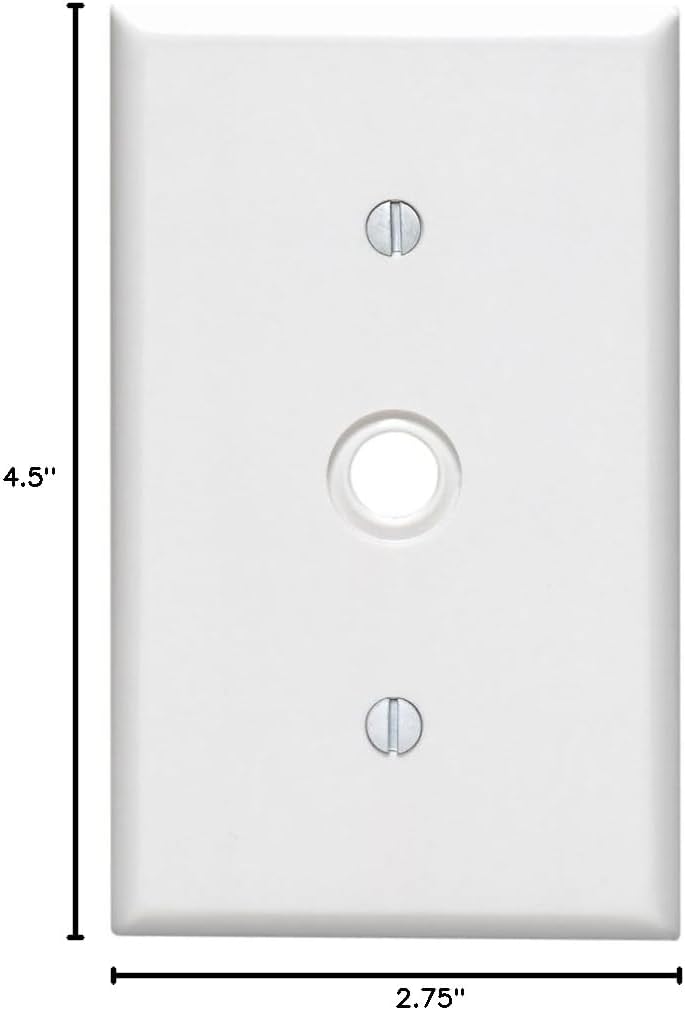

Image: Dimensional drawing of the Leviton 88018 wallplate, indicating a width of 2.75 inches and a height of 4.5 inches.
Informació de la garantia
This Leviton product is covered by a manufacturer's warranty. For specific details regarding warranty coverage, terms, and how to make a claim, please refer to the documentation included with your purchase or visit the official Leviton website. Warranty terms may vary by region and product type.
Atenció al client
For technical assistance, product inquiries, or additional support, please contact Leviton customer service. You can typically find contact information, FAQs, and support resources on the official Leviton weblloc:
