Metra 99-7506 Single DIN/Double DIN Installation Kit

Introducció

This instruction manual provides detailed guidance for installing the Metra 99-7506 Single DIN/Double DIN Installation Kit in 2006-2008 Mazda Miata MX-5 vehicles. This kit is designed to facilitate the installation of an aftermarket single or double DIN radio while retaining the factory climate controls in their original location. Please read all instructions carefully before beginning the installation process.

Informació de seguretat

• Always disconnect the vehicle's negative battery terminal before beginning any electrical installation to prevent electrical shorts and damage.
• Feu servir equips de protecció individual adequats, com ara ulleres de seguretat, durant la instal·lació.
• Assegureu-vos que totes les connexions estiguin ben fixades i degudament aïllades per evitar curtcircuits.
• Si teniu dubtes sobre alguna part del procés d'instal·lació, consulteu un tècnic d'automoció qualificat.
• Do not modify the vehicle's wiring harness or components unless specifically instructed.

Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• Metra 99-7506 Installation Kit (main dash panel and radio housing)
• Manual d'instruccions
• Mounting brackets and hardware (if applicable)
• Storage pocket (for single DIN installations)

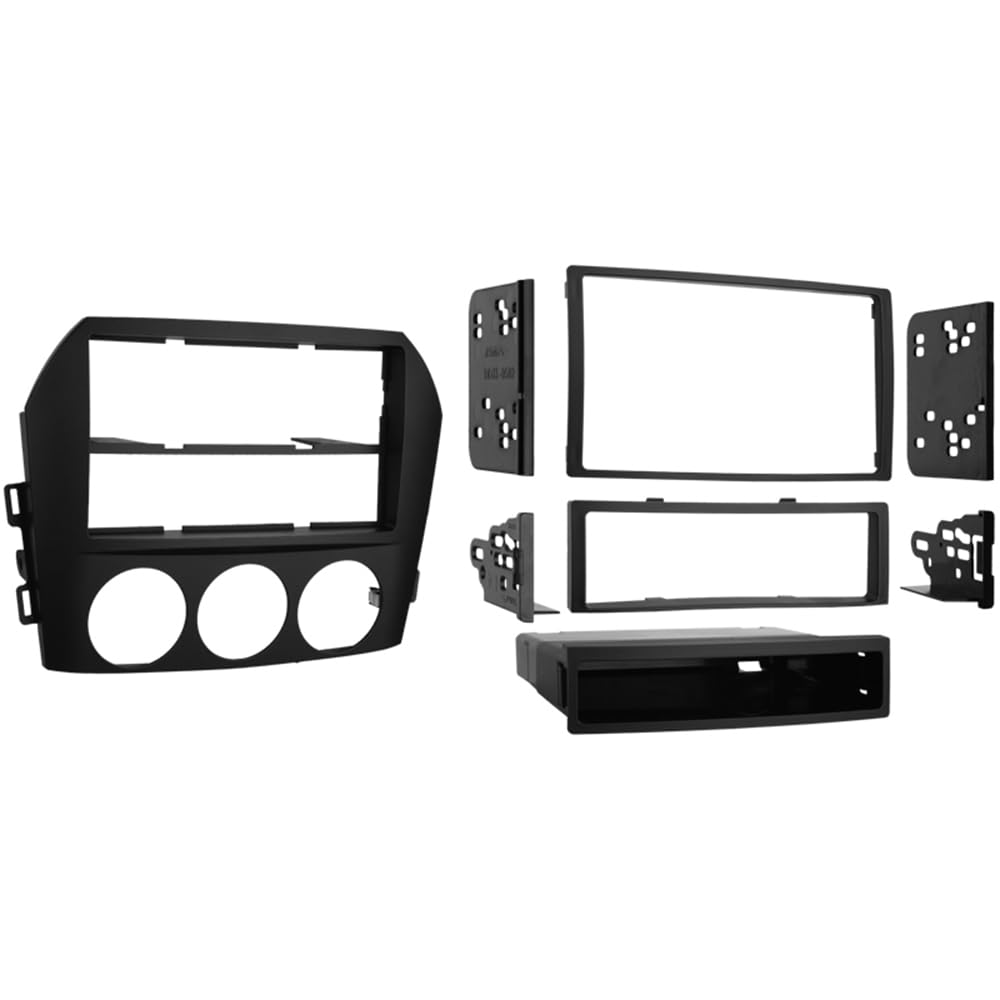

Image: The Metra 99-7506 installation kit, showing the main dash panel with openings for a radio and climate controls, and a separate storage pocket for single DIN installations.

Eines necessàries

Normalment es necessiten les eines següents per a la instal·lació:

• Eina d'eliminació de panells
• Tornavís de cap Phillips
• Tornavís petit de cap pla
• Talladors/pellaferros
• Crimping tool (for wire connections)
• Cinta elèctrica o tub termoretractable

Instruccions d'instal·lació

Follow these steps to install the Metra 99-7506 kit and your aftermarket radio:

1. Preparar el vehicle: Disconnect the negative battery terminal. Carefully remove the factory radio and dash trim panels according to your vehicle's service manual.
2. Remove Factory Climate Controls: Detach the factory climate control unit from the original dash panel. This unit will be transferred to the new Metra kit.
3. Install Climate Controls into Kit: Secure the factory climate control unit into the designated opening on the Metra 99-7506 dash panel. Ensure it snaps securely into place.
4. Assemble Radio Housing:
   • Per Doble DIN radio installation: Attach the provided mounting brackets to your aftermarket double DIN radio.
   • Per Individual DIN radio installation: Attach the provided mounting brackets to your aftermarket single DIN radio. Then, install the included storage pocket below the radio in the kit's lower opening.
5. Secure Radio to Kit: Mount the assembled radio (with brackets) into the Metra dash panel. The kit features a quick-release, snap-in ISO mount system with a custom trim ring for a secure fit.
6. Connexions de cable: Connect the aftermarket radio's wiring harness to the vehicle's wiring harness using appropriate adapters (sold separately) and secure all connections. Reconnect any climate control wiring.
7. Funcionalitat de prova: Before reassembling the dash, temporarily reconnect the battery and test the radio and climate control functions to ensure everything is working correctly.
8. Reassemble Dash: Once all functions are verified, disconnect the battery again. Carefully reinstall the Metra dash panel with the new radio and climate controls into the vehicle's dashboard. Reattach all trim panels and secure them.
9. Connexió final: Torneu a connectar el terminal negatiu de la bateria.

Instruccions de funcionament

The Metra 99-7506 installation kit primarily provides a housing for your aftermarket radio and retains the factory climate controls. Operation of the aftermarket radio will be according to its manufacturer's instructions. The factory climate controls will function as they did prior to the installation, maintaining their original location and functionality within the new dash panel.

Manteniment

The Metra 99-7506 installation kit requires minimal maintenance. To keep the dash panel clean:

• Netegeu la superfície amb un suau, damp tela.
• Eviteu utilitzar productes químics agressius o netejadors abrasius, ja que poden danyar l'acabat.
• Ensure no liquids seep into the radio or climate control openings.

Resolució de problemes

Si teniu problemes després de la instal·lació, tingueu en compte el següent:

• La ràdio no s'encén: Check all wiring connections, especially the power and ground wires. Ensure the vehicle's battery is properly connected and charged.
• Climate Controls Not Functioning: Verify that the climate control unit is securely seated in the Metra dash panel and all electrical connectors are properly attached.
• Mal ajust: Double-check that all mounting tabs and clips on the Metra kit and vehicle dash are aligned and engaged. Some aftermarket radios may require minor trimming of the kit's internal plastic for optimal fit; refer to your radio's manual for specific mounting requirements.
• Dash Panel Gaps: Ensure all screws and fasteners are tightened, and the dash panel is fully seated.

If problems persist, consult a professional installer or contact Metra customer support.

Especificacions

Garantia i Suport

This Metra product comes with a 1 anys de garantia limitada. For warranty claims or technical support, please contact Metra Electronics Corp. customer service. Keep your proof of purchase for warranty validation.

For additional resources and contact information, visit the official Metra weblloc: www.metraonline.com
