1. Introducció
This manual provides detailed instructions for the safe and effective use of your Nikon D40 Digital SLR Camera Kit, including the 18-135mm f/3.5-5.6G ED-IF AF-S DX Zoom-Nikkor Lens. Please read this manual thoroughly before using your camera to ensure proper operation and to maximize its performance.
2. Informació de seguretat
To prevent injury or damage to your camera, always observe the following safety precautions:
- Do not disassemble or modify the camera or lens.
- Mantingueu la càmera allunyada de l'aigua i la humitat.
- Avoid exposing the camera to extreme temperatures or direct sunlight for extended periods.
- Use only Nikon-approved accessories and power sources.
- Mantenir fora de l'abast dels nens petits.
3. Parts de la càmera
Familiarize yourself with the various components of your Nikon D40 camera.
Figura 3.1: Frontal View of Nikon D40 Camera Body. This image shows the front of the Nikon D40 camera body, highlighting the lens mount, flash, and grip area. The Nikon logo is visible at the top, and the D40 model designation is on the right side of the body.
Figura 3.2: superior View of Nikon D40 Camera Body. This image displays the top panel of the Nikon D40, featuring the mode dial, shutter release button, command dial, and hot shoe for external flash units. The power switch is integrated around the shutter button.
Figura 3.3: A baix View of Nikon D40 Camera Body. This image shows the underside of the Nikon D40, including the battery compartment door, tripod socket, and product information labels such as the model number and manufacturing details.

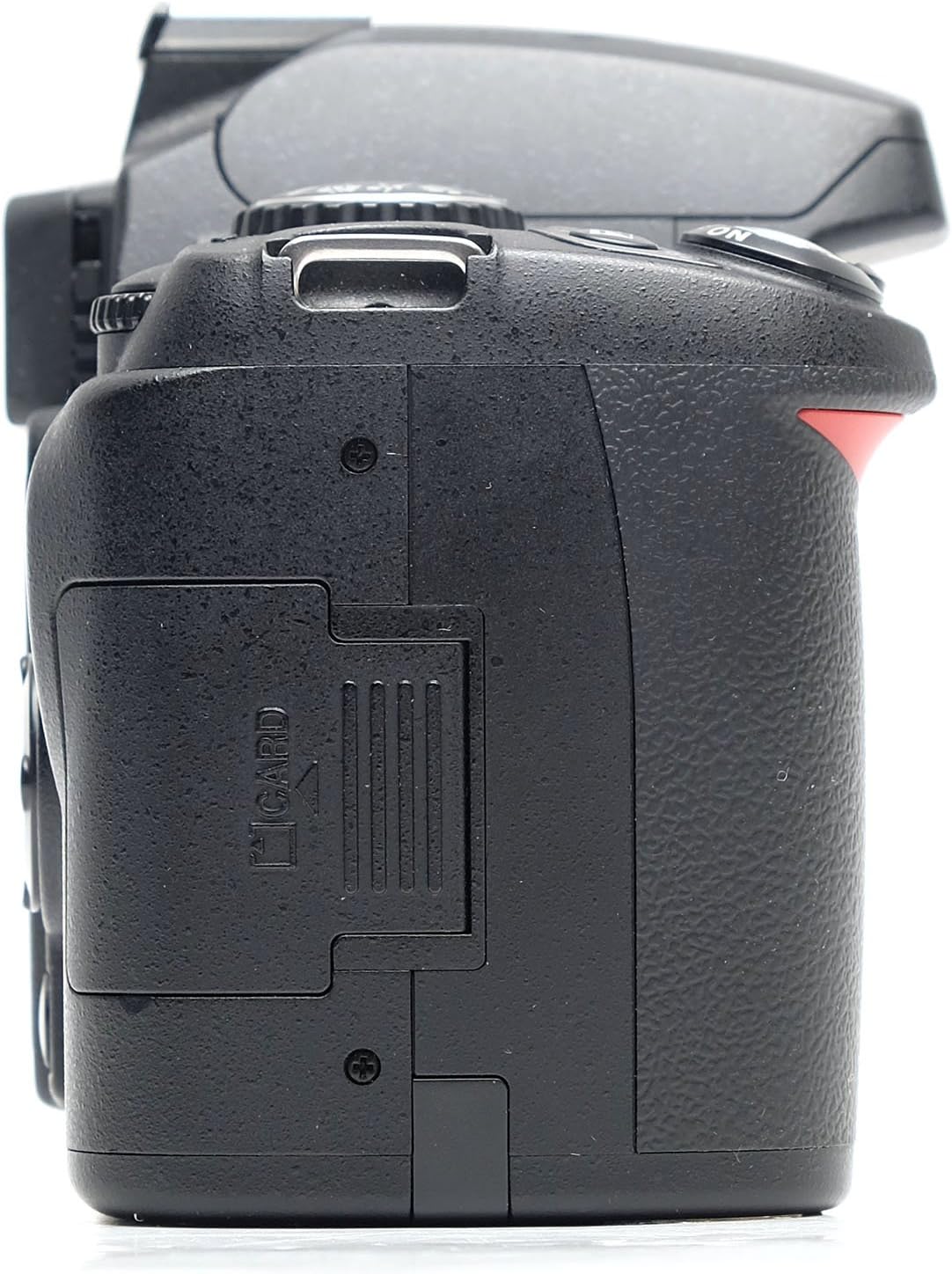

Figura 3.4: lateral View of Nikon D40 Camera Body (Memory Card Slot). This image illustrates the left side of the Nikon D40 camera body, clearly showing the memory card slot cover. The slot is designed for SD memory cards.
4. Configuració
4.1 Desembalatge
Carefully remove all components from the packaging. Verify that all items listed in the product contents are present.
4.2 Instal·lació i càrrega de la bateria
- Obriu la tapa del compartiment de la bateria a la part inferior de la càmera.
- Insert the supplied EN-EL9 Li-ion battery, ensuring correct orientation.
- Tanqueu la tapa de la cambra de la bateria.
- Connect the battery to the supplied charger and plug the charger into a power outlet. The charging lamp indicarà l'estat de càrrega.
4.3 Inserció de la targeta de memòria
- Obriu la tapa de la ranura de la targeta de memòria que hi ha al lateral de la càmera.
- Insert an SD memory card into the slot with the label facing the back of the camera until it clicks into place.
- Tanqueu la tapa de la ranura de la targeta de memòria.
4.4 Fixació de la lent
- Traieu la tapa del cos de la càmera i la tapa posterior de l'objectiu.
- Alineeu la marca de muntatge de l'objectiu amb la marca de muntatge del cos de la càmera.
- Gireu la lent en sentit antihorari fins que encaixi al seu lloc.
4.5 Configuració inicial
Upon first power-on, you may be prompted to set the date, time, and language. Follow the on-screen instructions using the multi-selector and OK button.
5. Funcionament de la càmera
5.1 Encès/Apagat
Rotate the power switch around the shutter release button to the 'ON' position to power on the camera. Rotate to 'OFF' to power off.
5.2 Modes de tret
The D40 offers various shooting modes accessible via the mode dial:
- Automàtic: Mode totalment automàtic per a fotografia general.
- Auto (Flash Off): Automatic mode with flash disabled.
- Automàtic programat (P): La càmera ajusta l'obertura i la velocitat d'obturació per a una exposició òptima.
- Automàtic amb prioritat d'obturació (S): Tu ajustes la velocitat d'obturació, la càmera ajusta l'obertura.
- Automàtic amb prioritat d'obertura (A): Tu ajustes l'obertura del diafragma, la càmera ajusta la velocitat d'obturació.
- Manual (M): Controles tant l'obertura com la velocitat d'obturació.
- Modes d'escena: Portrait, Landscape, Child, Sports, Close Up, Night Portrait. These modes optimize settings for specific scenes.
5.3 Enfocament
The camera features autofocus (AF) and manual focus (MF) capabilities. The 18-135mm lens supports AF-S for fast and quiet autofocus.
- Enfocament automàtic: Press the shutter-release button halfway to activate autofocus. The camera has 3 autofocus points.
- Enfocament manual: Set the lens to MF and rotate the focus ring to adjust focus manually.
5.4 Control de l'exposició
The D40 uses 3D Color Matrix Metering II for accurate exposure. ISO sensitivity can be set from 200 to 1600, with an AUTO ISO feature.
5.5 Ús del flaix
The built-in flash can be used in various modes (Auto, Off). Ensure the flash is popped up if required for the selected mode.
5.6 Reproducció d'imatgesview and Retouch Menu
After shooting, images can be reviewed on the 2.5-inch high-resolution color LCD monitor. The camera also features an in-camera Retouch menu with options such as D-Lighting, Red-eye Correction, Image Trim, Image Overlay, Small Picture, Monochrome (Black-and-white, Sepia, Cyanotype), and Filter Effects (Skylight, Warm filter, Color balance).
6. Manteniment
6.1 Neteja de la càmera i l'objectiu
- Feu servir un drap suau i sense borrissol per netejar el cos de la càmera.
- For the lens, use a lens brush to remove dust, then a lens cleaning cloth with a specialized lens cleaning solution.
- Never use organic solvents like paint thinner or benzene to clean the camera or lens.
6.2 Neteja del sensor
Dust on the image sensor can appear as spots in your photos. If dust is visible, it is recommended to have the sensor cleaned by a qualified Nikon service center.
6.3 Emmagatzematge
When not in use for extended periods, remove the battery and store the camera in a cool, dry place, away from direct sunlight and chemicals.
7. Solució De Problemes
If you encounter issues with your Nikon D40, refer to the following common problems and solutions:
| Problema | Possible causa/solució |
|---|---|
| La càmera no s'encén. | Battery is depleted or incorrectly inserted. Ensure battery is charged and correctly seated. |
| Les imatges són borroses. | Check focus mode (AF/MF). Ensure sufficient light for autofocus. Use a faster shutter speed or tripod in low light. |
| El flaix no es dispara. | Flash may be set to 'Off' or in a mode where flash is suppressed. Ensure flash is popped up. |
| Error de la targeta de memòria. | La targeta pot estar plena, malmesa o incompatible. Prova de formatar la targeta (això esborrarà totes les dades) o utilitza una targeta diferent. |
For more complex issues, please contact Nikon customer support.
8. Especificacions
Key technical specifications for the Nikon D40 Digital SLR Camera:
- Píxels efectius: 6.1 megapíxels
- Sensor d'imatge: APS-C size CCD
- Muntatge de la lent: Nikon F-mount (with AF coupling and AF contacts)
- Lents compatibles: AF-S and AF-I NIKKOR lenses (autofocus supported)
- Included Lens: 18-135mm f/3.5-5.6G ED-IF AF-S DX Zoom-Nikkor lens
- Sensibilitat ISO: ISO 200 to 1600 (expandable to ISO 3200 equivalent)
- Velocitat d'obturació: 30 to 1/4000 sec. in steps of 1/3 EV; Bulb, Time
- Velocitat de sincronització del flaix: Up to 1/500 sec.
- Velocitat de tir continu: Approx. 2.5 frames per second
- Monitor: 2.5-in., approx. 230k-dot, low-temperature polysilicon TFT LCD
- Mitjans d'emmagatzematge: Targetes de memòria SD
- Bateria: One rechargeable Li-ion battery EN-EL9
- Dimensions (L x A x P): Aprox. 126 x 94 x 64 mm (5.0 x 3.7 x 2.5 polzades)
- Pes: Approx. 475 g (1 lb. 0.8 oz.) (camera body only)
9. Garantia i Suport
Your Nikon D40 camera is covered by a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.
For further assistance, technical support, or service, please visit the official Nikon website or contact Nikon customer service. You can find more information at the Nikon Store.
