BOSCH Vibration Drill PSB450RE

1. Instruccions de seguretat importants

Llegiu i comprengueu sempre tots els avisos de seguretat, instruccions, il·lustracions i especificacions que s'inclouen amb aquesta eina elèctrica. Si no seguiu totes les instruccions que s'indiquen a continuació, podeu patir descàrregues elèctriques, incendis i/o lesions greus.

• Seguretat de l'àrea de treball: Mantingueu la vostra zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden als accidents. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables. Les eines elèctriques creen espurnes que poden encendre la pols o els fums.
• Seguretat elèctrica: Els endolls de les eines elèctriques han de coincidir amb la presa de corrent. No modifiqueu mai l'endoll de cap manera. No utilitzeu cap endoll adaptador amb eines elèctriques posades a terra. Els endolls no modificats i els endolls coincidents reduiran el risc de descàrrega elèctrica.
• Seguretat personal: Estigueu alerta, observeu el que feu i feu servir el sentit comú quan utilitzeu una eina elèctrica. No utilitzeu una eina elèctrica mentre esteu cansat o sota els efectes de drogues, alcohol o medicaments. Un moment de falta d'atenció durant l'ús d'eines elèctriques pot provocar lesions personals greus.
• Ús i cura de l'eina: No forceu l'eina elèctrica. Utilitzeu l'eina elèctrica adequada per a la vostra aplicació. L'eina elèctrica correcta farà la feina millor i més segura a la velocitat per a la qual va ser dissenyada.
• Servei: Feu que una persona de reparació qualificada faci reparar la vostra eina elèctrica que utilitzi només peces de recanvi idèntiques. Això garantirà que es mantingui la seguretat de l'eina elèctrica.

2. Producte acabatview

The BOSCH PSB450RE is a lightweight and compact vibration drill designed for various drilling tasks. It features electronic stepless speed control and a powerful 450W motor, making it suitable for screw driving, drilling in wood, metal, and concrete.

Its unique swing carbon brush design minimizes power loss during forward/reverse switching and enhances overall durability. The large changeover lever allows for easy switching between electric drill and vibration drill modes. Standard equipment includes an electronic stepless speed control switch and a side handle for improved operability.

Figura 2.1: Principal view of the BOSCH PSB450RE Vibration Drill.

Figure 2.2: The PSB450RE drill equipped with its side handle and depth gauge for enhanced control and precision.

Figura 2.3: Detallada view of the trigger and the forward/reverse rotation switch on the PSB450RE.

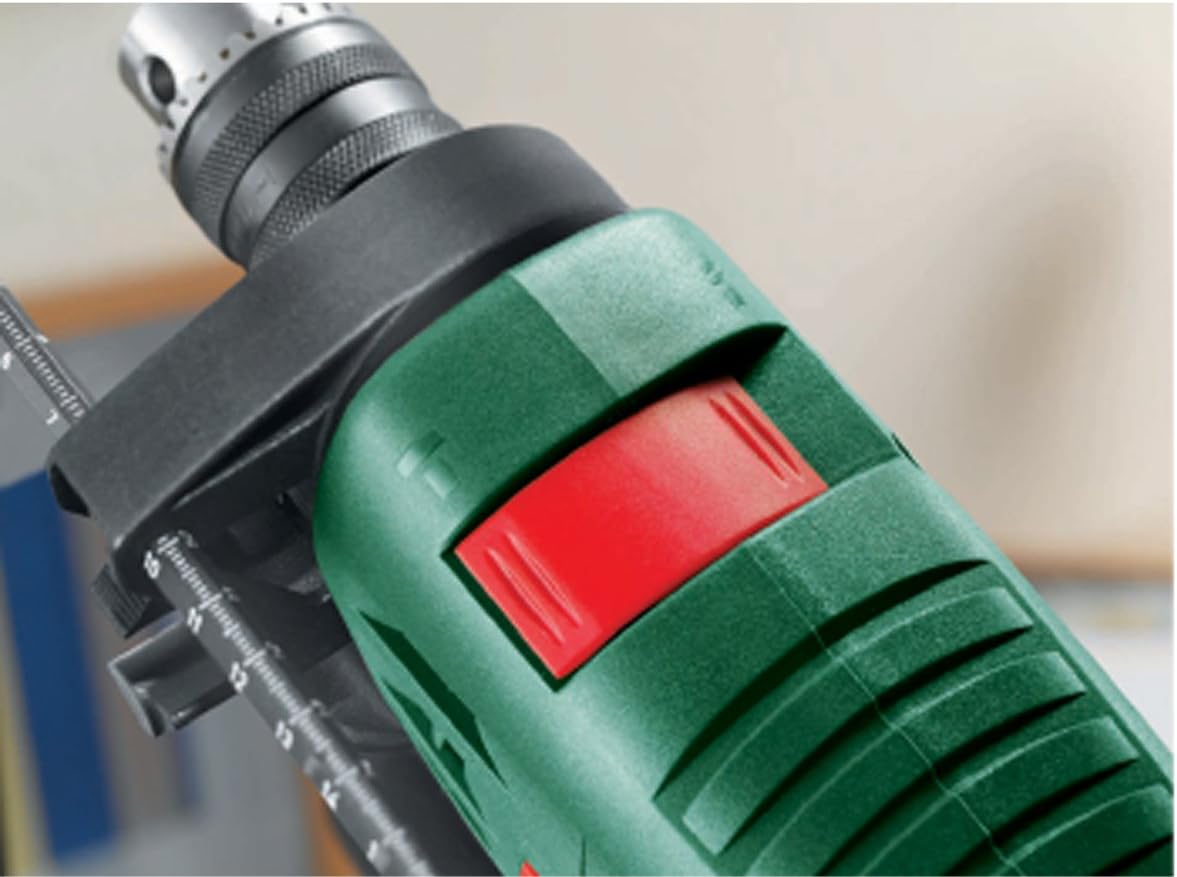

Figure 2.4: Close-up of the mode selector switch, allowing easy transition between drilling and hammer drilling functions.

3. Configuració

3.1 Attaching the Side Handle and Depth Gauge

The auxiliary side handle and depth gauge provide additional control and precision during operation. Always ensure they are securely attached before use.

1. Afloixeu la nansa lateral girant-la en sentit antihorari.
2. Slide the side handle onto the front of the drill housing.
3. Insert the depth gauge into the hole on the side handle. Adjust it to the desired drilling depth.
4. Rotate the side handle to the desired working position and tighten it securely by turning clockwise.

3.2 Inserció de broques

Ensure the drill is unplugged before changing bits.

1. Open the drill chuck jaws by turning the chuck key (if applicable) or by hand for keyless chucks.
2. Introduïu la broca completament al portabroques.
3. Tighten the chuck jaws securely around the drill bit. For keyed chucks, use the chuck key to tighten all three holes. For keyless chucks, hand-tighten firmly.

4. Instruccions de funcionament

4.1 Engegada/Apagada i Control de Velocitat

The PSB450RE features an electronic stepless speed control for precise operation.

• Per encendre: Press the trigger switch. The drilling speed increases as you press the trigger further.
• Per apagar: Deixeu anar l'interruptor del disparador.
• Funcionament continu: For continuous operation, press the trigger switch and then press the lock-on button (if available) while the trigger is depressed. To release, press the trigger again.

4.2 Rotació endavant/enrere

The forward/reverse switch allows for easy change of rotation direction, useful for screw driving or removing jammed bits.

• Locate the forward/reverse switch near the trigger (refer to Figure 2.3).
• Push the switch to the left for forward rotation (clockwise).
• Push the switch to the right for reverse rotation (counter-clockwise).
• Always ensure the tool has come to a complete stop before changing the rotation direction.

4.3 Drilling Mode Selection

The PSB450RE offers two drilling modes: rotary drilling and vibration drilling.

• Rotary Drilling (Drill Symbol): Use this mode for drilling in wood, metal, plastics, and for screw driving.
• Vibration Drilling (Hammer Symbol): Use this mode for drilling in masonry, concrete, and stone.
• To select a mode, rotate the large changeover lever located on the top of the drill housing (refer to Figure 2.4) to align with the desired symbol.

4.4 Drilling Applications Guide

Select the appropriate drill bit and mode for your material.

Figure 4.1: Guide for selecting the correct drill type and mode for various materials and tasks.

• Fusta: Use HSS drill bits or wood drill bits. Use rotary drilling mode.
• Metall: Use HSS drill bits. Use rotary drilling mode. Apply cutting oil for harder metals.
• Concrete/Masonry: Use carbide-tipped masonry drill bits. Use vibration drilling mode.
• Conducció de cargols: Use appropriate screwdriver bits. Use rotary drilling mode and lower speeds.

5. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la vostra eina.

• Neteja: Keep the ventilation openings of the power tool clean to prevent overheating. Regularly clean the tool housing with a soft, damp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
• Escombretes de carbó: The PSB450RE features a unique swing carbon brush design for enhanced durability. While designed for longevity, if the tool experiences reduced power or intermittent operation, the carbon brushes may need inspection or replacement by a qualified service technician.
• Emmagatzematge: Store the power tool in a dry, secure place out of reach of children.
• Inspecció del cable: Periodically inspect the power cord for any damage. If damaged, have it replaced by a qualified professional to avoid electrical hazards.

6. Solució De Problemes

If you encounter issues with your PSB450RE, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact an authorized BOSCH service center.

7. Especificacions

Technical data for the BOSCH PSB450RE Vibration Drill.

Figure 7.1: Product dimensions for the BOSCH PSB450RE Vibration Drill.

8. Garantia i Suport

BOSCH power tools are manufactured to the highest quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official BOSCH weblloc.

For technical support, spare parts, or service inquiries, please contact your local authorized BOSCH service center. Contact information can typically be found on the BOSCH weblloc web o a la documentació que s'inclou amb l'eina.
