SpeakerCraft AIM8 Five In-Ceiling Pivoting Speaker User Manual

Introducció

The SpeakerCraft AIM8 Five In-Ceiling Pivoting Speaker is designed to deliver high-quality audio performance from a discreet, in-ceiling installation. Featuring a patented Accu-Grill for reduced acoustic reflections and independently aimed woofer and tweeter, this speaker allows for precise sound directionality. Its innovative design enables the speaker to be pivoted towards the listening area while remaining flush with the ceiling, offering flexibility for various room configurations and listening preferences.

Característiques clau

• Pivoting and Rotating 8" Kevlar® Cone Woofer: Allows for directional bass and mid-range sound.
• Pivoting 1" Aluminum/Magnesium Dome Tweeter: Enables precise aiming of high-frequency sound.
• Front-Mounted Switches: Provides up to 3dB of Bass and Treble adjustment for acoustic tuning.
• Maneig de potència: Supports 5 to 150 Watts, suitable for a range of audio systems.
• Diàmetre de tall: Requires a 9 3/4" (248 mm) opening for installation.

Informació de seguretat

Please read all safety instructions before installing or operating this product. Failure to follow these instructions may result in injury or damage to the product or property.

• Ensure power is disconnected from the installation area before beginning any work.
• Consulteu un electricista qualificat si no teniu clar quins són els procediments de cablejat.
• Do not expose the speaker to excessive moisture or extreme temperatures.
• Use appropriate safety gear, such as eye protection, during installation.
• Ensure the mounting surface can adequately support the weight of the speaker.

Configuració i instal·lació

Proper installation is crucial for optimal performance and safety. It is recommended to plan the speaker placement carefully before cutting any holes.

1. Planning and Location

Identify the ideal location for your in-ceiling speaker. Consider factors such as listening area, room acoustics, and proximity to power sources and audio equipment. Ensure there are no obstructions (e.g., studs, pipes, wiring) within the ceiling space at the chosen location.

2. Cutting the Opening

Using the provided template (if applicable) or measuring carefully, mark a circular opening on the ceiling. The required cut-out diameter is 9 3/4 polzades (248 mm). Use a drywall saw or appropriate cutting tool to create the opening. Exercise caution to avoid damaging existing wiring or structures.

Figura 1: global view of the SpeakerCraft AIM8 Five In-Ceiling Speaker, showing its design for recessed installation.

3. Wiring the Speaker

Passa el cable de l'altaveu des del teu amplifier or receiver to the ceiling opening. Ensure the wire gauge is appropriate for the length of the run. Connect the speaker wires to the binding posts on the back of the speaker. Observe correct polarity: connect the positive (+) terminal on the speaker to the positive (+) terminal on your amplifier, and the negative (-) terminal on the speaker to the negative (-) terminal on your ampmés viu.

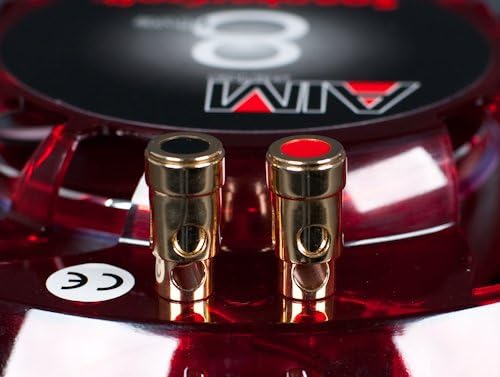

Figure 2: Detail of the speaker's binding posts for connecting audio cables. Ensure correct polarity when wiring.

4. Muntatge de l'altaveu

Carefully insert the speaker into the prepared ceiling opening. The speaker features mounting clamps that will secure it in place. Tighten the screws on the front baffle (or designated mounting points) to engage the clamps. Do not overtighten, as this can damage the ceiling or speaker frame. Once secured, attach the grille by gently pressing it into place until it sits flush with the ceiling.

Instruccions de funcionament

The AIM8 Five speaker offers adjustable features to optimize sound for your listening environment.

1. Aiming the Speaker

The unique AIM (Aimable In-ceiling Monitor) design allows both the woofer and tweeter to pivot independently. Gently push the speaker cone or tweeter assembly to direct the sound towards your primary listening area. This flexibility helps compensate for off-axis listening positions and room acoustics.

Figure 3: The pivoting tweeter allows for precise direction of high-frequency sound.

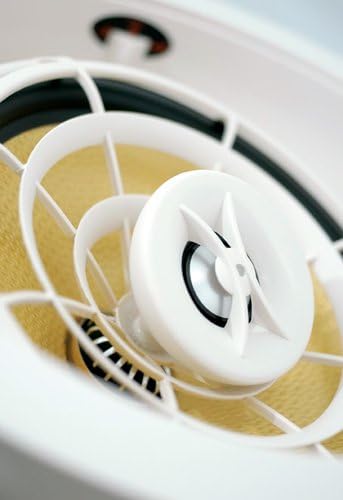

Figure 4: The tweeter assembly can be gently angled to optimize sound dispersion.

2. Adjusting Bass and Treble

The speaker features front-mounted switches that allow for up to 3dB of adjustment for both bass and treble frequencies. These controls can be used to fine-tune the speaker's sound profile to match your room's acoustics or personal preference. Experiment with different settings to achieve the desired audio balance.

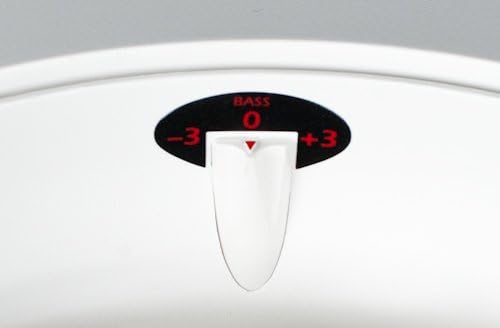

Figure 5: The bass adjustment switch, typically located on the front baffle, allows for fine-tuning of low frequencies.

Manteniment

The SpeakerCraft AIM8 Five speaker requires minimal maintenance. To clean the grille and speaker frame, gently wipe with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish or components. Ensure the speaker is powered off before cleaning.

Resolució de problemes

Especificacions

Garantia i Suport

This SpeakerCraft AIM8 Five speaker comes with a Garantia limitada. For specific terms, conditions, and duration of the warranty, please refer to the warranty card included with your product packaging or visit the official SpeakerCraft website. For technical support or assistance, please contact SpeakerCraft customer service through their official channels.
