TRUE TWT-72-ADA Worktop Refrigerator User Manual

1. Introducció

This manual provides essential information for the proper installation, operation, and maintenance of your TRUE TWT-72-ADA Worktop Refrigerator. Please read these instructions thoroughly before operating the unit to ensure safe and efficient performance. Retain this manual for future reference.

2. Informació important de seguretat

Seguiu sempre les precaucions de seguretat bàsiques quan utilitzeu aquest aparell per reduir el risc d'incendi, descàrrega elèctrica o lesions.

• Seguretat elèctrica: Ensure the unit is connected to a properly grounded electrical outlet with the correct voltage (115V/60Hz/1 Phase) and ampera (8.5 Amps). Do not use extension cords or adapter plugs.
• Ventilació: Maintain adequate clearance around the unit for proper airflow to the condenser. Blocked airflow can lead to overheating and reduced efficiency.
• Aparells pesats: This unit is heavy (375 lbs). Use appropriate lifting equipment and personnel during installation to prevent injury.
• Materials inflamables: No emmagatzemeu ni utilitzeu gasolina o altres vapors i líquids inflamables a prop d'aquest o qualsevol altre aparell.
• Nens: Keep children away from the appliance. Never allow children to play with, operate, or crawl inside the refrigerator.

3. Configuració i instal·lació

3.1 Desembalatge

1. Traieu amb cura tots els materials d'embalatge, inclosa la cinta adhesiva i la pel·lícula protectora.
2. Inspect the unit for any shipping damage. Report any damage immediately to the carrier and your dealer.
3. Traieu tots els materials d'embalatge i accessoris interns.

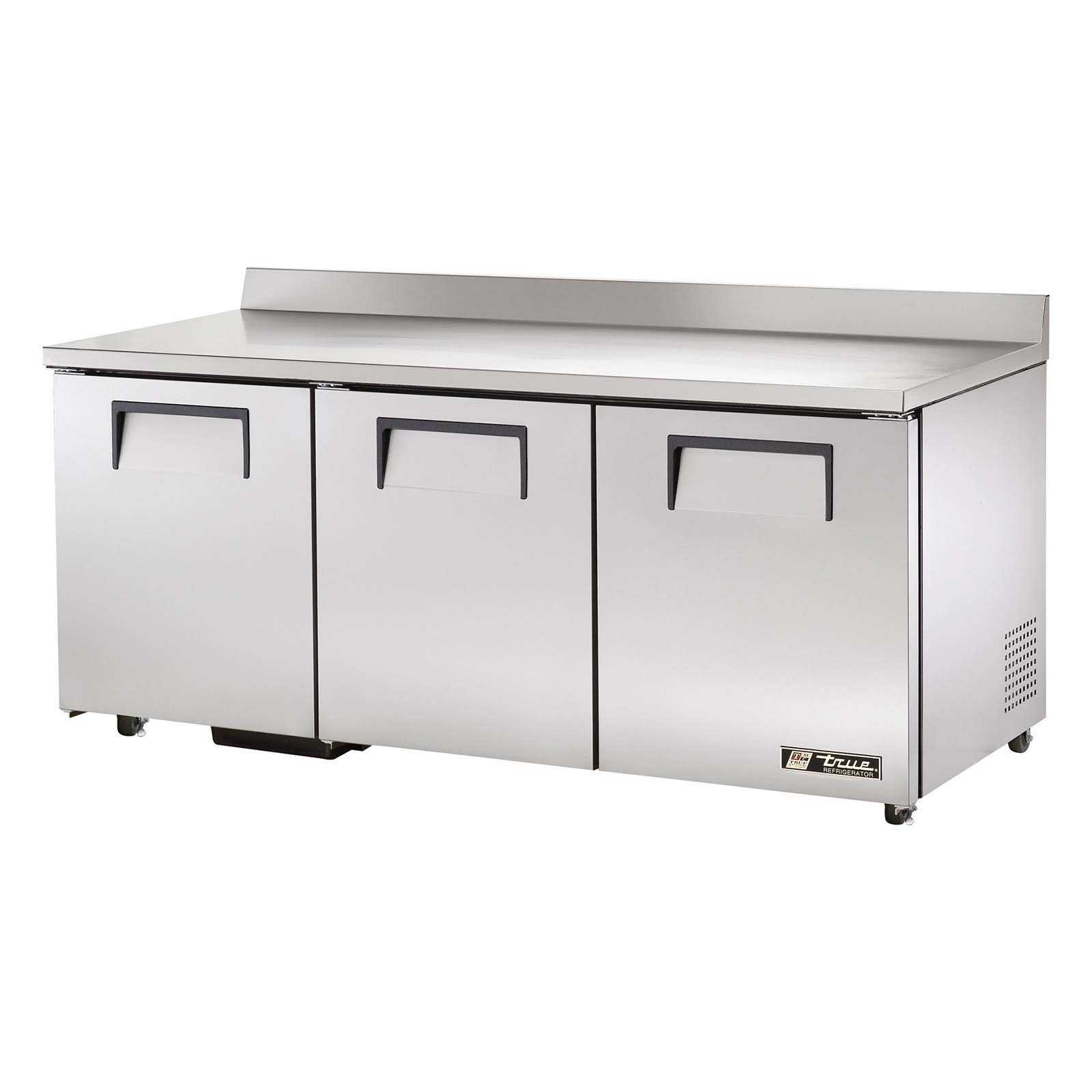

Imatge 1: Frontal view of the TRUE TWT-72-ADA Worktop Refrigerator, showcasing its three stainless steel doors and durable stainless steel worktop.

3.2 Requisits de col·locació

• Place the refrigerator on a strong, level surface capable of supporting its weight when fully loaded.
• Ensure adequate ventilation. Allow at least 6 inches of clearance at the rear and sides for proper air circulation. Do not install in direct sunlight or near heat-producing equipment.
• The unit is equipped with 5 castors for mobility. Ensure all castors are locked once the unit is in its final position to prevent accidental movement.

3.3 Connexió elèctrica

Before connecting the unit, ensure the electrical supply matches the specifications on the unit's data plate (115V/60Hz/1 Phase, 8.5 Amps). The unit comes with a NEMA 5-15P plug and must be connected to a dedicated, grounded outlet.

3.4 Neteja inicial

Before first use, clean the interior and exterior of the unit with a mild soap and water solution. Rinse thoroughly and dry completely.

4. Guia de funcionament

4.1 Encès

After installation and initial cleaning, plug the unit into the dedicated electrical outlet. The compressor will start automatically, and the unit will begin to cool.

4.2 Control de temperatura

The TWT-72-ADA features an electronic temperature control system. The factory-set temperature is optimized for food preservation. Refer to the control panel instructions (typically located inside the unit or behind the front grille) for specific temperature adjustment procedures. Allow several hours for the unit to reach the desired temperature before loading products.

4.3 Loading and Storage

• Do not overload shelves. Ensure proper air circulation around stored items.
• Keep doors closed as much as possible to maintain internal temperature and energy efficiency.
• The unit includes 6 adjustable shelves for flexible storage.

4.4 Automatic Defrost System

This refrigerator is equipped with an automatic defrost system. Frost buildup on the evaporator coil will be periodically melted and drained, eliminating the need for manual defrosting.

5. Manteniment

Un manteniment regular garanteix un rendiment òptim i allarga la vida útil de la nevera.

5.1 Neteja de l'interior

1. Desconnecteu la unitat de la font d'alimentació abans de netejar-la.
2. Traieu tots els aliments i els prestatges.
3. Wash interior surfaces with a mild detergent and warm water. Rinse with clean water and dry thoroughly.
4. Clean shelves with the same solution.

5.2 Neteja de l'exterior

Wipe down exterior stainless steel surfaces with a soft cloth and a non-abrasive stainless steel cleaner. For general cleaning, use mild soap and water. Avoid abrasive cleaners or scouring pads.

5.3 Neteja de la serpentina del condensador

The condenser coil should be cleaned regularly (monthly or quarterly, depending on environment) to maintain efficiency. Disconnect power, locate the condenser coil (typically at the rear or bottom), and use a stiff brush or vacuum cleaner to remove dust and debris. Failure to clean the condenser coil is a common cause of service calls and can void your warranty.

5.4 Cura de les juntes

Inspect door gaskets regularly for tears or damage. Clean gaskets with warm water and mild soap. Ensure they form a tight seal when the doors are closed to prevent cold air loss.

6. Solució De Problemes

Abans de trucar al servei, review els següents problemes i solucions habituals:

7. Especificacions del producte

8. Garantia i atenció al client

TRUE Manufacturing Co., Inc. provides a comprehensive warranty for its products. Specific warranty terms and conditions, including duration and coverage, are typically provided with the purchase documentation. Please refer to your original purchase receipt and warranty card for detailed information.

For technical assistance, parts, or warranty claims, please contact TRUE customer support directly. Have your model number (TWT-72-ADA) and serial number ready when contacting support.

Informació de contacte: Please refer to the official TRUE weblloc web o la documentació de la compra per obtenir les dades de contacte d'atenció al client més actualitzades.
