Manual d'instruccions del cilindre mestre de fre Dorman M390214

1. Producte acabatview

The Dorman M390214 Brake Master Cylinder is engineered as a direct replacement component, designed to match the form, fit, and function of the original master cylinder in specified vehicle applications. This unit is manufactured from new, high-quality materials to ensure reliable and safe braking performance.

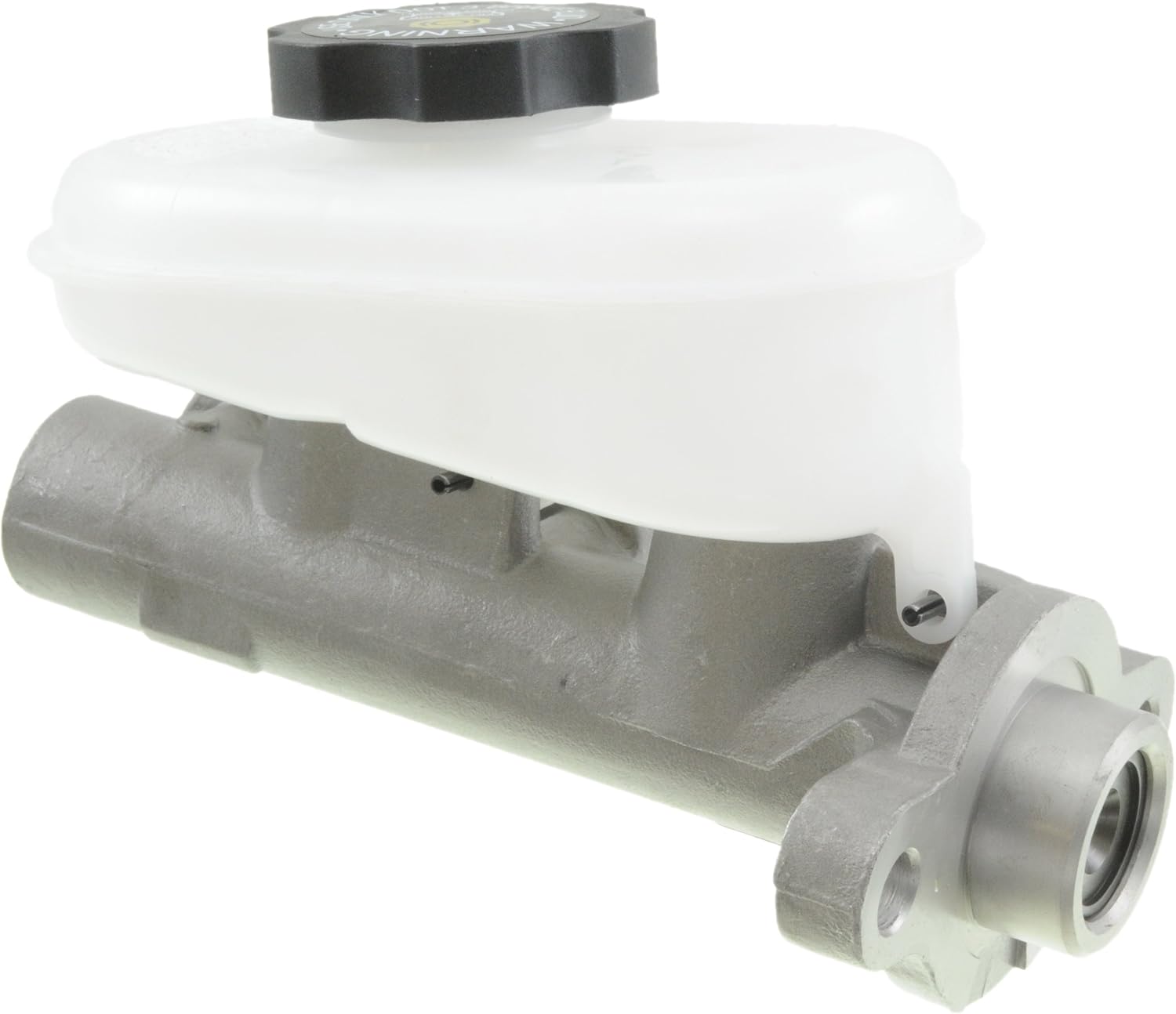

Figura 1: global view of the Dorman M390214 Brake Master Cylinder with reservoir.

2. Característiques clau

• Substitució precisa: The cylinder housing is constructed to match the casting material of the original part, ensuring similar performance characteristics.
• Disseny durador: All rubber components are manufactured from high-quality EPDM compound, providing resistance to glycol-based brake fluid for extended service life.
• Nova construcció: This unit is made entirely of new materials, not remanufactured, to ensure the highest quality and safety standards.
• Especificacions estrictes: Manufactured to meet rigorous SAE International standards for brake system components.

3. Compatibilitat del vehicle

This brake master cylinder is compatible with the following vehicle models and years:

• Chevrolet Camaro: 1993, 1994, 1995, 1996, 1997
• Pontiac Firebird: 1993, 1994, 1995, 1996, 1997

It is recommended to verify fitment using a vehicle compatibility tool or by consulting a qualified mechanic before installation.

4. Instal·lació (Configuració)

ADVERTIMENT: Brake system components are critical for vehicle safety. Improper installation or maintenance can lead to brake failure, resulting in serious injury or death. It is highly recommended that installation be performed by a certified automotive technician.

Passos generals d'instal·lació (consulteu el Manual de servei per obtenir més informació):

1. Preparació: Ensure the vehicle is safely supported on jack stands. Disconnect the negative battery terminal. Place a drain pan under the master cylinder to catch brake fluid.
2. Eliminació de fluids: Use a syringe or turkey baster to remove as much old brake fluid as possible from the master cylinder reservoir.
3. Disconnect Lines: Carefully disconnect the brake lines from the master cylinder. Be prepared for fluid leakage. Cap the lines to prevent contamination and excessive fluid loss.
4. Treure el cilindre mestre antic: Unbolt the master cylinder from the brake booster. Remove the old unit.
5. Bench Bleeding (Recommended): Before installing the new master cylinder, it is highly recommended to bench bleed it. This involves filling the reservoir with new brake fluid and using a special kit or method to remove air from the master cylinder itself. Follow the instructions provided with the bench bleeding kit or consult a service manual.
6. Install New Master Cylinder: Mount the new Dorman M390214 master cylinder onto the brake booster. Ensure the gasket (if applicable) is correctly seated. Tighten mounting bolts to manufacturer specifications.
7. Connect Brake Lines: Torneu a connectar les línies de fre al nou cilindre mestre. Estrenyeu bé els accessoris, però no els estrenyeu massa.
8. Omplir el dipòsit: Fill the master cylinder reservoir with new, clean DOT 3 brake fluid (as specified by your vehicle manufacturer).
9. Sistema de frens de purga: Perform a full brake system bleed to remove all air from the lines. This typically requires two people. Start with the wheel furthest from the master cylinder and work your way closer. Refer to your vehicle's service manual for the correct bleeding sequence.
10. Comprovacions finals: Check for any leaks around the master cylinder and brake lines. Test the brake pedal for firmness before driving. Ensure the brake fluid level is at the "MAX" line.

Figura 2: superior view of the master cylinder reservoir cap, indicating "WARNING: USE ONLY DOT 3 BRAKE FLUID" and fill line.

5. Funcionament

The brake master cylinder is a hydraulic device that converts the mechanical force from the brake pedal into hydraulic pressure. When the brake pedal is pressed, pistons inside the master cylinder move, forcing brake fluid through the brake lines to the calipers or wheel cylinders. This hydraulic pressure then applies the brake pads or shoes against the rotors or drums, slowing or stopping the vehicle.

The Dorman M390214 is designed to provide consistent and reliable hydraulic pressure for effective braking in compatible vehicles.

6. Manteniment

Regular maintenance of your vehicle's brake system is crucial for safety and longevity. For the Dorman M390214 Brake Master Cylinder, key maintenance points include:

• Brake Fluid Level Check: Periodically check the brake fluid level in the master cylinder reservoir. It should be between the "MIN" and "MAX" lines. If the level is consistently low, inspect the brake system for leaks.
• Estat del líquid de frens: Brake fluid can absorb moisture over time, reducing its effectiveness. Consult your vehicle's service manual for recommended brake fluid flush intervals. Use only the specified type of brake fluid (e.g., DOT 3).
• Inspecció visual: Regularly inspect the master cylinder for any signs of leaks, corrosion, or damage. Check the brake lines connected to it for integrity.

Figura 3: posterior view of the master cylinder, illustrating the mounting flange and brake line ports.

7. Solució De Problemes

If you experience issues with your vehicle's braking system after master cylinder replacement, consider the following common troubleshooting points. Always consult a qualified technician for diagnosis and repair of brake system problems.

• Pedal de fre esponjós: This often indicates air in the brake lines. Re-bleed the entire brake system thoroughly.
• Low Brake Pedal: Could be air in the system, a leak, or an issue with other brake components (e.g., worn pads/shoes, caliper issues). Check for fluid leaks.
• Fuites de líquid de frens: Inspect all connections at the master cylinder and throughout the brake system. Ensure fittings are tight and lines are not damaged.
• Brake Warning Light On: This could indicate low brake fluid, a pressure differential switch issue, or other brake system malfunctions. Do not drive the vehicle if the brake warning light is illuminated.

Figura 4: lateral view of the master cylinder, highlighting the brake fluid outlet ports.

8. Especificacions

9. Informació de seguretat

• Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when working with brake fluid.
• Brake fluid is corrosive and can damage painted surfaces. Clean up spills immediately.
• Never mix different types of brake fluid unless explicitly stated as compatible by the manufacturer.
• Dispose of old brake fluid and contaminated materials according to local environmental regulations.
• Ensure the vehicle is stable and secure before beginning any work.

10. Garantia i Suport

Dorman products are manufactured to high standards. For specific warranty information, technical support, or assistance with this product, please refer to the official Dorman website or contact Dorman customer service directly. Keep your purchase receipt for warranty claims.

Podeu trobar més informació i dades de contacte a Botiga de la marca Dorman.
