Dorman HW7263 Rear Drum Brake Hardware Kit

1. Producte acabatview

The Dorman HW7263 Rear Drum Brake Hardware Kit is engineered to provide a direct replacement for the original hardware components necessary for repairing the drum brake system on specific vehicle models. Manufactured with quality materials, this kit ensures reliable performance and long-lasting durability, restoring proper brake function.

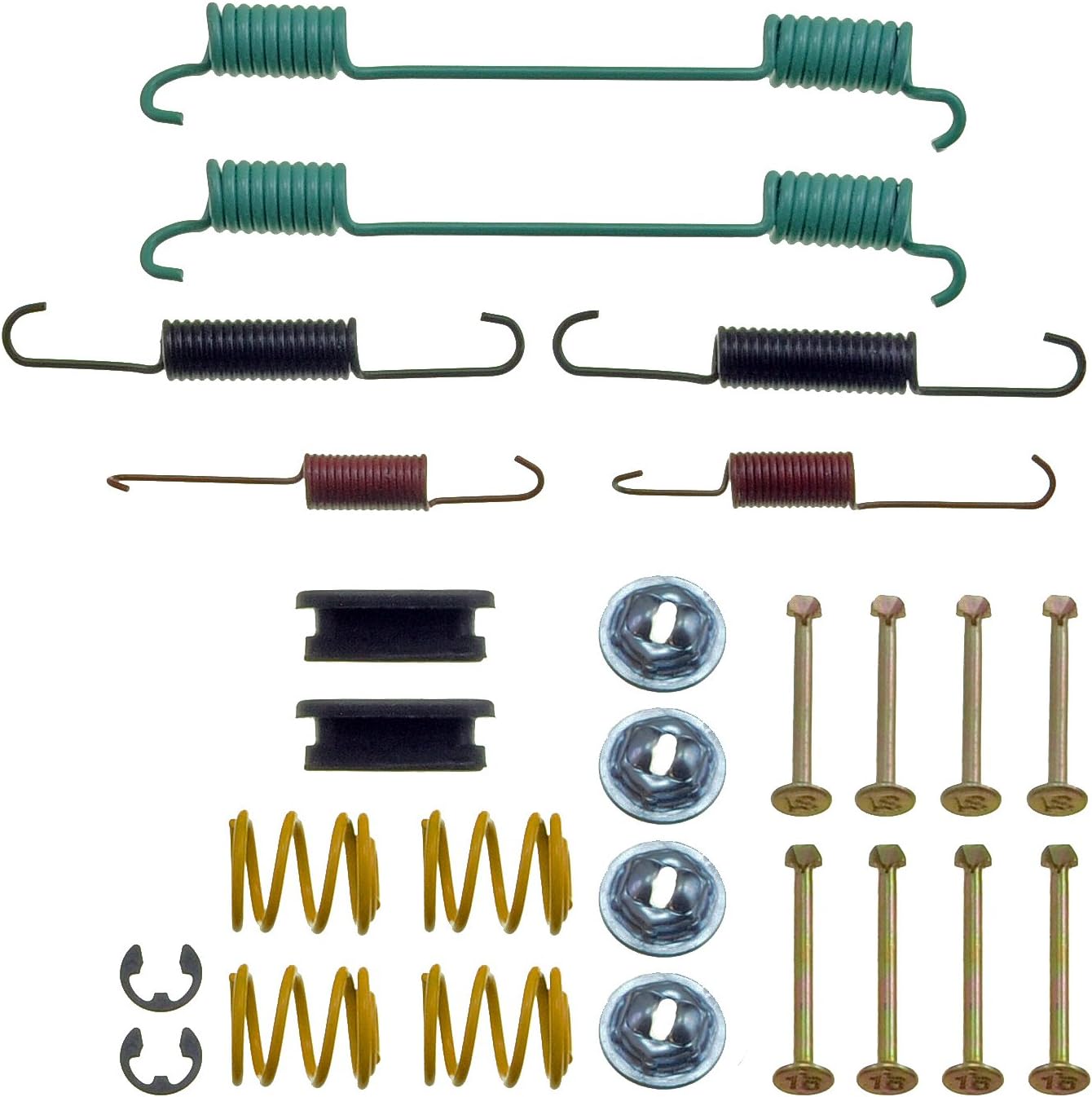

Image 1.1: Contents of the Dorman HW7263 Rear Drum Brake Hardware Kit, showing various springs, pins, and retainers.

Característiques principals:

• Substitució directa: Designed to match the original hardware for a seamless repair.
• Solució ideal: A reliable replacement for components that have failed due to wear or fatigue.
• Construcció duradora: Made from high-quality components for dependable performance and extended service life.
• Qualitat fiable: Backed by Dorman's extensive automotive experience and product expertise.

2. Compatibilitat i ajust

This hardware kit is compatible with a wide range of Chrysler, Dodge, and Plymouth models. To ensure precise fitment for your vehicle, it is crucial to verify compatibility using your vehicle's make, model, and trim level. Below is a list of known compatible vehicles:

• Chrysler: E Class (1983-1984), Executive Limousine (1985), Executive Sedan (1983-1984), Laser (1984-1986), LeBaron (1983-1989, 1991-1992), New Yorker (1983-1989), PT Cruiser (2001-2006), Sebring (1996-2000), Town & Country (1983-1988).
• Esquivar: 400 (1983), 600 (1983-1988), Aries (1983-1989), Charger (1983-1987), Daytona (1984-1993), Dynasty (1988-1989), Lancer (1985-1989), Omni (1983-1990), Rampage (1983-1984), Shadow (1987-1994), Spirit (1989).
• Plymouth: Acclaim (1989), Caravelle (1985-1988), Horizon (1983-1990), Reliant (1983-1989), Scamp (1983), Sundance (1987-1994), Turismo (1984).

Always cross-reference with your vehicle's specific requirements or consult a professional mechanic if unsure about fitment.

3. Components inclosos

The Dorman HW7263 kit includes all necessary hardware components for a complete rear drum brake service on one axle. While specific quantities may vary slightly by application, a typical kit contains:

• Molles i passadors de subjecció
• Molles de retorn (superior i inferior)
• Self-adjuster springs
• Copes i retenedors de ressort
• Other small clips and washers as required for assembly

Refer to Image 1.1 for a visual representation of the kit's contents.

4. Pautes d'instal·lació

Installation of drum brake hardware requires specialized knowledge and tools. It is highly recommended that this procedure be performed by a certified automotive technician or an individual with extensive experience in brake system repair. Improper installation can lead to brake failure and serious injury.

General Steps (Consult a Service Manual for Detailed Instructions):

1. La seguretat primer: Assegureu-vos que el vehicle estigui ben aixecat i recolzat sobre els gats elevadors. Desconnecteu la bateria si treballeu a prop de components elèctrics.
2. Eliminar components antics: Carefully remove the wheel, brake drum, and all old brake shoes and hardware. Note the orientation of all springs and components before removal.
3. Netegeu i inspeccioneu: Thoroughly clean the backing plate and inspect all brake components (wheel cylinders, brake shoes, drum) for wear or damage. Replace any worn or damaged parts.
4. Instal·lar maquinari nou: Install the new Dorman HW7263 hardware kit along with new brake shoes (if applicable), following the vehicle manufacturer's service manual for correct placement and tensioning of springs and retainers.
5. Reassemble and Adjust: Reinstall the brake drum and wheel. Adjust the drum brakes according to the vehicle's specifications.
6. Prova de frens: Before driving, pump the brake pedal several times to ensure proper pedal feel. Perform a low-speed test drive in a safe area to confirm brake function.

Sempre utilitzeu l'equip de protecció individual (EPI) adequat, com ara ulleres i guants de seguretat, durant la instal·lació.

5. Manteniment

Regular inspection of your vehicle's brake system, including drum brake hardware, is essential for safety and performance. It is recommended to inspect brake components during tire rotations or at least once a year. Look for signs of wear, corrosion, or damage to springs, pins, and retainers. Replace any components that show signs of fatigue or degradation to maintain optimal braking efficiency.

6. Solució De Problemes

While the Dorman HW7263 kit is designed for direct fit, occasional issues may arise during installation or operation. Here are some common troubleshooting tips:

• Incorrect Fitment of Pins/Springs: If components like hold-down pins appear too short or too long, double-check the kit's compatibility with your specific vehicle year, make, and model. Ensure all old hardware has been completely removed and the backing plate is clean.
• Soroll de frenada (grinyol/grinyol): This can indicate worn brake shoes, improper installation of hardware, or contamination. Re-inspect all components for correct placement and ensure surfaces are clean.
• Uneven Brake Wear: May be caused by improperly installed hardware, seized wheel cylinders, or issues with the self-adjusting mechanism. Verify all springs are correctly tensioned and the self-adjuster is functioning freely.
• Soft Brake Pedal: Could indicate air in the brake lines, a faulty wheel cylinder, or an issue with the master cylinder. This is typically not related to hardware installation unless a brake line was damaged.

For persistent issues, consult a professional mechanic. Do not operate the vehicle if you suspect a brake system malfunction.

7. Especificacions

8. Garantia i Suport

Dorman Products stands by the quality and reliability of its automotive parts. While specific warranty details for this hardware kit may vary, Dorman has over a century of experience providing innovative solutions for the automotive aftermarket. For detailed warranty information or technical support, please refer to the official Dorman Products weblloc web o contacteu directament amb el seu servei d'atenció al client.

You can find more information and explore Dorman's full range of products by visiting the Botiga de la marca Dorman.
