Manual d'usuari del cilindre de roda de fre de tambor Dorman W46252

Introducció

This manual provides essential information for the installation, operation, and maintenance of the Dorman W46252 Front Passenger Side Drum Brake Wheel Cylinder. This component is engineered as a direct replacement to match the fit, function, and performance of the original wheel cylinder in specific American Motors vehicles from 1964-1965. Adherence to these instructions will ensure proper function and longevity of the part.

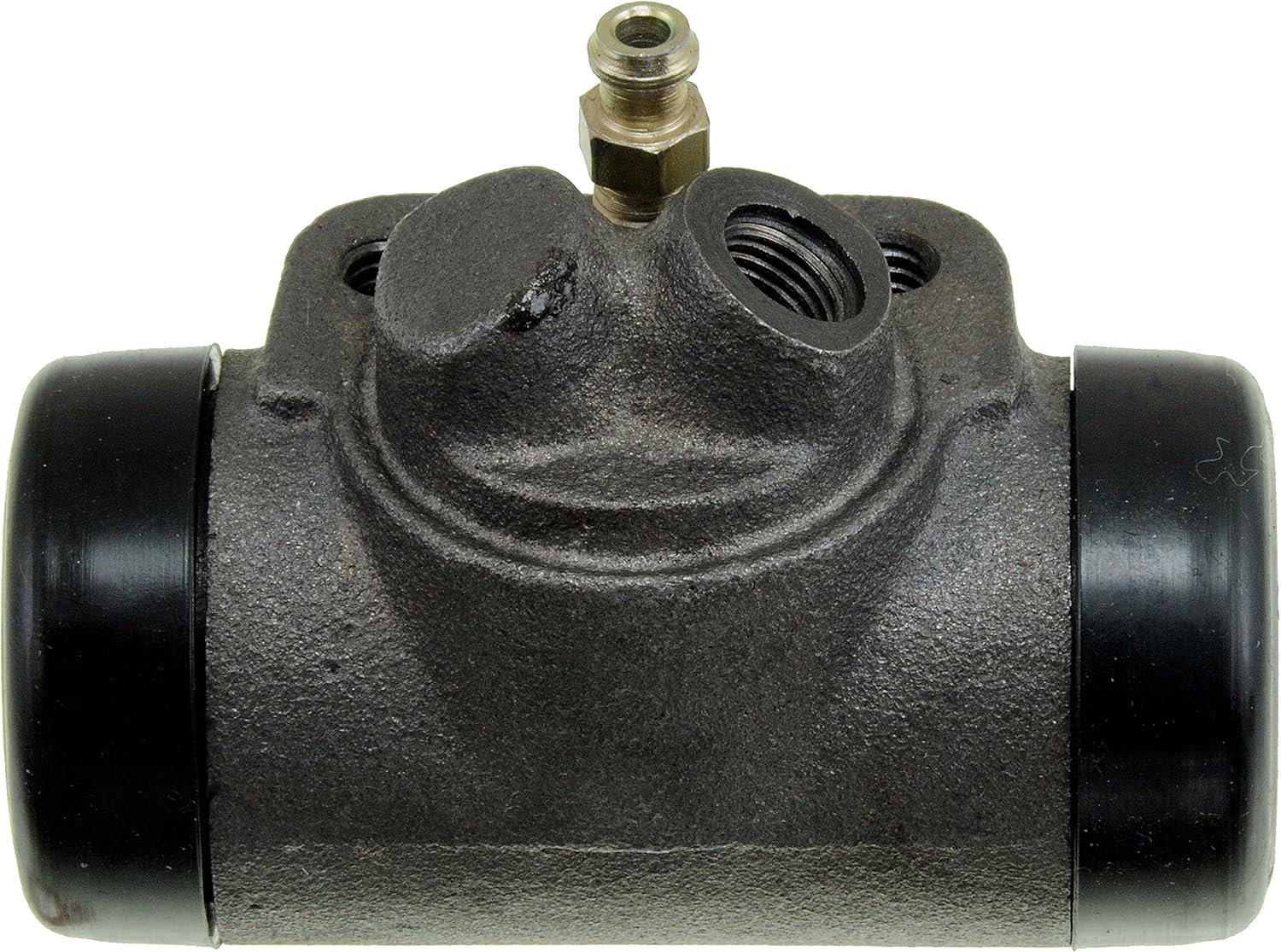

Figura 1: Principal view of the Dorman W46252 Drum Brake Wheel Cylinder. This image shows the primary structure of the wheel cylinder, including the main body and the fluid inlet port.

Característiques del producte

• Substitució ideal: Dissenyat específicament per ser una coincidència directa amb el cilindre de roda de fre de tambor original en vehicles particulars.
• Cost-Effective Fix: Replacing the cylinder while servicing drum brakes is the fastest, surest way to ensure brake performance.
• Materials de qualitat: Manufactured with high-quality EPDM rubber cups and boots for long-lasting performance and durability.
• Professionally Tested: Wheel cylinder bores are surface-tested to ensure an optimum sealing surface for the pressure cups, promoting reliable braking.
• Compatibilitat de vehicles: Designed for specific American Motors models from 1964-1965. Always verify fitment using vehicle specifications.

Instal·lació i Configuració

Installation of the drum brake wheel cylinder requires mechanical knowledge and appropriate tools. It is recommended that installation be performed by a qualified technician. Always refer to the vehicle's specific service manual for detailed brake system procedures.

Eines i materials necessaris:

• Conjunt de claus
• Brake fluid (DOT 3 or DOT 4, as specified by vehicle manufacturer)
• Netejador de frens
• Bleeder kit
• Guants i ulleres de seguretat

Passos d'instal·lació:

1. La seguretat primer: Ensure the vehicle is securely lifted and supported on jack stands. Disconnect the negative battery terminal.
2. Treure la roda i el tambor: Carefully remove the wheel and brake drum to expose the brake assembly.
3. Disconnect Brake Line: Place a drain pan beneath the wheel cylinder. Using an appropriate wrench, carefully disconnect the brake line from the old wheel cylinder. Be prepared for brake fluid leakage.
4. Treure el cilindre vell: Unbolt and remove the old wheel cylinder from the backing plate.
5. Instal·lar un cilindre nou: Position the Dorman W46252 wheel cylinder onto the backing plate and secure it with the mounting bolts. Ensure proper alignment.
6. Reconnect Brake Line: Carefully reconnect the brake line to the new wheel cylinder. Tighten to manufacturer specifications to prevent leaks.
7. Sistema de frens de purga: This is a critical step. Bleed the brake system to remove any air introduced during the installation process. Follow the vehicle manufacturer's bleeding procedure.
8. Torneu a muntar: Reinstall the brake drum and wheel. Lower the vehicle.
9. Prova de frens: Before driving, pump the brake pedal several times to build pressure. Test the brakes in a safe, controlled environment at low speed. Check for any fluid leaks.

Figura 2: lateral view of the Dorman W46252 Drum Brake Wheel Cylinder, showing the rubber boot and piston area. This view is important for understanding the sealing components.

Funcionament

The Dorman W46252 drum brake wheel cylinder functions as a hydraulic component within the vehicle's braking system. When the brake pedal is depressed, hydraulic pressure from the master cylinder is transmitted through the brake lines to the wheel cylinder. This pressure forces the wheel cylinder pistons outward, pushing the brake shoes against the inside of the brake drum, creating friction and slowing the vehicle.

Proper operation relies on a sealed system free of air and leaks. Any spongy feeling in the brake pedal or reduced braking performance may indicate an issue with the hydraulic system, including the wheel cylinders.

Manteniment

Regular inspection and maintenance of the brake system are crucial for safety and performance. While the wheel cylinder itself is a sealed unit, its surrounding components require attention.

Programa de manteniment:

• Every 12,000 miles or 12 months: Inspect brake fluid level and condition. Check for any signs of brake fluid leaks around the wheel cylinders and brake lines.
• During brake service (e.g., shoe replacement): Thoroughly inspect the wheel cylinder for leaks, corrosion, or damaged rubber boots. Replace the wheel cylinder if any issues are found.
• Reemplaçament de fluids: Follow vehicle manufacturer recommendations for brake fluid flush and replacement intervals. Old brake fluid can absorb moisture, leading to corrosion and reduced braking efficiency.

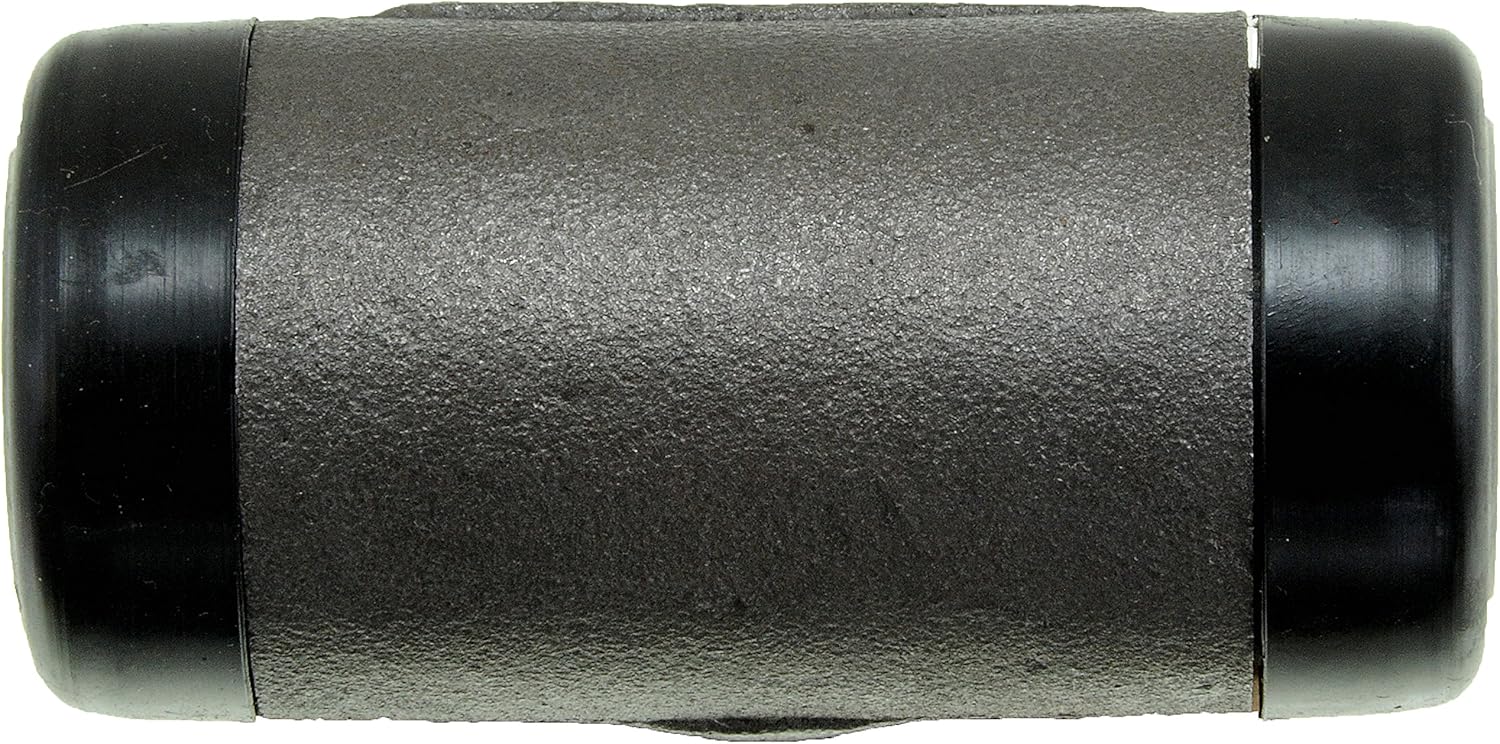

Figura 3: A baix view of the Dorman W46252 Drum Brake Wheel Cylinder. This angle highlights the overall compact design and mounting points.

Resolució de problemes

Common issues related to drum brake wheel cylinders and their potential causes:

If you encounter any of these issues, it is recommended to consult a professional automotive technician for diagnosis and repair.

Especificacions

Garantia i Suport

Dorman Products are manufactured to high-quality standards. For specific warranty information regarding the W46252 Drum Brake Wheel Cylinder, please refer to the official Dorman Products weblloc web o contacteu directament amb el seu servei d'atenció al client.

For technical assistance or further inquiries, you may visit the official Dorman Store or contact Dorman customer service.
