Girmi PC20 Electric Food Steamer Instruction Manual

1. Instruccions de seguretat importants

Please read all instructions carefully before using the appliance and retain them for future reference. Incorrect operation can cause damage to the appliance and injury to the user.

• Assegureu-vos sempre que el voltagEl valor e de l'etiqueta de classificació correspon al volum de la xarxa elèctricatage.
• Do not immerse the appliance base, cord, or plug in water or any other liquid.
• Mantenir l'aparell fora de l'abast dels nens.
• No feu funcionar l'aparell si el cable o l'endoll estan danyats, o si l'aparell no funciona correctament o ha estat danyat de qualsevol manera.
• Feu servir l'aparell sobre una superfície estable i resistent a la calor.
• Exercise caution when handling hot steam and hot parts of the steamer. Always use oven mitts or handles.
• Desendolleu l'aparell de la presa de corrent quan no l'utilitzeu i abans de netejar-lo.
• Aquest aparell només és per a ús domèstic.

2. Producte acabatview i Components

The Girmi PC20 Electric Food Steamer is designed for healthy and efficient cooking. It consists of several key components:

• Unitat base: Conté l'element calefactor i el dipòsit d'aigua.
• Embassament d'aigua: Where water is heated to produce steam.
• Steam Baskets (3): Transparent, stackable baskets for holding food.
• Tapa: Transparent lid to cover the top basket.
• Bol d'arròs: A dedicated bowl for cooking rice within a steam basket.

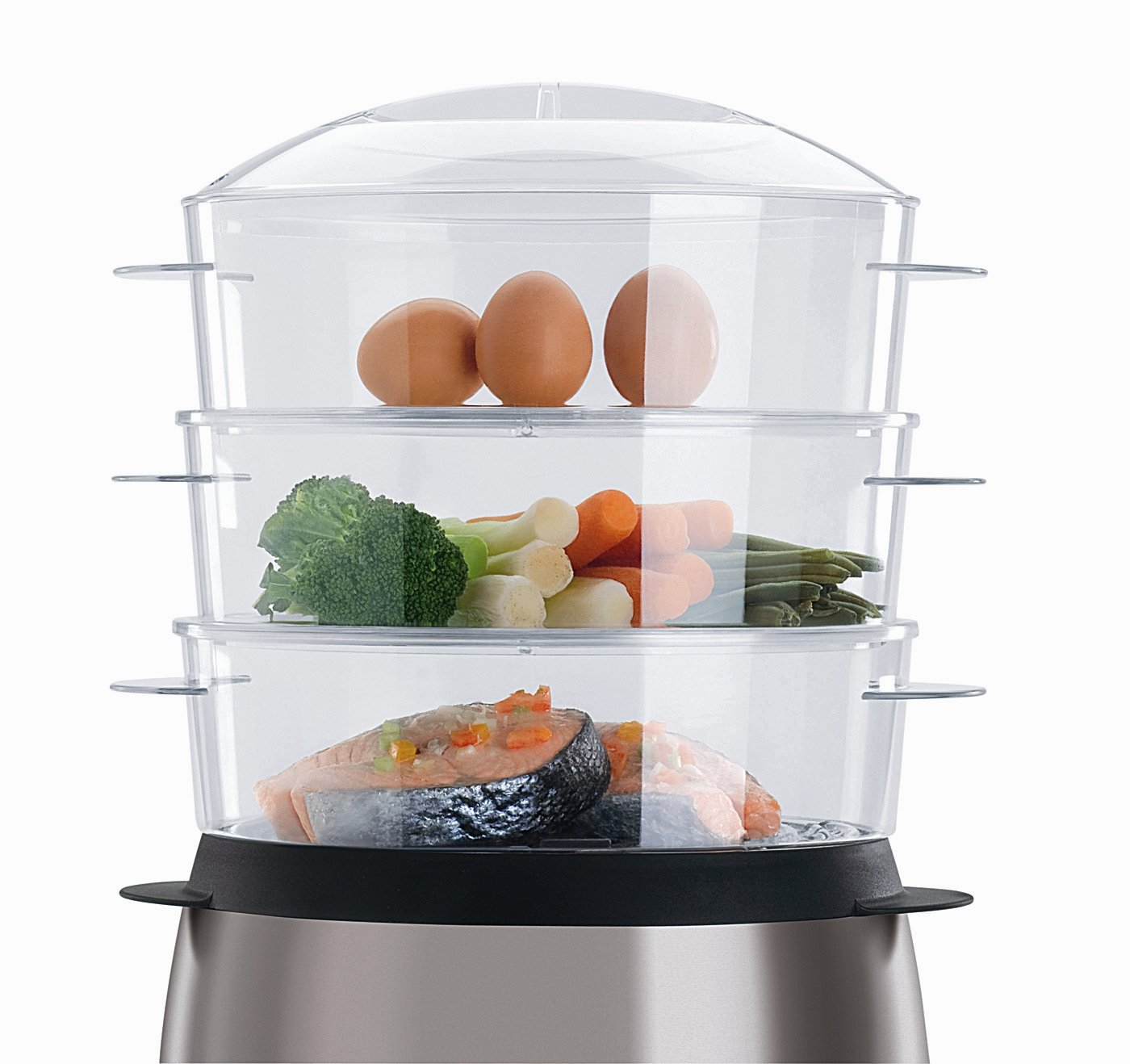

Image 1: The Girmi PC20 Electric Food Steamer fully assembled, showcasing its three transparent steaming baskets, lid, and the main power base. The baskets are shown with various foods being steamed.

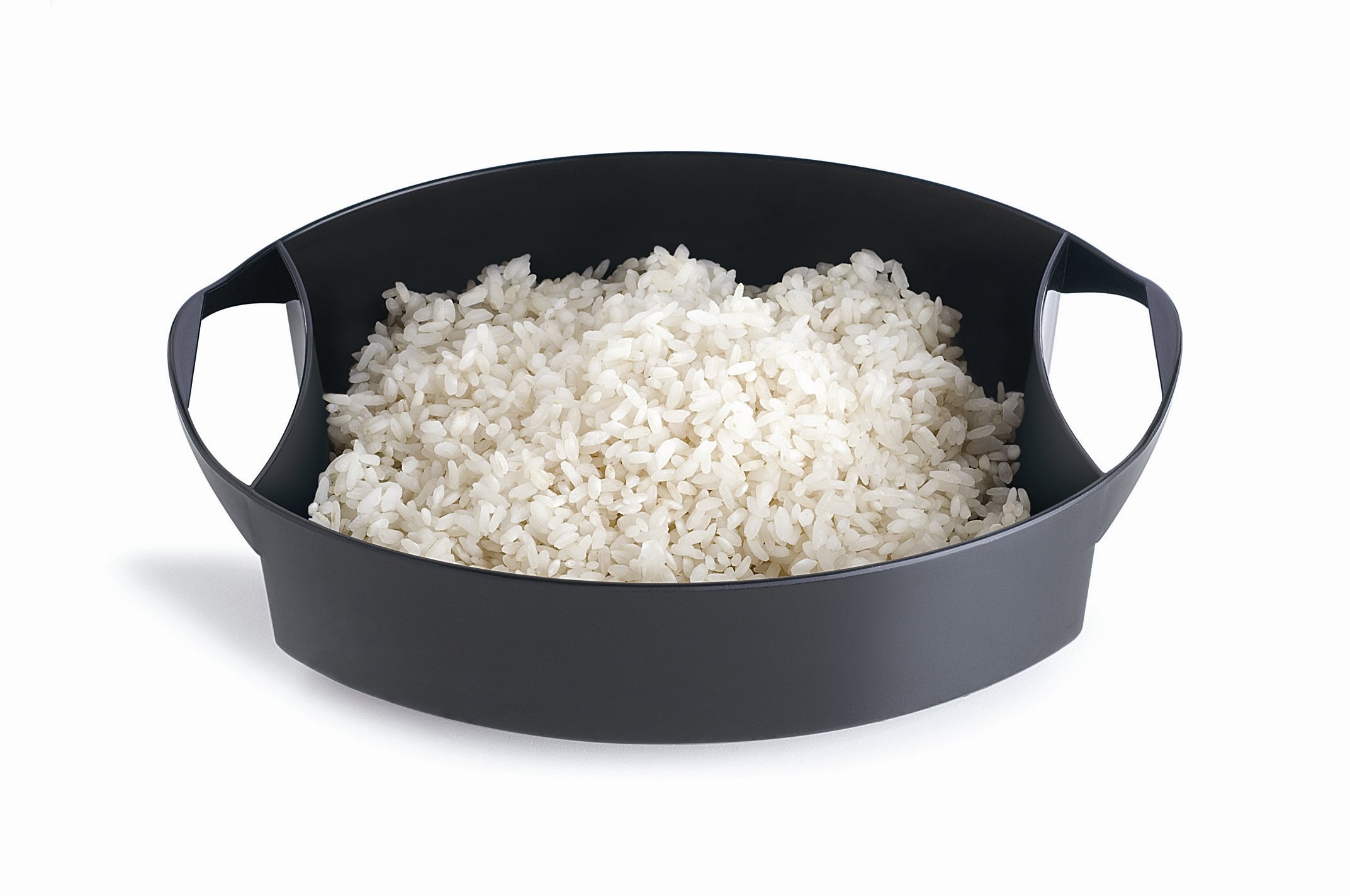

Image 2: The included black rice bowl, designed to fit inside one of the steam baskets for cooking rice.

3. Configuració i primer ús

1. Desembalatge: Traieu amb cura tots els materials d'embalatge i llenceu-los de manera responsable.
2. Neteja inicial: Before first use, wash the steam baskets, lid, and rice bowl in warm, soapy water. Rinse thoroughly and dry. Wipe the base unit with a damp tela. No submergiu la unitat base en aigua.
3. Muntatge: Place the base unit on a flat, stable, heat-resistant surface. Fill the water reservoir with clean water up to the maximum fill line. Do not overfill.
4. Stacking Baskets: The steam baskets are designed to stack. Place the first basket onto the base unit, then add subsequent baskets as needed. Ensure they are securely seated.

4. Instruccions de funcionament

1. Preparar menjar: Wash and prepare your food items. Cut larger items into smaller, uniform pieces for even cooking.
2. Load Baskets: Place food loosely in the steam baskets. Do not overcrowd the baskets, as this can impede steam circulation and affect cooking performance. For rice, use the provided rice bowl and place it in one of the steam baskets.
3. Muntar el vaporitzador: Stack the loaded baskets onto the base unit, then place the lid securely on the top basket.
4. Connectar l'alimentació: Plug the power cord into a suitable 220V, 50Hz electrical outlet.
5. Estableix el temporitzador: Turn the timer dial to the desired cooking time, up to a maximum of 60 minutes. The steamer will begin to heat and produce steam.
6. Monitor del nivell d'aigua: If steaming for extended periods, you may need to add water to the reservoir. Use the water refill opening on the side of the base unit if available, or carefully remove the baskets and lid to add water directly.
7. Apagat automàtic: The steamer will automatically turn off once the set cooking time has elapsed or if the water reservoir runs dry. A bell may sound to indicate completion.
8. Eliminar menjar: Carefully remove the lid and baskets using oven mitts or handles, as steam and parts will be hot.
9. Desconnectar: Always unplug the appliance from the power outlet after use.

5. Guia de cuina

Steaming times can vary based on the type, quantity, and size of food, as well as personal preference. The following are general guidelines:

• Verdures: Most vegetables (broccoli, carrots, green beans) take 10-20 minutes. Firmer vegetables like potatoes may require longer.
• Fish/Seafood: Fillets typically cook in 10-15 minutes.
• Ous: Hard-boiled eggs can be steamed in 12-15 minutes.
• Arròs: Use the rice bowl. For 1 cup of rice, add 1.5-2 cups of water. Cooking time is approximately 20-30 minutes.

Always check food for doneness before serving.

6. Manteniment i Neteja

Regular cleaning ensures optimal performance and extends the life of your steamer.

1. Abans de la neteja: Always unplug the steamer and allow it to cool completely before cleaning.
2. Baskets, Lid, Rice Bowl: These parts are dishwasher safe or can be washed by hand in warm, soapy water. Rinse thoroughly and dry.
3. Unitat base: Netegeu l'exterior de la unitat base amb anunciamp cloth. Do not use abrasive cleaners or scourers. Never immerse the base unit in water.
4. Descalcificació: Over time, mineral deposits (limescale) may build up in the water reservoir. To descale, fill the reservoir with a mixture of equal parts water and white vinegar. Run the steamer for 20-30 minutes. Unplug, let cool, then empty and rinse the reservoir thoroughly. Repeat if necessary.
5. Emmagatzematge: Ensure all parts are clean and dry before storing. The baskets can be stacked for compact storage.

7. Solució De Problemes

• Steamer not turning on: Check if the power cord is securely plugged into the outlet and the appliance. Ensure the timer dial is set to a cooking duration.
• Sense vapor o vapor insuficient: Ensure the water reservoir is filled to the appropriate level. Check that the lid is properly seated and baskets are stacked correctly.
• Food not cooking evenly or taking too long: Do not overcrowd the baskets. Cut food into uniform sizes. Ensure there is enough water in the reservoir.
• Water leakage from the base: Check that the water reservoir is not overfilled. Ensure all baskets are correctly aligned and seated on the base unit. If leakage persists, discontinue use and contact customer support.

8. Especificacions

9. Garantia i Suport

For warranty information or technical support, please refer to the warranty card included with your purchase or contact Girmi customer service directly. Keep your proof of purchase for any warranty claims.

La informació de contacte per a l'atenció al client normalment es pot trobar a la fitxa del fabricant weblloc web o a l'embalatge del producte.
