Polaris Vac-Sweep 280 Pressure-Side In-ground Pool Cleaner Instruction Manual

1. Introducció

Producte acabatview

The Polaris Vac-Sweep 280 pressure-side pool cleaner is designed for efficient cleaning of all in-ground pools. It operates by connecting to a dedicated pressure line and requires a booster pump for optimal performance. Utilizing double jets, it provides powerful vacuum action, capable of cleaning your pool in 3 hours or less. This cleaner effectively sweeps, scrubs, and vacuums all pool surfaces, ensuring comprehensive debris removal.

Característiques clau

• Powered by double jets for faster cleaning (3 hours or less).
• Compatible with all in-ground pools of any size and shape.
• Unique single-chamber filter bag captures debris before it reaches your pump or filter, extending filtration system life.
• Sweeps, scrubs, and vacuums the bottom and walls of your pool.
• Requires a separately available booster pump for operation.

Què s'inclou

The Polaris Vac-Sweep 280 Pressure-Side Pool Cleaner package includes:

• 280 Pressure-side pool cleaner unit
• 31-foot hose kit
• Single chamber filter bag
• Instruccions de funcionament

2. Configuració

Desembalatge i inspecció

Carefully remove all components from the packaging. Inspect all parts for any signs of damage. Ensure all listed items in the 'What's Included' section are present.

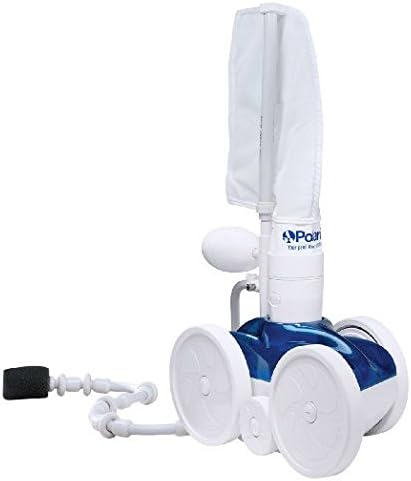

Figure 1: Main unit of the Polaris Vac-Sweep 280 Pool Cleaner.

Assemblea

Assemble the cleaner by connecting the 31-foot hose kit to the main unit. Ensure all connections are secure. The single chamber filter bag should be properly attached to the cleaner's intake.

Figura 2: Frontal view of the cleaner with the hose attached.

Figure 3: Close-up of the single-chamber debris bag.

Booster Pump Connection

The Polaris 280 requires a booster pump for operation. Connect the cleaner to a dedicated pressure line from your booster pump. Ensure the booster pump is properly installed and functioning according to its own manual.

Figura 4: Example of a compatible Polaris booster pump (sold separately).

3. Instruccions de funcionament

Operació Inicial

1. Install the cleaner according to this user manual.
2. Operate the pool's main pump and filter system as usual.
3. Connect the cleaner to the booster pump's dedicated pressure line.
4. Carefully submerge the cleaner in the pool, ensuring it is fully immersed and no air is trapped.
5. Turn on the booster pump to activate the cleaner.

Cicle de neteja

The Polaris 280 is designed to clean your pool efficiently, typically completing a cycle in 3 hours or less. It will sweep, scrub, and vacuum all surfaces, including the floor and walls. The unique tail sweep hose helps agitate debris from hard-to-reach areas, directing it towards the cleaner's intake.

Figure 5: The cleaner in operation, showing the sweep hose.

4. Manteniment

Neteja de bosses de filtre

Regularly clean the single-chamber filter bag to maintain optimal cleaning performance. The frequency of cleaning depends on the amount of debris in your pool. Simply unzip the bag and empty the collected debris. Rinse the bag thoroughly with a hose to remove fine particles.

General Care and Part Replacement

The Polaris 280 is built for durability, but certain parts may require periodic replacement due to wear and tear from continuous use in chlorinated water. Common replaceable parts include the black mesh tail scrubber, the zipper bag, backup valve, connector assembly, and swing axle. These parts are designed for easy replacement, often without requiring specialized tools or expertise.

After each use, clean the cleaner and store it in a shaded area to prolong its lifespan.

5. Solució De Problemes

Problemes comuns i solucions

• Cleaner not moving or getting stuck: Ensure the hose is not tangled. Check for obstructions in the cleaner's wheels or intake. Verify adequate water pressure from the booster pump.
• Cleaner not picking up debris: Check if the filter bag is full and needs emptying. Inspect the intake for any blockages. Ensure the sweep hose is functioning correctly to agitate debris.
• Tail end floats or sprays water excessively: Adjust the tail swiper's position. Consider adding an additional foam wiper to weigh down the tail if necessary, ensuring it does not impede movement.
• Cracked or broken components: While durable, plastic components like sidewall connectors or clips can wear out. These are typically replaceable parts. Refer to the Polaris website or authorized dealers for replacement parts.

6. Especificacions

7. Garantia i Suport

Informació de la garantia

The Polaris Vac-Sweep 280 Pressure-Side In-ground Pool Cleaner comes with a Limited Warranty. Please refer to the warranty documentation included with your product for specific terms and conditions.

Manual d'usuari i suport

For detailed installation and user guidance, please refer to the official User Manual PDF: Guia de l'usuari (PDF). For further assistance or technical support, please contact Fluidra, the manufacturer of Polaris products.
