Professional Series 700 Watt 2 Speed Juice Extractor (Model PS75851) User Manual

Introducció

Thank you for choosing the Professional Series 700 Watt 2 Speed Juice Extractor, Model PS75851. This manual provides essential information for the safe and efficient use, assembly, cleaning, and maintenance of your new appliance. Please read all instructions carefully before first use and retain this manual for future reference.

Instruccions importants de seguretat

Quan utilitzeu aparells elèctrics, sempre s'han de seguir les precaucions bàsiques de seguretat per reduir el risc d'incendi, descàrrega elèctrica i lesions a les persones, incloses les següents:

• Llegiu totes les instruccions abans d’utilitzar l’aparell.
• No submergiu la base del motor en aigua o altres líquids.
• Ensure the appliance is unplugged from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Eviteu el contacte amb les peces mòbils.
• No feu servir cap aparell amb un cable o un endoll danyats, o després que l'aparell funcioni malament o s'hagi caigut o s'hagi danyat de cap manera.
• L'ús d'accessoris no recomanats o venuts pel fabricant pot provocar incendis, descàrregues elèctriques o lesions.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora d'una taula o taulell, ni toqui superfícies calentes.
• Always ensure the juicer cover is properly secured before the motor is switched on.
• Do not put fingers or other objects into the juicer opening while it is in operation. If food becomes lodged in the opening, use the food pusher to dislodge it.
• Aquest aparell només és per a ús domèstic.

Components del producte

Familiarize yourself with the parts of your juice extractor:

• Empenjador d'aliments
• Tub d'alimentació
• Coberta de l'exprimidor
• Filter Basket / Blade Assembly
• Juice Collector / Pulp Container
• Motor Base with Control Switch
• Barra de bloqueig de seguretat
• Càntir de sucs

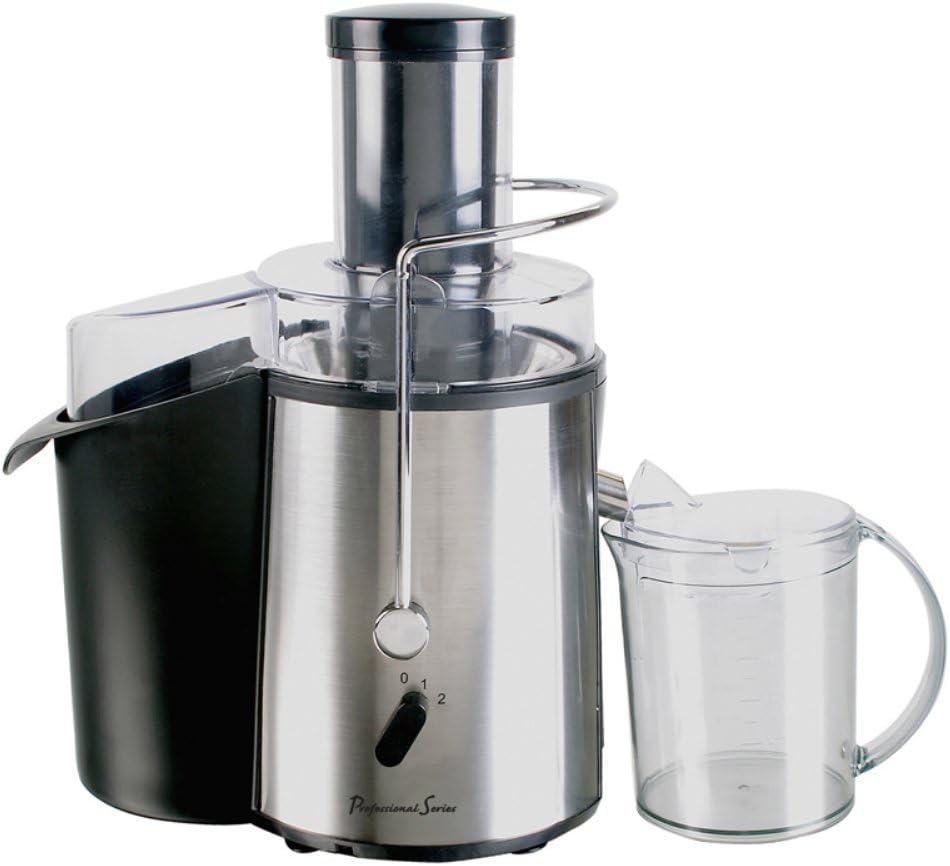

An image showing the assembled Professional Series 700 Watt 2 Speed Juice Extractor, featuring its stainless steel base, clear lid, pulp container, and a transparent juice pitcher.

Muntatge i muntatge

1. Before first use, wash all removable parts (food pusher, juicer cover, filter basket, juice collector, juice pitcher) in warm, soapy water. Rinse thoroughly and dry.
2. Col·loqueu la base del motor sobre una superfície neta, seca i estable.
3. Position the juice collector onto the motor base, ensuring it is seated correctly. The pulp spout should align with the pulp container.
4. Insert the filter basket / blade assembly into the juice collector, pressing down firmly until it clicks into place. Ensure it is securely seated.
5. Place the juicer cover over the filter basket and juice collector, aligning the feeding tube with the opening.
6. Lift the safety locking bar and secure it into the grooves on both sides of the juicer cover. The appliance will not operate unless the locking bar is correctly engaged.
7. Place the pulp container under the pulp spout and the juice pitcher under the juice spout.
8. Your juice extractor is now assembled and ready for use.

Instruccions de funcionament

Follow these steps for optimal juicing results:

1. Preparar els ingredients: Wash fruits and vegetables thoroughly. Most fruits and vegetables do not need to be peeled, but citrus fruits should be peeled. Remove large seeds (e.g., from peaches, plums, cherries) and hard pits. Cut larger items into pieces that fit easily into the feeding tube.
2. Connectar: Ensure the juicer is properly assembled and the safety locking bar is engaged. Plug the power cord into a suitable electrical outlet.
3. Seleccioneu la velocitat: The juicer features a 2-speed control switch.
   • Velocitat 1 (Baixa): Suitable for softer fruits and vegetables like berries, grapes, tomatoes, and cucumbers.
   • Velocitat 2 (Alta): Ideal for harder fruits and vegetables such as apples, carrots, celery, and ginger.
   Turn the control switch to the desired speed (1 or 2). The juicer will start operating.
4. Ingredients del pinso: Gradually feed the prepared fruits and vegetables into the feeding tube. Use the food pusher to gently guide the ingredients down. Never use your fingers or other utensils to push food into the feeding tube.
5. Recollir suc: Fresh juice will flow into the juice pitcher, and pulp will collect in the pulp container.
6. Acabar de fer suc: Once all ingredients are juiced, turn the control switch to the "0" (Off) position. Unplug the appliance from the power outlet.

Neteja i Manteniment

Una neteja regular garanteix un rendiment òptim i allarga la vida útil del teu espremedor.

1. Desconnectar: Desendolleu sempre l'espremedora de la presa de corrent abans de netejar-la.
2. Desmuntar: Unlock the safety locking bar and remove the juicer cover, filter basket, juice collector, food pusher, and pulp container.
3. Esbandir immediatament: Rinse all removable parts under running water immediately after use to prevent pulp and juice residue from drying and sticking.
4. Rentar peces: Wash the removable parts in warm, soapy water. Use a brush (often included with juicers, or a small cleaning brush) to thoroughly clean the mesh of the filter basket. This is crucial for efficient juicing.
5. Base del motor neta: Netegeu la base del motor amb un anunciamp tela. No submergiu mai la base del motor en aigua ni en cap altre líquid.
6. Assecar i emmagatzemar: Dry all parts thoroughly before reassembling or storing. Store the juicer in a clean, dry place.

Resolució de problemes

Especificacions

• Model: PS75851
• Marca: Sèrie Professional
• Potència: 700 watts
• Velocitats: 2 (Baix/Alt)
• Material: Stainless Steel (main body)
• Dimensions: Aproximadament 20.32 cm (profunditat) x 40.64 cm (amplada) x 41.61 cm (alçada)
• Pes: Aproximadament 4.26 kg
• Voltage: 120 volts (CC)
• Característica especial: Portàtil

Garantia i Suport

For warranty information or technical support regarding your Professional Series 700 Watt 2 Speed Juice Extractor (Model PS75851), please refer to the warranty card included with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
