Introducció
This manual provides essential instructions for the safe and effective setup, operation, and maintenance of your Drive Medical Heavy Duty Bariatric Hospital Bed, Model 15303. Please read all instructions carefully before assembly and use to ensure proper function and user safety. Retain this manual for future reference.
The Drive Medical Model 15303 is a full electric bariatric bed designed for quiet, smooth operation and features a heavy-duty steel frame. It offers a 54-inch large sleep surface and can accommodate a weight capacity of 1,000 pounds. The split-pan design allows for easy setup and removal of bed ends without tools.
Informació de seguretat
Always ensure the bed is on a level surface and the casters are locked when the bed is stationary. Do not exceed the maximum weight capacity of 1,000 pounds. Keep hands and feet clear of moving parts during operation. Regularly inspect all components for wear or damage. If any issues are found, discontinue use and contact a qualified service technician.
Muntatge i muntatge
The Drive Medical Heavy Duty Bariatric Hospital Bed features a split-pan design for simplified assembly. The bed ends can be easily set up or removed without the need for tools.
- Desembalatge: Traieu amb cura tots els components de l'embalatge. Inspeccioneu-ho per veure si hi ha danys durant l'enviament.
- Muntatge del marc: Connect the bed frame sections according to the included diagrams. Ensure all locking mechanisms are securely engaged.
- Bed End Installation: Attach the headboard and footboard to the main frame. These are designed for tool-free installation.
- Caster Locking: Once the bed is in its desired location, engage the locks on all casters to prevent unintended movement.
- Connexió d'alimentació: Plug the power cord into a grounded electrical outlet. Ensure the cord is not pinched or in a high-traffic area.

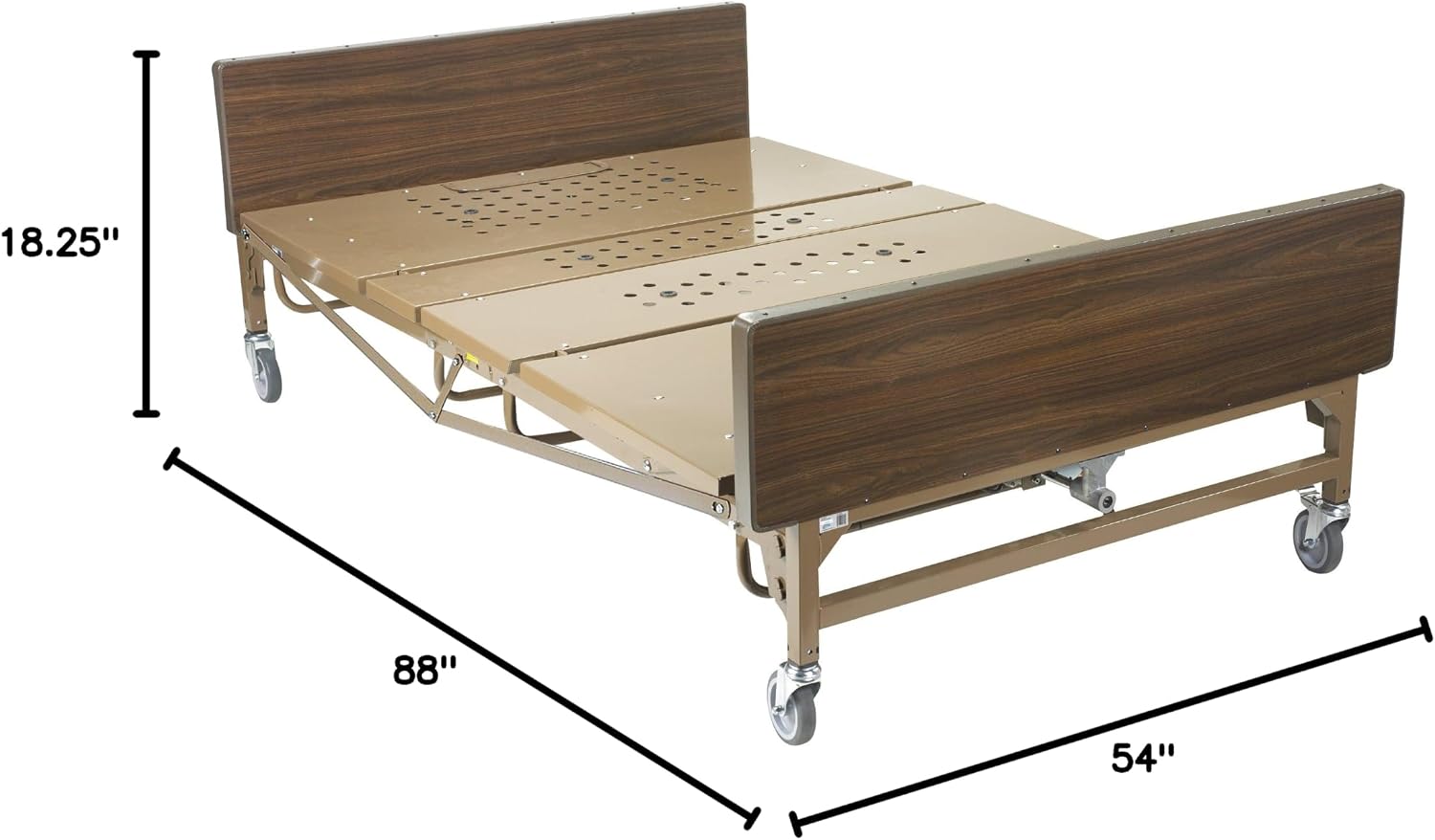

Imatge: The image displays the overall dimensions of the Drive Medical Heavy Duty Bariatric Hospital Bed. The bed measures approximately 88 inches in length, 54 inches in width, and has a height of 18.25 inches from the floor to the bed frame. These measurements are crucial for planning placement and ensuring adequate space.
Instruccions de funcionament
The bed is operated using an easy-to-reach hand control, allowing for multiple bed positioning options to maximize user comfort.
- Control manual: The hand control features buttons to adjust the head section, foot section, and overall bed height. Press and hold the desired button to move the section. Release the button to stop movement.
- Posicionament: Adjust the head and foot sections to achieve comfortable and medically appropriate positions. The full electric functionality allows for independent adjustment of these sections.
- Emergency Manual Crank: En cas d'una potènciatage or electrical malfunction, an emergency manual crank is provided. Locate the crank mechanism (typically at the foot end of the bed) and follow the instructions provided with the crank to manually adjust the bed's height or position.
Manteniment
Regular maintenance ensures the longevity and safe operation of your hospital bed.
- Neteja: Clean the bed frame and surfaces regularly with a mild detergent and damp cloth. Avoid abrasive cleaners or solvents. Ensure all electrical components remain dry.
- Inspecció: Periodically inspect all nuts, bolts, and fasteners to ensure they are tight. Check the power cord for any signs of damage, fraying, or wear. Inspect the hand control for proper function and any visible damage.
- Lubricació: Moving parts may require occasional lubrication. Refer to specific lubrication points in the detailed product manual or consult a service technician.
- Rodes: Ensure casters roll freely and locks engage properly. Clean any debris from the wheels.
Resolució de problemes
If you encounter issues with your bed, refer to the following common troubleshooting steps:
| Problema | Causa possible | Solució |
|---|---|---|
| Bed does not operate | Power cord unplugged; circuit breaker tripped; hand control malfunction | Check power connection; reset circuit breaker; try emergency manual crank; contact support |
| Funcionament sorollós | Loose fasteners; lack of lubrication; motor issue | Tighten fasteners; lubricate moving parts (if applicable); contact support |
| Bed moves unintentionally | Caster locks disengaged; faulty casters | Engage all caster locks; inspect casters for damage; replace if necessary |
If the problem persists after attempting these solutions, please contact Drive Medical customer support or a qualified service technician.
Especificacions
- Número de model: 15303
- Dimensions del producte: 94 x 54.5 x 25 polzades (Llarg x Amplada x Altura)
- Pes de l'article: 338 lliures (153313.42 grams)
- Capacitat de pes: 1,000 lliures
- Sleep Surface Width: 54 polzades
- Material del marc: Acer de gran resistència
- Funcionament: Full electric with hand control
- Característiques: Split-pan design, emergency manual crank
- Color: marró
Informació de la garantia
For detailed warranty information regarding your Drive Medical Heavy Duty Bariatric Hospital Bed, Model 15303, please refer to the warranty card included with your product packaging or visit the official Drive Medical weblloc. Els termes i condicions de la garantia poden variar.
Atenció al client
If you require assistance with assembly, operation, maintenance, or troubleshooting, please contact Drive Medical customer support. Contact information can typically be found on the product packaging, the official Drive Medical weblloc web o a través del vostre distribuïdor autoritzat.
