1. Introducció
Thank you for choosing the Bosch Rotak 32 Electric Lawn Mower. This manual provides important information regarding the safe operation, assembly, maintenance, and troubleshooting of your new lawn mower. Please read these instructions carefully before using the appliance and keep them for future reference.
The Bosch Rotak 32 is an electric lawn mower designed for efficient grass cutting in small to medium-sized gardens. It features a powerful 1200W motor and a 31-liter grass collection box, which helps reduce the frequency of emptying during operation. Its lightweight design and integrated carry handle make it easy to maneuver and transport.
2. Instruccions de seguretat
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Familiarize yourself with the controls and proper use of the appliance.
- Llegeix tot el manual: Enteneu totes les instruccions abans de fer funcionar la tallagespa.
- Porteu roba adequada: Porteu sempre calçat resistent i pantalons llargs. No feu servir la tallagespa descalç ni amb sandàlies obertes.
- Mantingueu allunyats els nens i els vianants: Ensure that other people, especially children and pets, remain at a safe distance from the operating area.
- Inspeccioneu la zona: Before mowing, remove any objects that could be thrown by the blade, such as stones, sticks, wires, or bones.
- Comproveu si hi ha danys: Before each use, inspect the power cord for damage. If damaged, have it replaced by a qualified professional.
- Eviteu la gespa mullada: Do not mow in the rain or when the grass is wet.
- Maintain a firm footing: Always be sure of your footing on slopes. Mow across the face of slopes, never up and down.
- Desconnecteu l'alimentació: Always disconnect the power supply before cleaning, adjusting, or if the cable is cut or damaged.
- Use only genuine parts: For repairs and maintenance, use only original replacement parts and accessories.
3. Contingut del paquet
Upon unpacking, ensure all items are present and undamaged. The package should contain:
- Bosch Rotak 32 Electric Lawn Mower unit
- Grass collection box (components for assembly)
- Muntatge del mànec
- Manual d'usuari
If any parts are missing or damaged, contact your retailer or Bosch customer service.
4. Configuració
The Bosch Rotak 32 lawn mower requires minimal assembly before first use. Follow these steps:
4.1. Muntatge del mànec
Attach the handle to the main mower unit. This typically involves securing it with four screws. Ensure the handle is firmly attached and all locking mechanisms are engaged.
4.2. Grass Box Assembly
Assemble the grass collection box according to the diagrams provided in the separate assembly sheet (if applicable). Once assembled, securely attach the grass box to the rear of the mower unit.
Figure 1: The Bosch Rotak 32 electric lawn mower is lightweight and easy to carry.
5. Funcionament
Before starting, ensure the mower is properly assembled and the area is clear of debris. Connect the mower to a suitable power outlet using an appropriate extension cord if necessary.
5.1. Ajust de l'alçada de tall
The Bosch Rotak 32 offers adjustable cutting heights. The cutting height can be set to 20 mm, 40 mm, or 60 mm. Refer to the mower's chassis for the height adjustment mechanism, typically a lever or axle adjustment system. Select the desired height before starting the mower.
5.2. Arrancada i aturada
- Començar: Press and hold the safety button, then pull the switch lever towards the handle.
- Parar: Release the switch lever. The blade will stop rotating within a few seconds.
5.3. Tècnica de sega
Push the mower at a steady pace. Overlapping each pass slightly ensures an even cut. For best results, mow when the grass is dry. The 32 cm cutting width allows for efficient coverage.

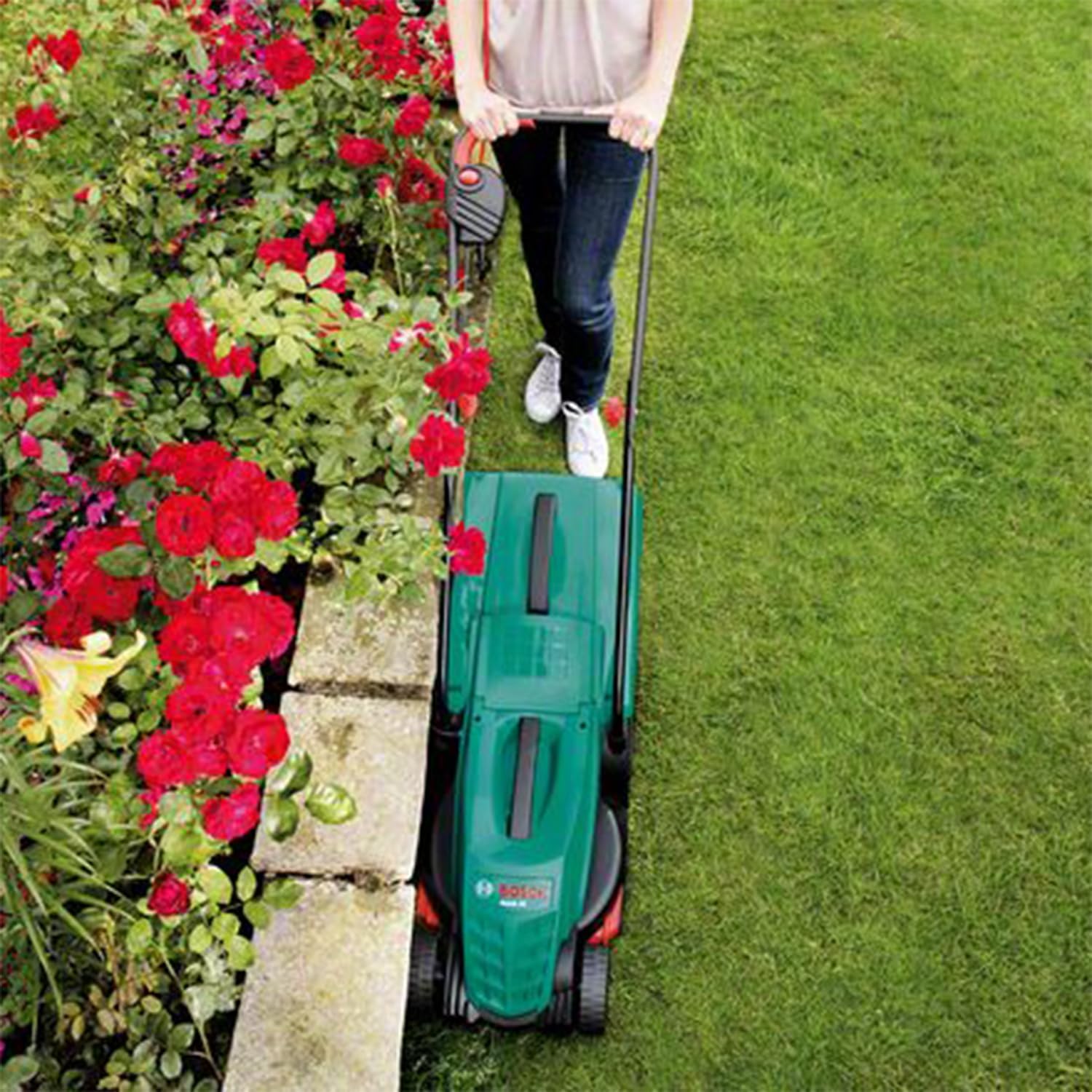

Figura 2: Despeses generals view of the mower in operation.
Figure 3: User operating the Bosch Rotak 32 lawn mower.
6. Manteniment
Un manteniment regular garanteix la longevitat i el rendiment òptim de la tallagespa.
- Neteja: After each use, disconnect the power and clean the mower. Remove grass clippings from the underside of the deck, the grass box, and the air vents. Use a brush or cloth; do not use water directly on electrical components.
- Inspecció de la fulla: Regularly check the blade for sharpness and damage. A dull or damaged blade can affect cutting performance and mower balance. Replace the blade if necessary.
- Emmagatzematge: Store the mower in a dry, secure place, out of reach of children. The handle can often be folded for compact storage.
7. Solució De Problemes
If you encounter issues with your lawn mower, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La segadora no arrenca | No power supply; Safety switch not engaged; Overload protection activated | Check power connection; Engage safety switch and lever; Allow motor to cool down |
| Mal rendiment de tall | Dull or damaged blade; Cutting height too low for grass type; Grass box full | Sharpen or replace blade; Adjust cutting height; Empty grass box |
| Vibració excessiva | Damaged or unbalanced blade; Loose components | Inspect and replace blade if necessary; Check all fasteners for tightness |
If the problem persists after attempting these solutions, contact Bosch customer service.
8. Especificacions
| Característica | Detall |
|---|---|
| Marca | Bosch |
| Número de model | 0600885B00 |
| Font d'alimentació | Elèctric amb cable |
| Potència del motor | 1200 watts |
| Amplada de tall | 32 cm |
| Ajust d'alçada de tall | 6 cm to 7 cm (4 positions) |
| Capacitat de la caixa d'herba | 31 litres |
| Dimensions del producte (P x A x A) | 39.5 cm x 28 cm x 60 cm |
| Pes de l'article | 6.3 kg (aprox. 13.89 lliures) |
| Material | Plàstic |
| Color | Verd |
| Muntatge obligatori | No (referring to major assembly, minor setup required) |
| Mode d'operació | Empènyer manual |
9. Garantia i Suport
9.1. Informació de la garantia
This product carries a manufacturer's warranty for 1 year from the date of purchase. For warranty claims or service, please retain your proof of purchase.
9.2. Atenció al client
For technical assistance, spare parts, or further information, you can contact the manufacturer's authorized service center or your retailer. You may also visit the official Bosch weblloc de recursos de suport.
