The Leviton 6631-LI SureSlide 600W Incandescent Slide Dimmer is designed for single-pole applications, providing smooth and precise control over incandescent lighting levels. This dimmer features a linear slide control for easy adjustment and an illuminated slide for visibility in low light conditions. It is rated for 600 watts at 120 volts AC, 60Hz, and is compatible with Decora brand wallplates.

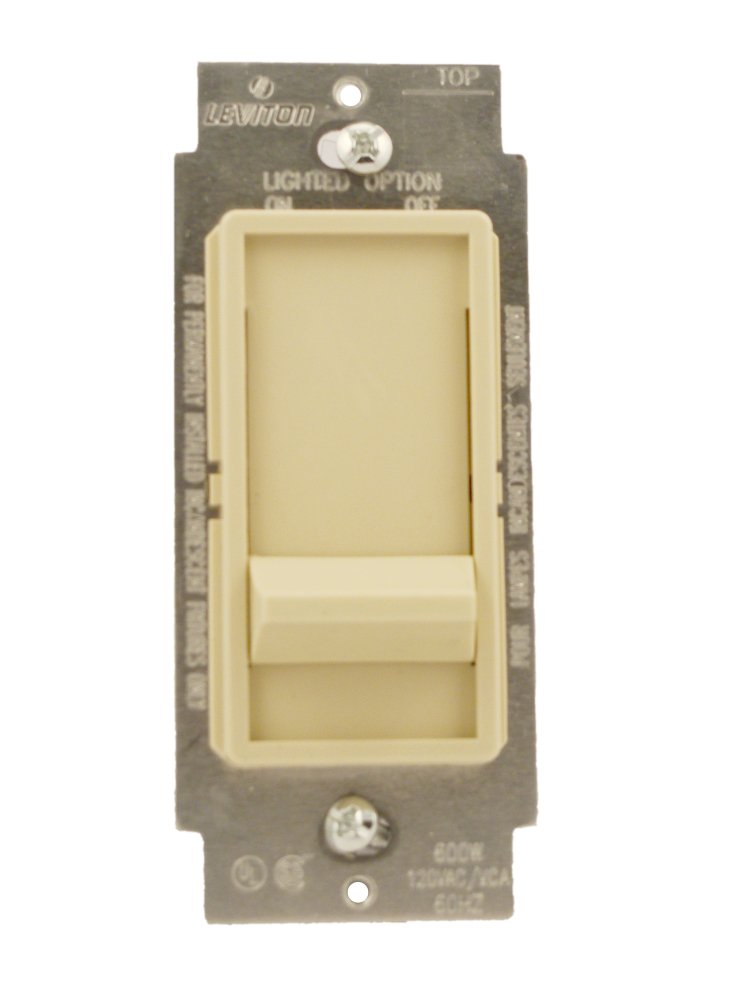

Imatge: Frontal view of the Leviton 6631-LI SureSlide 600W Incandescent Slide Dimmer, showing the slide control and ivory finish.
Instruccions importants de seguretat
- ADVERTIMENT: Per evitar incendis, descàrregues elèctrices o la mort, desconnecteu l'alimentació a l'interruptor o a la caixa de fusibles i comproveu que estigui apagada abans de connectar el cablejat.
- Instal·leu segons tots els codis elèctrics nacionals i locals.
- Use only with incandescent lamps. Do not use with LED, CFL, or other non-incandescent lighting types unless specifically rated for them.
- Assegureu-vos el wat totaltage of connected bulbs does not exceed the dimmer's maximum rating of 600W.
- Si no esteu segur de qualsevol part d’aquestes instruccions, consulteu un electricista qualificat.
Guia d'instal·lació
Eines necessàries
- Tornavisos (Phillips i cap pla)
- Pelafils/talladors
- Cinta elèctrica
- Voltage provador
Wiring Instructions (Single-Pole)
- Apagueu l'alimentació: Localitzeu l'interruptor automàtic o el fusible que subministra alimentació a l'interruptor que esteu substituint i apagueu-lo. Verifiqueu que l'alimentació estigui apagada utilitzant un voltimetre.tage provador.
- Treure l'interruptor antic: Unscrew and carefully pull the old switch from the wall box. Disconnect the wires from the old switch. Note which wire was connected to which terminal.
- Identifica els cables: In a single-pole setup, you will typically have two hot wires (one incoming from the power source, one going to the light fixture) and a ground wire.
- Connect dimmer:
- Connecteu el cable de terra de coure verd o nu from the wall box to the cargol de terra verd al dimmer.
- Connecteu un dels black dimmer wires al incoming hot wire de la font d'alimentació.
- Connecteu la resta black dimmer wire al cable de càrrega going to the light fixture.
- Connexions segures: Ensure all wire connections are tight. Use electrical tape to cover any exposed wire ends.
- Mount dimmer: Carefully push the wired dimmer into the wall box. Secure it with the mounting screws provided.
- Install wallplate: Attach the decorative wallplate (sold separately) over the dimmer.
- Restaurar l'energia: Torneu a encendre l'alimentació a l'interruptor automàtic o a la caixa de fusibles.
Imatge: Enrere view of the Leviton 6631-LI SureSlide 600W Incandescent Slide Dimmer, showing the screw terminals for wiring connections.
Funcionament
Control d'atenuació
To adjust the brightness of your incandescent lights, simply move the slide control up or down. Sliding the control upwards will increase the light intensity, while sliding it downwards will decrease it.
Funció On/Off
The dimmer features a 'slide to off' function. To turn the lights completely off, slide the control all the way down to its lowest position. To turn the lights on, slide the control upwards to your desired brightness level.
Cura i Manteniment
- Neteja: To clean the dimmer, wipe it with a soft, damp cloth. Do not use abrasive cleaners, solvents, or sprays directly on the dimmer.
- Comprovacions periòdiques: Periodically check the dimmer and wallplate for any signs of damage or loose connections. If any issues are found, turn off power at the circuit breaker and address them immediately.
- Substitució de bombetes: Always turn off the power to the fixture at the circuit breaker before replacing bulbs. Ensure replacement bulbs are incandescent and do not exceed the dimmer's wattagQualificació e.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Lights do not turn ON. | No power to the dimmer; loose wiring; burned-out bulb; dimmer slide is in the 'OFF' position. | Check circuit breaker; verify wiring connections; replace bulb; slide control upwards. |
| Els llums no s'apagaran. | Incorrect bulb type (non-incandescent); dimmer not wired correctly; faulty dimmer. | Ensure incandescent bulbs are used; recheck wiring; replace dimmer if necessary. |
| Els llums parpellegen o brunzeixen. | Loose wiring; incompatible bulbs; overloaded circuit; radio/TV interference. | Check wiring connections; ensure bulbs are incandescent; reduce total wattage; the dimmer has a built-in filter, but some interference may still occur. |
| Dimmer is hot to the touch. | Normal operation (dimmers generate heat); overloaded circuit. | Slight warmth is normal. If excessively hot, check total wattage of connected bulbs against the 600W rating. Reduce load if overloaded. |
Especificacions del producte
| Especificació | Detall |
|---|---|
| Número de model | 6631-LI |
| Mode d'operació | Regulador de lliscament |
| Wattage | 600W |
| Vol. Operatiutage | 120 volts de CA, 60 Hz |
| Valoració actual | 5 Amps |
| Tipus de canvi | Interruptor de regulació |
| Tipus de circuit | Unidireccional (unipolar) |
| Color | Marfil |
| Dimensions de l'article (L x A x A) | 4.7 x 3 x 2.5 polzades |
| Certificacions | CE, ETL, cULus |
Informació de la garantia
Aquest producte de Leviton està cobert per una 2 anys de garantia limitada. For specific terms and conditions, please refer to the warranty documentation included with your purchase or visit the official Leviton weblloc.
Atenció al client
For technical assistance, product inquiries, or warranty claims, please contact Leviton customer support. You can find contact information and additional resources on the official Leviton weblloc: www.leviton.com.
