APC Smart-UPS SC 620 VA 230 V User Manual

1. Introducció

This manual provides essential information for the safe installation, operation, and maintenance of your APC Smart-UPS SC 620 VA 230 V. Please read this manual thoroughly before installing or operating the UPS. Keep this manual for future reference.

2. Informació de seguretat

Observe all warnings and operating instructions in this manual. Failure to do so may result in injury or damage to the unit.

• Seguretat elèctrica: El SAI conté volums perillosostagNo intenteu desmuntar la unitat. El manteniment només l'ha de realitzar personal qualificat.
• Seguretat de la bateria: Batteries can present a risk of electrical shock and high short-circuit current. Remove watches, rings, or other metal objects before handling batteries. Use tools with insulated handles.
• Pes: The UPS is heavy. Use proper lifting techniques and ensure adequate support when moving or installing the unit.
• Medi ambient: Install the UPS indoors in a controlled environment, free from excessive dust, moisture, and extreme temperatures.

3. Producte acabatview

The APC Smart-UPS SC 620 VA 230 V is an Uninterruptible Power Supply (UPS) designed to provide power protection for your electronic equipment. It safeguards against power outages, voltage fluctuations, and surges, ensuring continuous operation and protecting data.

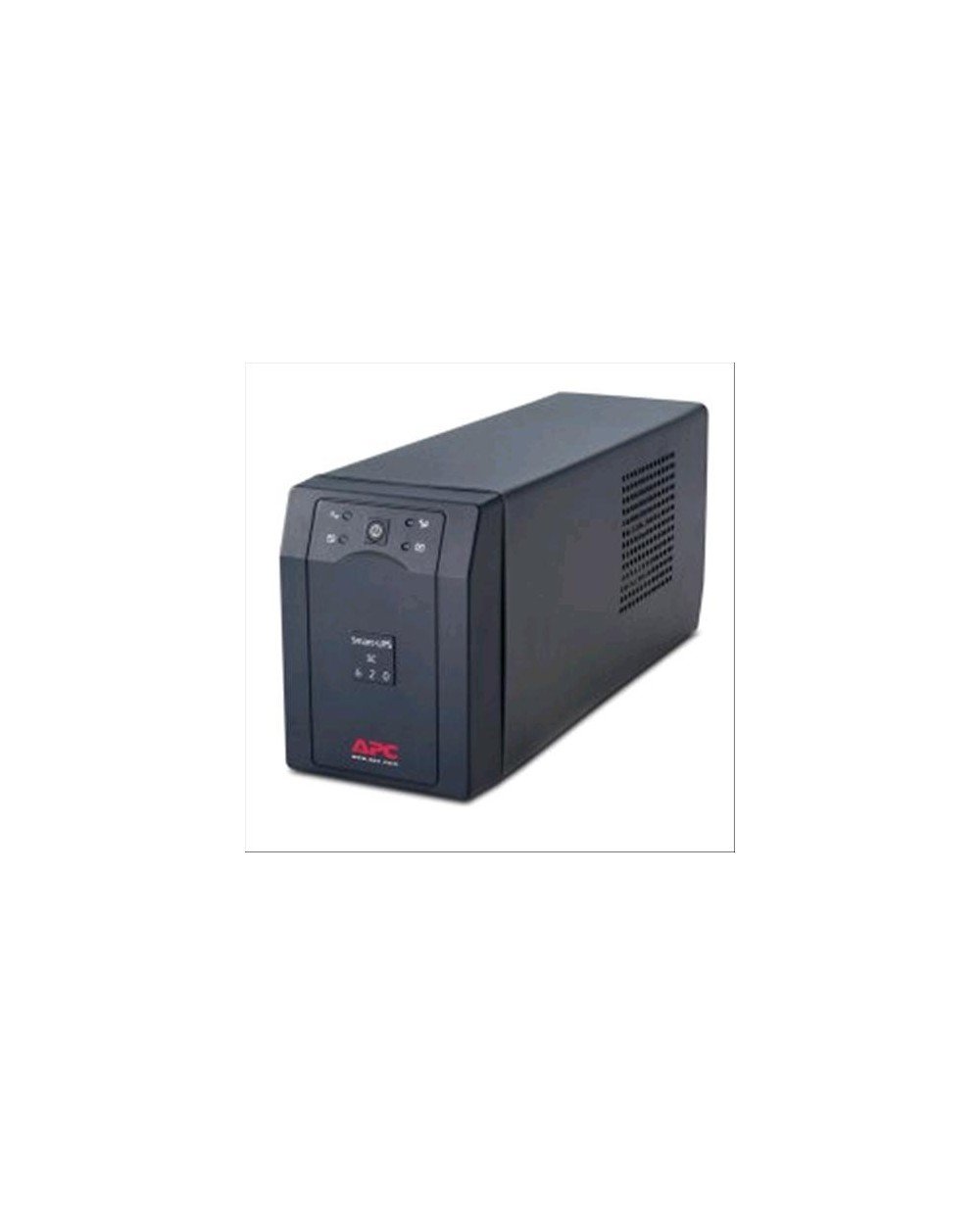

Figura 3.1: Davant view of the APC Smart-UPS SC 620 VA 230 V. This image shows the main unit with its front panel, including the power button and indicator lights, and the APC logo at the bottom.

3.1. Característiques clau

• 620 VA / 390 W capacity
• 230 V nominal output voltage
• RS232 serial communication port for management
• Volum automàtictagReglament (AVR)
• Preses de seguretat de la bateria

3.2. Indicadors del panell frontal

The front panel features several indicators and a power button:

• Indicador en línia: S'il·lumina quan el SAI subministra alimentació als equips connectats.
• On Battery Indicator: S'il·lumina quan el SAI subministra energia de bateria.
• Indicador de sobrecàrrega: Illuminates if connected equipment exceeds the UPS capacity.
• Battery Fault Indicator: Illuminates if there is an issue with the battery.
• Botó d'encesa: Serveix per encendre o apagar el SAI.

4. Configuració

4.1. Desembalatge

Carefully unpack the UPS and inspect it for any shipping damage. Retain the packaging for future use or return if necessary.

4.2. Connexió de la bateria

The UPS battery may be shipped disconnected for safety. Refer to the quick start guide or internal diagrams for instructions on connecting the internal battery. Ensure the battery is securely connected before proceeding.

4.3. Col·locació

Place the UPS on a flat, stable surface. Ensure adequate airflow around the unit. Avoid placing it near heat sources or in direct sunlight. Maintain at least 10 cm (4 inches) of clearance on all ventilated sides.

4.4. Connexió d'equips

1. Connect your critical equipment (e.g., computer, monitor) to the battery backup outlets on the rear of the UPS.
2. Connect non-critical equipment (if available on your model) to surge-only outlets.
3. Plug the UPS power cord into a grounded wall outlet. Avoid using extension cords or power strips.

4.5. Engegada i càrrega inicials

After connecting the UPS to utility power, allow the battery to charge for at least 24 hours before connecting any equipment to ensure full runtime capacity. The UPS will automatically begin charging when connected to utility power.

5. Funcionament del SAI

5.1. Turning On the UPS

Press and hold the power button on the front panel until a short beep is heard. The UPS will perform a self-test, and the Online indicator will illuminate.

5.2. Turning Off the UPS

To turn off the UPS, press and hold the power button until a long beep is heard. All indicators will turn off.

5.3. Understanding Operating Modes

• Mode en línia: The UPS is supplying utility power to connected equipment and charging the battery. The Online indicator is lit.
• On Battery Mode: Durant una potènciatage, the UPS automatically switches to battery power. The On Battery indicator is lit, and the UPS may emit an audible alarm.
• AVR Mode: El SAI corregeix automàticament els volums menorstage fluctuacions sense utilitzar energia de la bateria.

5.4. Performing a Self-Test

A self-test can be initiated to check the battery and UPS functionality. Consult the detailed product documentation or APC support for specific instructions on initiating a self-test for your model.

6. Manteniment

6.1. Substitució de la bateria

The battery in your UPS is a user-replaceable component. The typical battery life is 3-5 years, depending on usage and environmental conditions. When the Battery Fault indicator illuminates, or the UPS indicates a weak battery, it is time for replacement. Use only APC-approved replacement batteries to ensure optimal performance and safety. Refer to the APC website or contact support for replacement battery models and instructions.

6.2. Neteja

Netegeu l'exterior del SAI amb un drap suau i sec. No utilitzeu netejadors líquids ni en aerosol. Assegureu-vos que les obertures de ventilació estiguin lliures de pols i deixalles.

6.3. Emmagatzematge

If storing the UPS for an extended period, ensure the battery is fully charged before storage. Recharge the battery every 3-6 months to prevent permanent damage. Store the unit in a cool, dry location.

7. Solució De Problemes

Aquesta secció ofereix solucions a problemes comuns. Per a problemes més complexos, poseu-vos en contacte amb el servei d'assistència tècnica d'APC.

8. Especificacions

The following are the technical specifications for the APC Smart-UPS SC 620 VA 230 V (Model SC620I):

• Model: SC620I
• Capacitat: 620 VA / 390 watts
• Vol. d'entrada/sortida nominaltage: 230 V
• Dimensions (A x A x P): 17.8 x 12.7 x 38.1 cm (7 x 5 x 15 polzades)
• Pes: Aproximadament 12.25 kg (27 lliures)
• Ports de comunicació: Sèrie RS232
• UPC: 731304666639

9. Garantia i Suport

APC provides a limited warranty for this product. For detailed warranty information, including terms and conditions, please refer to the warranty card included with your product or visit the official APC weblloc. Per obtenir assistència tècnica, registrar productes o trobar centres de servei autoritzats, visiteu www.apc.com.
