Black+Decker DV9605KN Dustbuster 9.6V Handheld Vacuum Instruction Manual

Introducció

Thank you for choosing the Black+Decker DV9605KN Dustbuster. This 9.6V handheld vacuum cleaner is designed for quick and efficient cleaning tasks around your home and car. Featuring Cyclonic Action for strong suction and an energy-efficient smart charger, this device offers convenience and performance. Please read this manual carefully before use to ensure safe and optimal operation.

The "Dustbuster Extreme Duo cyclonic action" logo, indicating a key feature of the product.

Instruccions de seguretat

Sempre observeu les precaucions de seguretat bàsiques quan utilitzeu aparells elèctrics per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

• No utilitzeu l'aparell a l'exterior o sobre superfícies humides.
• No permeteu que s'utilitzi com a joguina. Cal prestar molta atenció quan l'utilitzen nens o a prop dels nens.
• Feu servir només tal com es descriu en aquest manual. Utilitzeu només els accessoris recomanats pel fabricant.
• No l'utilitzeu amb un cable o un endoll danyats. Si l'aparell no funciona com hauria, s'ha caigut, s'ha fet malbé, s'ha deixat a l'exterior o ha caigut a l'aigua, torneu-lo a un centre de servei.
• No estireu ni porteu el cable, no utilitzeu el cable com a nansa, no tanqueu una porta al cable ni estireu el cable per vores o cantonades afilades. No feu passar l'aparell per sobre del cable. Mantingueu el cable lluny de les superfícies escalfades.
• No desconnecteu estirant del cable. Per desconnectar, agafa l'endoll, no el cable.
• No manipuleu l'endoll o l'aparell amb les mans mullades.
• No introduïu cap objecte a les obertures. No utilitzar amb cap obertura bloquejada; mantenir lliure de pols, pelusa, cabells i qualsevol cosa que pugui reduir el flux d'aire.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• No agafeu res que estigui cremant o fumant, com ara cigarrets, llumins o cendres calentes.
• Tingueu molta cura quan netegeu les escales.
• No l'utilitzeu per recollir líquids inflamables o combustibles, com ara la gasolina, ni l'utilitzeu en zones on puguin estar presents.
• No recolliu materials tòxics, com ara lleixiu amb clor, amoníac o netejadors de desguassos.
• Do not use in an enclosed space where vapors are given off by oil base paints, paint thinner, some mothproofing substances, flammable dust, or other explosive or toxic vapors.
• No agafeu objectes durs o punxants com ara vidre, claus, cargols, monedes, etc.
• No l'utilitzeu sense la bossa de pols i/o els filtres al seu lloc.
• Eviteu l'arrencada no intencionada. Assegureu-vos que l'interruptor estigui a la posició apagada abans de connectar-lo a la bateria, agafar o transportar l'aparell.

Contingut del paquet

Your Black+Decker DV9605KN Dustbuster package includes the following items:

• Black+Decker DV9605KN Dustbuster Handheld Vacuum
• Estació de càrrega
• Eina per esquerdes
• Broquet de mobles
• Floor Nozzle Set (includes extension tubes)
• Adjunt de pinzell
• Bossa d'emmagatzematge de malla

The Black+Decker DV9605KN Dustbuster handheld vacuum with its charging base and several attachments (crevice tool, floor nozzle, extension tubes).

A collection of Black+Decker Dustbuster attachments, including a brush tool, crevice tool, floor nozzle, extension tubes, and a mesh storage bag.

A grey mesh storage bag with a drawstring, featuring the Black+Decker logo, designed for organizing vacuum attachments.

Configuració

Charging the Dustbuster

1. Place the Dustbuster onto its charging station. Ensure the contacts on the vacuum align with the contacts on the charging base.
2. Plug the charging station into a standard wall outlet.
3. The charge status indicator (LED) on the unit will illuminate, indicating that the battery is charging.
4. Allow the unit to charge for the recommended time (refer to specifications) or until the LED indicates a full charge. The energy-efficient smart charger reduces power consumption once fully charged and charges up to 3 times faster than comparable handheld vacuum cleaners.

Accessoris de fixació

To attach any accessory, simply push it firmly onto the nozzle opening of the Dustbuster until it clicks into place. To remove, pull it off gently.

Un primer pla view of a specialized nozzle attachment for the Black+Decker Dustbuster, designed for specific cleaning tasks.

Instruccions de funcionament

Encès/Apagat

To turn the Dustbuster on, slide the power switch located on the handle to the 'ON' position. To turn it off, slide the switch back to the 'OFF' position.

Using the Two Speed Settings

Your Dustbuster features two speed settings for varying cleaning needs. Use the lower speed for delicate surfaces or extended run time, and the higher speed for maximum suction on tougher messes. Toggle between speeds using the dedicated switch.

Ús d'arxius adjunts

• Eina per esquerdes: Ideal for reaching tight spaces, corners, and between cushions. The extendable crevice nozzle provides extra reach.
• Broquet de mobles: Designed for upholstery and fabric surfaces.
• Floor Nozzle Set: Attach the extension tubes to the main unit, then connect the floor nozzle for cleaning larger floor areas and rugs.
• Adjunt del raspall: Use for dusting delicate surfaces like curtains, blinds, or keyboards.

A person using the Black+Decker DV9605KN Dustbuster with the floor attachment to clean a rug in a living room setting.

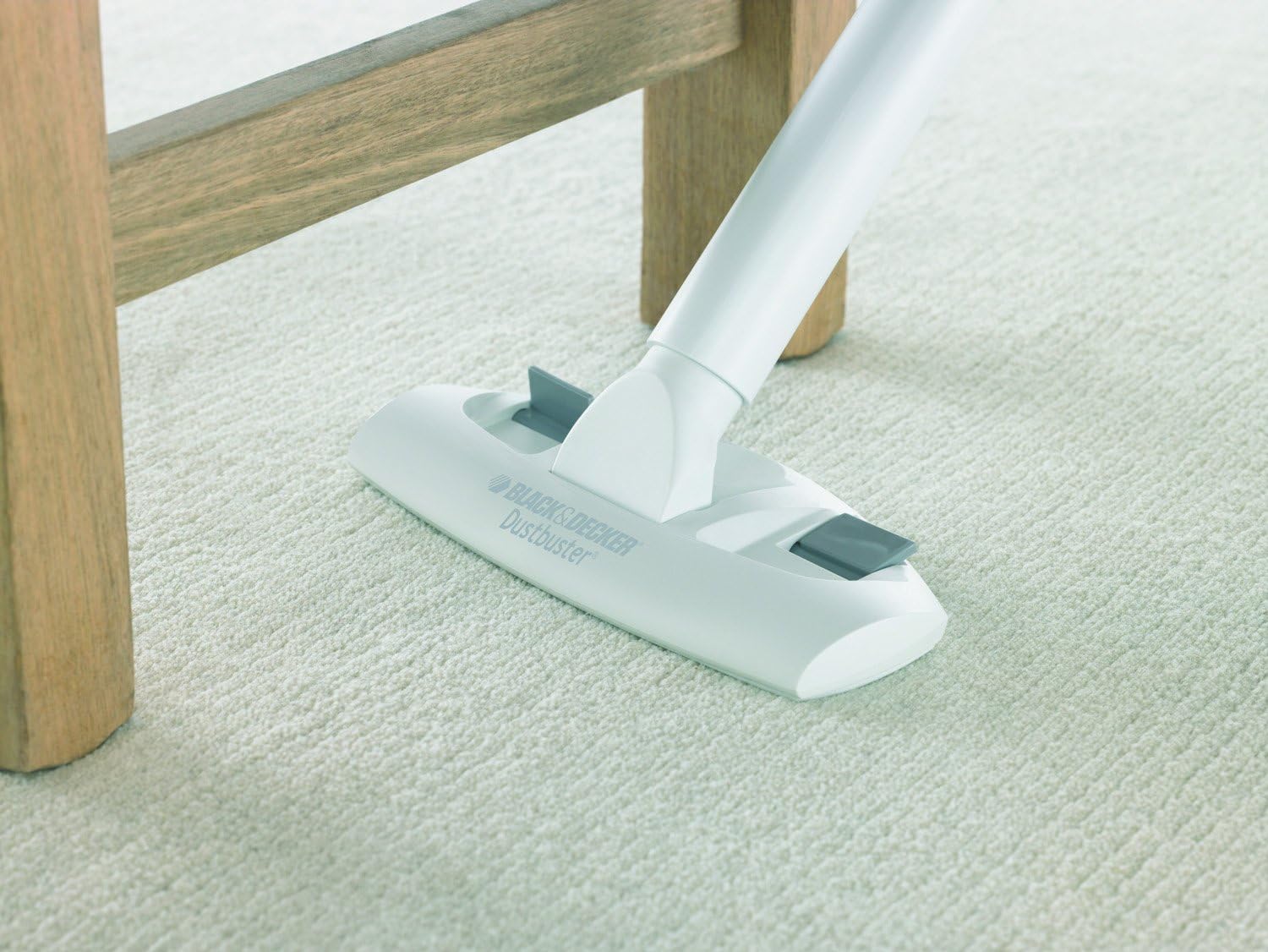

A close-up shot of the Black+Decker Dustbuster floor attachment cleaning a light-colored carpet, demonstrating its use on soft surfaces.

The Black+Decker Dustbuster with an extended brush attachment being used to clean curtains, illustrating its versatility for vertical surfaces.

Manteniment

Buidant la paperera

For optimal suction and performance, empty the dustbin regularly, especially after each significant use. To empty:

1. Ensure the Dustbuster is turned off.
2. Press the dustbin release button and detach the dustbin from the main unit.
3. Buideu amb cura el contingut en una paperera.

Neteja del filtre

The Dustbuster features an excellent two-stage filter system and an improved filter cleaning wheel. Regular filter cleaning is crucial for maintaining suction power.

1. After emptying the dustbin, remove the filter assembly.
2. Tap the filter gently over a waste bin to dislodge dust.
3. For a more thorough clean, the filter can be rinsed under cold running water. Ensure the filter is completely dry before reinserting it into the dustbin and reattaching it to the vacuum. Do not use detergents or hot water.
4. Reassemble the filter and dustbin, then reattach to the main unit.

Resolució de problemes

Especificacions

Garantia i Suport

Black+Decker products are manufactured to high quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official Black+Decker weblloc.

For technical support, spare parts, or service, please contact Black+Decker customer service. Contact details can typically be found on the product packaging or the official brand weblloc.
