Introducció
This manual provides detailed instructions for the proper installation, operation, and maintenance of the Pfister JX8-340A Tub and Shower Rough Valve. Please read all instructions carefully before beginning installation to ensure safe and correct usage.
The Pfister JX8-340A is a pressure balance volume control function valve designed for use with compatible Pfister tub and shower trims. It features solid brass construction for durability and universal fittings for both 1/2" copper sweat and iron pipe thread connections.
Configuració i instal·lació
Abans de començar
Ensure you have all necessary tools and materials before starting the installation. Professional installation is recommended if you are unfamiliar with plumbing procedures.
- Clau ajustable
- Tallador de canonades o serra de metall
- Soldering equipment (if using copper sweat connections)
- Thread sealant tape (for iron pipe thread connections)
- Cinta mètrica
- Ulleres de seguretat
Instal·lació aproximada
The JX8-340A rough valve is designed for secure mounting within the wall. Refer to the technical drawing for precise dimensions and connection points.
Figure 1: Technical drawing showing the dimensions and port configurations of the Pfister JX8-340A rough valve. Dimensions are provided in both inches and millimeters for accurate installation planning.
The valve features universal fittings compatible with both 1/2" copper sweat and iron pipe thread connections. Ensure all connections are properly sealed and secured to prevent leaks.

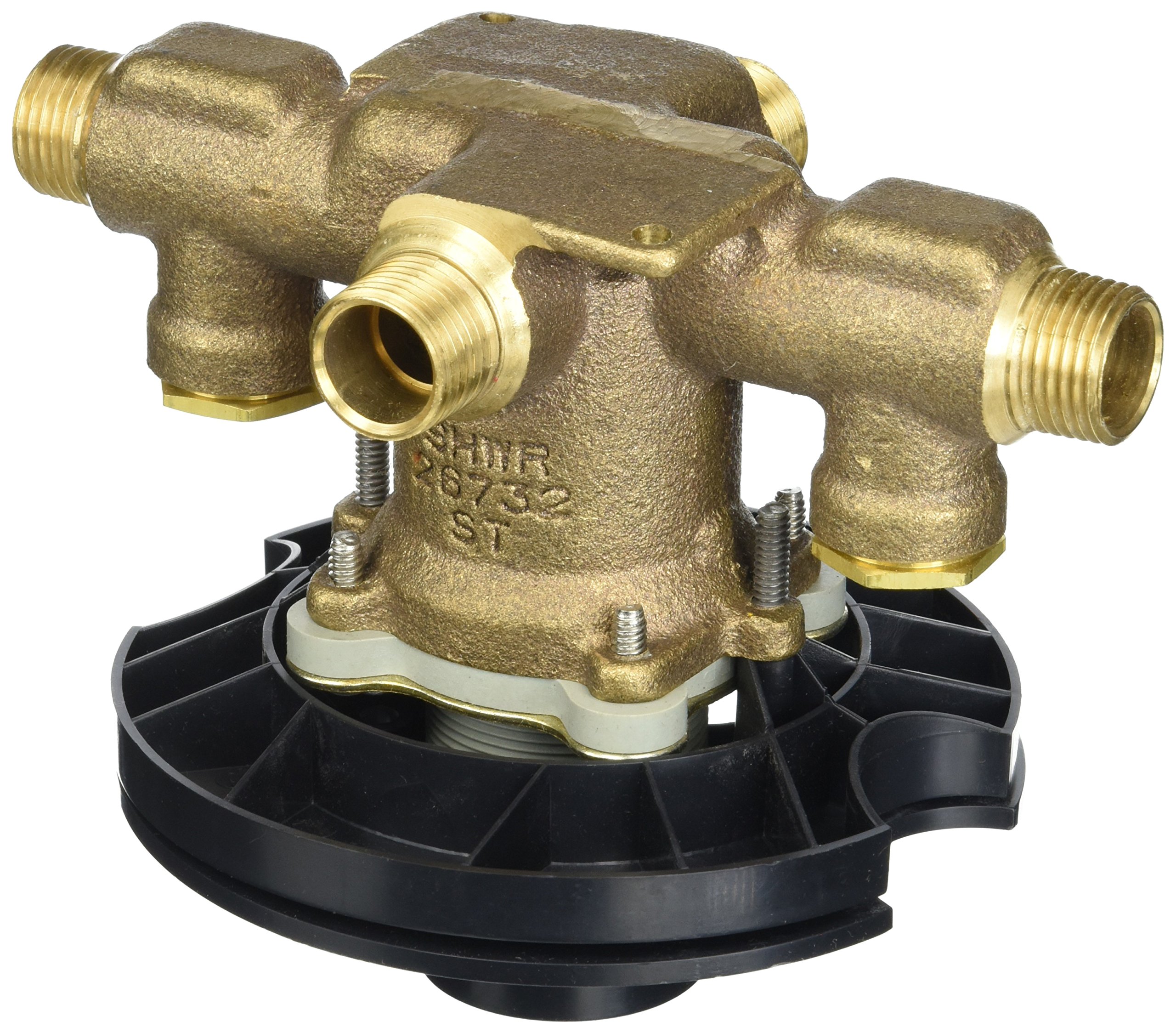

Figure 2: The Pfister JX8-340A rough valve, showcasing its brass construction and connection points. This component is installed within the wall to control water flow and temperature for a tub and shower system.
Funcionament
Funció de control de volum
The JX8-340A valve incorporates a pressure balance volume control function. This mechanism maintains a consistent water temperature by balancing incoming hot and cold water pressures, even when other water sources in the home are used. The volume control allows you to adjust the water flow rate to your desired level.
For specific operation of your tub and shower trim, refer to the instruction manual provided with your Pfister trim kit.
Manteniment
Cleaning Your Valve
While the rough valve is typically concealed, proper care of your visible Pfister fixtures will ensure longevity and appearance. Clean all visible components with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or polishes that could damage the finish. For best results, use a mild soap and water solution.
Resolució de problemes
If you experience issues with your tub and shower system, consider the following common troubleshooting steps:
- Baixa pressió d'aigua: Check if other faucets in the house are experiencing low pressure. If so, the issue might be with the main water supply. If only the shower/tub is affected, check for clogs in the showerhead or aerator (if applicable to your trim).
- Temperatura de l'aigua inconsistent: Ensure both hot and cold water supply lines to the valve are fully open. If the problem persists, the pressure balance cartridge within the valve may need inspection or replacement.
- Fuites: Leaks can occur at connection points. Ensure all fittings are tight and properly sealed. If the leak is from within the valve body, the internal components may require servicing.
For complex issues or if troubleshooting steps do not resolve the problem, it is recommended to contact a qualified plumber or Pfister customer support.
Especificacions del producte
| Característica | Detall |
|---|---|
| Marca | Pfister |
| Número de model | JX8-340A |
| Material | Llautó |
| Acabat exterior | Llautó |
| Dimensions de l'article (L x A x A) | 3.5 x 3.5 x 5.5 polzades |
| Pes de l'article | 2.08 lliures |
| Tipus de connexió d'entrada | Cross Linked Polyethylene |
| Tipus de connexió de presa | Iron Pipe Thread |
| Nombre de Ports | 2 |
| Mida de connexió de presa | 0.5 polzades |
| Tipus de fil | Iron Pipe Thread |
| Mida del fil | 1/2 polzada |
| Tipus de vàlvula | Rough Valve (Pressure Balance Volume Control) |
| UPC | 038877436592 |
| Fabricant | KWIK9 |
Informació de la garantia
Pfister stands behind the quality of its products. The JX8-340A Tub and Shower Rough Valve is covered by Pfister's Limited Lifetime Warranty, which covers both the finish and function of the product for life. This warranty ensures that your product will be free from defects in material and workmanship for as long as you own your home.
Figure 3: Pfister's Limited Lifetime Warranty emblem, signifying the brand's commitment to product durability and customer satisfaction.
For full details regarding the warranty, including terms and conditions, please visit the official Pfister weblloc o contacteu amb el servei d'atenció al client.
Pfister Product Videos
The following videos provide an overview of Pfister's commitment to design and innovation, showcasing various features found across their product lines. While these videos may feature different faucet models, they highlight the quality and user-friendly aspects inherent in Pfister products, including the JX8-340A rough valve's compatibility with advanced trim features.
Why Pfister Brand Video
This video highlights various innovative features and design philosophies across Pfister's product range, demonstrating their commitment to quality and user experience.
Pfister Design Made Right
Explore the design process and quality craftsmanship behind Pfister faucets, illustrating how their products are engineered for both aesthetics and functionality in your home.
Atenció al client
For further assistance, technical support, or warranty claims, please contact Pfister customer service. You can find contact information on the official Pfister weblloc:
Please have your model number (JX8-340A) and purchase date available when contacting support.
