Cole-Parmer Contact Tachometer with LED Display

Introducció

This manual provides instructions for the proper use and maintenance of your Cole-Parmer Contact Tachometer, Model AO-08204-80. This device is designed for accurate measurement of rotational speed (RPM) and linear speed/length in various industrial applications. Please read this manual thoroughly before operating the instrument.

Image 1: Cole-Parmer Contact Tachometer with LED Display. This image shows the main unit with a contact wheel attached, displaying a reading of 243.6.

Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• Cole-Parmer Contact Tachometer (Model AO-08204-80)
• Contact accessories (various tips and a contact wheel)
• 2 x piles AAA
• Maleta de transport
• Manual d'instruccions (aquest document)

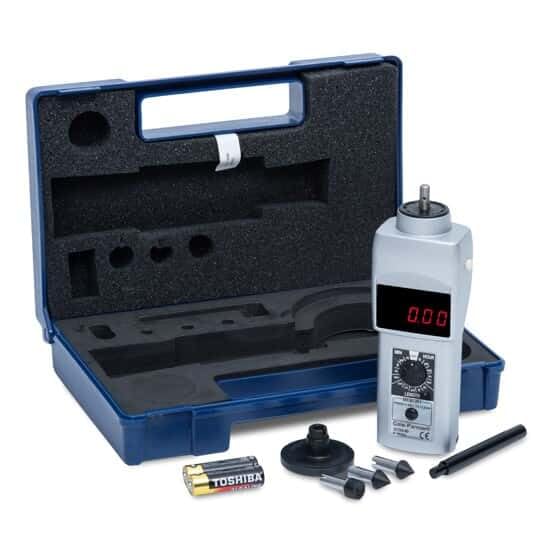

Image 2: The tachometer and its accessories, including various contact tips, a contact wheel, and AAA batteries, neatly organized within a blue carrying case.

Configuració

1. Instal·lació de la bateria

1. Localitzeu la tapa del compartiment de la bateria a la part posterior del tacòmetre.
2. Feu lliscar o desenganxeu la coberta per obrir-la.
3. Introduïu dues piles AAA, assegurant-vos de la polaritat correcta (+/-).
4. Col·loqueu la coberta del compartiment de la bateria amb seguretat.

2. Attaching Contact Accessories

The tachometer comes with various contact tips and a contact wheel for different measurement applications.

• For rotational speed (RPM) measurements, attach the appropriate cone or funnel tip to the shaft.
• For linear speed or length measurements, attach the contact wheel to the shaft.
• Ensure the accessory is firmly seated on the shaft to prevent inaccurate readings or detachment during operation.

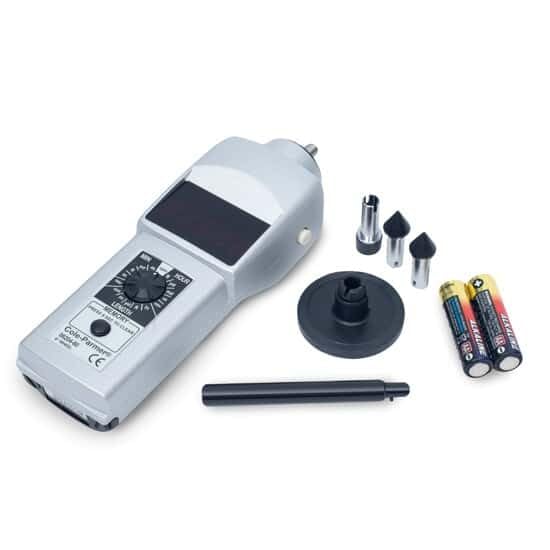

Image 3: The tachometer unit displayed alongside its various contact tips and the contact wheel, ready for attachment.

Instruccions de funcionament

1. Encès / apagat

Press the power button located on the side of the unit to turn the tachometer on. The LED display will illuminate. Press the button again to turn the unit off.

2. Selecció del mode de mesura

The tachometer features a front-panel dial to select from 16 different measurement modes. Rotate the dial to choose the desired unit:

• RPM: Revolutions Per Minute (for rotational speed)
• m/min: Metres per minut
• peus/min: Peus per minut
• yd/min: Yards Per Minute
• in/min: Inches Per Minute
• m: Meters (for length)
• peus: Feet (for length)
• yd: Yards (for length)
• a: Inches (for length)
• cm: Centimeters (for length)
• mil: Miles (for length)
• rev: Revolutions (for total revolutions)
• HORA: Hours (for time measurement)
• Additional modes may be available; refer to the dial markings for all 16 options.

Image 4: A close-up front view of the tachometer, highlighting the bright red LED display and the rotary dial used for selecting measurement units.

3. Prendre Mides

Once the desired mode is selected, gently press the contact tip or wheel against the rotating or moving surface. The display will show the measurement in real-time. Maintain steady contact for accurate readings.

4. Funció de memòria

The tachometer stores the last ten readings, as well as the maximum and minimum values recorded. To access these values, press the MEMÒRIA button. Repeated presses will cycle through the stored data. To clear the memory, press and hold the MEMÒRIA botó durant 5 segons.

Manteniment

1. Neteja

Wipe the instrument with a soft, dry cloth. For stubborn dirt, a slightly damp cloth with mild detergent can be used. Do not use abrasive cleaners or solvents, as these may damage the housing or display.

2. Substitució de la bateria

When the low-battery indicator appears on the display, replace the AAA batteries as described in the "Setup" section. Prompt replacement ensures continuous accurate operation.

3. Emmagatzematge

Store the tachometer and its accessories in the provided carrying case when not in use. Keep it in a cool, dry place, away from direct sunlight and extreme temperatures. Remove batteries if storing for extended periods to prevent leakage.

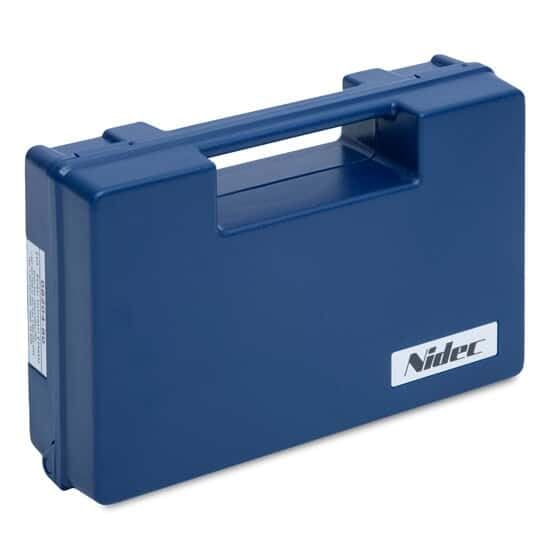

Image 5: The closed blue carrying case, designed to protect the tachometer and its accessories during storage and transport.

Resolució de problemes

• No Display / Unit Does Not Turn On:
  • Comproveu la instal·lació i la polaritat de la bateria.
  • Substituïu les piles per piles AAA noves.
• Lectures inexactes:
  • Ensure the correct measurement mode is selected on the dial.
  • Verify that the contact accessory is firmly attached and making consistent contact with the surface being measured.
  • Check for any obstructions or debris on the contact tip/wheel.
• Indicador de bateria baixa:
  • Replace batteries immediately to ensure continued accurate operation.

Especificacions

Garantia i Suport

Informació de la garantia

Specific warranty details for the Cole-Parmer Contact Tachometer Model AO-08204-80 are not provided in this document. Please refer to the warranty card included with your product or contact Cole-Parmer directly for warranty terms and conditions.

Atenció al client

For technical assistance, service, or further inquiries regarding your Cole-Parmer product, please contact Cole-Parmer customer support. Contact information can typically be found on the manufacturer's official weblloc web o a l'embalatge del producte.

You may also visit the official Cole-Parmer store for additional product information and support resources: Cole-Parmer Store on Amazon
