Dorman 80614 Exterior Door Handle Instruction Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Dorman 80614 Exterior Door Handle. This replacement handle is engineered to match the fit and appearance of the original handle on specific vehicle years, makes, and models, offering a reliable and cost-effective solution.

Compatibilitat: This part is compatible with the following vehicles:

• Dodge Nitro: 2007, 2008, 2009, 2010, 2011
• Jeep Liberty: 2008, 2009, 2010, 2011, 2012
• Jeep Wrangler JK: 2018
• Jeep Wrangler: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

Before proceeding with installation, please ensure this handle is the correct part for your vehicle's specific position and side.

2. Configuració i instal·lació

The Dorman 80614 Exterior Door Handle is designed for seamless replacement. While installation steps may vary slightly depending on the specific vehicle model, the general procedure involves removing the old handle and installing the new one. Professional installation is recommended if you are unfamiliar with automotive repairs.

2.1 Tools Required (Typical)

• Joc de tornavisos (Phillips i Flathead)
• Joc de claus de sòcol
• Eines per treure guarniments (eines de palanca de plàstic)
• Guants (per a la protecció)

2.2 Passos generals d'instal·lació

1. Preparació: Park the vehicle on a level surface and engage the parking brake. Ensure the vehicle is off.
2. Access Door Panel: Carefully remove the interior door panel to gain access to the handle's mounting hardware. This typically involves removing screws hidden behind trim pieces or door pulls, and then prying the panel off.
3. Desconnectar enllaços: Locate and disconnect any rods or cables connected to the existing door handle mechanism. Note their positions for reassembly.
4. Treure la nansa antiga: Unscrew and remove the bolts or fasteners securing the old exterior door handle. Carefully pull the old handle out from the exterior of the door.
5. Zona d'inspecció: Clean any debris from the handle mounting area.
6. Instal·leu una nova maneta: Insert the new Dorman 80614 handle into the exterior opening. Ensure it seats correctly.
7. Secure New Handle: Reattach the mounting bolts or fasteners from the interior side of the door. Tighten securely but do not overtighten.
8. Reconnectar els enllaços: Reconnect the rods or cables to the new handle mechanism. Test the handle's operation before reassembling the door panel.
9. Torneu a muntar el panell de la porta: Reattach the interior door panel, ensuring all clips and screws are properly secured.

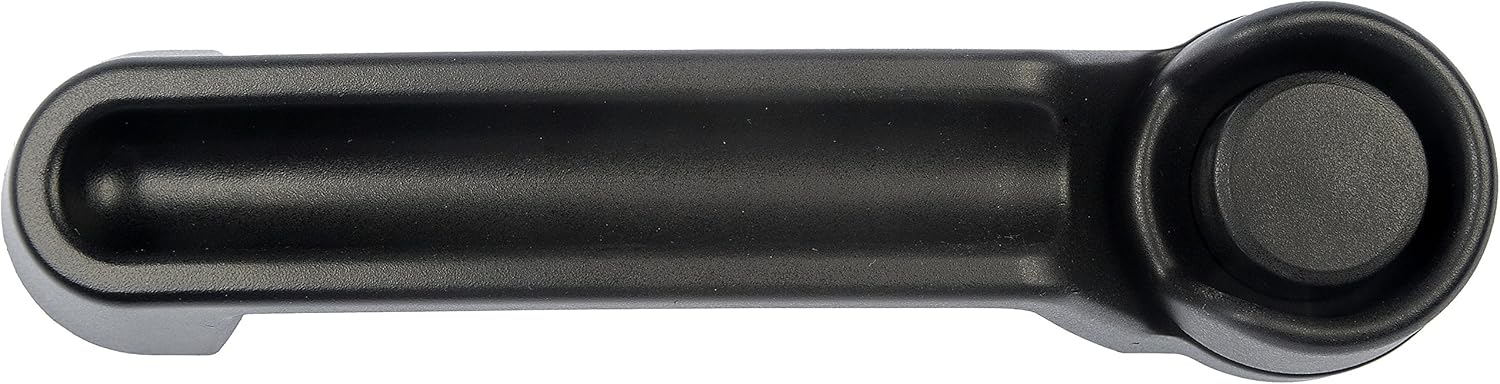

Figura 1: Frontal view of the Dorman 80614 Exterior Door Handle, showing its textured black finish and overall shape.

Figura 2: Esquena view of the Dorman 80614 Exterior Door Handle, illustrating the mounting points and internal mechanism for installation.

3. Instruccions de funcionament

The Dorman 80614 Exterior Door Handle operates identically to the original equipment handle it replaces. To open the vehicle door from the exterior:

1. Ensure the vehicle door is unlocked.
2. Agafeu el mànec fermament.
3. Pull the handle outwards to disengage the door latch.
4. Obre la porta.

Release the handle once the door begins to open. Do not force the handle if the door is locked.

4. Manteniment

The Dorman 80614 Exterior Door Handle requires minimal maintenance. Regular cleaning and inspection will help ensure its longevity and proper function.

• Neteja: Clean the handle periodically with a mild automotive soap and water. Avoid abrasive cleaners or solvents that could damage the textured black finish.
• Inspecció: Periodically check the handle for any signs of looseness, cracks, or damage. Ensure it operates smoothly without excessive play.
• Lubricació: If the handle mechanism feels stiff over time, a small amount of silicone-based lubricant can be applied to the internal moving parts (accessible from inside the door panel) to restore smooth operation.

5. Solució De Problemes

If you encounter issues with your Dorman 80614 Exterior Door Handle, refer to the following common problems and solutions:

6. Especificacions

7. Garantia i Suport

Specific warranty information for the Dorman 80614 Exterior Door Handle is not provided in this manual. For details regarding warranty coverage, claims, or technical support, please refer to the product packaging or contact Dorman Products directly through their official weblloc o canals d'atenció al client.

Podeu visitar el Botiga Dorman a Amazon per a més informació i opcions de contacte.
