Van Mark Bending Brake Mark II W/Power Lock #TM10 Contractor Model 10'6"

1. Introducció

The Van Mark Bending Brake Mark II with Power Lock, model #TM10, is a robust and versatile tool designed for precise bending of various sheet materials. This contractor-grade model, measuring 10 feet 6 inches in length, is engineered for both professional contractors and skilled DIY enthusiasts. Its primary function is to facilitate the creation of custom bends in aluminum, zinc, copper, and steel, making it ideal for siding, roofing, and general fabrication tasks. The Mark II series is known for its durability and ease of use, incorporating features that enhance clamping pressure and simplify complex bending operations.

Figura 1: Mésview of the Van Mark Bending Brake Mark II W/Power Lock #TM10 Contractor Model 10'6". This image displays the full length of the bending brake, highlighting its sturdy construction and the integrated handles for operation.

2. Informació de seguretat

Operating any heavy machinery requires strict adherence to safety protocols to prevent injury and equipment damage. Always read and understand all instructions before operation. Keep hands and clothing clear of moving parts. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves. Ensure the brake is securely placed on a stable, level surface before use. Never exceed the material thickness or type limitations specified for this model. Disconnect from power if applicable (though this model appears manual, general safety applies) and secure all components when not in use or during maintenance.

• Always wear safety glasses to protect against flying debris.
• Use heavy-duty gloves to protect hands from sharp edges of materials.
• Assegureu-vos que la zona de treball estigui lliure d'obstacles i ben il·luminada.
• Never operate the brake with damaged or missing parts.
• Mantenir els espectadors a una distància segura durant l'operació.

3. Components i característiques

The Van Mark Mark II Bending Brake is designed with several key features to enhance performance and user experience:

• Power Lock Bar: Features dual hollow-core construction, providing superior clamping pressure to securely hold materials during bending. This ensures clean, consistent bends.
• Increased Bending Radius: Engineered to simplify hemming operations, allowing for tighter and more precise bends.
• Durable Powder Coat Finish: A new finish that resists UV fading and oxidation, ensuring the longevity and appearance of the brake even in harsh working conditions.
• Integrated Measuring Scale: A clear and easy-to-read measuring scale is integrated into the bending leaf, aiding in precise material placement and consistent bend angles.

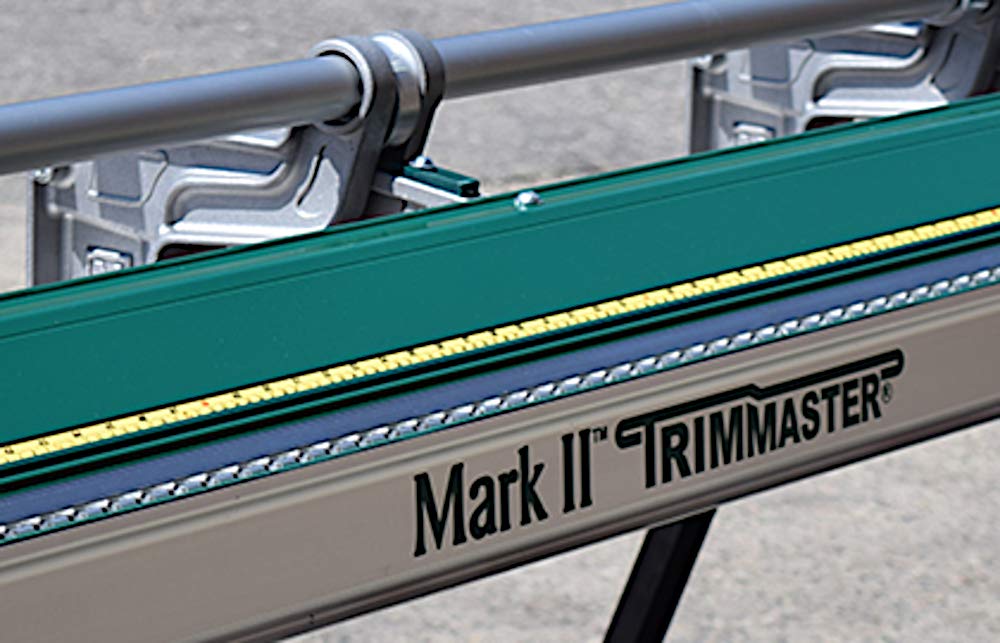

Figura 2: Primer pla view of the "Mark II Trimmaster" branding and the integrated measuring tape on the bending brake. This shows the precision features of the tool.

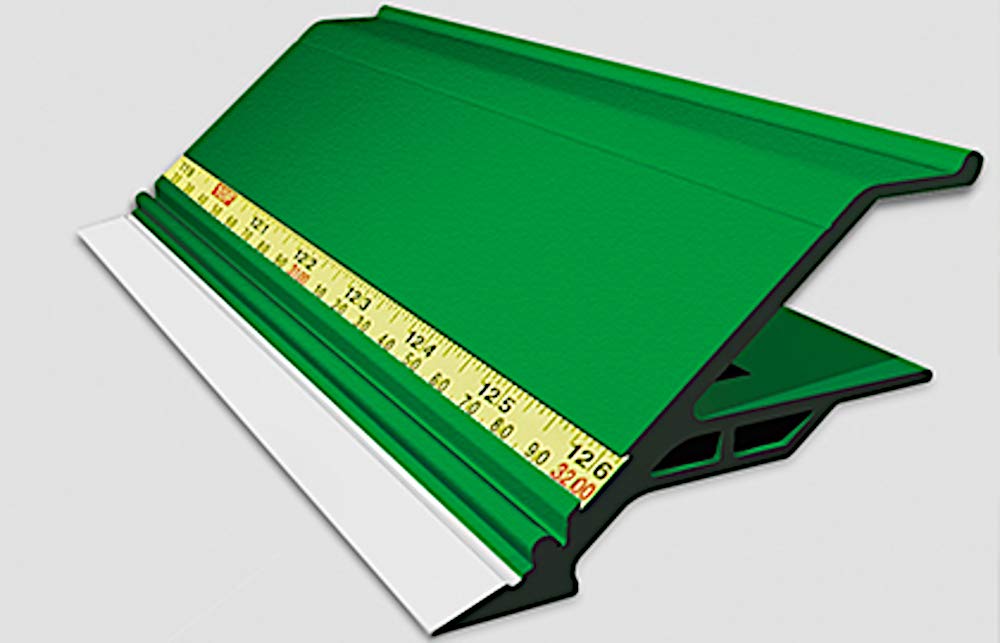

Figura 3: Detallada view of the bending mechanism, showcasing the precise ruler markings and the design of the bending leaf. This illustrates how materials are positioned and bent.

4. Configuració

Proper setup is crucial for safe and effective operation of your Van Mark Bending Brake. Due to its size and weight (approximately 312 pounds), it is recommended that setup be performed by at least two individuals.

1. Desembalatge: Carefully remove the bending brake from its packaging. Inspect all components for any signs of shipping damage. Report any damage to the carrier and manufacturer immediately.
2. Col·locació: Position the bending brake on a stable, level surface capable of supporting its weight and the forces exerted during bending. Ensure there is ample clear space around the brake for material handling and safe operation.
3. Muntatge (si cal): If any components, such as handles or legs, are not pre-assembled, follow the specific assembly instructions provided in the separate assembly guide (not included in this manual). Ensure all fasteners are tightened securely.
4. Nivell: Verify the brake is perfectly level to ensure accurate and consistent bends across the entire length of the material. Adjust as necessary.
5. Inspecció inicial: Before first use, check that the Power Lock Bar engages smoothly and securely, and that the bending leaf operates freely without binding.

5. Instruccions de funcionament

This section outlines the general procedure for operating the Van Mark Bending Brake. Always refer to specific project requirements for material preparation and bend angles.

1. Preparació del material: Cut your sheet material (e.g., aluminum, steel) to the desired length and width. Ensure edges are clean and free of burrs.
2. Material de posicionament: Obriu el clamping mechanism by lifting the Power Lock Bar handles. Slide the material into the brake, positioning the bend line precisely under the clamping edge. Use the integrated measuring scale for accuracy.
3. Clamping Material: Lower the Power Lock Bar handles firmly to clamp the material. Ensure the material is held securely and evenly across its entire width to prevent slippage or uneven bends.
4. Performing the Bend: Grasp the bending leaf handles firmly. Apply steady, even pressure to lift the bending leaf upwards, forming the desired angle. For consistent bends, apply pressure uniformly along the length of the handles.
5. ReleasinMaterial: Once the bend is complete, lower the bending leaf back to its resting position. Lift the Power Lock Bar handles to release the clamped material. Carefully remove the bent piece.
6. Hemming: For hemming operations, the increased bending radius simplifies the process. Perform an initial bend, then reposition the material and perform a second bend to create the hem.

Material Bending Capacities

The following table provides a general overview of the bending capacities for various materials with the Van Mark Mark II Bending Brake. Always test on scrap material first.

Figure 4: Van Mark Bending Brake Material Capacity Chart. This table details the maximum gauge and thickness for various materials that can be bent by different Van Mark brake models, including the Mark II Contractor.

Note: These capacities are approximate. Always consult the full Van Mark capacity chart (Figure 4) for detailed specifications across all models and materials.

6. Manteniment

Regular maintenance ensures the longevity and optimal performance of your bending brake.

• Neteja: After each use, wipe down the brake surfaces, especially the clamping and bending edges, to remove any metal shavings, dust, or debris. Use a soft cloth and a mild cleaner if necessary.
• Lubricació: Periodically apply a light machine oil to all pivot points and moving parts to ensure smooth operation and prevent rust. Do not over-lubricate.
• Inspecció: Regularly inspect the Power Lock Bar, bending leaf, and all structural components for wear, damage, or loose fasteners. Tighten any loose bolts.
• Emmagatzematge: When not in use, store the bending brake in a dry, protected area to prevent corrosion. If storing outdoors, cover it with a waterproof tarp.
• Esmolat/Substitució de fulles: If the cutting blade (if applicable to your specific model, though this is a bending brake) becomes dull or damaged, consult a qualified technician for sharpening or replacement.

7. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar i proporciona els passos bàsics per resoldre'ls.

If you encounter issues not listed here or if solutions do not resolve the problem, please contact Van Mark customer support.

8. Especificacions

• Fabricant: Van Mark
• Número de peça: TM10
• Número de model de l'article: TM10
• Mida: 10'6" (10 feet 6 inches)
• Material: Contractor Model
• Pes de l'article: 312 lliures
• Color: Blanc
• Voltage (if applicable): 110 Volts (for accessories or specific models, main brake is manual)
• Wattage (if applicable): 200 watts (for accessories or specific models)
• Nombre de nanses: 2
• Primera data disponible: 11 de juny de 2007

9. Garantia i Suport

Garantia: The Van Mark Bending Brake Mark II Contractor Model typically comes with a 1 anys de garantia des de la data de compra. Aquesta garantia cobreix els defectes de materials i de fabricació en condicions d'ús normal. Conserveu el comprovant de compra per a reclamacions de garantia.

Atenció al client: For technical assistance, parts, or warranty inquiries, please contact Van Mark customer service. Refer to the official Van Mark weblloc web o l'embalatge del producte per obtenir la informació de contacte més actualitzada.

Note: Warranty terms may vary. Always refer to the official warranty documentation provided with your product for complete details.
