Introducció
This manual provides detailed instructions for the installation, operation, and maintenance of your Kichler 5-Light Vanity Light, Model 625NI. This 30-inch brushed nickel fixture is designed for use in bathrooms and powder rooms, offering a transitional style with a classic finish. It accommodates five medium base bulbs, up to 60 watts each (bulbs not included).

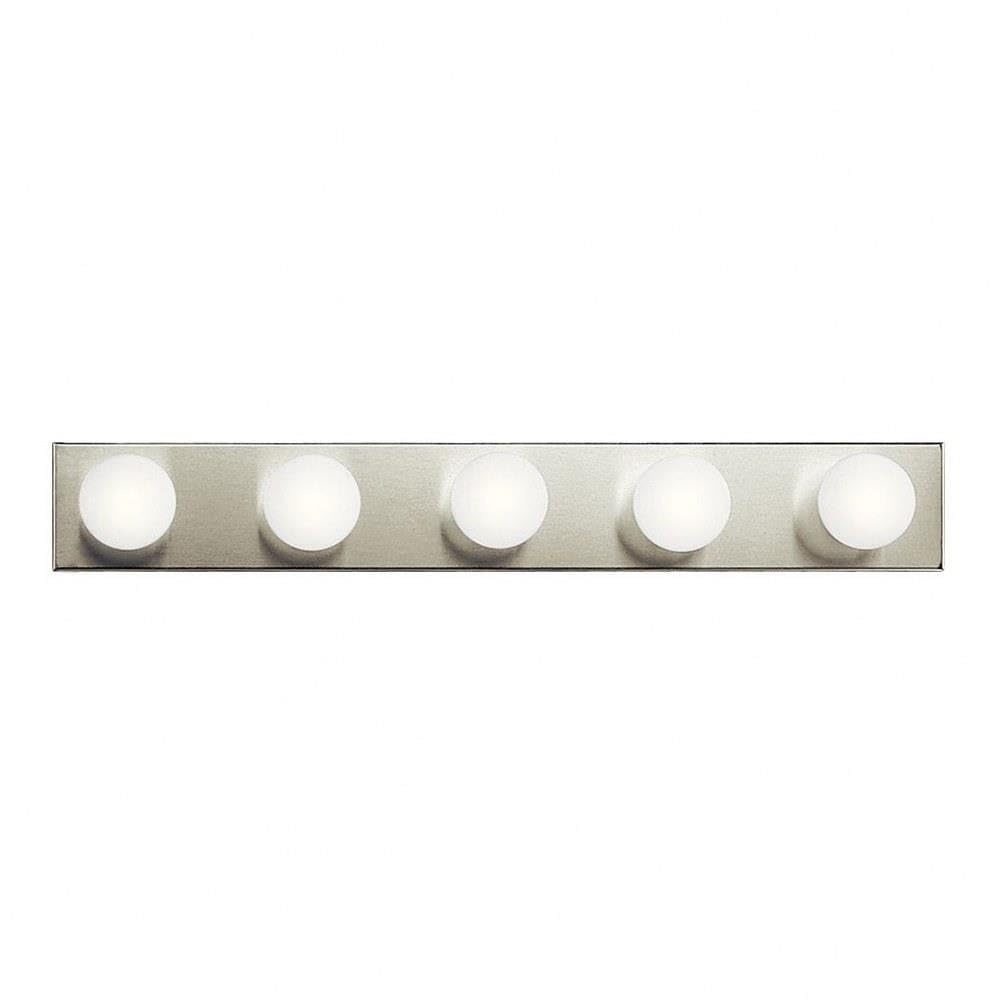

Image: Kichler 5-Light Vanity Light in Brushed Nickel, front view. This image shows the Kichler 5-Light Vanity Light, Model 625NI, featuring a brushed nickel finish and five bulb sockets.
Informació de seguretat
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries. Always follow local electrical codes.
- ADVERTIMENT: To avoid electric shock, turn off power at the circuit breaker or fuse box before installation or servicing.
- Consulteu un electricista qualificat si no esteu segur del procés d'instal·lació.
- Feu servir només bombetes del tipus i l'aigua especificats.tage (E26 medium base, max 60W each). Exceeding the maximum wattagpot causar un sobreescalfament i danys a l'aparell.
- This fixture is rated for indoor, dry locations only. Do not install in areas exposed to direct water spray or excessive moisture.
- Utilitzeu ulleres de seguretat durant la instal·lació.
Contingut del paquet
Verifiqueu que tots els components siguin presents abans de començar la instal·lació:
- Kichler 5-Light Vanity Light Fixture (Model 625NI)
- Kit de maquinari de muntatge
- Manual d'instruccions
Nota: Light bulbs are not included and must be purchased separately.
Configuració (Instal·lació)
Follow these steps to properly install your vanity light fixture:
Eines necessàries:
- Tornavís Phillips
- Pelafils
- Cinta elèctrica
- Ulleres de seguretat
Passos d'instal·lació:
- Pas 1: prepareu-vos per a la instal·lació
Turn off the electrical power at the main circuit breaker or fuse box. Unpack the fixture and its components carefully. Inspect for any damage. - Pas 2: Muntar el dispositiu
Attach the mounting bracket (included in hardware kit) to the electrical junction box in your wall using the provided screws. Ensure the bracket is securely fastened. Connect the fixture's electrical wires to your household wiring: connect the black wire from the fixture to the black (hot) wire from the wall, the white wire from the fixture to the white (neutral) wire from the wall, and the ground wire from the fixture to the bare copper or green ground wire from the wall. Secure connections with wire nuts and electrical tape. Carefully tuck all wires into the junction box. Align the fixture with the mounting bracket and secure it in place with the decorative nuts or screws provided. - Pas 3: instal·leu les bombetes
Screw five E26 medium base bulbs (max 60W each) into the sockets. Do not overtighten. - Pas 4: restaura l'alimentació
Once the fixture is securely installed and bulbs are in place, restore power at the circuit breaker. Test the light fixture.
En funcionament
The Kichler 5-Light Vanity Light operates via a standard wall switch. If you wish to utilize a dimming function, ensure you use dimmable E26 medium base bulbs and a compatible dimmer switch (sold separately).
Manteniment
Proper maintenance will ensure the longevity and appearance of your vanity light.
Neteja:
- Desconnecteu sempre l'alimentació de l'aparell abans de netejar-lo.
- Netegeu l'aparell amb un drap suau i sec.
- No utilitzeu netejadors, dissolvents o poliments abrasius, ja que poden danyar l'acabat.
Substitució de bombetes:
- Desconnecteu l'alimentació de l'aparell a l'interruptor.
- Deixeu que les bombetes es refredin completament abans de tocar-les.
- Desenrosqueu amb cura la bombeta antiga del seu portalàmpades.
- Screw in a new E26 medium base bulb, ensuring it does not exceed 60 watts.
- Resta l'alimentació al disjuntor.
Resolució de problemes
If you encounter issues with your vanity light, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No hi ha energia a l’aparell. Connexió de cablejat solta. Bombeta defectuosa. | Comproveu l'interruptor o el fusible. Ensure all wiring connections are secure (turn off power first). Substitueix la bombeta per una de que se sàpiga que funciona. |
| La llum parpelleja. | Bombeta solta. Incompatible dimmer switch or non-dimmable bulbs. Cablejat solt. | Apretar la bombeta. Ensure dimmable bulbs are used with a compatible dimmer switch. Check wiring connections (turn off power first). |
| L'aparell està calent al tacte. | Bombeta wattage exceeds maximum rating. | Replace bulbs with ones that do not exceed 60 watts per socket. |
Especificacions
| Marca | Kichler |
| Número de model | 625NI |
| Color/Acabat | Níquel raspallat |
| Material | Metall |
| Dimensions (L x A x A) | 30" x 2" x 4.25" |
| Pes de l'article | 2.9 lliures |
| Nombre de fonts de llum | 5 |
| Base del bulb | E26 Mitjà |
| Max Wattage per Bulb | 60 watts |
| Voltage | 120 V AC |
| Ús interior/exterior | Interior |
| Tipus d'habitació | Bany |
| Tipus de muntatge | Wall Mount, Surface-Mounted |
| Nivell de resistència a l'aigua | Moisture Resistant (UL rated for dry locations) |
| Regulable | Yes (with compatible dimmer switch and bulbs) |
| UPC | 783927029780 |
Garantia
This Kichler vanity light fixture is covered by a Garantia limitada del fabricant de 1 anys. This warranty covers defects in materials and workmanship under normal use. For specific terms and conditions, please refer to the warranty documentation included with your purchase or contact Kichler customer service.
Suport
For technical assistance, replacement parts, or any questions regarding your Kichler 5-Light Vanity Light, please contact Kichler customer service. You can find up-to-date contact information and support resources on the official Kichler weblloc:
