Freeman RPFR2190D Replacement Drive Blade and Bumper Kit User Manual

Producte acabatview

The Freeman RPFR2190D Replacement Drive Blade and Bumper Kit is designed to restore the internal firing mechanism of the Freeman PFR2190 21 Degree Framing Nailer. This kit is essential for maintaining the performance and longevity of your nailer.

Les característiques clau inclouen:

• Replacement drive blade and bumper kit for the Freeman PFR2190 21 Degree Framing Nailer.
• Used to rebuild and repair the drive blade and bumper in the internal firing unit of the framing nailer.
• Constructed from high-quality heat-treated steel, aluminum, and rubber for enhanced durability.
• Lightweight components designed to reduce user fatigue during operation.

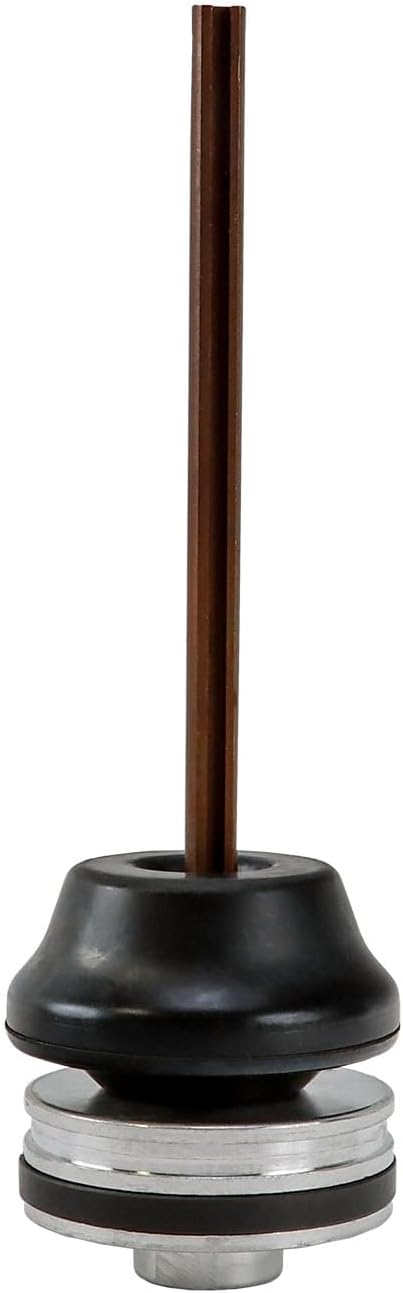

Figure 1: The complete Freeman RPFR2190D Replacement Drive Blade and Bumper Kit.

Guia d'instal·lació

This section provides general instructions for replacing the drive blade and bumper. Always refer to the specific parts diagram and service manual for your Freeman PFR2190 21 Degree Framing Nailer for detailed, model-specific instructions.

1. La seguretat primer: Disconnect the air supply from the nailer and remove all fasteners from the magazine before beginning any maintenance or repair.
2. Desmuntatge: Carefully disassemble the nailer's firing unit to access the existing drive blade and bumper. This typically involves removing the nose piece and cylinder cap.
3. Eliminar components antics: Extract the worn or damaged drive blade and bumper. Note their orientation for correct reassembly.
4. Install New Bumper: Place the new rubber bumper into its designated position within the firing unit. Ensure it is seated correctly.


   Figure 2: The replacement rubber bumper.
5. Install New Drive Blade: Insert the new drive blade into the cylinder, ensuring the correct alignment with the piston.


   Figure 3: The replacement drive blade.

6. Remuntatge: Reassemble the firing unit and the nailer, ensuring all components are securely fastened and in their proper places. Refer to the nailer's parts diagram for precise component placement.


   Figure 4: Individual components of the kit, ready for installation.

7. Prova: After reassembly, connect the air supply and perform a few test fires in a safe environment to ensure proper operation and sealing.

Operating Considerations (Post-Installation)

Once the replacement kit is installed, the Freeman PFR2190 21 Degree Framing Nailer should operate as intended. Proper operation of the nailer contributes to the longevity of the newly installed drive blade and bumper.

• Ensure the nailer is connected to a clean, regulated air supply at the recommended pressure.
• Use only fasteners compatible with the Freeman PFR2190 nailer.
• Avoid dry firing the nailer excessively, as this can put unnecessary stress on internal components, including the drive blade and bumper.

Manteniment

While the RPFR2190D kit itself is a replacement part, regular maintenance of your framing nailer will extend the life of these components and ensure optimal performance.

• Lubricació: Apply a few drops of pneumatic tool oil into the air inlet before each use or at least daily if used frequently. This lubricates the internal O-rings and moving parts, reducing wear on the drive blade and bumper.
• Neteja: Keep the nailer clean and free of debris, especially around the nose piece and firing mechanism.
• Emmagatzematge: Store the nailer in a dry environment to prevent rust and corrosion.
• Inspeccionar regularment: Periodically inspect the drive blade and bumper for signs of wear, cracking, or damage. Replace them promptly if wear is observed to prevent further damage to the nailer.

Resolució de problemes

If you experience issues with your Freeman PFR2190 nailer after installing the RPFR2190D kit, consider the following common troubleshooting steps:

If issues persist, consult a qualified tool repair technician or contact Freeman customer support.

Especificacions

Garantia i Suport

For specific warranty information regarding the Freeman RPFR2190D Replacement Drive Blade and Bumper Kit, please refer to the documentation included with your purchase or visit the official Freeman weblloc. Els termes de la garantia poden variar.

For technical support, replacement parts, or further assistance, please contact Freeman customer service. You can often find contact information on the product packaging or through the official Freeman brand store:

Visit the Freeman Store on Amazon
