ARCAN 3-ton Steel/Aluminum Hybrid Jack HJ3000JP User Manual

Introducció

This manual provides essential information for the safe and effective operation and maintenance of your ARCAN 3-ton Steel/Aluminum Hybrid Jack, model HJ3000JP. Please read this manual thoroughly before use and keep it for future reference.

Note: As this is an imported product, minor scratches or dirt may be present on the exterior or packaging. This does not affect product performance.

Informació de seguretat

Prioritzeu sempre la seguretat quan feu servir equips d'elevació. Si no seguiu aquestes instruccions, podeu patir lesions greus o danys materials.

• Ensure the jack is placed on a hard, level surface.
• Never exceed the rated load capacity of 3 tons (2721 kg).
• Always use jack stands to support the vehicle after lifting. Do not rely solely on the jack.
• No treballeu sota un vehicle suportat només per un gat.
• Mantingueu les mans i els peus allunyats de les parts mòbils.
• Ensure the vehicle is in park and the parking brake is engaged before lifting.
• Chock wheels that are not being lifted.
• Inspect the jack for damage or leaks before each use.

Producte acabatview

The ARCAN HJ3000JP is a robust 3-ton steel/aluminum hybrid floor jack designed for automotive lifting tasks. It features a low-profile design and a two-piece handle for ease of use and storage.

Figure 1: ARCAN HJ3000JP Hybrid Jack with its two-piece handle ready for assembly.

Figura 2: Primer pla view of the jack's lifting pad, designed to prevent scratches on the vehicle.

Figure 3: Illustration of the jack's lifting arm in motion, demonstrating its range.

Figura 4: Detallada view highlighting key features including the rubber pad, double pistons, and bearing wheels for smooth movement.

Les característiques clau inclouen:

• Hybrid steel and aluminum construction for durability and lighter weight.
• Equipped with a rubber pad on the lifting saddle to protect vehicle undercarriages.
• Double pistons and powerful cylinders for efficient lifting.
• Bearing wheels for smooth and easy maneuverability.
• Two-piece handle for convenient storage and transport.

Configuració i preparació inicial

Before using your ARCAN HJ3000JP jack for the first time, follow these steps to ensure proper assembly and operation:

1. Muntar el mànec: Secure the two jack handle halves together.
2. Remove Retaining Wire: Locate and remove the retaining wire that holds the handle yoke in place during shipment. This wire is for packaging purposes only.
3. Inserir mànec: Insert the assembled handle into the handle yoke and secure it with the provided bolt.
4. Purge Air (Bleeding): This step is crucial to remove any air trapped in the hydraulic system, ensuring optimal performance.
   • Rotate the handle to the right (clockwise) until it stops. This closes the release valve.
   • Rotate the handle to the left two complete rotations. This opens the release valve slightly.
   • Pump the handle 10 full incremental pump strokes without a load. This helps circulate the hydraulic fluid and expel air.
   • Then, rotate the handle to the right (clockwise) until it stops again.
5. Test Lift: Pump the handle to raise the lift arm to its maximum height without any load. Then, lower the lift arm by rotating the handle to the left. The jack is now ready for use.

Instruccions de funcionament

Follow these steps for safe and effective vehicle lifting:

1. Preparar el vehicle: Park the vehicle on a hard, level surface. Engage the parking brake and place the transmission in "Park" (automatic) or in gear (manual). Chock the wheels that will remain on the ground.
2. Col·loca el Jack: Locate the vehicle's designated lifting points (refer to your vehicle's owner's manual). Position the jack so that the lifting saddle is directly under the lifting point. Ensure the jack's rubber pad is properly seated.
3. Aixecar el vehicle: Close the release valve by rotating the handle clockwise until it is fully closed. Pump the handle steadily to raise the vehicle to the desired height. Lift only high enough to allow for the placement of jack stands.
4. Assegurar amb suports hidràulics: Immediately place appropriately rated jack stands under the vehicle's designated support points. Ensure the vehicle is securely resting on the jack stands before proceeding.
5. Lower the Jack: Slowly and carefully rotate the handle counter-clockwise to open the release valve, allowing the jack to lower. Once the vehicle is fully supported by the jack stands, remove the jack.
6. Lower the Vehicle (After Work): When ready to lower the vehicle, carefully raise it slightly with the jack to remove the jack stands. Once jack stands are removed, slowly rotate the handle counter-clockwise to lower the vehicle completely to the ground. Remove the jack.

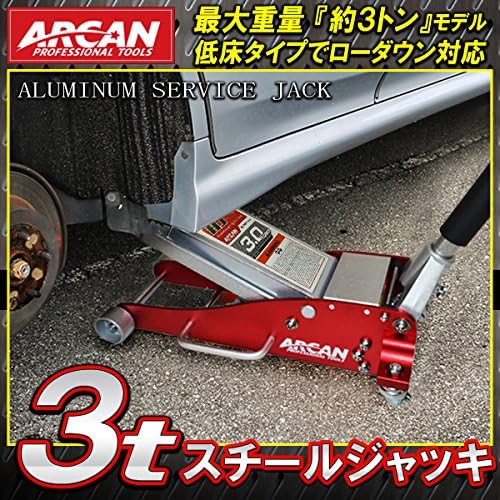

Figure 5: The ARCAN HJ3000JP jack positioned under a vehicle's lifting point, demonstrating its low-profile capacitat.

Manteniment

Un manteniment regular garanteix la longevitat i el funcionament segur del vostre gat.

• Neteja: Keep the jack clean and free of dirt, grease, and debris. Wipe down surfaces with a clean cloth.
• Lubricació: Periodically lubricate all moving parts, including pivot points and wheel axles, with a light machine oil.
• Fluid hidràulic: Check the hydraulic fluid level periodically. If low, add high-quality hydraulic jack oil. Do not use brake fluid or other types of oil. Consult a qualified technician if you are unsure.
• Emmagatzematge: Guardeu el gat en un lloc net i sec amb el pistó completament retret per evitar la corrosió i allargar la vida útil del segell.
• Inspecció: Before each use, inspect the jack for any signs of damage, wear, or leaks. Do not use a damaged jack.

Resolució de problemes

For issues not listed here or if solutions do not resolve the problem, contact ARCAN customer support or a certified service center.

Especificacions

Garantia i Suport

Specific warranty information for the ARCAN HJ3000JP jack is typically provided at the point of purchase or within separate documentation included with the product. Please retain your proof of purchase for warranty claims.

For technical support, service, or parts inquiries, please contact ARCAN customer service through their official website or the retailer from whom you purchased the product. Always provide your model number (HJ3000JP) and purchase date when seeking support.

Note: Damage due to misuse, exceeding load capacity, or improper maintenance is not covered under warranty.
