1. Introducció
The Hubbell BD-03 Tool Retractor is a general-purpose tool balancer designed to suspend and position tools in light-duty applications. It features a standard, non-tapered drum and provides a slight upward pull on the tool when its cable is extended. The integrated adjustment mechanism allows for increasing o decreasing cable tension to properly balance the attached tool, enhancing user comfort and efficiency.
2. Informació de seguretat
WARNING: Read and understand all safety instructions before operating this tool retractor. Failure to follow these instructions may result in injury or property damage.
- Always ensure the tool retractor is securely mounted to a stable structure capable of supporting the retractor's weight plus the maximum rated tool weight.
- Do not exceed the maximum load capacity of 3.0 lbs (1.40 kg). Overloading can cause failure and injury.
- Regularly inspect the cable for wear, fraying, or damage. Replace the retractor immediately if any damage is observed.
- Keep hands and fingers clear of the cable and drum during operation to prevent pinching.
- Ensure the tool is properly attached to the retractor's hook or attachment point.
- Do not attempt to disassemble or repair the retractor. Refer servicing to qualified personnel.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al paquet:
- Hubbell BD-03 Tool Retractor Unit
- Cable integrat
4. Producte acabatview
The Hubbell BD-03 Tool Retractor is a compact device designed for ergonomic tool management. Key components include the main housing, the retractable cable, and the tool attachment point.
Figura 1: Frontal view of the Hubbell BD-03 Tool Retractor, displaying the model number BD-03 and maximum capacity of 3.0 lbs (1.40 kg).
Figura 2: lateral view of the Hubbell BD-03 Tool Retractor, highlighting the tool attachment point and mounting screws.
5. Configuració i instal·lació
Follow these steps to properly set up your Hubbell BD-03 Tool Retractor:
- Mounting the Retractor: Select a sturdy overhead structure or workbench fixture capable of safely supporting the retractor and the maximum intended tool weight. Securely attach the retractor using appropriate fasteners (not included) through its designated mounting points. Ensure the retractor is level and stable.
- Attaching the Tool: Connect your tool to the cable's end attachment point. Ensure the connection is secure and the tool's weight does not exceed 3.0 lbs (1.40 kg).
- Initial Cable Extension: Gently pull the tool downwards to extend the cable. Allow it to retract slowly to ensure smooth operation and proper seating of the cable.

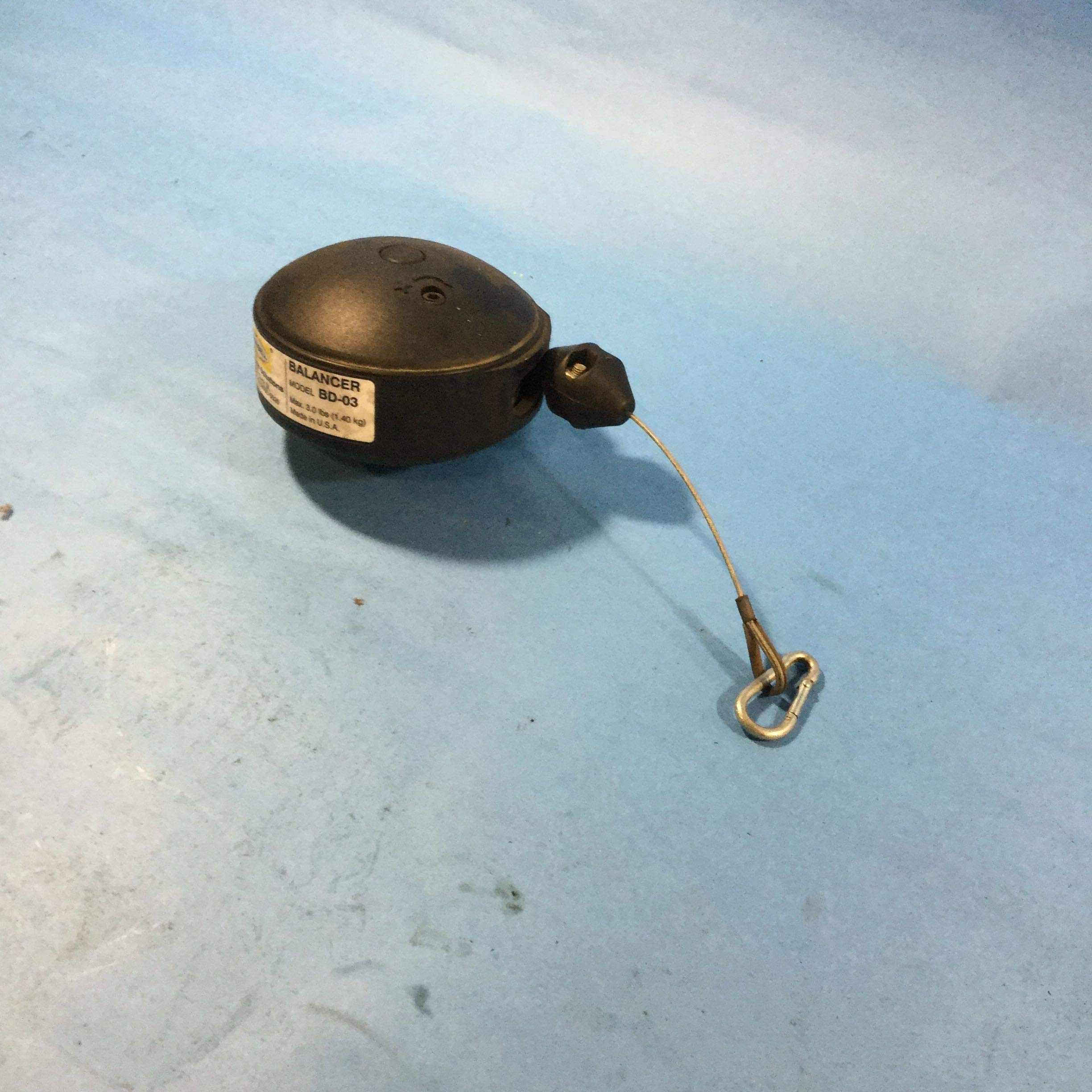

Figure 3: The Hubbell BD-03 Tool Retractor with its cable partially extended, demonstrating the cable mechanism.
6. Instruccions de funcionament
The BD-03 Tool Retractor is designed for simple and efficient tool positioning:
- Tool Access: Pull the attached tool downwards to the desired working position. The retractor will maintain a slight upward tension, reducing the perceived weight of the tool.
- Tool Return: When finished, guide the tool back towards the retractor. The cable will retract, returning the tool to its suspended position. Do not release the tool abruptly; allow it to retract smoothly to prevent damage to the retractor or the tool.
- Ajust de tensió: The retractor features an internal adjustment mechanism to fine-tune the cable tension. Refer to the markings on the unit or consult the manufacturer's specific instructions for adjusting the tension to perfectly balance your tool. Typically, a screw or knob allows for incremental changes.
7. Manteniment
Regular maintenance ensures the longevity and safe operation of your tool retractor:
- Inspecció visual: Before each use, visually inspect the retractor housing, cable, and attachment points for any signs of wear, cracks, fraying, or damage.
- Estat del cable: Pay close attention to the cable. If it shows any signs of wear, kinks, or fraying, discontinue use immediately and replace the retractor.
- Neteja: Keep the retractor clean and free from dust, dirt, and debris. Wipe the exterior with a clean, dry cloth. Do not use harsh chemicals or solvents.
- Lubricació: The internal mechanism is typically factory-lubricated and sealed. Do not attempt to lubricate internal components unless specifically instructed by the manufacturer.
8. Solució De Problemes
If you encounter issues with your Hubbell BD-03 Tool Retractor, refer to the following common problems and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| Cable does not retract fully. | Cable is jammed or dirty. Tool weight is too light for current tension setting. | Inspect cable for obstructions. Clean the cable path. Adjust tension to match tool weight. |
| Cable retracts too quickly/slowly. | Tension setting is incorrect for the tool weight. | Adjust the tension mechanism to achieve the desired balance. |
| Visible damage to cable or housing. | Wear and tear, impact damage, or overloading. | Discontinue use immediately. The unit is not user-serviceable; replace the retractor. |
| Tool feels heavier than expected. | Tension setting is too low for the tool weight. | Increase the tension using the adjustment mechanism. |
If the problem persists after attempting these solutions, contact Hubbell customer support for further assistance.
9. Especificacions
| Número de model | BD-03 |
| Marca | Hubbell |
| Capacitat de càrrega màxima | 3.0 lliures (1.40 kg) |
| Longitud del cable | 6.0 peus (1.83 m) |
| Pes de l'article | 13 unces (0.37 kg) |
| Dimensions del paquet | 21 x 18 x 18 polzades (53.34 x 45.72 x 45.72 cm) |
| Fabricant | Hubbell |
| ASIN | B009KG9W9A |
10. Garantia i atenció al client
Specific warranty information for the Hubbell BD-03 Tool Retractor is not provided in this manual. For details regarding warranty coverage, claims, or technical support, please contact Hubbell directly through their official weblloc web o canals d'atenció al client. Conserveu el rebut de compra com a comprovant de compra.
For further assistance, please visit the official Hubbell weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
