Dorman 603-075 Front Non-Pressurized Coolant Reservoir with Cap

1. Producte acabatview

The Dorman 603-075 Front Non-Pressurized Coolant Reservoir with Cap is a direct replacement component designed to match the fit and function of the original part in compatible Honda vehicles. This reservoir is manufactured from durable materials engineered to withstand the stresses of underhood heat and engine vibration, ensuring reliable performance within your vehicle's cooling system.

Característiques principals:

• Direct replacement for original equipment.
• Engineered for seamless installation.
• Constructed from quality materials for durability.

Compatibilitat:

This part is compatible with select Honda models. Please verify fitment for your specific vehicle using the model number 603-075.

2. Informació de seguretat

Always prioritize safety when working on your vehicle. Failure to follow safety precautions can result in injury or damage to the vehicle.

• Ensure the engine is completely cool before beginning any work on the cooling system. Hot coolant and engine components can cause severe burns.
• Utilitzeu l'equip de protecció individual adequat, incloent-hi ulleres i guants de seguretat.
• Do not open the radiator cap or coolant reservoir cap when the engine is hot.
• Elimineu el refrigerant vell de manera responsable d'acord amb la normativa local.
• Si no esteu segurs de cap pas, consulteu un tècnic d'automoció qualificat.

3. Contingut del paquet

• 1 x Dorman 603-075 Front Non-Pressurized Coolant Reservoir
• 1 x Reservoir Cap

4. Instruccions d'instal·lació

This section outlines the general steps for replacing the coolant reservoir. Specific vehicle procedures may vary. Refer to your vehicle's service manual for detailed instructions.

1. Preparar el vehicle: Park the vehicle on a level surface and engage the parking brake. Ensure the engine is completely cool.
2. Locate the Reservoir: Identify the existing coolant reservoir in the engine bay.
3. Buidar el refrigerant (si cal): If the reservoir contains coolant, carefully remove the cap (only when cool) and use a suitable container to drain any coolant from the reservoir or the system if required by your vehicle's procedure.
4. Desconnectar les mànegues: Carefully disconnect any hoses connected to the old reservoir. Be prepared for residual coolant to spill.
5. Remove Old Reservoir: Unbolt or unclip the old reservoir from its mounting points.
6. Install New Reservoir: Position the new Dorman 603-075 reservoir in the correct location. Secure it using the original mounting hardware.
7. Connecteu les mànegues: Reconnect all hoses to the new reservoir, ensuring they are securely fastened to prevent leaks.
8. Recàrrega de refrigerant: Fill the new reservoir with the appropriate type and amount of coolant as specified by your vehicle manufacturer. Do not overfill; observe the 'MAX' fill line.
9. Bleed Air (if necessary): Follow your vehicle's specific procedure for bleeding air from the cooling system to prevent air pockets.
10. Inspeccionar si hi ha fuites: Start the engine and allow it to reach operating temperature while monitoring the coolant level and checking for any leaks around the new reservoir and hose connections.

Figura 1: Frontal view of the Dorman 603-075 Coolant Reservoir with cap, showing its overall shape and connection points.

Figura 2: Angle view of the Dorman 603-075 Coolant Reservoir, highlighting the cap and a hose connection point.

5. Funcionament

The non-pressurized coolant reservoir serves as an overflow tank for the engine's cooling system. As the engine heats up, coolant expands and flows into this reservoir. When the engine cools down, the coolant contracts and is drawn back into the main cooling system. This process helps maintain proper coolant levels and prevents air from entering the system.

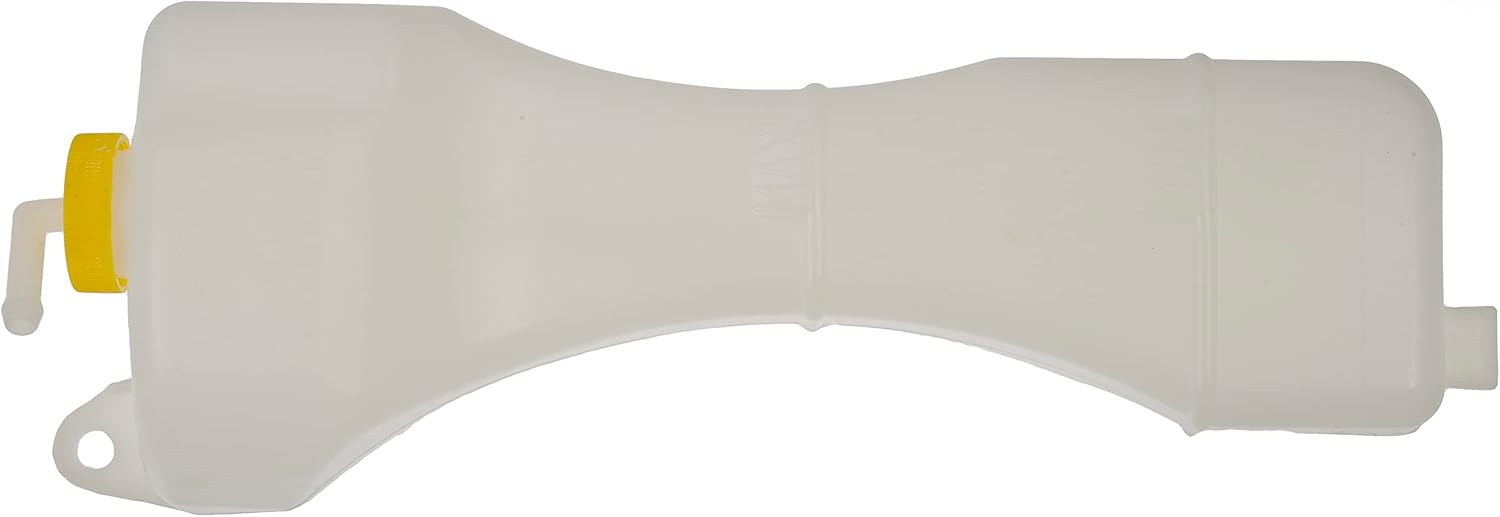

Figura 3: De dalt a baix view of the Dorman 603-075 Coolant Reservoir, showing the 'MAX' fill line and overall contour.

6. Manteniment

Regular maintenance of your coolant reservoir and cooling system is crucial for vehicle longevity.

• Comprovació del nivell de refrigerant: Periodically check the coolant level in the reservoir when the engine is cool. The level should be between the 'MIN' and 'MAX' marks.
• Inspecció visual: Inspect the reservoir for cracks, discoloration, or signs of leakage. Check hoses for cracks, bulges, or loose connections.
• Qualitat del refrigerant: Ensure the coolant is clean and free of debris or oil. If the coolant appears dirty or rusty, it may indicate a need for a system flush and refill.
• Cap Inspection: Ensure the reservoir cap is securely tightened and free from damage.

Figura 4: lateral view of the Dorman 603-075 Coolant Reservoir, illustrating its profile and mounting features.

7. Solució De Problemes

If you encounter issues with your cooling system, consider the following common problems:

• Nivell baix de refrigerant: Check for leaks in the reservoir, hoses, radiator, or engine. Refill with appropriate coolant.
• Fuites de refrigerant: Visually inspect all connections and the reservoir itself for signs of drips or wetness. Tighten loose clamps or replace damaged components.
• Sobreescalfament del motor: This can be caused by low coolant, a faulty thermostat, a clogged radiator, or a malfunctioning water pump. Address the root cause promptly.

For persistent or complex issues, it is recommended to consult a certified mechanic.

8. Especificacions

9. Garantia i Suport

Dorman products are designed for quality and reliability. For specific warranty information or technical support, please refer to the official Dorman weblloc web o contacteu directament amb el servei d'atenció al client. Conserveu el rebut de compra per a reclamacions de garantia.

Per obtenir més ajuda, visiteu el Botiga Dorman a Amazon.
