Kason 0056 Safeguard Latch Strike (Model 10056005003) Instruction Manual

Introducció

This manual provides essential information for the proper installation, operation, and maintenance of your Kason 0056 Safeguard Latch Strike, Model 10056005003. Designed for commercial walk-ins, truck bodies, and other heavy-duty applications, this latch strike ensures reliable and secure closure. Please read these instructions thoroughly before installation and use to ensure optimal performance and safety.

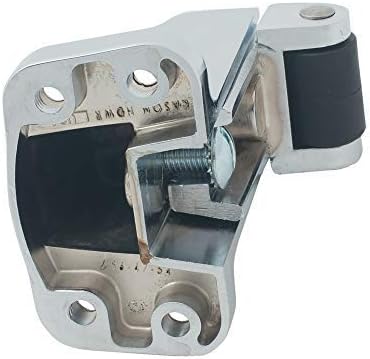

The Kason 0056 Safeguard Latch Strike features a bolt-type tongue for positive locking action and an adjustable strike for precise alignment. Its robust die-cast zinc construction is built for durability and long-term use in demanding environments.

Informació de seguretat

• Sempre utilitzeu l'equip de protecció individual (EPI) adequat, com ara ulleres i guants de seguretat, durant la instal·lació.
• Ensure all mounting surfaces are stable and capable of supporting the latch strike and its intended load.
• Verify that the latch strike is securely fastened before operating the door or panel.
• This product includes a provision for a Kason inside release lever to prevent accidental entrapment in locked walk-ins. Ensure this safety feature is installed and functional where applicable.
• Use only recommended tools and hardware for installation.

Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

• Adjustable strike
• Kason inside release lever (optional, for entrapment prevention)
• Master #1 L J Padlock with 5/16” shank (optional, for padlocking)
• Necessary mounting hardware (6 body assemblies and 6 strike assemblies)

Configuració i instal·lació

The Kason 0056 Safeguard Latch Strike is designed for straightforward installation. Follow these steps for secure mounting:

1. Prepareu la superfície de muntatge: Identify the precise location on the door frame or panel where the strike will be mounted. Ensure the surface is clean, flat, and structurally sound.
2. Position the Strike: Place the strike in the desired position, ensuring proper alignment with the latch mechanism. The strike is designed for a 3/4 to 1 1/2 inch offset.
3. Marqueu els forats de perforació: Use the strike as a template to mark the locations for the mounting holes. The strike features holes designed for 1/4 inch screws.
4. Perforar forats pilot: Drill pilot holes at the marked locations. Ensure the drill bit size is appropriate for your chosen mounting screws to prevent stripping or cracking.
5. Mount the Strike: Secure the strike to the mounting surface using the provided 1/4 inch screws and other necessary mounting hardware. Ensure all screws are tightened firmly.
6. Adjust the Strike: The Kason 0056 features an adjustable strike. After initial mounting, close the door or panel and check the latch engagement. If necessary, adjust the strike position to achieve a precise and secure fit. This ensures the bolt-type tongue provides positive locking action.
7. Install Inside Release Lever (if applicable): If using the Kason inside release lever for walk-in applications, install it according to its separate instructions to ensure proper function for entrapment prevention.

Instruccions de funcionament

The Kason 0056 Safeguard Latch Strike works in conjunction with a compatible latch mechanism to secure doors or panels.

• Tancament: To secure the door, simply close it firmly. The latch mechanism will engage with the strike, and the bolt-type tongue will provide a positive locking action.
• Obertura: To open the door, operate the handle or lever of the compatible latch mechanism. This will disengage the bolt from the strike, allowing the door to open.
• Cadenat: For added security, the strike includes a padlocking provision. A Master #1 L J Padlock with a 5/16” shank can be inserted through the designated hole to prevent unauthorized opening.
• Inside Release: If an inside release lever is installed, it allows for emergency exit even when the door is cylinder-locked or padlocked, preventing entrapment.

Manteniment

Regular maintenance ensures the longevity and reliable operation of your Kason 0056 Safeguard Latch Strike.

• Neteja: Periodically clean the strike with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the polished chrome finish.
• Inspecció: Regularly inspect the strike for any signs of wear, damage, or loose mounting screws. Ensure the adjustable strike remains securely in its set position.
• Lubricació: While the heavy-duty construction is designed for minimal maintenance, a light application of a silicone-based lubricant to moving parts (if any are exposed and designed for lubrication) can help maintain smooth operation. Avoid over-lubrication.
• Apretament: Re-tighten any loose mounting screws as needed to maintain secure attachment.

Resolució de problemes

If you encounter issues with your Kason 0056 Safeguard Latch Strike, consider the following common solutions:

• Latch Not Engaging Properly:
  • Check the alignment of the strike with the latch mechanism. Adjust the strike as necessary.
  • Ensure the mounting screws are tight and the strike is not loose.
  • Inspect the latch mechanism itself for any obstructions or damage.
• Dificultat d'obertura/tancament:
  • Verify that the strike is not overtightened or misaligned, causing excessive friction.
  • Check for any debris or foreign objects obstructing the latch or strike.
• Padlock Not Fitting:
  • Ensure you are using a Master #1 L J Padlock with a 5/16” shank, as specified.
  • Check for any obstructions in the padlock hole.

If problems persist after attempting these solutions, please contact Kason customer support for further assistance.

Especificacions

Brand Information and Quality

Kason is a global provider of commercial hardware and accessories, setting standards for quality and durability in the foodservice and refrigeration industries. The Kason 0056 Safeguard Latch Strike is manufactured with solid craftsmanship and heavy-duty construction to ensure long life and reliability in hard commercial use.

Garantia i Suport

For specific warranty information regarding your Kason 0056 Safeguard Latch Strike, please refer to the documentation provided at the time of purchase or visit the official Kason website. Kason products are known for their durability and are backed by the manufacturer's commitment to quality.

If you require technical assistance, have questions about installation, or need to report a product issue, please contact Kason customer support. You can find contact information on the official Kason weblloc web o a través del proveïdor del producte.

Visita el Kason Store per a més productes i informació.
