Dorman 82407 Window Crank Handle User Manual

Introducció

This manual provides essential information for the installation, operation, and maintenance of your Dorman 82407 Window Crank Handle. This handle is designed as a direct replacement for worn or broken original equipment window crank handles, ensuring reliable performance and restoring proper window operation.

The Dorman 82407 Window Crank Handle is compatible with select Isuzu models, including:

• Isuzu i-280: 2006
• Isuzu i-290: 2007, 2008
• Isuzu i-350: 2006
• Isuzu i-370: 2007, 2008

Before installation, it is recommended to verify fitment for your specific vehicle by consulting the manufacturer's fitment tools or resources.

Característiques clau

• Substitució ideal: This window crank handle is engineered to match the fit and function of the original equipment component, ensuring a seamless replacement.
• Construcció duradora: Manufactured from robust materials, this handle is built to withstand extended use and provide long-lasting performance.
• Fàcil d'instal·lar: Designed for straightforward installation, this window crank handle typically requires no specialized tools.
• Disseny versàtil: Its design allows for use in various locations within the vehicle where a manual window crank is present.

Què hi ha a la caixa

El vostre paquet ha de contenir el següent element:

• One (1) Dorman 82407 Window Crank Handle (Black)

Producte acabatview

Figura 1: Frontal view of the Dorman 82407 Window Crank Handle. This image shows the sleek black finish and ergonomic design of the handle, ready for installation.

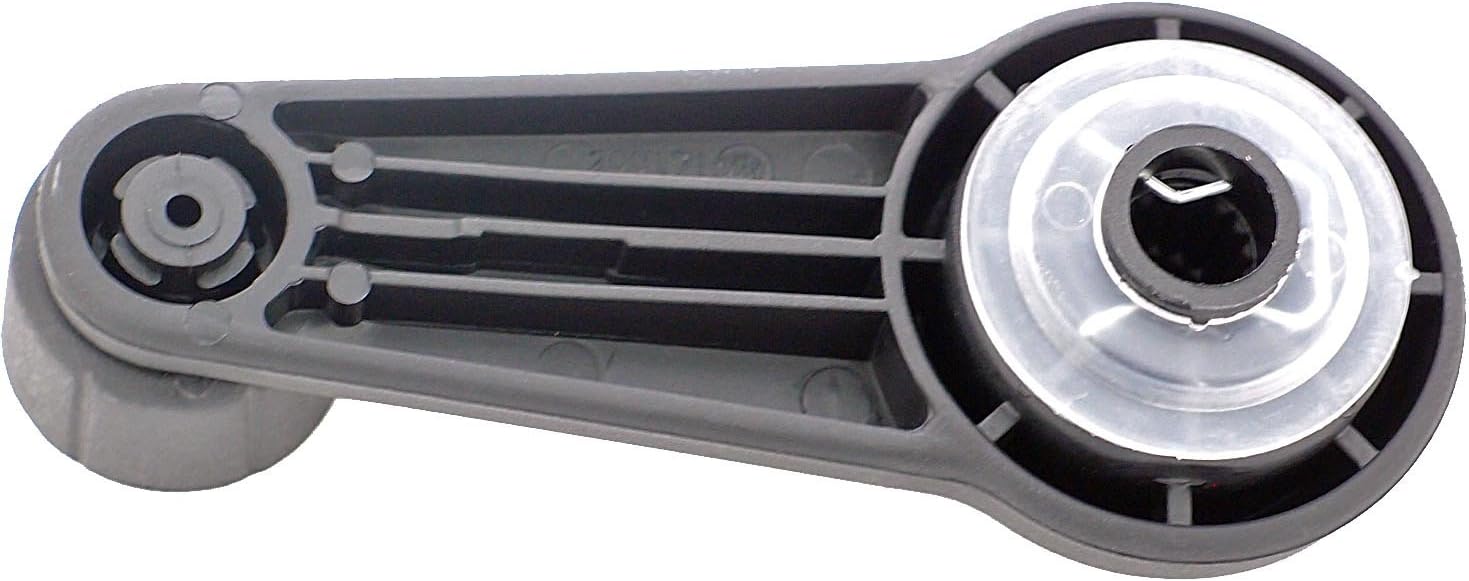

Figura 2: posterior view of the Dorman 82407 Window Crank Handle. This perspective highlights the worm gear attachment mechanism and internal structure, crucial for proper fitment and operation.

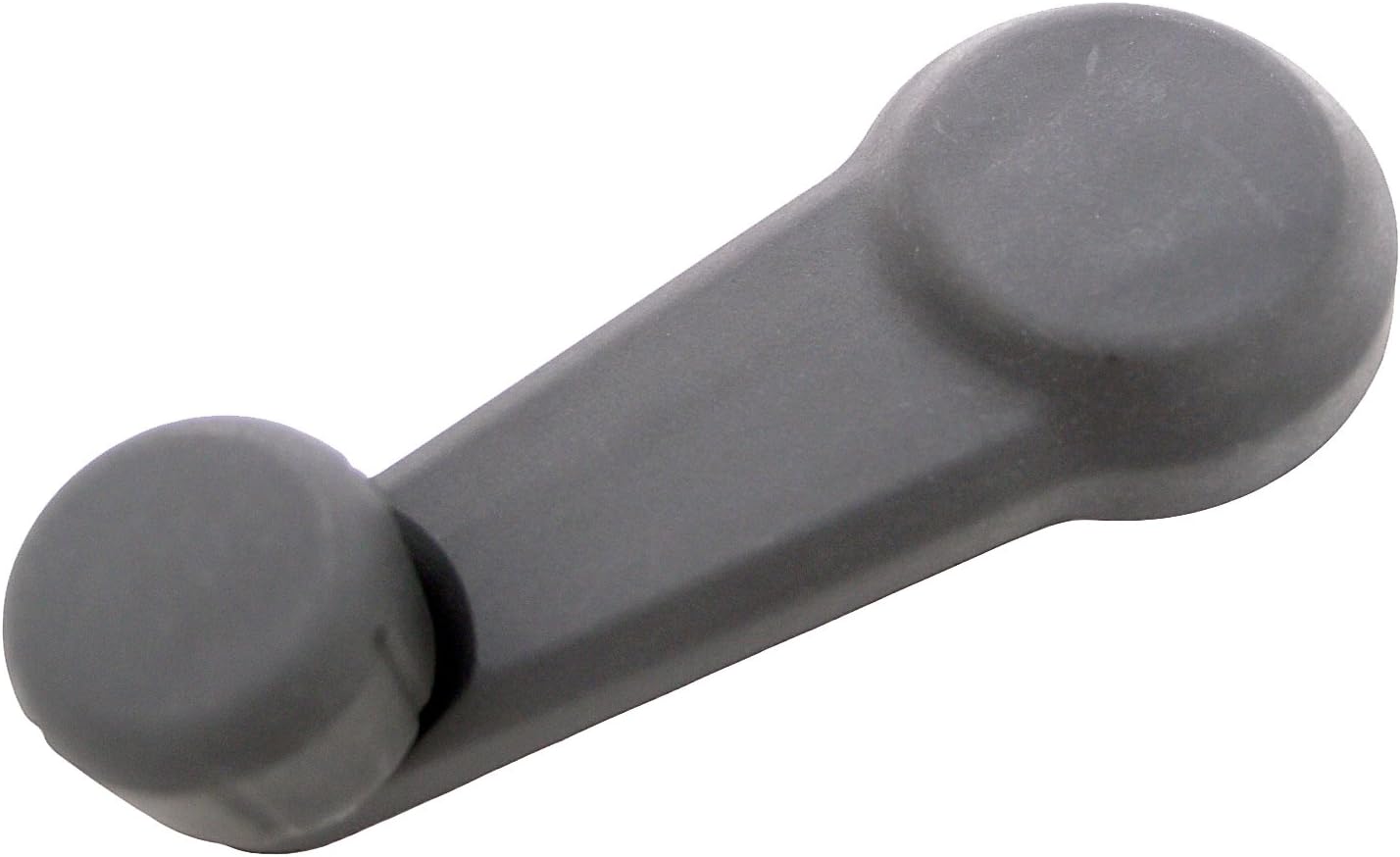

Figura 3: Angle view of the Dorman 82407 Window Crank Handle. This image provides another perspective of the handle's form factor, emphasizing its compact and functional design.

Figure 4: A gloved hand holding a Dorman window crank handle. This image illustrates the handle's size and how it fits in a hand, providing a practical reference for users.

Configuració i instal·lació

The Dorman 82407 Window Crank Handle is designed for easy replacement of your vehicle's existing manual window crank. While specific steps may vary slightly by vehicle model, the general procedure involves removing the old handle and securing the new one.

Passos generals d'instal·lació:

1. Preparació: Ensure the window is fully closed. Gather any necessary tools, though often none are required beyond a small flat-head screwdriver for prying.
2. Treure la nansa antiga: Locate the retaining clip or screw that secures the old window crank handle to the window regulator shaft. Carefully pry off the clip or unscrew the fastener. Once the clip/fastener is removed, the old handle should slide off the shaft.
3. Clean Shaft: If necessary, clean any debris or old grease from the window regulator shaft.
4. Instal·leu una nova maneta: Align the Dorman 82407 Window Crank Handle with the splines on the window regulator shaft. Push the new handle firmly onto the shaft until it is fully seated.
5. Mànec segur: Reinstall the retaining clip or screw to secure the new handle in place. Ensure it is firmly attached and does not wobble.
6. Prova de funcionament: Gently turn the new window crank handle to ensure the window moves up and down smoothly without obstruction.

Nota: For detailed, vehicle-specific instructions, consult your vehicle's service manual or a qualified automotive technician.

Operating the Window Crank Handle

Operating the Dorman 82407 Window Crank Handle is straightforward:

• To lower the window, rotate the handle in a counter-clockwise direction.
• To raise the window, rotate the handle in a clockwise direction.

Apply smooth, consistent pressure when turning the handle. Avoid excessive force, as this can damage the window regulator mechanism.

Manteniment

The Dorman 82407 Window Crank Handle is designed for durability and requires minimal maintenance. However, following these guidelines can help ensure its longevity:

• Neteja regular: Netegeu el mànec periòdicament amb un drap suauamp cloth to remove dust and grime. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
• Inspeccionar el desgast: Occasionally check the handle for any signs of wear, cracks, or looseness. If the handle feels loose, ensure the retaining clip or screw is properly secured.
• Lubricació (si cal): If the window operation becomes stiff, the issue is likely with the window regulator mechanism itself, not the handle. Consult a professional for lubrication or repair of the internal window components.

Resolució de problemes

Most issues related to the window crank handle are due to improper installation or problems with the underlying window regulator. Here are some common scenarios and potential solutions:

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact Dorman customer support or a certified automotive technician.

Especificacions

Vídeo oficial del producte

Garantia i Suport

Dorman Products are manufactured to high-quality standards. For specific warranty information regarding the Dorman 82407 Window Crank Handle, please refer to the warranty documentation included with your purchase or visit the official Dorman Products weblloc.

For technical support, installation assistance, or to inquire about replacement parts, please contact Dorman customer service through their official channels. You can often find contact information on the product packaging or on the Dorman Products weblloc.

Exempció de responsabilitat: This manual is intended for informational purposes only. Always exercise caution and follow proper safety procedures when working on your vehicle. If you are unsure about any installation step, it is recommended to seek assistance from a qualified professional.
