Veridian Healthcare Smartheart 01-550 Automatic Digital Arm Blood Pressure Monitor User Manual

1. Introducció

Thank you for choosing the Veridian Healthcare Smartheart 01-550 Automatic Digital Arm Blood Pressure Monitor. This device is designed to provide clinically accurate measurements of your systolic blood pressure, diastolic blood pressure, and pulse rate. It is intended for home use to assist in monitoring your blood pressure over time. Please read this manual thoroughly before using the device to ensure proper operation and accurate readings.

Key features include simultaneous display of systolic, diastolic, and pulse readings, and a memory bank capable of storing 60 readings for one user, along with an average of the last three readings.

2. Informació important de seguretat

• Consult your physician before using this device for any medical condition. Self-diagnosis and treatment based on measurements can be dangerous.
• This device is not intended to be a diagnostic tool. Always consult a healthcare professional for interpretation of blood pressure measurements.
• Mantingueu el dispositiu fora de l'abast dels nadons i els nens.
• Use only approved accessories and parts. Use of non-approved parts may damage the unit or cause inaccurate readings.
• No utilitzeu el dispositiu en un vehicle en moviment.
• Avoid taking measurements immediately after bathing, consuming alcohol or caffeine, smoking, or exercising.
• Do not attempt to repair the unit yourself. Contact qualified service personnel for any repairs.

3. Contingut del paquet

Verifiqueu que els elements següents s'inclouen al vostre paquet:

• Smartheart 01-550 Digital Blood Pressure Monitor Unit
• Adult Arm Cuff (22-32 cm / 8.7" - 12.6")
• Manual d'instruccions

4. Producte acabatview

The Smartheart 01-550 monitor consists of a main unit with a digital display and control buttons, and an arm cuff connected via an air tube.

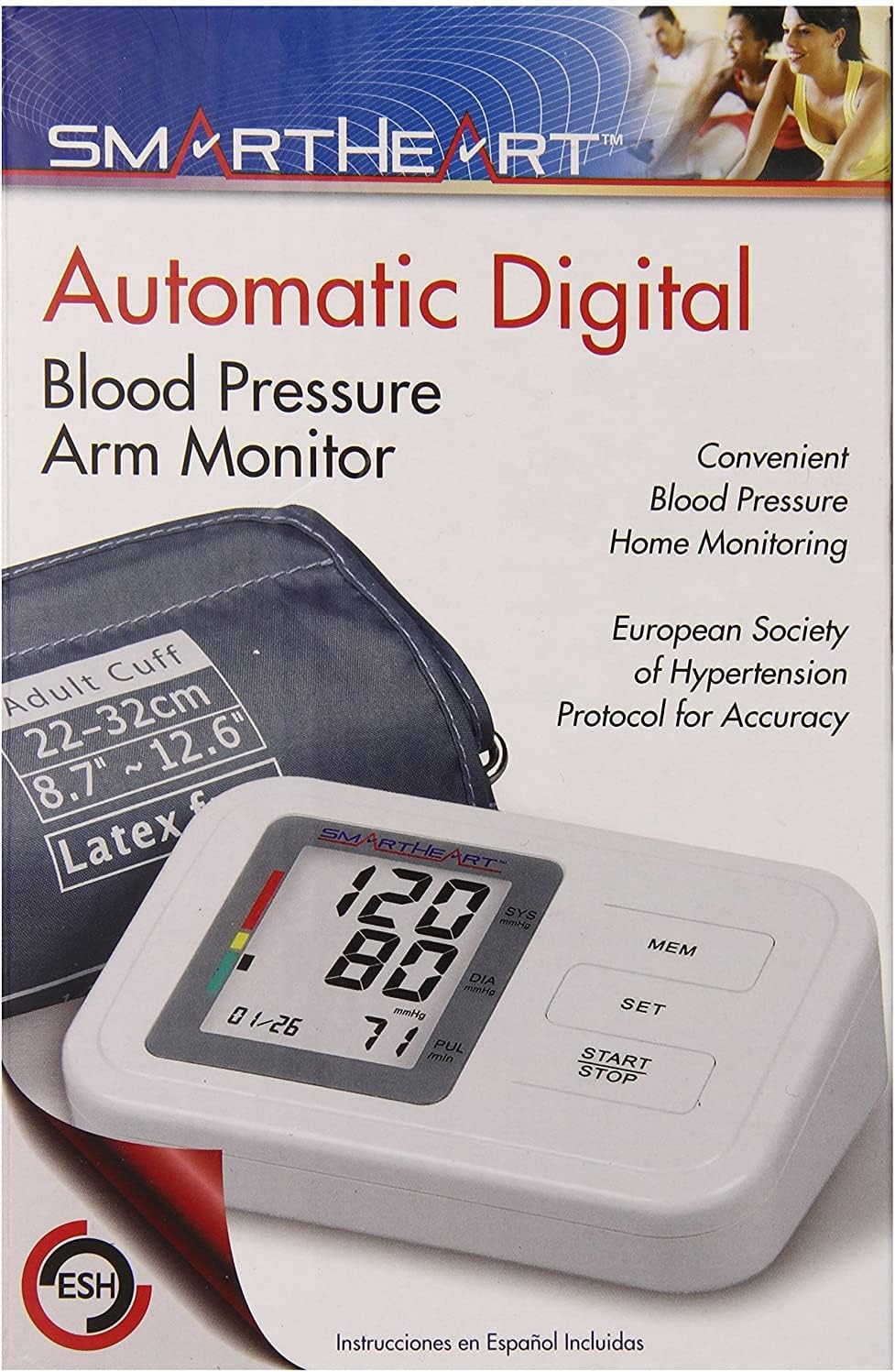

This image displays the Smartheart 01-550 digital blood pressure monitor unit alongside its adult arm cuff. The monitor features a large digital display showing blood pressure readings (SYS, DIA) and pulse rate (PUL), along with buttons for MEM, SET, and START/STOP. The cuff is gray and indicates 'Adult Cuff 22-32cm / 8.7" ~ 12.6" Latex Free'.

Un detallat view of the Smartheart 01-550 monitor's digital display. It clearly shows a systolic reading of '120' mmHg, a diastolic reading of '80' mmHg, and a pulse rate of '71' beats per minute. A color-coded indicator bar is visible on the left side of the display, providing a quick visual reference for blood pressure levels.

Aquesta imatge mostra un pro lateralfile of the Smartheart 01-550 blood pressure monitor, highlighting its compact design and the port where the cuff's air tubing connects.

5. Configuració

5.1 Instal·lació de la bateria

1. Open the battery compartment cover located on the bottom or back of the monitor.
2. Insert four (4) 'AA' alkaline batteries, ensuring the correct polarity (+/-) as indicated inside the compartment.
3. Tanqueu bé la tapa del compartiment de la bateria.

5.2 Cuff Attachment to Monitor

1. Locate the air jack on the side of the monitor unit.
2. Firmly insert the air plug from the arm cuff's tubing into the air jack until it clicks into place.

6. Instruccions de funcionament

6.1 Abans de la mesura

• Descansa almenys 5 minuts abans de prendre una mesura.
• Avoid eating, drinking alcohol or caffeine, smoking, and exercising for 30 minutes prior to measurement.
• Seieu en una posició còmoda amb l'esquena recolzada i els peus a terra.
• Ensure your arm is resting on a flat surface at heart level.

6.2 Mesura de la pressió arterial

1. Apply the arm cuff as described in Section 7.
2. Premeu el botó INICI/PARA botó. El braçalet s'inflarà automàticament.
3. Remain still and silent during the measurement. Movement or talking can affect accuracy.
4. Once the measurement is complete, the cuff will deflate, and your systolic, diastolic, and pulse readings will be displayed on the screen.
5. The monitor will automatically power off after approximately one minute of inactivity.

6.3 Funció de memòria

The Smartheart 01-550 monitor stores up to 60 readings for one user. It also calculates and displays the average of the last three readings.

1. A view stored readings, press the MEM button when the unit is off.
2. Cada premsa de la MEM button will cycle through the stored readings, starting with the most recent.
3. To clear the memory, press and hold the MEM button for approximately 5 seconds until 'CL' or 'DEL' appears on the display, then release. Confirm deletion if prompted.

7. Cuff Size Selection and Application

Proper cuff size and application are critical for accurate blood pressure measurements. This monitor includes an adult-sized cuff. Other cuff sizes may be available separately.

This image provides detailed instructions on selecting the correct cuff size and applying the cuff. It includes a table for cuff sizes (Small Adult, Adult, Large Adult) with corresponding arm size ranges. Visual guides show how to position the cuff 1 inch above the elbow, align the artery mark, and ensure a snug fit with the index mark falling within the horizontal white band.

7.1 Cuff Size Selection

To determine the proper cuff size, measure the circumference of your left upper arm at the point halfway between the bend at your elbow and your shoulder. Choose the cuff with the range that accommodates your arm size measurement. Using an incorrect cuff size could result in inaccurate readings.

7.2 Easy Cuff Application

1. Insert your left arm into the open cuff cylinder with the tubing away from you.
2. With your palm facing up, position the artery mark (usually indicated on the cuff) over the main artery on the inside of your arm. The bottom edge of the cuff should be positioned approximately one inch above the elbow joint.
3. Wrap the cuff around your arm to fit comfortably yet snugly. You should be able to insert an index finger easily between your arm and the cuff.
4. The proper cuff size will have the vertical INDEX mark on the cuff fall within the horizontal white band when applied.

8. Manteniment i cura

• Neteja: Wipe the monitor and cuff with a soft, dry cloth. If necessary, use a slightly damp cloth with mild soap, then wipe dry. Do not use abrasive cleaners or immerse the unit in water.
• Emmagatzematge: Guardeu el dispositiu en un lloc net i sec, allunyat de la llum solar directa, de temperatures extremes i de la humitat.
• Substitució de la bateria: Replace all four batteries when the low battery indicator appears on the display. Do not mix old and new batteries or different types of batteries.
• Cura del maneguet: Eviteu doblegar-vos o arrugar-vosasing the cuff tubing excessively. Do not wash the cuff in a washing machine.

9. Solució De Problemes

If you encounter issues with your blood pressure monitor, refer to the table below for common problems and solutions.

10. Especificacions

• Model: 01-550
• Mètode de mesura: Oscil·lomètric
• Tipus de visualització: Digital
• Font d'alimentació: 4 x 'AA' Batteries
• Mida del puny: Adult Arm Cuff (22-32 cm / 8.7" - 12.6")
• Memòria: 60 readings for 1 user, average of last 3 readings
• Pes: Approximately 1.3 lbs (0.59 kg) (unit with batteries)
• Validació clínica: European Society of Hypertension (ESH) validated
• UPC: 845717015509

11. Garantia i Suport

For specific warranty information, please refer to the warranty card included with your product at the time of purchase. If you require technical assistance or have questions regarding the operation of your Smartheart 01-550 Blood Pressure Monitor, please contact the retailer where the product was purchased or refer to the manufacturer's official weblloc web per obtenir informació de contacte d'assistència.
