Introducció
The CEM DT-123 is a compact, handheld device designed for measuring the moisture content in wood. It provides quick and accurate readings, essential for woodworking, construction, and home inspection applications. The meter utilizes two sharp, integrated pins to penetrate the wood surface and determine its moisture level, displayed clearly on an LCD screen.
Informació de seguretat
- Keep the device out of reach of children. The measurement pins are sharp and can cause injury.
- Do not attempt to measure live electrical circuits or materials. This device is not designed for electrical testing.
- Eviteu exposar el mesurador a temperatures extremes, humitat elevada o llum solar directa.
- No submergiu el dispositiu en aigua o cap altre líquid.
- Traieu les piles si no heu d'utilitzar el dispositiu durant un període prolongat per evitar fuites.
- Use only the specified battery type (9V).
Producte acabatview
The CEM DT-123 features a durable casing, an easy-to-read LCD display, and integrated measurement pins. A protective cap covers the pins when not in use.

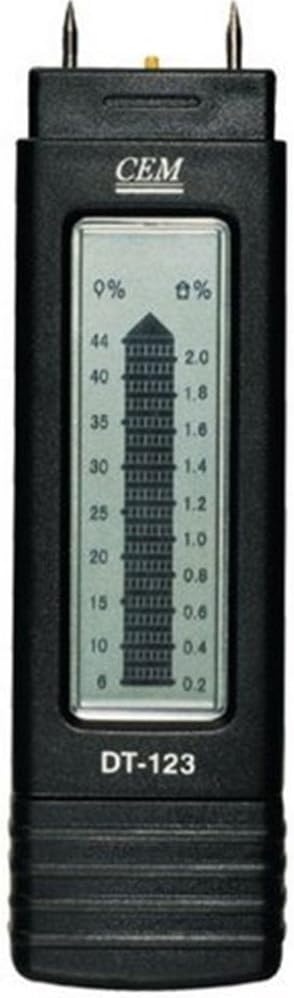

Figura 1: Frontal view of the CEM DT-123 moisture meter, highlighting the LCD display and measurement pins.
Figura 2: Esquena view of the CEM DT-123, showing the battery cover and product markings.
Configuració
Instal·lació de la bateria
- Assegureu-vos que el dispositiu estigui apagat.
- Localitzeu la tapa del compartiment de la bateria a la part posterior del mesurador (vegeu la figura 2).
- Feu lliscar o desenganxeu la tapa per obrir el compartiment.
- Insert a new 9V battery, observing the correct polarity (+/-) as indicated inside the compartment.
- Col·loqueu la coberta del compartiment de la bateria amb seguretat.
The meter is now ready for operation.
Instruccions de funcionament
- Traieu la tapa protectora de les agulles de mesura.
- Press the power button to turn on the meter. The LCD display will illuminate.
- Carefully push the two measurement pins into the wood surface to be tested. Ensure the pins are fully inserted and parallel to the wood grain for accurate readings.
- Read the moisture content percentage directly from the LCD display. The display shows the moisture percentage on the left scale (0% to 44%) and a corresponding value on the right scale (0.2 to 2.0), which may represent a different unit or a relative scale.
- After taking the reading, gently pull the meter out of the wood.
- Press the power button again to turn off the meter. If left idle, the meter may have an auto-off function to conserve battery life.
- Replace the protective cap over the pins for storage.
Figure 3: The CEM DT-123 in use, demonstrating proper pin insertion into wood.
Manteniment
Neteja
Wipe the meter's body with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the measurement pins are clean and free of debris after each use.
Emmagatzematge
Store the meter in a cool, dry place, away from direct sunlight and extreme temperatures. Always replace the protective cap over the pins before storage.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El comptador no s'encén. | Bateria morta o instal·lada incorrectament. | Comproveu la polaritat de la bateria. Substituïu-la per una bateria nova de 9 V. |
| Inaccurate or fluctuating readings. | Pins not fully inserted; pins dirty or damaged; measuring wet surface. | Ensure pins are fully inserted. Clean pins. Avoid measuring standing water. |
| Display shows "LO" or low battery indicator. | Vol de bateria baixatage. | Substituïu la bateria de 9V. |
Especificacions
- Model: DT-123
- Measurement Range (Wood): del 6% al 44%
- Visualització: LCD
- Font d'alimentació: Pila de 9V (no inclosa)
- Pes de l'article: 6.4 unces (aprox. 181 g)
- Dimensions del paquet: 10.5 x 6.4 x 1.8 polzades (aprox. 26.7 x 16.3 x 4.6 cm)
Garantia i Suport
Per obtenir informació sobre la garantia o assistència tècnica, consulteu la documentació que s'inclou amb la compra o poseu-vos en contacte directament amb el fabricant. Conserveu el comprovant de compra per a reclamacions de garantia.
