Introducció
The Arrow Fastener T50X TacMate Heavy-Duty Staple Gun is designed for a variety of fastening tasks, including upholstery, general repairs, crafting, and decorating. This manual provides essential information for the safe and effective use of your staple gun.
Image: The Arrow T50X TacMate Heavy-Duty Staple Gun, a versatile tool for various fastening applications.
Informació de seguretat
Always read and understand all safety warnings and instructions before operating this tool. Failure to follow the warnings and instructions may result in serious injury.
- Always wear safety glasses when operating the staple gun.
- Never point the staple gun at yourself or others.
- Keep fingers and body parts away from the staple exit area.
- Ensure the work surface is stable and secure.
- No utilitzeu l'eina si està danyada o funciona malament.
- Mantenir fora de l'abast dels nens.
Advertència de la proposta 65:
Aquest producte conté productes químics coneguts per l'estat de Califòrnia per causar càncer i defectes de naixement o altres danys reproductius.
Producte acabatview
The T50X TacMate is designed for user comfort and efficiency. Key features include:
Image: Diagram highlighting the key features of the Arrow T50X TacMate Staple Gun, including the comfortable handle grip, jam-resistant mechanism, easy-squeeze trigger, quick-load magazine, and staple view finestra.
- Comfortable Handle Grip: Provides a secure and ergonomic hold for extended use.
- Jam-Resistant Mechanism: Engineered to minimize staple jams for consistent performance.
- Disparador fàcil d'esprémer: Reduces hand fatigue during operation.
- Quick-Load Magazine: Allows for fast and easy staple reloading.
- Grapa View Finestra: Indicates current staple level, preventing unexpected depletion.
- Non-Marring Rubber Tip: Protects work surfaces from scratches and dents.
Configuració
1. Càrrega de grapes
The T50X TacMate uses a bottom-load magazine for easy staple insertion. Ensure you are using genuine Arrow T50 staples of the correct size.
- Turn the staple gun upside down.
- Locate the magazine release button/latch at the rear of the staple gun.
- Press the release and pull out the staple pusher rod from the back of the magazine.
- Insert a strip of T50 staples into the magazine channel with the staple crowns facing down.
- Push the staple pusher rod back into the magazine until it locks securely.
Imatge: Un primer pla view of the staple gun's bottom-load magazine, illustrating the process of pulling out the staple pusher rod for loading.
Image: The staple gun with its magazine fully extended, demonstrating the quick-load mechanism.
2. Staple Selection
The T50X TacMate is compatible with Arrow T50 staples in sizes 1/4" (6mm), 5/16" (8mm), 3/8" (10mm), and 1/2" (12mm). Choose the appropriate staple length based on the materials you are fastening.
Image: A detailed guide illustrating how to select the correct Arrow T50 staple size (1/4", 5/16", 3/8", 1/2") based on the hardness of the base material and the thickness of the material being fastened.
General Guideline: For optimal holding power, the staple leg should penetrate the base material sufficiently without protruding through. A common recommendation is to choose a staple size that is slightly longer than the material being fastened, ensuring adequate grip into the base material.
Instruccions de funcionament
- Preparació de l'àrea de treball: Ensure your work surface is clean, stable, and free of obstructions.
- Position Staple Gun: Place the nose of the staple gun firmly against the material to be stapled. Ensure the tool is held perpendicular to the surface for proper staple insertion.
- Activa el disparador: Squeeze the handle firmly and evenly to drive the staple. A distinct click indicates a staple has been fired.
- Check Staple Depth: After firing, inspect the staple to ensure it is fully seated. If not, apply more pressure to the tool and try again, or consider a shorter staple if the material is too dense.
- Monitor Staple Level: Periodically check the staple view window to see the remaining staple supply. Reload when the supply is low to avoid interruptions.
Image: A user demonstrating the application of the staple gun to secure fabric onto a wooden furniture piece, highlighting the tool's ease of use for upholstery projects.
Manteniment
Proper maintenance ensures the longevity and optimal performance of your T50X TacMate staple gun.
- Neteja: Keep the tool clean and free of dust, debris, and adhesive residue. Use a dry cloth to wipe down the exterior.
- Lubricació: Periodically apply a small amount of light machine oil to moving parts, such as the trigger pivot and magazine mechanism, to ensure smooth operation. Do not over-lubricate.
- Emmagatzematge: Store the staple gun in a dry, cool place, away from direct sunlight and moisture. Ensure it is unloaded before storage.
- Inspecció: Regularly inspect the tool for any signs of wear, damage, or loose components. Do not use a damaged tool.
Resolució de problemes
Aquí teniu solucions a problemes comuns que podeu trobar:
| Problema | Causa possible | Solució |
|---|---|---|
| Staples not firing or jamming |
|
|
| Staples not fully seated |
|
|
Especificacions
- Model: T50X
- Marca: Fixador de fletxa
- Compatible Staples: Arrow T50 (1/4", 5/16", 3/8", 1/2")
- Material: Plastic housing, metal internal components
- Pes de l'article: 15.9 unces
- Dimensions del producte: 1 x 8.5 x 9.35 polzades (aproximadament)
- Color: Gris
Garantia i Suport
The Arrow Fastener T50X TacMate Heavy-Duty Staple Gun comes with a Garantia limitada de per vida. For warranty claims or technical support, please refer to the contact information provided on the product packaging or visit the official Arrow Fastener weblloc.

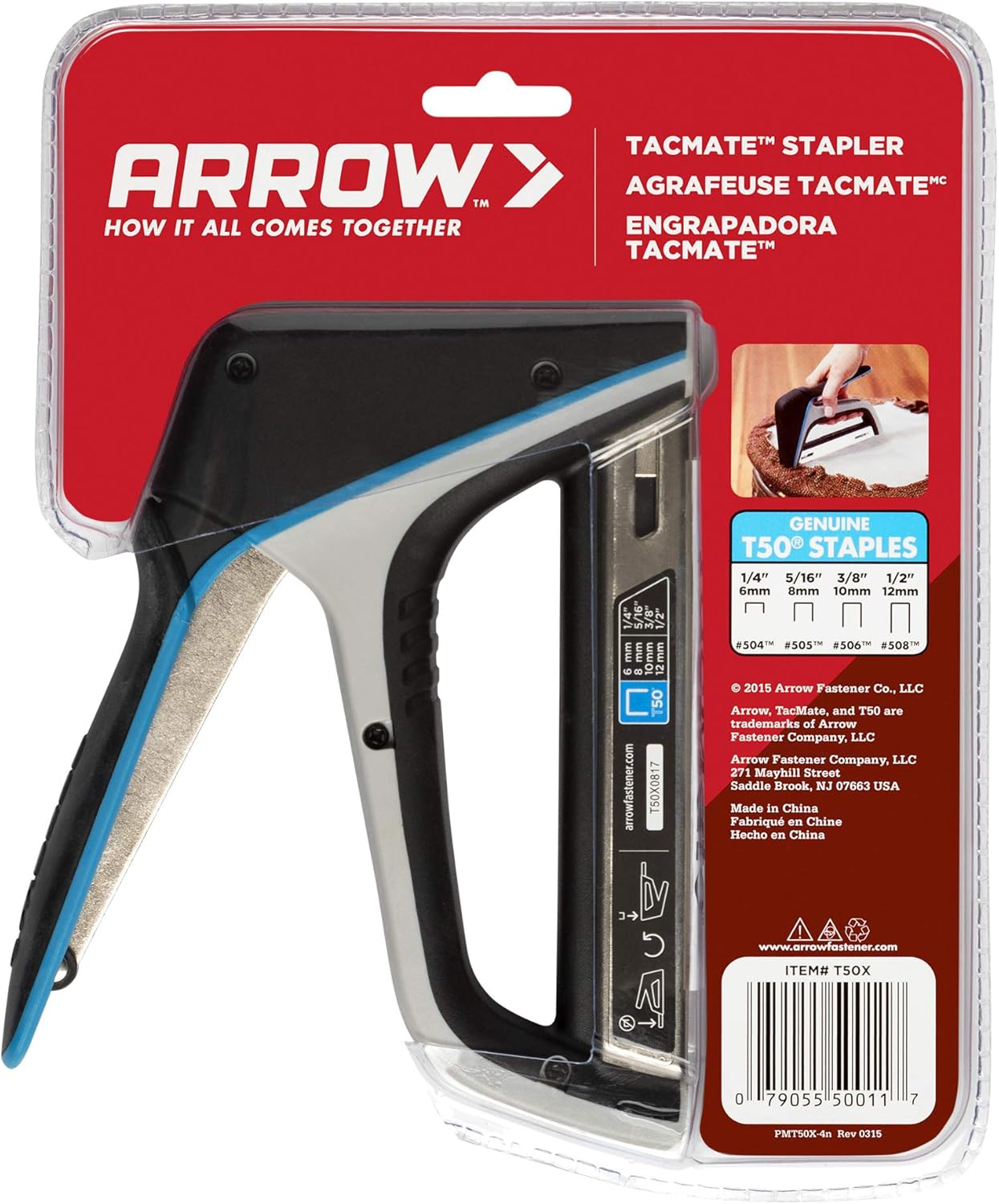

Image: Product packaging for the Arrow T50X TacMate Stapler, indicating the inclusion of a Limited Lifetime Warranty.
Per obtenir recursos addicionals i informació sobre el producte, podeu visitar la Arrow Fastener Store on Amazon.
