1. Introducció

1.1 Producte acabatview

The Lutron EHDT554MU210 Ecosystem H-Series Dimming Ballast is a digitally addressable ballast designed for fluorescent lighting systems. It provides precise dimming control for two 54W lamps, offering a flexible solution for various lighting applications. This ballast is part of the EcoSystem H-Series, known for its ability to dim to less than 1% for demanding environments.

1.2 Característiques clau

• Compatible with Energi Savr Node, GRAFIK Eye, QS control unit, and Quantum software for integrated lighting control.
• Features programmed rapid start for efficient lamp encès.
• Maintains low harmonic distortion throughout the entire dimming range, ensuring stable power quality.
• 100% compatible with all EcoSystem digital controls.
• Designed for two 54W fluorescent lamps.
• Vol universaltage (UNV) compatibility.

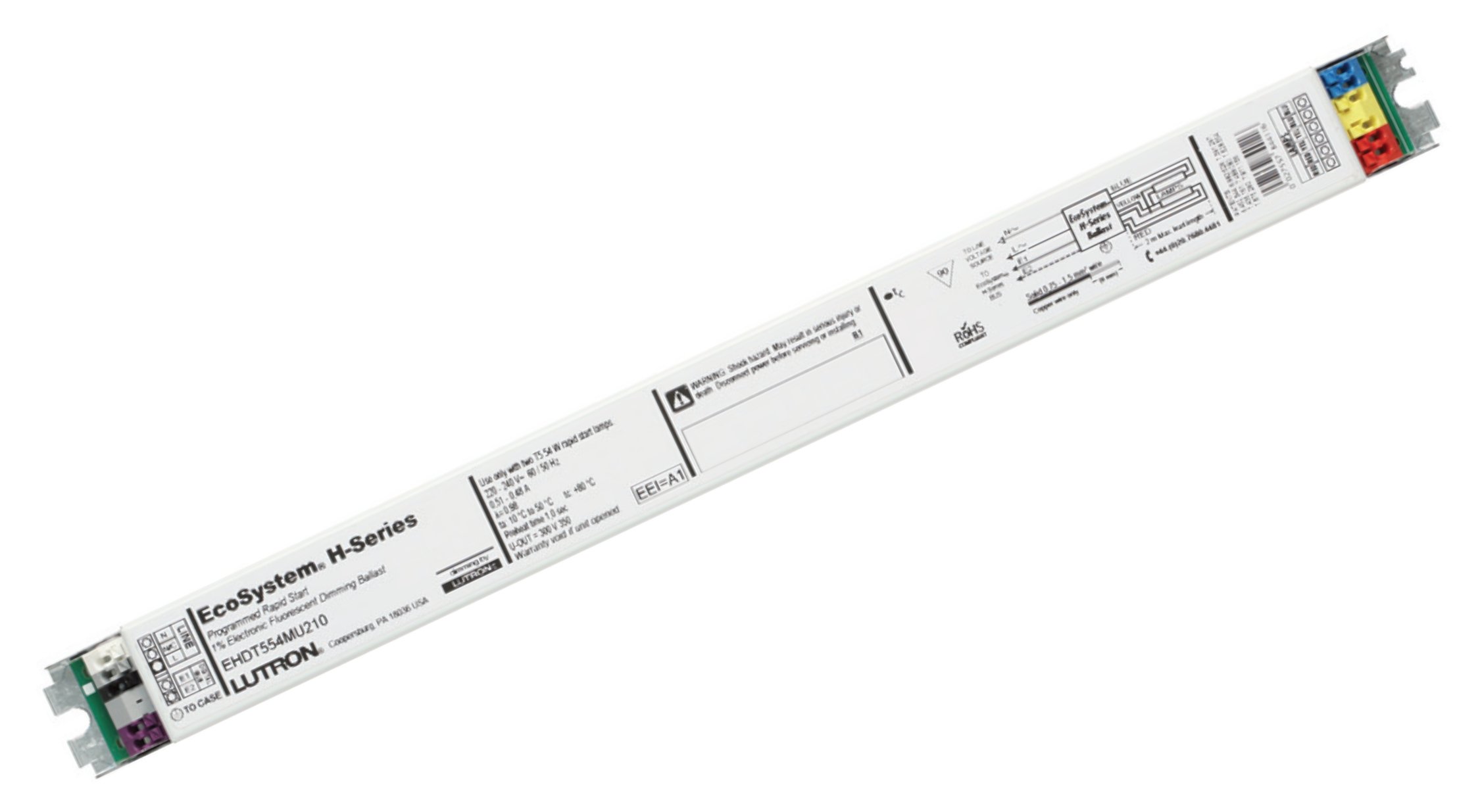

Figure 1: Lutron EHDT554MU210 Ecosystem H-Series Dimming Ballast. This image shows the compact design of the ballast unit, typically installed within a lighting fixture or electrical enclosure.

2. Configuració i instal·lació

Informació important de seguretat: Installation should only be performed by a qualified electrician in accordance with all local and national electrical codes. Disconnect power at the circuit breaker before installing or servicing the ballast.

2.1 Llista de comprovació prèvia a la instal·lació

• Comproveu que l'entrada voltage matches the ballast's universal voltage (UNV) rating.
• Assegureu-vos que lamps are compatible with a 54W fluorescent dimming ballast.
• Confirm availability of compatible EcoSystem digital controls if dimming functionality is desired.
• Gather necessary tools: wire strippers, screwdriver, multimeter, safety glasses.

2.2 Instruccions de cablejat

1. Desconnexió d'alimentació: Turn off power to the lighting circuit at the main electrical panel. Verify power is off using a multimeter.
2. Muntatge: Mount the ballast securely within the fixture or electrical enclosure, ensuring proper ventilation.
3. Cablejat d'entrada: Connect the AC input wires (Line, Neutral, Ground) from the power supply to the corresponding ballast input terminals. Refer to the wiring diagram provided with the physical product for exact terminal identification.
4. Cablejat de sortida: Connect the ballast output wires to the fluorescent lamp holders. This ballast supports two lamps. Ensure correct polarity and secure connections.
5. EcoSystem Digital Link Wiring (Optional): If using EcoSystem digital controls, connect the EcoSystem Digital Link wires (typically purple and grey) to the designated terminals on the ballast. This allows for digital dimming and control.
6. Verificació: Double-check all wiring connections for security and correctness before restoring power.

Note: Specific wiring diagrams are typically printed on the ballast itself or included in the product packaging. Always consult these diagrams for precise connections.

3. Instruccions de funcionament

The Lutron EHDT554MU210 ballast operates in conjunction with compatible control systems to provide dimming and switching functionality for fluorescent lamps.

3.1 Funcionament bàsic

• Once installed and powered, the ballast will provide power to the connected fluorescent lamps.
• For basic on/off functionality, a standard wall switch can be used to control the power supply to the ballast.

3.2 Dimming Control with EcoSystem

To utilize the dimming capabilities of the EHDT554MU210 ballast, it must be connected to a compatible Lutron EcoSystem digital control system. These systems include:

• Energi Savr Node: Provides centralized control for energy-saving strategies.
• GRAFIK Eye: Offers scene control and multi-zone dimming.
• QS Control Unit: Integrates with Lutron Quantum systems for advanced building-wide control.
• Quantum Software: Enables comprehensive management and scheduling of lighting.

Refer to the specific user manual for your Lutron EcoSystem control system for detailed instructions on commissioning, addressing, and programming the dimming ballast.

The ballast supports dimming to less than 1%, allowing for precise light level adjustments.

4. Manteniment

The Lutron EHDT554MU210 ballast is designed for long-term, reliable operation with minimal maintenance. However, periodic inspection can help ensure optimal performance.

4.1 Atenció general

• Neteja: Ensure the ballast and surrounding area are free from excessive dust and debris, which can impede heat dissipation. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
• Ventilació: Verify that the ballast's mounting location allows for adequate airflow to prevent overheating.

4.2 Lamp Substitució

When replacing fluorescent lamps connected to the ballast:

1. Desconnecteu l'alimentació: Always turn off power to the fixture at the circuit breaker before replacing lamps.
2. Use Compatible Lamps: Ensure replacement lamps són del tipus i wat correctestage (54W fluorescent) as specified for this ballast.
3. Instal·lació correcta: Instal·leu la nova lamps securely into the lamp titulars.
4. Restaura l'alimentació: Després de lamp replacement, restore power and test operation.

5. Solució De Problemes

If you experience issues with your Lutron EHDT554MU210 ballast, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, contact Lutron technical support for further assistance.

6. Especificacions

Technical specifications for the Lutron EHDT554MU210 Ecosystem H-Series Dimming Ballast:

7. Garantia i Suport

For specific warranty information regarding your Lutron EHDT554MU210 Ecosystem H-Series Dimming Ballast, please refer to the documentation included with your product or visit the official Lutron weblloc. Els termes i condicions de la garantia poden variar.

Suport tècnic: If you require technical assistance, have questions about installation, operation, or troubleshooting that are not covered in this manual, please contact Lutron customer support. Contact information can typically be found on the Lutron weblloc o embalatge del producte.

Recursos en línia: Additional resources, including detailed wiring diagrams, product specifications, and compatibility lists, may be available on the Lutron official weblloc: www.lutron.com
