Qanba Q1 PS3 & PC Joystick Instruction Manual

1. Producte acabatview

The Qanba Q1 joystick is a high-performance arcade controller designed for use with PlayStation 3 and PC platforms. It features authentic Qanba arcade components, providing a responsive and durable gaming experience. This manual provides essential information for setting up, operating, and maintaining your Qanba Q1 joystick.

Característiques principals:

• Compatible with PlayStation 3 and PC systems.
• Equipped with a Qanba joystick and 8 Qanba action buttons.
• Includes an adjustable and removable table clamp per a un muntatge segur.
• Comes with square, circle, and hex joystick gates for customization.
• Features rubber pads on the base for non-slip use on tables or laps.

Figura 1.1: Primer pla view of the Qanba Q1 joystick and action buttons.

2. Instruccions de configuració

2.1 Connexió a un dispositiu

1. Locate the USB cable stored in the compartment on the side of the joystick.
2. Connect the USB cable from the Qanba Q1 joystick to an available USB port on your PlayStation 3 console or PC.
3. The system should automatically detect the joystick. For PC, driver installation may be required, which typically occurs automatically upon first connection.

2.2 Attaching the Table Clamp

The Qanba Q1 includes an adjustable table clamp for enhanced stability during use.

1. Alineeu el clamp arms with the designated slots on the sides of the joystick unit.
2. Feu lliscar el clamp arms into place until they are securely seated.
3. Place the joystick on a flat surface, such as a table or desk.
4. Premeu els cargols del clamp until the joystick is firmly secured to the surface. Do not overtighten.

Figure 2.1: Qanba Q1 joystick with the table clamp adjunt.

2.3 Changing Joystick Gates

The Qanba Q1 comes with interchangeable joystick gates (square, circle, hex) to suit different playstyles.

1. Carefully open the bottom panel of the joystick (if applicable, refer to specific model instructions for access).
2. Locate the existing joystick gate.
3. Gently unclip or unscrew the current gate and remove it.
4. Insert the desired gate (circle or hex) into position, ensuring it clicks or screws into place securely.
5. Tanqueu el panell inferior.

3. Instruccions de funcionament

3.1 Controls bàsics

The Qanba Q1 features a standard arcade layout with a joystick and eight primary action buttons.

• Palanca de control: Used for directional input.
• Botons d'acció: Eight buttons for in-game actions (e.g., punches, kicks, special moves).
• Botó HOME: Functions as the PlayStation button on PS3, or a system menu button on PC.
• Botó SELECCIÓ: Functions as the Select button on PS3.
• Botó INICI: Functions as the Start button on PS3.

3.2 commutador de mode

The joystick includes a mode switch to toggle between different input modes, typically for compatibility or specific game requirements. Refer to the labels near the switch for available modes (e.g., D-Pad, Left Analog Stick, Right Analog Stick).

3.3 Funció Turbo

The Turbo function allows for rapid, automatic pressing of a selected button. To activate:

1. Manteniu premut el botó TURBO botó.
2. Mentre aguanta TURBO, press the desired action button you wish to apply the turbo function to.
3. Release both buttons. The selected action button will now rapidly repeat when pressed.
4. To deactivate, repeat the process: hold TURBO and press the turbo-enabled action button again.

4. Manteniment

4.1 Neteja

• Netegeu la superfície del joystick amb un drap suau i sec.
• Per a la brutícia persistent, lleugerament dampRenta el drap amb aigua. Evita utilitzar productes químics agressius o netejadors abrasius.
• Ensure no liquids enter the internal components of the joystick.

4.2 Gestió de cables

The Qanba Q1 features a convenient storage compartment for its USB cable.

• When not in use, carefully coil the USB cable and store it within the designated compartment to prevent damage and tangling.
• Avoid sharp bends or excessive force on the cable.

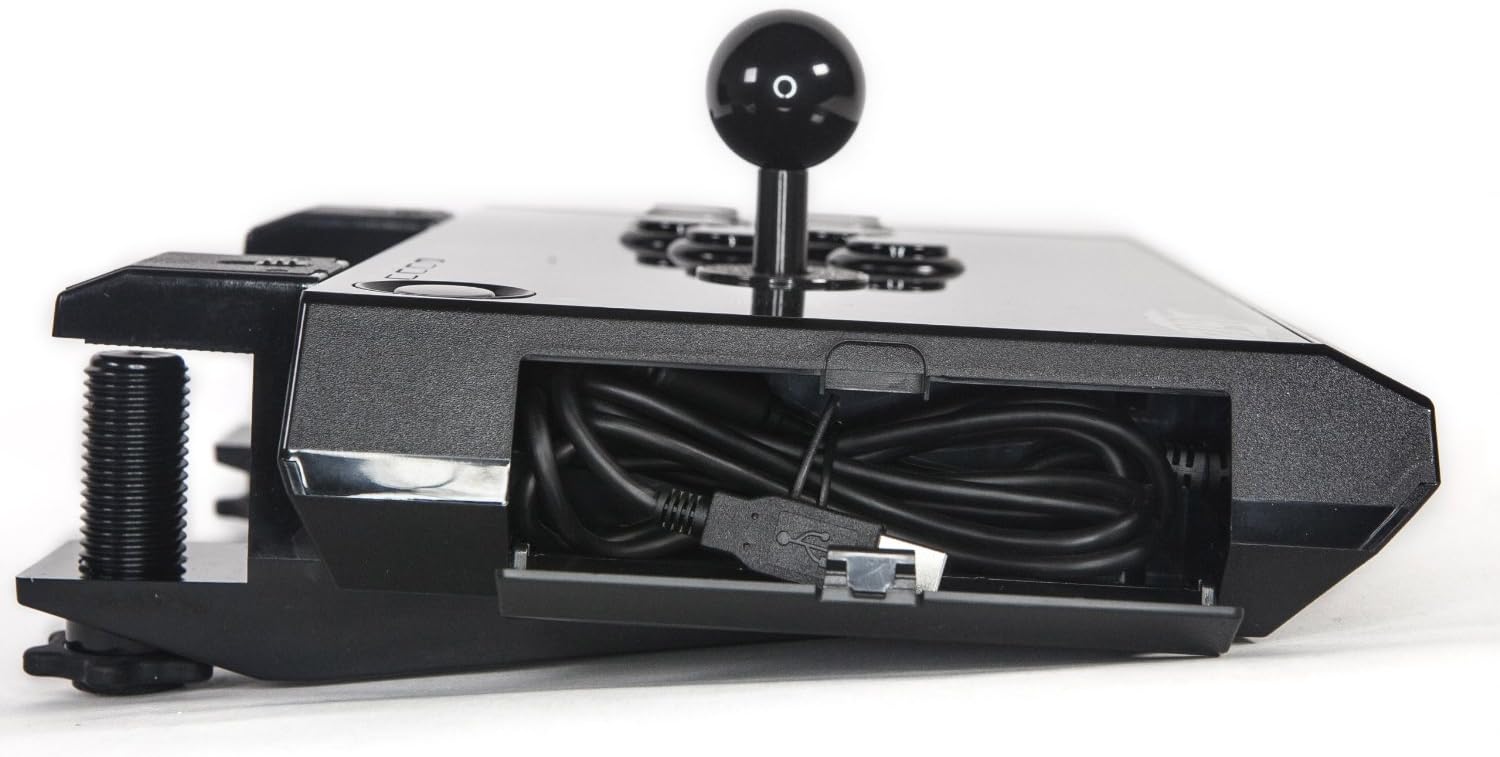

Figure 4.1: USB cable storage compartment.

5. Solució De Problemes

5.1 Joystick Not Recognized

• Comprova la connexió USB: Ensure the USB cable is firmly connected to both the joystick and the console/PC. Try a different USB port.
• Reinicieu el dispositiu: Restart your PlayStation 3 or PC.
• PC Drivers: For PC, ensure that necessary drivers are installed. Windows typically installs these automatically, but manual installation may be required in some cases. Check Device Manager for any unrecognized devices.
• Prova un altre dispositiu: If possible, test the joystick on another compatible PS3 or PC to determine if the issue is with the joystick or the original device.

5.2 Buttons or Joystick Not Responding

• Check Mode Switch: Ensure the mode switch is set to the correct input mode for your game or system.
• Configuració del joc: Verify that the game's controller settings are configured correctly for a joystick/arcade stick.
• Actualització del firmware: Check the Qanba official website for any available firmware updates for your Q1 model.

6. Especificacions

7. Garantia i Suport

For warranty information, please refer to the documentation included with your purchase or visit the official Qanba website. For technical support or further assistance, please contact Qanba customer service through their official channels.

Qanba Official Weblloc: qanba.com
