Introducció
Thank you for choosing the Gator Frameworks GFW-GTR-1000 Single Guitar Stand. This stand is designed to securely hold one acoustic or electric guitar, providing a stable and protective storage solution. Constructed from heavy-duty steel with rubberized padding, it ensures your instrument's finish remains protected. This manual provides essential information for setup, operation, maintenance, and troubleshooting to ensure optimal use of your guitar stand.
Informació de seguretat
- Ensure all components are securely fastened before placing a guitar on the stand.
- Col·loqueu el suport sobre una superfície plana i estable per evitar que es bolqui.
- Do not exceed the stand's weight capacity.
- Keep the stand away from high-traffic areas where it might be accidentally bumped.
- The red safety trim on the feet enhances visibility; ensure it is intact.
Instruccions de configuració
The GFW-GTR-1000 guitar stand is designed for quick and easy assembly.
- Desplega la base: Gently spread the three legs of the stand until they are fully extended and stable.
- Insert the Body Cradle: The lower body cradle piece slots into the central base. Ensure it is fully inserted and oriented correctly to support the guitar's body.
- Ajusta l'alçada: Loosen the height adjustment knob on the main shaft. Extend the upper shaft to the desired height for your instrument. Tighten the knob securely to lock the height in place.
- Position Neck Yoke: The upper neck yoke is pre-attached. Ensure the rubberized padding is facing upwards to cradle the guitar neck.
- Secure Neck Restraint: The flexible neck restraint loop should be positioned to easily secure the guitar neck once placed on the stand.
Image: Fully assembled Gator Frameworks GFW-GTR-1000 Single Guitar Stand with an acoustic guitar.
Image: Detail of the height adjustment knob and shaft.
Instruccions de funcionament
Using your GFW-GTR-1000 stand is straightforward:
- Placing the Guitar: Gently lift your guitar and rest its body on the padded lower cradle. Ensure the guitar is centered and stable.
- Securing the Neck: Place the guitar's neck into the padded upper yoke. Use the flexible neck restraint loop to secure the neck, preventing the guitar from accidentally falling forward.
- Extracció de la guitarra: Unlatch the neck restraint, lift the guitar from the neck yoke, and then lift it off the lower body cradle.
Image: Demonstrating the secure neck restraint feature.

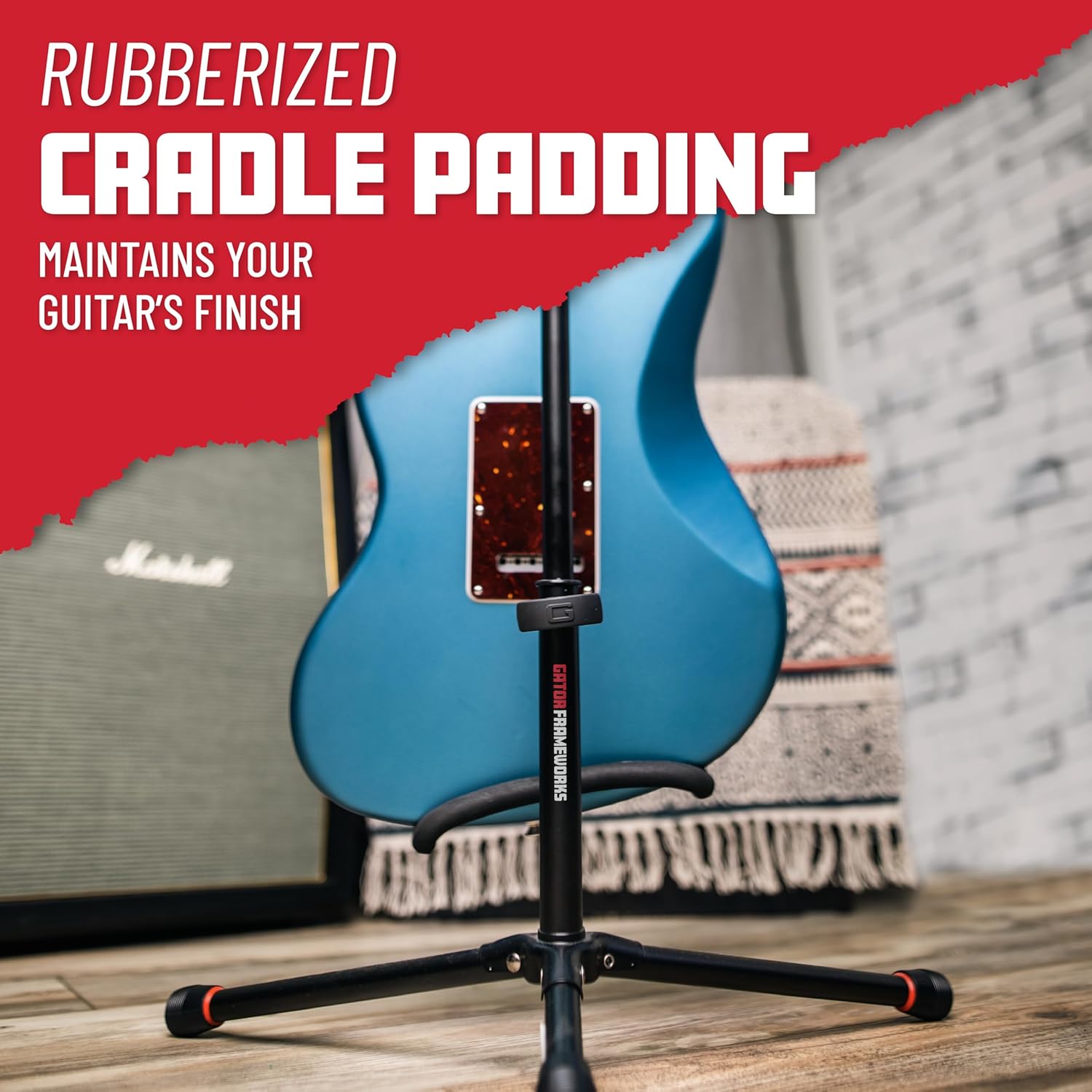

Image: Detail of the protective rubberized padding on the lower cradle.
Vídeo: Producte oficial acabatview demonstrating the Gator Frameworks GFW-GTR-1000 Guitar Stand in use.
Manteniment
- Regularly inspect the stand for any loose parts or damage. Tighten any loose knobs or screws.
- Clean the stand with a soft, dry cloth. Avoid abrasive cleaners that could damage the finish or rubber padding.
- Check the rubberized padding and feet for wear and tear. Replace if necessary to maintain protection and stability.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| El suport és inestable/trontolla. | Legs not fully extended or on an uneven surface. | Ensure legs are fully spread and the stand is on a flat, level surface. Check for loose connections. |
| Guitar slips from the stand. | Neck restraint not engaged or worn padding. | Always use the neck restraint. Inspect padding for wear and replace if needed. |
| L'ajust d'alçada llisca. | El botó d'ajust no està prou apretat. | Ensure the height adjustment knob is firmly tightened after setting the desired height. |
Especificacions
- Model: GFW-GTR-1000
- Marca: Gator Frameworks
- Compatibilitat: Single Electric or Acoustic Guitar
- Material: Heavy-Duty Steel, Synthetic (Padding)
- Color: Black with Red Safety Trim
- Pes de l'article: 0.91 quilos (2.0 lliures)
- Dimensions de l'article (L x A x A): 21.85 x 8.1 x 5.2 polzades (plegat/embalat)
- Alçada ajustable: 19.6-23 polzades (500-585 mm)
Image: Detailed dimensions of the GFW-GTR-1000 stand.
Informació de la garantia
The Gator Frameworks GFW-GTR-1000 Single Guitar Stand comes with a 3 any de garantia from the manufacturer, Gator Cases. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the official Gator Cases weblloc o contacteu amb el servei d'atenció al client.
Suport i contacte
For further assistance, product inquiries, or support, please visit the official Gator Frameworks store or contact Gator Cases customer service.
- Fabricant: Caixes Gator
- Botiga online: Visit Gator Frameworks Store on Amazon
- Consultes generals: Consulteu el fabricant weblloc per obtenir dades de contacte.
