Introducció
This manual provides essential instructions for the safe and effective use of your Arrow T25X Heavy Duty Wire Staple Gun. Designed for low voltage wiring projects, this tool is suitable for securing alarm systems, thermostats, holiday lights, and other similar applications. Please read all instructions carefully before operation.
Informació de seguretat
ADVERTÈNCIA: aquest producte conté productes químics coneguts per l’Estat de Califòrnia que provoquen càncer i defectes congènits o altres danys reproductius.
Always wear appropriate safety glasses when operating this tool. Keep hands and body parts clear of the stapler's firing mechanism. Ensure the tool is unloaded when not in use or during maintenance.
Producte acabatview
The Arrow T25X is a compact and durable wire stapler featuring a chromed steel housing and hardened steel working parts. It is designed for precise control and comfortable use, even for extended periods.
Imatge: Lateral view of the Arrow T25X Heavy Duty Wire Staple Gun.
Característiques principals:
- Contoured Vinyl Grip: Soft, slip-resistant overmold for reduced hand strain.
- Chromed Steel Housing: Proporciona força i durabilitat.
- Grooved Wire Guide: Tracks along the cable to prevent damage and speed up work.
- Jam-Resistant Rear Load Mechanism: Simplifies staple loading.
- Aplicació versàtil: Suitable for various low voltage wire applications.

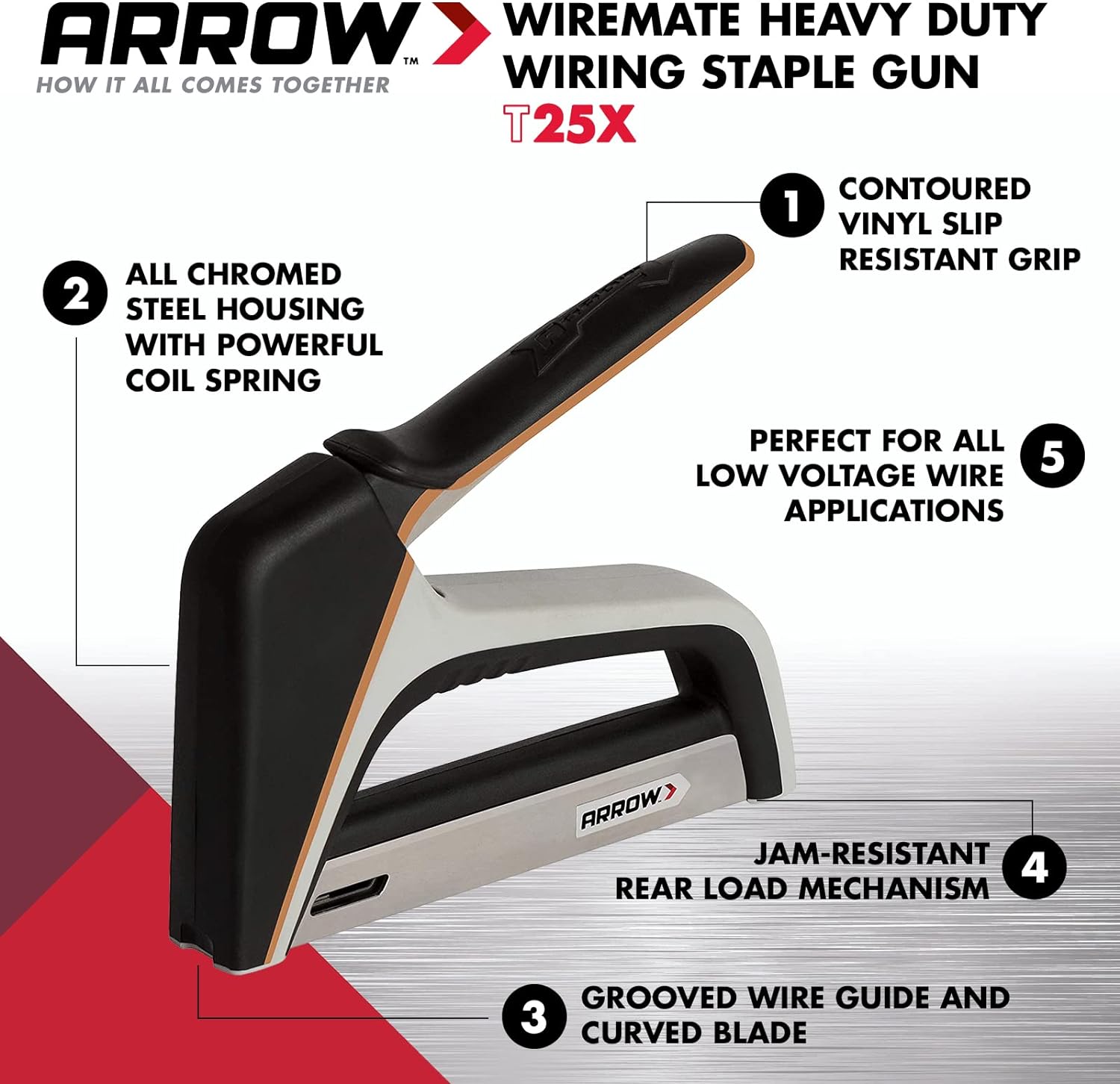

Image: Diagram highlighting key features of the Arrow T25X, including the contoured vinyl grip, chromed steel housing, grooved wire guide, jam-resistant rear load mechanism, and suitability for low voltage wire applications.
Dimensions:
Image: The Arrow T25X stapler with dimensions indicated: approximately 5.5 inches (140mm) in height and 6.5 inches (165mm) in length.
Configuració
Càrrega de grapes:
The T25X stapler features an easy-to-use bottom-load mechanism. Only use genuine Arrow T25 staples for optimal performance and to prevent jamming.
- Locate the staple loading latch at the bottom rear of the stapler.
- Press the latch to release the staple pusher rod.
- Insert a strip of Arrow T25 staples into the channel, ensuring the staple points face forward.
- Push the rod back into place until it locks securely.
Imatge: Un primer pla view of the staple loading mechanism, showing the orange staple pusher rod partially extended from the bottom of the stapler.
Compatible Staples:
The Arrow T25X is designed exclusively for use with genuine Arrow T25 staples. These staples are available in three sizes:
- 3/8-Inch (10mm) - #256
- 7/16-Inch (11mm) - #257
- 9/16-Inch (14mm) - #259
Ensure the chosen staple size is appropriate for the material and wire diameter (up to 1/4-inch) you are fastening.
Image: A graphic illustrating the three compatible sizes of Arrow T25 staples: 3/8" (10mm) #256, 7/16" (11mm) #257, and 9/16" (14mm) #259.
Funcionament
Stapling Procedure:
- Load the appropriate Arrow T25 staples as described in the Setup section.
- Position the stapler over the wire and the surface where you intend to fasten it. Ensure the wire is seated within the grooved wire guide at the front of the stapler.
- Press the stapler firmly against the surface.
- Squeeze the handle completely to drive a staple. Release the handle to reset the mechanism for the next staple.
- Inspect the stapled wire to ensure it is securely fastened without damage to the insulation. The round crown design of T25 staples is intended to secure wires without pinching or cutting.
Image: A hand holding the Arrow T25X stapler, demonstrating the ergonomic grip.
Image: The Arrow T25X stapler being used to secure a red low voltage wire to a wooden surface, showing the wire guide in action.
Manteniment
To ensure the longevity and proper function of your Arrow T25X stapler, keep it clean and free of debris. Periodically check for any loose parts or damage. Store the tool in a dry environment. Do not attempt to lubricate the internal mechanism unless specifically instructed by the manufacturer.
Resolució de problemes
- Staples not firing or jamming: Ensure you are using genuine Arrow T25 staples. Check if the staple pusher rod is fully engaged. Clear any jammed staples by releasing the pusher rod and removing the staple strip.
- Staples not fully penetrating: Verify that the staple length is appropriate for the material. Apply firm, consistent pressure to the stapler against the surface before squeezing the handle.
- Difficulty squeezing handle: This tool requires a certain amount of force to operate. Ensure your grip is firm and stable. If the issue persists, inspect the internal mechanism for obstructions (only if comfortable and safe to do so, otherwise contact support).
Especificacions
| Característica | Detall |
|---|---|
| Marca | Fixador de fletxa |
| Número de model | T25X |
| Pes de l'article | 14.1 unces |
| Dimensions del producte | 1 x 8.5 x 9.5 inches (packaging) / 2.2"L x 7.8"W (tool) |
| Material | Metal (Chromed Steel Housing) |
| Color | Negre i Plata |
| Grapes compatibles | Arrow T25 (3/8", 7/16", 9/16") |
| UPC | 0079055500131 |
Garantia
The Arrow T25X Wire Staple Gun comes with a Limited Lifetime Warranty. Please refer to the product packaging or the official Arrow Fastener website for full details regarding warranty coverage and terms.
Suport
Per obtenir més ajuda, assistència tècnica o per consultar sobre peces de recanvi, visiteu el lloc web oficial Arrow Fastener Store on Amazon o la seva empresa oficial weblloc.
