Moen Brantford 7185SRS Kitchen Faucet Instruction Manual

Introducció

Thank you for choosing the Moen Brantford 7185SRS One-Handle Pull-Down Kitchen Faucet. This faucet combines traditional design with modern functionality, including Power Boost technology for enhanced water flow and the Reflex system for smooth sprayer operation. This manual provides essential information for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your faucet.

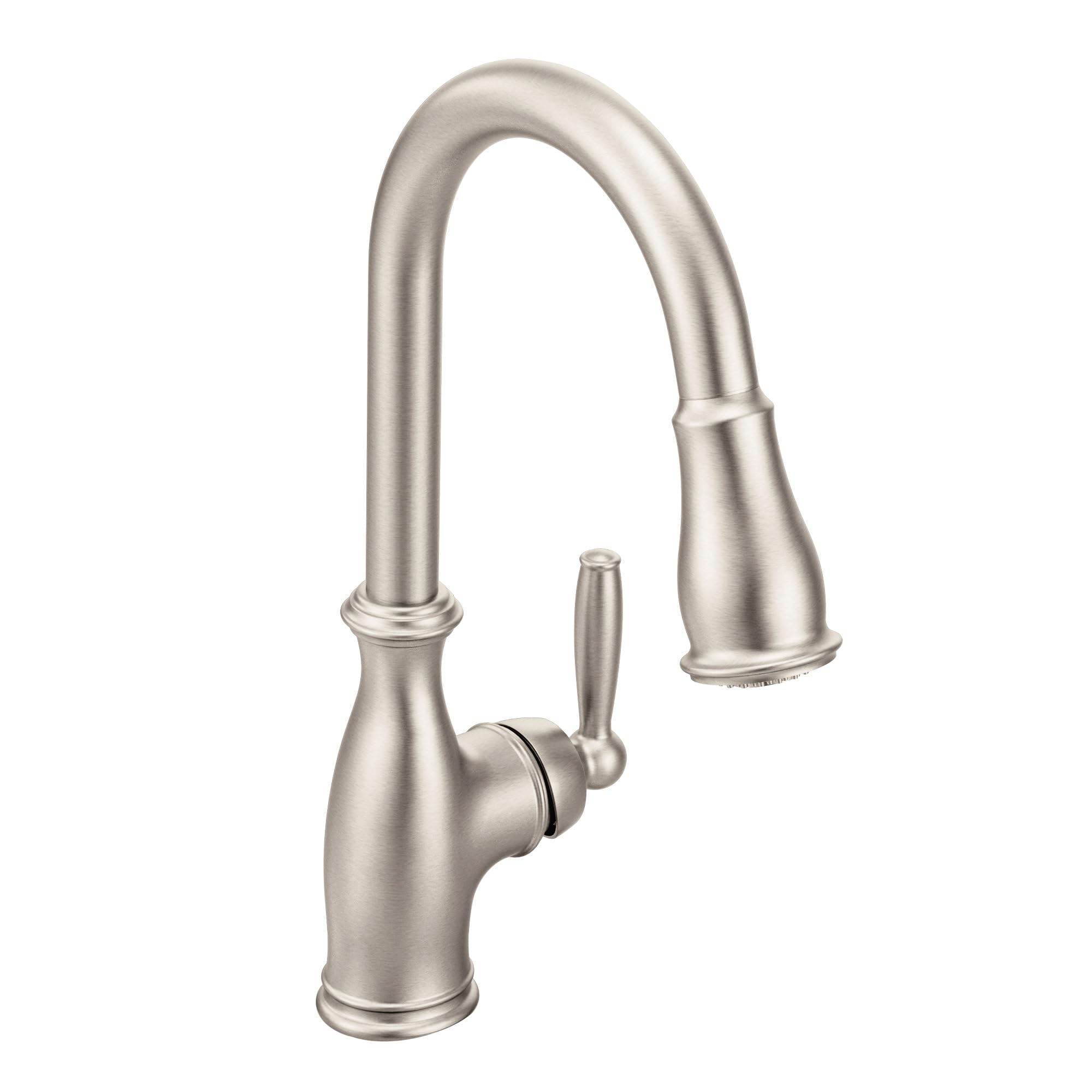

Image: The Moen Brantford 7185SRS kitchen faucet in Spot Resist Stainless finish, showcasing its elegant design and pull-down sprayer.

Característiques clau

• Power Boost Technology: Delivers a faster clean and fill with the push of a button, increasing water flow for efficient tasks.
• Sistema reflex: Garanteix un funcionament suau, un moviment fàcil i un acoblament segur del capçal polvoritzador desplegable.
• Acabat inoxidable resistent a les taques: Resists fingerprints and water spots, helping to keep your kitchen looking cleaner.
• Sistema de connexió ràpida Duralock: Facilitates hassle-free installation without the need for specialized tools.
• Disseny flexible: Compatible with both 1-hole and 3-hole sink installations; an optional escutcheon is included for 3-hole setups.
• Certificat per WaterSense: Designed for water efficiency, meeting WaterSense standards.
• Conforme a l'ADA: Meets Americans with Disabilities Act (ADA) standards for accessibility.

Imatge: Una imatge detallada view of the Moen Brantford faucet's spray wand, illustrating the Reflex docking system, Power Boost function, and Spot Resist finish.

Instal·lació

Sistema de connexió ràpida Duralock

The Duralock Quick Connect System simplifies the installation process. This system allows for a secure and tool-free connection of the water supply lines to the faucet, reducing installation time and effort.

Image: Hands demonstrating the Duralock Quick Connect system, showing how to easily connect the faucet's water lines without tools.

Configuració del forat del lavabo

This faucet is designed for versatile installation, fitting either a one-hole or three-hole sink configuration. An optional escutcheon (deck plate) is included to cover unused holes in a three-hole setup, providing a clean and finished look.

Image: A diagram illustrating how the faucet can be installed in both single-hole and three-hole kitchen sink setups.

Instruccions de funcionament

Control del flux i la temperatura de l'aigua

The single-handle lever allows for easy adjustment of both water flow and temperature. Move the handle up or down to control the water volume, and left or right to adjust the temperature from cold to hot.

Pull-Down Sprayer Functions

The pull-down sprayer offers flexibility and convenience. It features multiple spray modes and the Power Boost function for increased efficiency.

• Flux estàndard: Ideal per a tasques quotidianes com omplir olles.
• Mode de polvorització: Provides a wider coverage for rinsing dishes and cleaning the sink.
• Potència: Press the dedicated button on the spray head to temporarily increase water pressure for faster cleaning or filling. The flow automatically returns to normal when the faucet is turned off.

Image: A hand holding the pull-down sprayer to fill a glass of water, demonstrating its reach and ease of use.

Image: The pull-down sprayer in action, effectively cleaning food residue from a plate with its powerful spray.

Official Product Video: Power Boost by Moen

Video: This video demonstrates the Power Boost feature of a Moen pull-down kitchen faucet, showing how it provides boosted water performance for faster filling and cleaning. While featuring a similar Moen model (Arbor), the Power Boost functionality is identical to the Brantford 7185SRS.

Cura i Manteniment

Spot Resist Stainless Finish

The Spot Resist Stainless finish is designed to minimize fingerprints and water spots, making cleaning easier. To maintain the finish, simply wipe the faucet with a soft, damp drap. Eviteu netejadors abrasius, productes químics agressius o fregalls, ja que poden danyar l'acabat.

Image: A visual comparison demonstrating the effectiveness of Spot Resist Technology in preventing fingerprints and water spots on faucet surfaces.

Image: A close-up of a water droplet on a Spot Resist Stainless surface, illustrating the finish's ability to repel water and resist spotting.

Resolució de problemes

If you encounter any issues with your Moen Brantford faucet, please refer to the following common troubleshooting tips:

• Baix cabal d'aigua: Check for kinks in the supply lines or debris in the aerator. Clean the aerator if necessary.
• Fuga: Ensure all connections are tight. If leaking persists, the cartridge may need to be replaced. Refer to your warranty information for assistance.
• Polvoritzador no es retreu: Verify that the weight on the hose under the sink is properly positioned and not obstructed. The Reflex system is designed for smooth retraction.
• Problemes de temperatura: Confirm that the hot and cold water supply lines are correctly connected and that the shut-off valves are fully open.

For more complex issues, it is recommended to contact Moen customer support or a qualified plumber.

Especificacions

Image: A diagram detailing the key dimensions of the Moen Brantford faucet, including spout reach and height.

Garantia i Suport

The Moen Brantford 7185SRS faucet is backed by Moen’s Limited Lifetime Warranty, ensuring long-term peace of mind regarding its quality and workmanship. For warranty claims, technical assistance, or replacement parts, please contact Moen customer support directly.

Image: The Moen Limited Lifetime Warranty logo, signifying commitment to quality and workmanship.

Certificacions

This faucet complies with the Federal Safe Drinking Water Act and NSF 61 standards, making it a safe choice for clean drinking water. It is also WaterSense certified for efficiency and ADA compliant for accessibility.

Image: The Moen certification logo, indicating compliance with U.S. Water Safety Standards for clean drinking water.
