Tier1 Refrigerator Water Filter Instruction Manual

Producte acabatview

The Tier1 RWF1100 refrigerator water filter is designed to provide clean, fresh-tasting water and ice by reducing common impurities. This filter utilizes an activated carbon block to effectively remove chlorine taste and odor, rust, sediment, and turbidity from your water supply. It is a direct replacement for various filter models, ensuring a perfect fit and reliable performance.

Image: The Tier1 RWF1100 refrigerator water filter shown alongside its product packaging.

Instruccions d'instal·lació

Follow these steps to properly install your new Tier1 RWF1100 refrigerator water filter. No special tools are required for installation.

Step 1: Locate the Filter Compartment

Identify the water filter compartment within your refrigerator. This is typically located in the upper right corner of the fresh food compartment or in the base grille.

Imatge: A view inside a refrigerator, highlighting the location of the water filter compartment.

Step 2: Remove the Old Filter

Gently push the tab or turn the old filter counter-clockwise (depending on your refrigerator model) to release it from its housing. Some water may drip out, so have a towel ready.

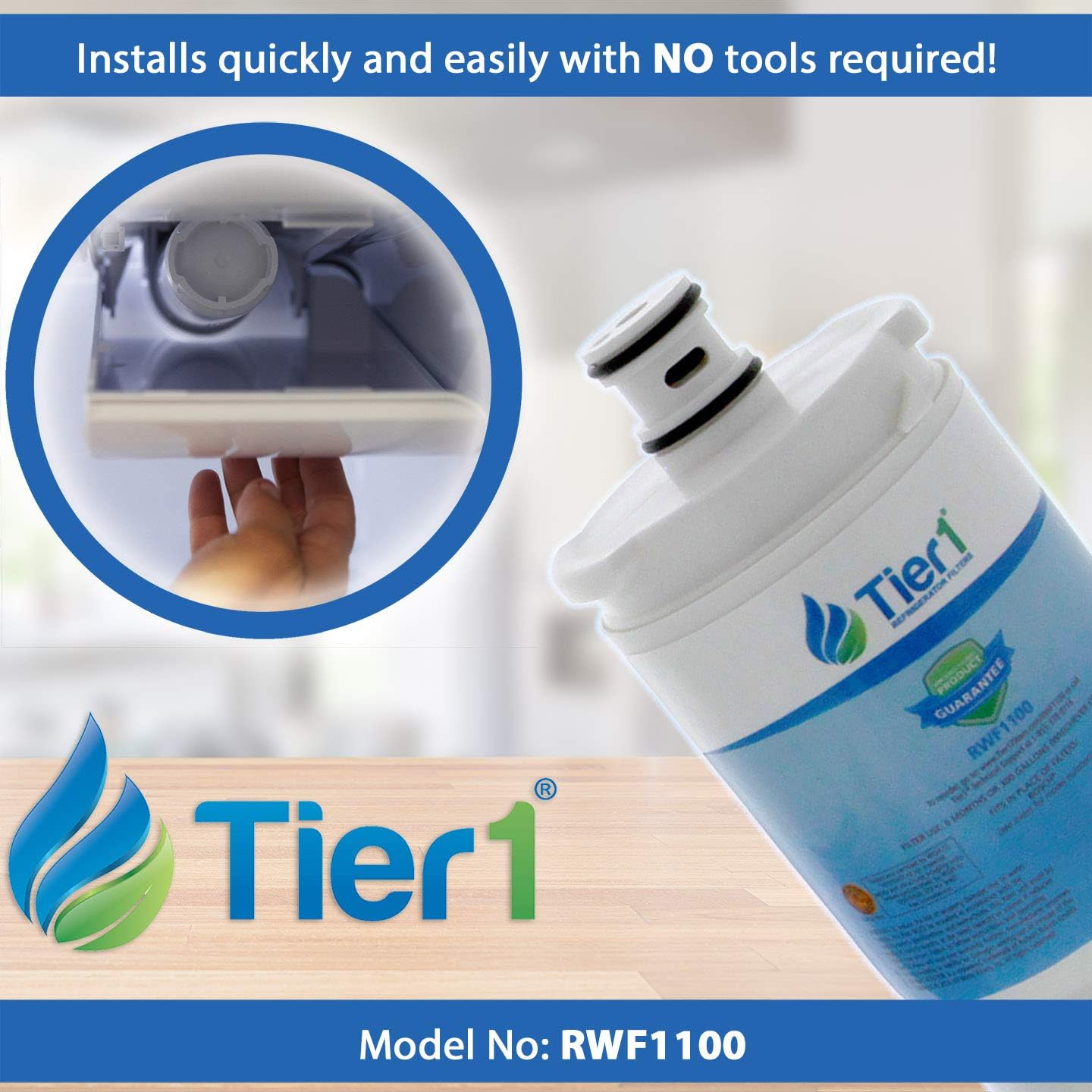

Image: A hand demonstrating the action of reaching into the refrigerator compartment to remove the existing water filter.

Step 3: Install the New Filter

Align the new Tier1 RWF1100 filter with the filter housing. Push the filter firmly into the compartment and turn it clockwise until it locks into place. Ensure a secure fit to prevent leaks.

Image: The new Tier1 water filter being inserted and twisted into its designated slot within the refrigerator.

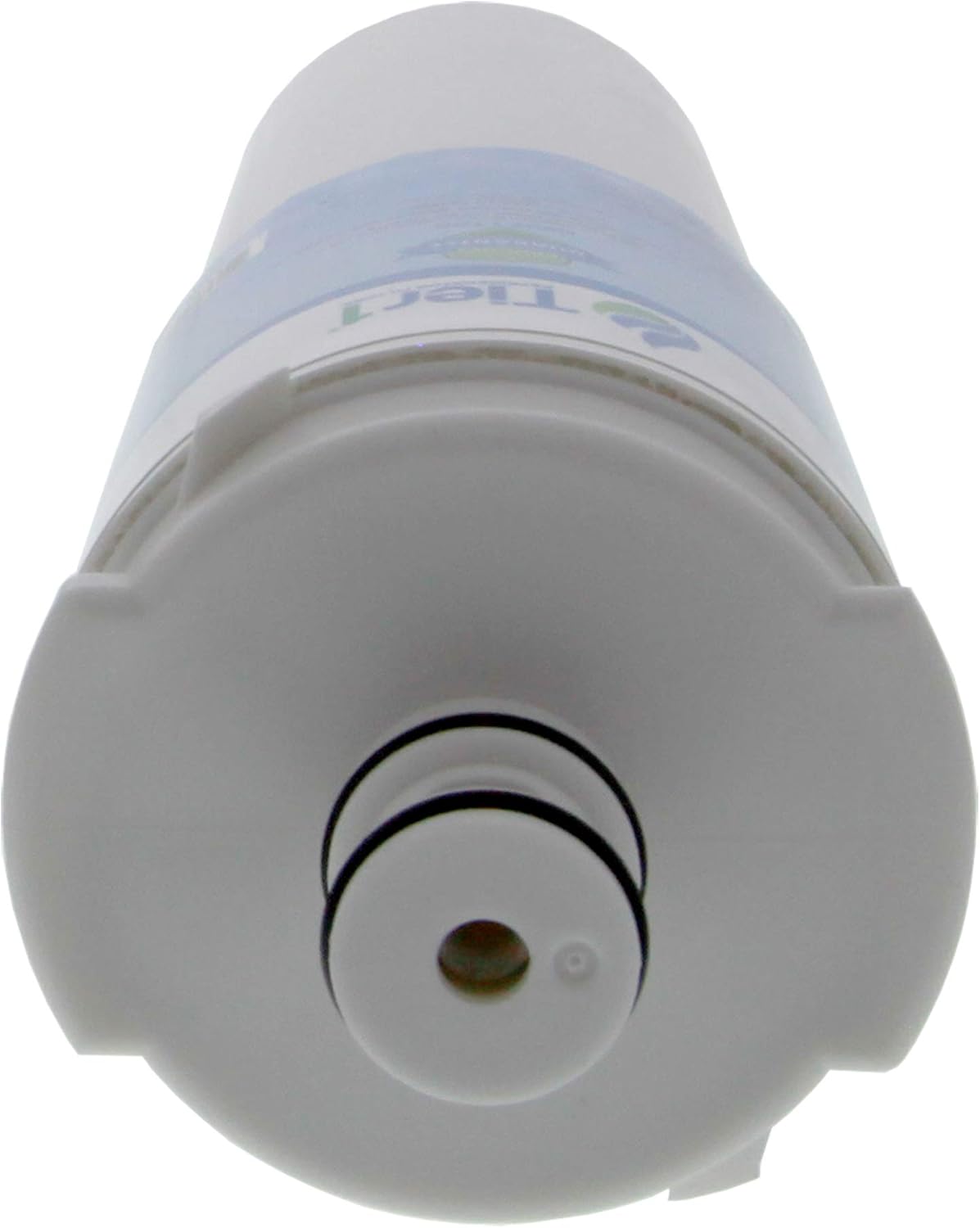

Imatge: Una imatge detallada view of the top connection point of the Tier1 RWF1100 filter, showing the O-rings that ensure a watertight seal.

Imatge: A view of the bottom of the Tier1 RWF1100 filter, illustrating the hexagonal connection point and water inlet.

Pas 4: netegeu el sistema

After installation, dispense approximately 2-3 gallons of water through the refrigerator's water dispenser to flush out any air or carbon fines from the new filter. This will ensure optimal water quality.

Step 5: Reset the Filter Indicator Light

Most refrigerators have a filter indicator light. Refer to your refrigerator's user manual for specific instructions on how to reset this light after replacing the filter. This typically involves pressing and holding a specific button for a few seconds.

Principi de funcionament

The Tier1 RWF1100 filter operates using an activated carbon block filtration media. As water flows through the filter, impurities are trapped within the porous carbon structure, allowing only clean water to pass through.

Image: A diagram showing how water flows through the activated carbon block filter, illustrating the filtration process where impurities are absorbed and clean water exits.

Manteniment

For optimal performance and water quality, it is recommended to replace your Tier1 RWF1100 refrigerator water filter every 6 mesos o després de filtrar 300 galons of water, whichever comes first. A sticker is included with the filter to help you track the installation date and next replacement date.

Resolució de problemes

• Flux d'aigua lent: If water flow from the dispenser is slow, ensure the filter is correctly seated and locked into place. A new filter might also have some air trapped, which should clear after flushing a few gallons of water. If the filter is old, it may be clogged and require replacement.
• Gust/olor de l'aigua: If water still has an undesirable taste or odor after replacement, ensure the filter was flushed thoroughly. If the issue persists, verify that the filter is the correct model for your refrigerator and that it is properly installed.
• Fuga: Check that the filter is fully inserted and twisted clockwise until it is snug. Ensure the O-rings on the filter are not damaged or missing. If leaking continues, remove and re-install the filter carefully.

Especificacions

Garantia i Suport

Tier1 products are designed for quality and performance. For specific warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official Tier1 weblloc web. Es recomana conservar el comprovant de compra per a reclamacions de garantia.
