WIX WP10009 Cabin Air Filter User Manual

1. Introducció i finalview

The WIX WP10009 Cabin Air Filter is an essential component designed to enhance the air quality inside your vehicle's passenger compartment. It effectively filters out various airborne contaminants, including dust, pollen, mold spores, and other particulate matter, preventing them from entering the cabin through the heating, ventilation, and air conditioning (HVAC) system. This ensures a cleaner and healthier breathing environment for all occupants.

2. Característiques del producte

• High-Quality Filtration Media: Constructed with advanced filtration materials to capture a wide range of airborne particles.
• Flux d'aire optimitzat: Engineered to provide efficient filtration without significantly restricting airflow to the vehicle's cabin.
• Construcció duradora: Designed for longevity and consistent performance under various operating conditions.
• Direct Fit Replacement: Manufactured to meet or exceed OEM specifications for a precise fit and easy installation in compatible vehicles.
• Dimensions: Aproximadament 12 cm (llargada) x 10.5 cm (amplada) x 1.5 cm (gruix).
• Pes: Approximately 1.6 ounces.

3. Configuració i instal·lació

Replacing your cabin air filter is a routine maintenance task that can typically be performed with basic tools. The exact location and procedure may vary by vehicle make and model. Always consult your vehicle's owner's manual for specific instructions.

1. Localitzeu la carcassa del filtre: In most vehicles, the cabin air filter is located behind the glove compartment, under the dashboard, or sometimes under the hood near the windshield cowl.
2. Access the Housing: This may involve opening or removing the glove compartment, or detaching clips/screws from the housing cover.
3. Traieu el filtre antic: Carefully pull out the old cabin air filter. Note its orientation and the direction of the airflow arrow (if present) for correct installation of the new filter.
4. Inspeccionar i netejar: Briefly inspect the filter housing for any debris and clean if necessary.
5. Instal·leu el filtre nou: Insert the new WIX WP10009 Cabin Air Filter into the housing. Ensure the airflow arrow on the filter points in the correct direction, usually towards the rear of the vehicle or as indicated by your vehicle's manual.
6. Assegureu l'habitatge: Reattach the housing cover and any components (e.g., glove compartment) that were removed.

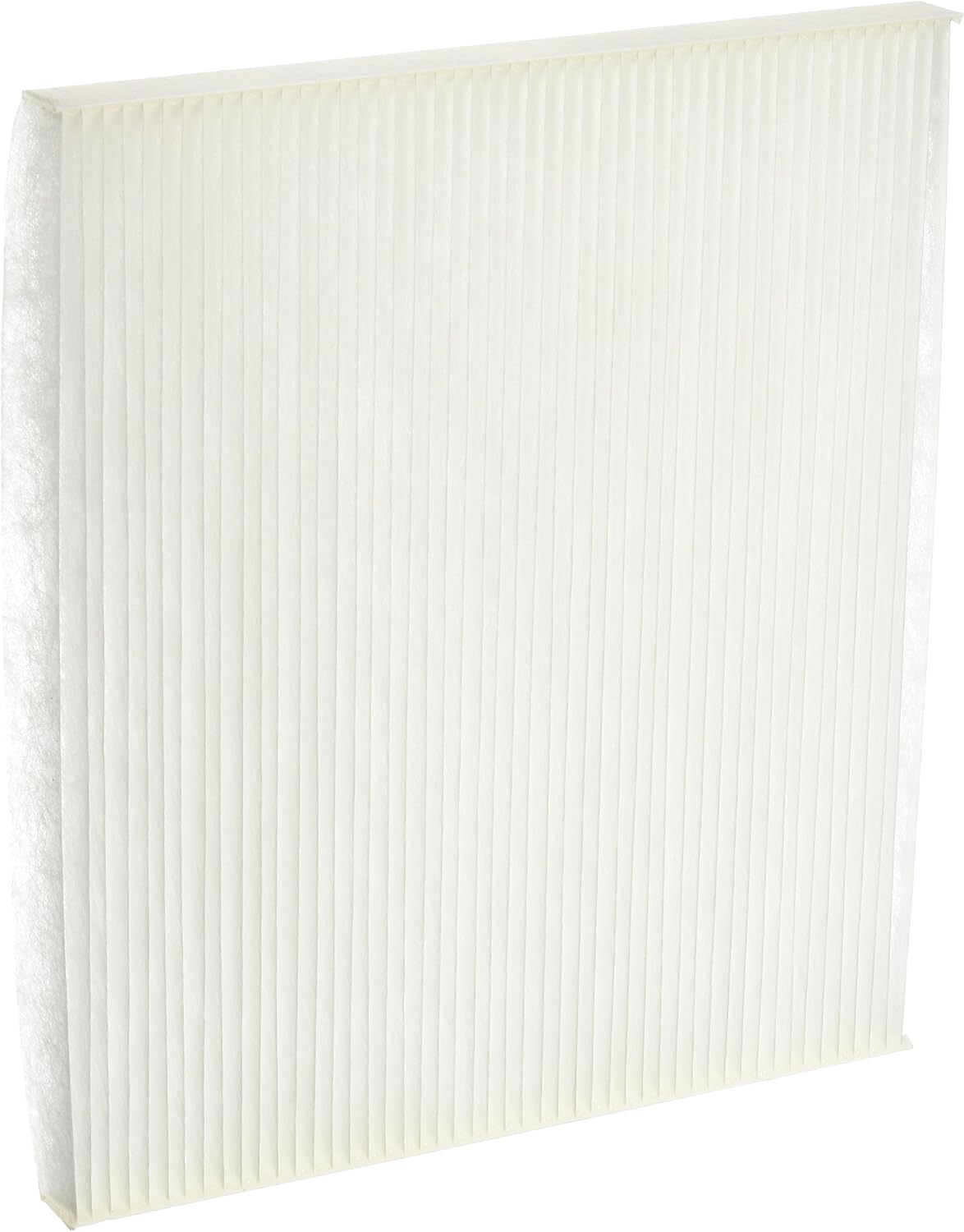

Image: The WIX WP10009 Cabin Air Filter, featuring its distinct pleated white filtration media designed to capture airborne particles.

4. Principis de funcionament

The WIX WP10009 Cabin Air Filter operates as a passive filtration device within your vehicle's HVAC system. As air is drawn from outside the vehicle into the cabin, it passes through the filter's pleated media. This media traps contaminants, allowing only cleaner air to circulate inside the passenger compartment. The filter's effectiveness is maintained as long as the media is not saturated with particles, which is why regular replacement is necessary.

5. Manteniment

To ensure optimal performance of your vehicle's HVAC system and maintain healthy cabin air quality, regular maintenance of the cabin air filter is recommended.

• Interval de substitució: It is generally recommended to replace the cabin air filter every 12,000 to 15,000 miles or once a year, whichever comes first. However, this interval can vary based on driving conditions (e.g., dusty environments, heavy traffic) and your vehicle manufacturer's recommendations.
• Signes d'un filtre obstruït:
  • Reduced airflow from the air vents.
  • Unpleasant or musty odors coming from the HVAC system.
  • Increased fan noise as the system works harder to push air through a clogged filter.
  • Excessive dust accumulation on interior surfaces.
• Inspecció: Periodically inspect the filter for visible dirt, debris, or discoloration. A heavily soiled filter indicates it's time for replacement.

6. Solució De Problemes

Most issues related to cabin air filters are resolved by timely replacement. If you experience any of the following, consider checking or replacing your WIX WP10009 filter:

• Flux d'aire feble: If the air coming from your vents feels weak, even on high fan settings, the filter may be severely clogged.
• Olors persistents: Musty or stale smells can indicate a filter that has accumulated mold, bacteria, or other odor-causing particles.
• Símptomes d'al·lèrgia: If occupants experience increased allergy symptoms (sneezing, coughing) inside the vehicle, the filter may no longer be effectively trapping allergens.

If replacing the filter does not resolve the issue, consult a qualified automotive technician for further diagnosis of your vehicle's HVAC system.

7. Especificacions

8. Garantia i Suport

For specific warranty information regarding your WIX WP10009 Cabin Air Filter, please refer to the product packaging or visit the official Wix Filters website. Warranty terms and conditions typically cover manufacturing defects.

For technical support or further assistance with product compatibility and installation, please contact Wix Filters customer service through their official channels. Always provide your product model number (WP10009) when seeking support.
