Camaflexi Panel Style Solid Wood Bunk Bed with Trundle Instruction Manual

Introducció

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Camaflexi Panel Style Solid Wood Bunk Bed with Trundle. Please read all instructions carefully before beginning assembly and retain this manual for future reference. Ensure all components are present and undamaged before proceeding.

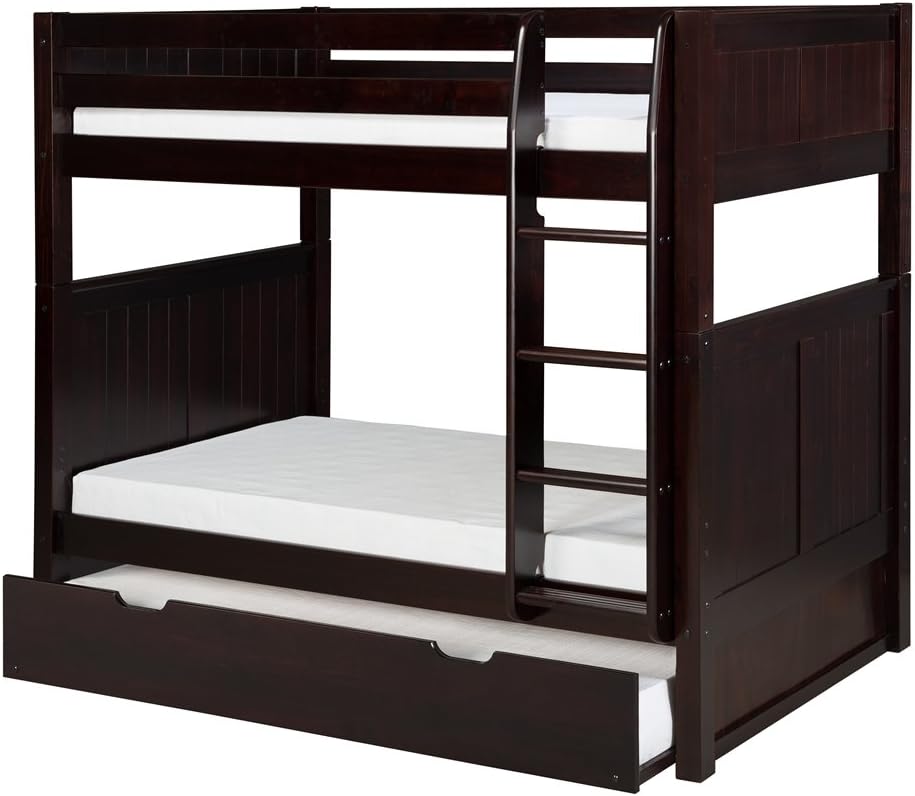

This image displays the Camaflexi Panel Style Solid Wood Bunk Bed. It features a twin bed over another twin bed, with a pull-out trundle bed underneath. A side-attached ladder provides access to the top bunk. The bed is finished in a rich cappuccino color.

Informació de seguretat

• Capacitat de pes màxim: The total weight capacity for this bunk bed is 650 pounds. This includes the weight of the mattress and occupants.
• Requisits del matalàs: Use only standard Twin size mattresses for both upper and lower bunks, and the trundle bed.
• Guard Rails: The top bunk is equipped with guard rails. Ensure these are always securely in place.
• Seguretat de l'escala: Always use the provided ladder for accessing the top bunk. Ensure the ladder is securely attached before use. The ladder features extra-wide, deeply grooved steps for enhanced safety.
• Edat recomanada: La llitera de dalt no és adequada per a nens menors de sis anys.
• Activitats prohibides: Do not allow jumping on the bed. Do not attach or hang items from any part of the bunk bed that are not designed for use with the bed.
• Comprovacions periòdiques: Periodically check and ensure all connectors and hardware are tight.
• Compliment: This bunk bed meets or exceeds all ASTM and US Government safety standards for bunk beds.
• Advertència de la proposta 65: Aquest producte pot contenir productes químics coneguts a l’Estat de Califòrnia per causar càncer i defectes congènits o altres danys reproductius.

Llista de peces

Before assembly, unpack all components and verify against the included parts list (typically found in the packaging). Common components include:

• Upper and Lower Bed Frames
• Estructura de llit niu
• Slat Roll Foundations (for all beds)
• Side-Attached Ladder
• Baranes de protecció
• Paquet de ferreteria (cargols, perns, femelles, etc.)

Si falta alguna peça o hi ha alguna danyada, no continueu amb el muntatge. Poseu-vos en contacte amb el servei d'atenció al client per obtenir ajuda.

Instruccions de muntatge i muntatge

Assembly of this bunk bed is required. It is recommended that two adults perform the assembly. Clear a spacious area for assembly and keep children and pets away from the assembly area.

1. Desempaquetar i organitzar: Carefully remove all components from the packaging. Lay them out on a soft, clean surface to prevent scratches. Identify each part using the provided parts list.
2. Assemble Lower Bed Frame: Follow the specific diagrams in your packaged instructions to connect the headboard, footboard, and side rails for the lower twin bed. Ensure all connections are secure but do not fully tighten hardware until instructed. The lower bed features a dual center rail support system for the slat foundation.
3. Assemble Upper Bed Frame: Similarly, assemble the upper twin bed frame, including its headboard, footboard, and side rails. This bed also utilizes a slat roll foundation with a reinforced center rail support system.
4. Attach Guard Rails: Securely attach the guard rails to the upper bunk bed frame as indicated in the diagrams.
5. Stack Bunk Beds: Carefully lift and place the assembled upper bed frame onto the lower bed frame. Ensure the connecting pins or mechanisms align and lock securely.
6. Fixar l'escala: The side-attached ladder can be positioned on either side of the bunk bed. Securely attach the ladder to the upper bunk frame using the provided hardware. Ensure it is stable and does not wobble.
7. Muntar el llit niu: Assemble the trundle bed frame according to its specific instructions. This typically involves attaching wheels and side panels.
8. Inserir llistons: Place the slat roll foundations into both the upper and lower bed frames, and the trundle bed. Secure them as per the instructions.
9. Ajustament final: Once all components are assembled and aligned, systematically tighten all hardware connections. Do not overtighten.
10. Col·locació: Position the assembled bunk bed against a wall, ensuring there is adequate space around it for safe use.

Instruccions de funcionament

• Ús del llit niu: The trundle bed is designed to slide out from underneath the lower bunk. Gently pull the trundle bed forward until it is fully extended. To store, push it back underneath the lower bunk until it is flush.
• Separating into Individual Beds: This innovative bunk bed system allows the top standard Twin bed to separate from the bottom Twin bed, creating two individual beds. Refer to the specific diagrams in your assembly manual for detailed instructions on how to safely separate the beds. This typically involves disengaging the stacking mechanisms and carefully lowering the top bed.

Manteniment

• Neteja: Netegeu les superfícies amb un suau, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the cappuccino finish.
• Comprovació de maquinari: Periodically inspect all bolts, screws, and connectors to ensure they remain tight. Retighten as necessary to maintain structural integrity and safety.
• Cura de la fusta: The bed is constructed from solid wood. Protect it from extreme temperature changes and direct sunlight to prevent warping or fading.

Resolució de problemes

• Trontollades del llit: Ensure all hardware is securely tightened. Check that the bed is placed on a level surface.
• Sorolls de grinyols: Squeaking often indicates loose hardware. Retighten all bolts and screws. Applying a small amount of wax or lubricant to metal-on-metal contact points (if applicable) can also help.
• Trundle Not Sliding Smoothly: Check the wheels for obstructions or damage. Ensure the track area underneath the bed is clear of debris.
• Peces que falten o danyades: If you discover missing or damaged parts during assembly, do not proceed. Contact customer support immediately for replacements.

Especificacions

Garantia i Suport

This Camaflexi bunk bed is backed by a Garantia limitada del fabricant d'1 any. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

For warranty claims, missing parts, or technical assistance, please refer to the contact information provided in your product packaging or visit the official Camaflexi website. When contacting support, please have your model number (C922_TR) and proof of purchase readily available.
