Introducció
The RICOO VA0300 VESA Adapter is designed to expand the VESA mounting compatibility of your existing TV or monitor wall mount. This adapter allows you to attach displays with VESA patterns of 300x200mm, 300x300mm, 400x200mm, 400x300mm, or 400x400mm to a wall mount that originally only supports a 200x200mm VESA standard. This enables you to reuse your current mount with larger or different VESA-compatible displays, typically ranging from 32 to 55 inches.
Informació de seguretat
- Read all instructions carefully before installation. Failure to do so may result in personal injury or property damage.
- Ensure that the wall or mounting surface can safely support the combined weight of the adapter, your TV/monitor, and the existing mount.
- Do not exceed the maximum load capacity of 30 kg (66 lbs) for this adapter.
- Use appropriate tools and follow all safety precautions during installation.
- Mantingueu els nens i les mascotes allunyats de la zona de treball durant la instal·lació.
- Si teniu dubtes sobre alguna part del procés d'instal·lació, consulteu un professional qualificat.
Contingut del paquet
Si us plau, comproveu que tots els components siguin presents abans de començar la instal·lació.
- VESA Adapter (2 pieces)
- Mounting hardware (screws and washers for attachment)
Image: The two VESA adapter pieces included in the package.
Especificacions
| Model | VA0300 |
| Material | Acer d'aliatge (recobert amb pols) |
| Color | Negre |
| Longitud total | Aprox. 42.3 cm |
| Amplada total | Aprox. 12.7 cm |
| Capacitat de càrrega màxima | 30 kg |
| Compatible VESA (Input) | 200x200mm |
| Compatible VESA (Output) | 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm |
| Compatible TV/Monitor Sizes | Typically 32-55 inches (depending on original mount) |
| Components inclosos | VESA adapter (2 parts) |
Image: Detailed dimensions of the RICOO VA0300 VESA adapter.
Image: The adapter's maximum load capacity is 30 kg.
Configuració (Instal·lació)
This adapter is designed to extend the VESA compatibility of an existing TV wall mount that supports a 200x200mm VESA pattern. The installation process involves attaching the adapter to your existing mount and then attaching your display to the adapter.
Step 1: Prepare Your Existing Mount
Ensure your existing TV wall mount is securely installed and supports a 200x200mm VESA pattern. Remove your TV/monitor from the mount if it is currently attached.
Step 2: Attach the VESA Adapter to Your Existing Mount
Take the two pieces of the RICOO VA0300 VESA adapter. Align the inner mounting holes of the adapter pieces with the 200x200mm VESA pattern on your existing wall mount. Use the provided screws and washers to securely fasten the adapter pieces to your wall mount. Ensure they are tightly secured and stable.
Image: Illustration of attaching the adapter to an existing mount.
Step 3: Attach Your TV/Monitor to the VESA Adapter
Once the VESA adapter is securely attached to your existing mount, you can now attach your TV or monitor to the adapter. The adapter provides various VESA patterns, including 300x200mm, 300x300mm, 400x200mm, 400x300mm, and 400x400mm. Align the VESA mounting holes on the back of your TV/monitor with the corresponding holes on the adapter. Use appropriate screws (typically supplied with your TV or original mount, or included with the adapter if specified) to secure the display to the adapter.

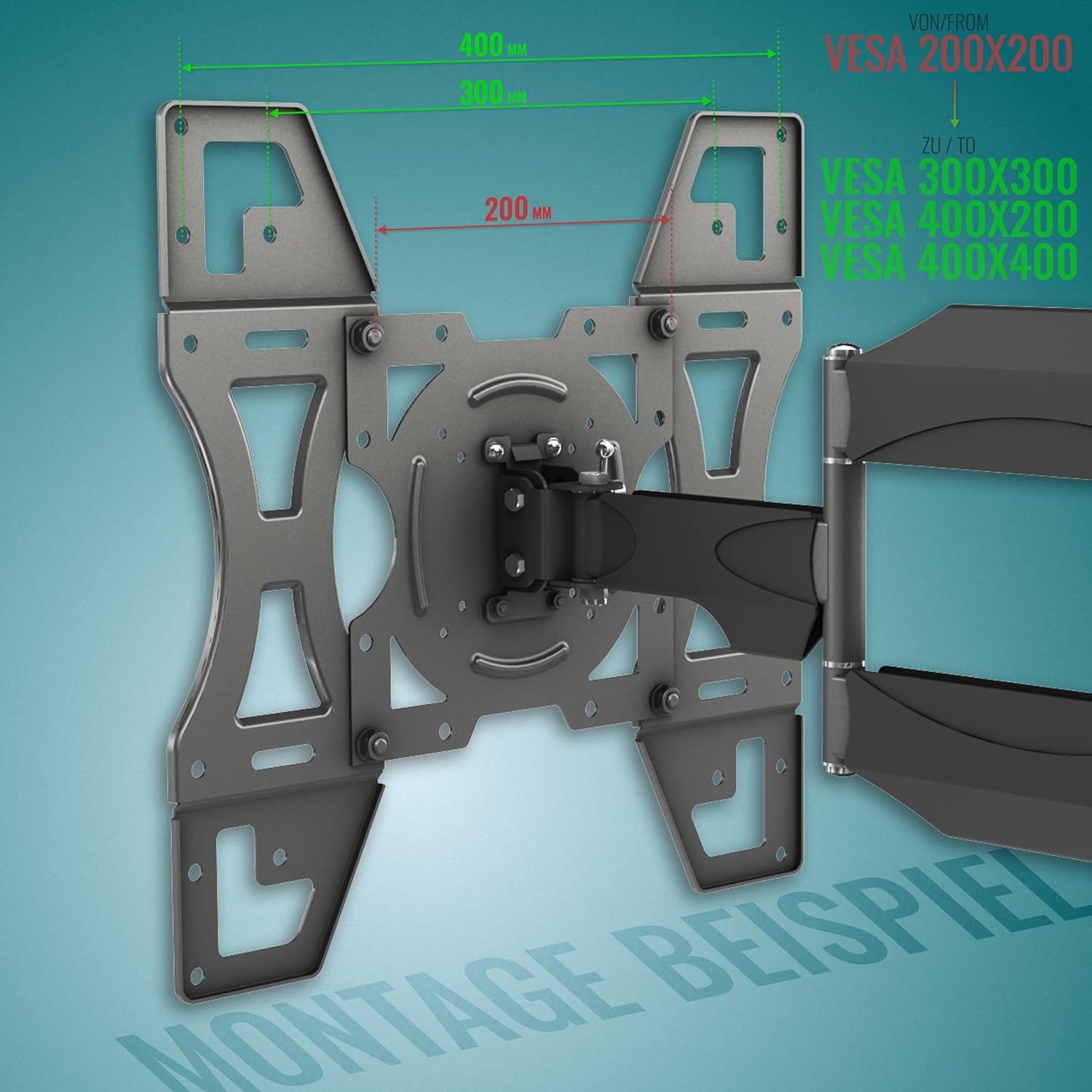

Imatge: Example of VESA 200x200 extended to 400x400 for TV mounting.
Ensure all screws are tightened to prevent accidental detachment. Double-check the stability of the entire setup before releasinla pantalla.
Funcionament (ús)
Once the RICOO VA0300 VESA Adapter and your display are securely installed, the adapter functions passively to maintain the VESA compatibility. There are no active operational controls for the adapter itself. The movement and functionality (e.g., tilt, swivel, extension) will depend entirely on the capabilities of your original wall mount.
- Verifica l'estabilitat: Periodically check that all connections remain tight and secure.
- Ajustaments: Make any necessary tilt or swivel adjustments using your existing wall mount's mechanisms.
Manteniment
Regular maintenance helps ensure the longevity and safety of your VESA adapter and mounted display.
- Neteja: Wipe the adapter with a soft, dry cloth to remove dust. Avoid abrasive cleaners or solvents.
- Comprovacions periòdiques: Every 3-6 months, inspect all screws and connections for tightness. Over time, vibrations or minor shifts can cause screws to loosen. Retighten as necessary.
- Inspecció de danys: If you notice any signs of damage, corrosion, or deformation on the adapter, discontinue use immediately and contact customer support.
Resolució de problemes
Si teniu problemes durant o després de la instal·lació, consulteu els problemes i solucions més comuns següents:
| Problema | Causa possible | Solució |
|---|---|---|
| Adapter does not fit the existing mount. | Existing mount does not have a 200x200mm VESA pattern. | Verify your existing mount's VESA compatibility. This adapter is specifically for 200x200mm input. |
| TV/monitor does not fit the adapter. | TV/monitor VESA pattern is not supported by the adapter (e.g., larger than 400x400mm). | Check your TV/monitor's VESA pattern. The adapter supports 300x200, 300x300, 400x200, 400x300, and 400x400mm. |
| El suport sembla inestable després de la instal·lació. | Screws are not tightened sufficiently, or the combined weight exceeds the limit. | Ensure all screws are securely tightened. Verify that the total weight (TV + mount + adapter) does not exceed the 30 kg limit. Re-check the wall mount's stability. |
| Falten peces. | Error d'embalatge. | Contact RICOO customer support immediately for replacement parts. |
Garantia i Suport
RICOO products are manufactured with quality and durability in mind. While specific warranty details may vary by region and retailer, RICOO generally stands behind its products.
- Garantia: Please refer to the warranty information provided at the point of purchase or on the official RICOO website for specific terms and conditions. Keep your proof of purchase.
- Atenció al client: For technical assistance, missing parts, or any questions regarding your RICOO VA0300 VESA Adapter, please contact RICOO customer service. You can typically find contact information on the product packaging, the retailer's website, or the official RICOO weblloc.
- Recursos en línia: Visit the RICOO weblloc web per obtenir informació addicional sobre el producte, preguntes freqüents i recursos d'assistència.
