1. Introducció i finalview
Thank you for choosing the SunSun CTF-16000 SuperECO Pond Pump. This pump is engineered for efficient water circulation and filtration in various aquatic environments, including garden ponds, fountains, and streams. Designed with energy efficiency in mind, it provides a powerful flow while minimizing power consumption. This manual provides essential information for safe installation, operation, and maintenance to ensure optimal performance and longevity of your pump.

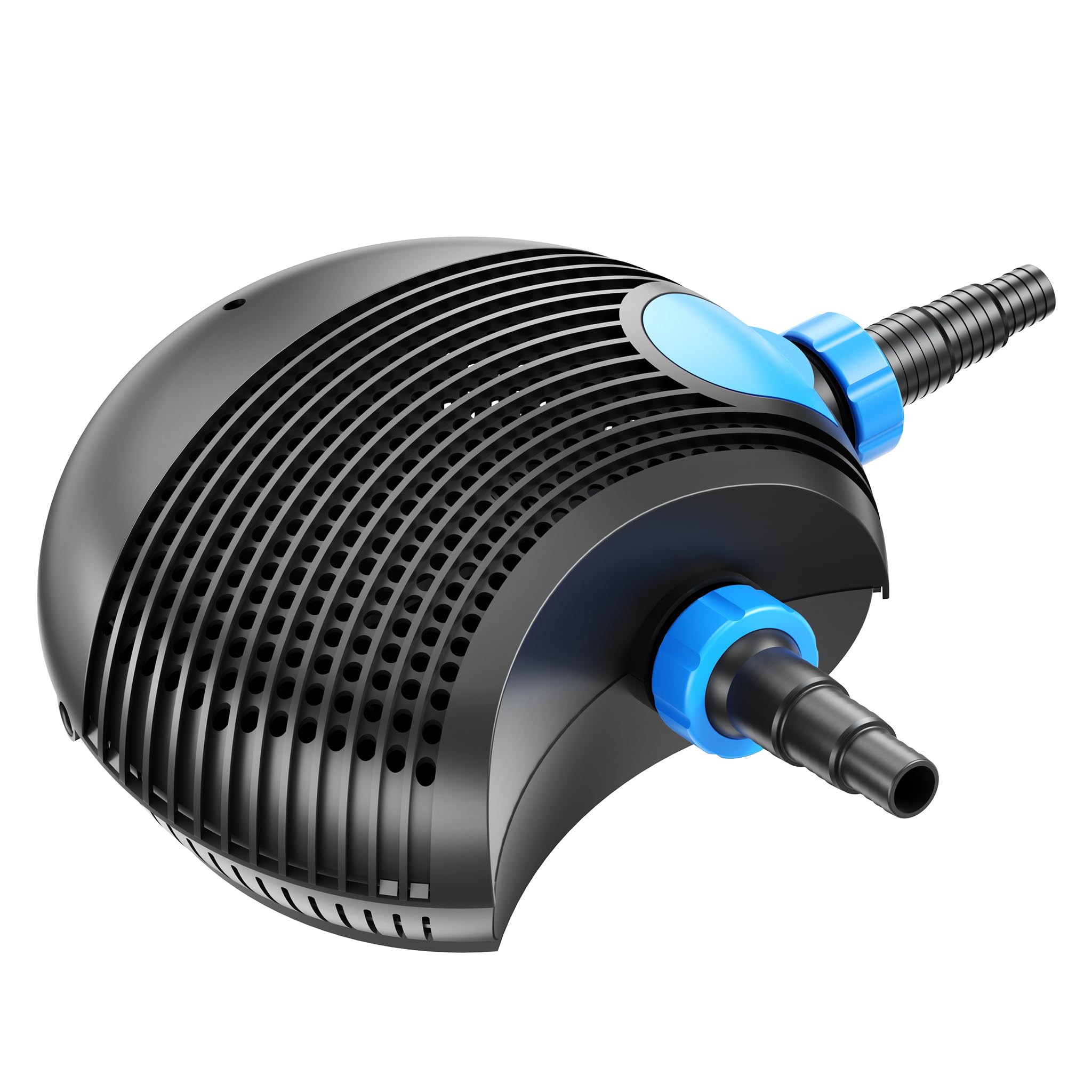

Figure 1: SunSun CTF-16000 SuperECO Pond Pump
2. Instruccions de seguretat
Please read and understand all safety warnings and instructions before operating this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Desconnecteu sempre la bomba de la xarxa elèctrica abans de manipular-la, instal·lar-la o realitzar qualsevol manteniment.
- Ensure the power outlet is properly grounded and protected by a Residual Current Device (RCD) with a tripping current not exceeding 30 mA.
- Do not operate the pump if the power cord or plug is damaged. Contact qualified personnel for repair.
- La bomba està dissenyada només per a ús submergible. No la feu funcionar en sec.
- Keep children and pets away from the pond area during installation and operation.
- Ensure all connections are secure and watertight to prevent leaks and electrical hazards.
- Do not use the pump for purposes other than those specified in this manual.
3. Característiques del producte
The SunSun CTF-16000 SuperECO pump offers a range of features designed for efficiency and ease of use:
- Eficiència energètica: The SuperECO design ensures high flow rates with minimal power consumption, reducing operating costs.
- Aplicació versàtil: Suitable for various uses including powering skimmers, fountains, filters, and creating artificial streams.
- Alt rendiment: Delivers a maximum flow rate of 16,000 liters per hour and a maximum head height of 7.5 meters, ideal for medium to large ponds.
- Manteniment simplificat: Features a tool-free removable casing for quick and easy cleaning.
- Particle Handling: Capable of processing particles up to 6 mm, reducing the frequency of cleaning.
- Construcció duradora: Built with a ceramic shaft for wear resistance and suitability for saltwater environments.
Figure 2: Wide range of applications for the SunSun CTF-16000 pump.
Figure 3: Powerful motor with ceramic shaft for durability.
4. Configuració
Follow these steps for proper installation of your SunSun CTF-16000 pond pump:
- Col·locació: Position the pump fully submerged in the pond, ensuring it rests on a stable, level surface. Avoid placing it directly on the pond bottom if it is muddy or silty.
- Connexió de la mànega: Connect the appropriate hose (25mm, 33mm, or 38mm diameter) to the pump's outlet. Secure the connection with a hose clamp per evitar fuites.
- Filter/Accessory Connection: If connecting to an external filter, skimmer, or fountain accessory, ensure all connections are tight and secure.
- Connexió elèctrica: Once all physical connections are made and the pump is submerged, connect the power plug to a properly grounded and RCD-protected electrical outlet.

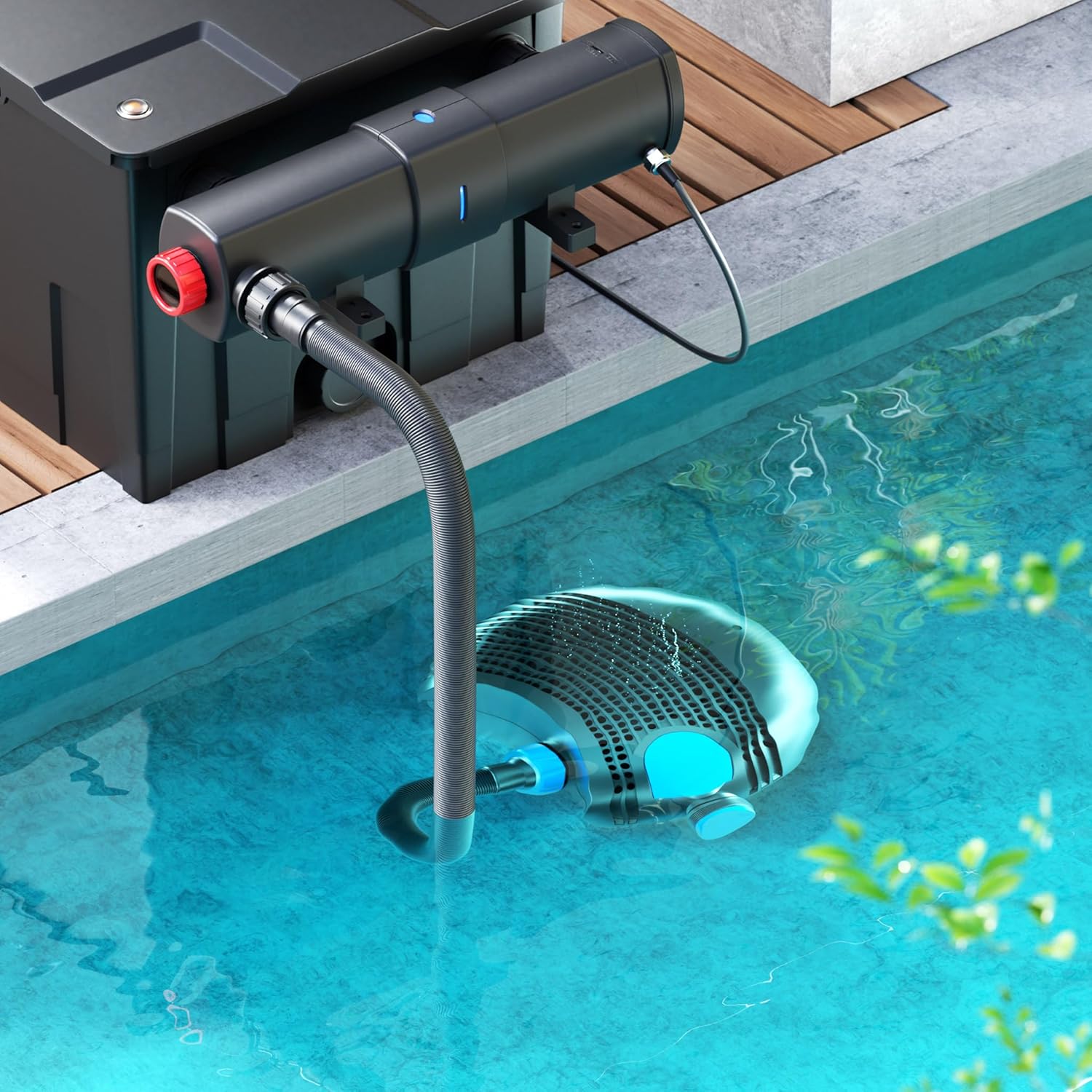

Figure 4: Pump connected and submerged in a pond.
Figura 5: Example setup with a skimmer.
5. Funcionament
The SunSun CTF-16000 SuperECO pump is designed for continuous operation to maintain a healthy aquatic environment. Once properly installed and connected to power, the pump will begin circulating water.
- Inici de la bomba: After ensuring the pump is fully submerged and all connections are secure, plug it into the power outlet. The pump will start automatically.
- Ús continu: This pump is built for continuous duty, providing constant water movement and filtration.
- Seguiment: Regularly check the water flow to ensure the pump is operating effectively. Reduced flow may indicate a blockage or the need for cleaning.
Figure 6: Pump operating a fountain.
6. Manteniment
Regular maintenance is crucial for the optimal performance and lifespan of your pump. The CTF-16000 is designed for easy, tool-free disassembly for cleaning.
- Desconnecteu l'alimentació: Desendolleu sempre la bomba de la font d'alimentació abans de qualsevol manteniment.
- Remove from Pond: Carefully remove the pump from the pond.
- Desmuntatge: La bomba casing can be opened without tools. Gently unclip or unscrew the housing components.
- Clean Impeller and Housing: Remove any debris, algae, or sediment from the impeller, impeller chamber, and pump housing. A soft brush and clean water can be used. The pump can handle particles up to 6mm, but regular cleaning prevents buildup.
- Inspeccionar components: Check the impeller, shaft, and seals for any signs of wear or damage. Replace any worn parts if necessary.
- Remuntatge: Reassemble the pump, ensuring all parts fit correctly and the casing està ben tancat.
- Return to Pond: Place the pump back into the pond and reconnect the power.
Figura 7: Explotat view of pump components.
Figure 8: Cleaning the pump impeller and housing.
7. Solució De Problemes
If your pump is not functioning correctly, refer to the following common issues and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no arrenca | No power supply; Impeller jammed; Damaged motor | Check power connection and RCD; Clean impeller; Contact support for repair |
| Reducció del cabal d'aigua | Clogged intake or hose; Dirty impeller; Low water level | Clean intake and hose; Clean impeller; Ensure adequate water level |
| La bomba fa un soroll inusual | Debris in impeller; Worn impeller or shaft | Clean impeller; Inspect and replace worn parts |
| Water not clear | Filter media dirty; Insufficient filtration; Pond too large for pump | Clean or replace filter media; Ensure proper filter setup; Consider a higher capacity pump or additional filtration |
8. Especificacions
Detailed technical specifications for the SunSun CTF-16000 SuperECO Pond Pump:
| Especificació | Valor |
|---|---|
| Número de model | CTF-16000 (Part No. 50297) |
| Màx. Velocitat de flux | 16,000 l/h |
| Màx. Consum d'energia | 140 W |
| Max. Head Height | 7.5 m |
| Dimensions (L x A x A) | 30.7 x 22.9 x 10.2 cm |
| Pes | 4.7 kg |
| Material | ABS, PC |
| Diàmetre de connexió de la mànega | 25 / 33 / 38 mm (1" / 1¼" / 1½") |
| Codi IP | IPX8 |
| Font d'alimentació | Cable elèctric |
Figure 9: Product dimensions and IPX8 rating.
Figure 10: Flow rate and head height performance chart.
9. About SunSun
SunSun has been developing high-quality equipment for aquariums and ponds for over 30 years. From basic equipment to advanced cleaning, feeding, and lighting systems, SunSun offers customized solutions for every aquatic setup. The company is committed to ensuring the reliability of its products, which are exported to over 80 countries and regions worldwide.
Video 1: SunSun Brand Overview. This video provides a general introduction to the SunSun brand and its commitment to aquatic products, rather than specific product instructions.
10. Garantia i Suport
SunSun products are manufactured to high-quality standards and come with a standard warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official SunSun website. For technical support, troubleshooting assistance, or spare parts, please contact your retailer or the authorized SunSun service center in your region. Keep your purchase receipt as proof of purchase for warranty claims.
© 2024 SunSun. All rights reserved.
