Informació important de seguretat
Before using the Tunturi 14TUSFU105 Power Roller, please read and understand all instructions and safety warnings. Retain this manual for future reference.
- Consulta un metge abans de començar qualsevol nou programa d'exercicis.
- Assegureu-vos que totes les peces estiguin ben muntades abans de cada ús.
- Use the Power Roller on a flat, stable surface.
- Do not exceed the maximum recommended user weight of 400 pounds (approximately 181 kg).
- Mantingueu els nens i les mascotes lluny de l'equip durant l'ús.
- Deixa de fer exercici immediatament si sents dolor, marejos o molèsties.
- Inspect the equipment regularly for wear and tear. Do not use if damaged.
Contingut del paquet
Verify that all components are present before beginning assembly. Refer to the image below for a visual representation of the parts.
Image: All components of the Tunturi Power Roller laid out for assembly.
- Main Frame (Curved bars with foam grips)
- Base Units (Two black curved plastic units with "POWER ROLLER" text)
- Headrest (Padded cushion)
- Connecting Bars (Smaller metal bars for headrest and base units)
- Hardware Kit (Screws, washers, wrench, Allen key)

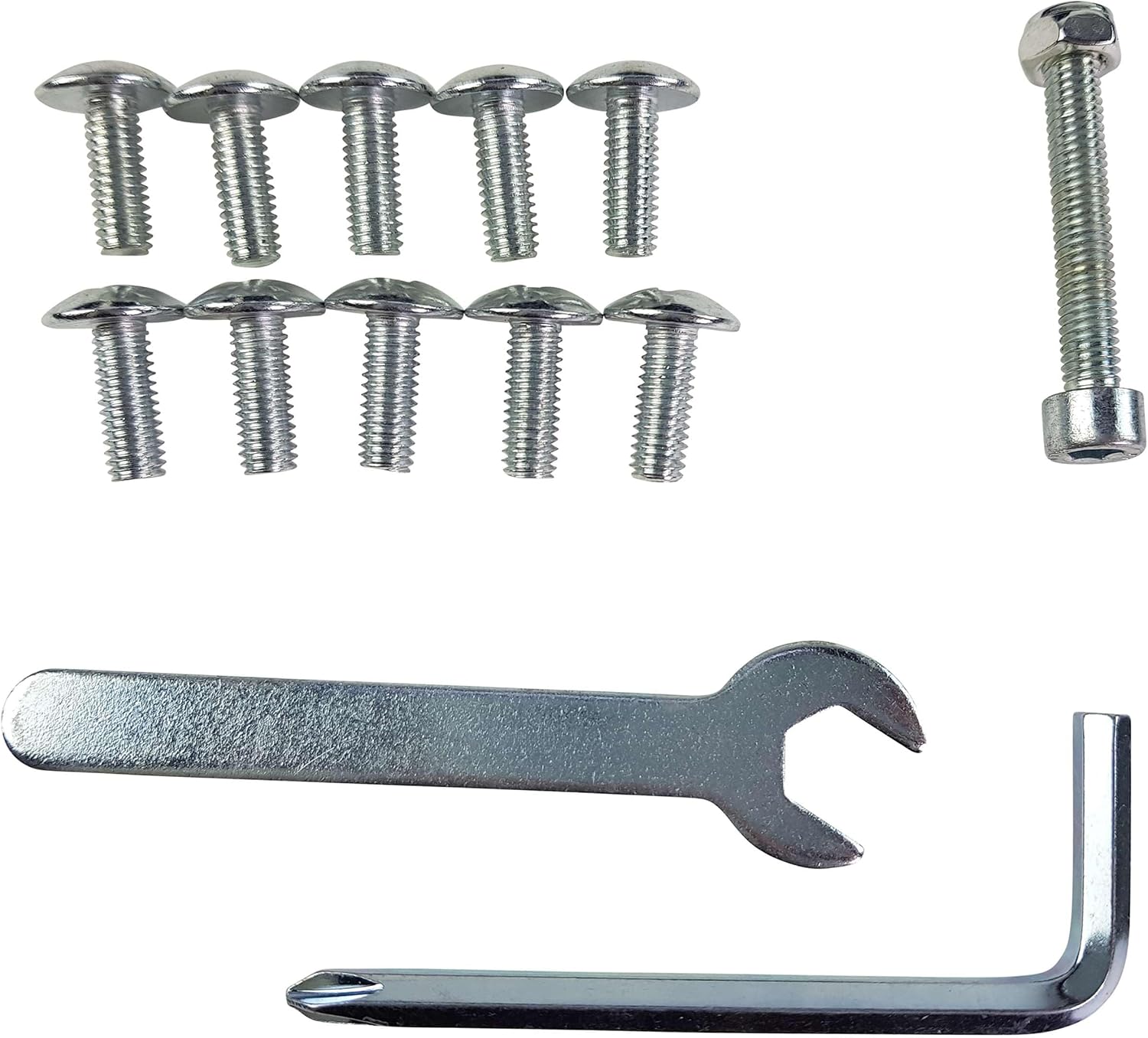

Imatge: Detallada view of the assembly hardware and tools.
Instruccions de muntatge
Follow these steps to assemble your Tunturi Power Roller.
- Attach Connecting Bars to Base Units: Insert the smaller metal connecting bars into the designated slots on the two black base units. Secure them using the provided screws.
- Connect Main Frame to Base Units: Attach the main curved frame pieces with foam grips to the assembled base units. Ensure the holes align and secure with screws.
- Instal·leu el reposacaps: Slide the headrest onto the upper connecting bar. The headrest should be positioned comfortably to support your neck during exercise. Secure it with the appropriate bolt and washer.
Imatge: Superior view of the assembled Power Roller.
Image: Detail of the headrest assembly.
After assembly, gently shake the unit to ensure all connections are tight and stable. Re-tighten any loose screws if necessary.
Instruccions de funcionament
The Tunturi Power Roller is designed to assist with abdominal and core exercises. Follow these guidelines for effective and safe use.
- Posicionament: Lie on your back on a comfortable mat or floor. Place your head on the padded headrest and grip the foam handles firmly.
- Posició inicial: Ensure your feet are flat on the floor and your knees are bent. Your arms should be extended forward, holding the handles.
- Execució: Engage your abdominal muscles and slowly curl your upper body upwards, bringing your shoulders off the floor. The Power Roller's design helps guide your movement and supports your neck.
- Moviment controlat: Focus on a slow, controlled movement both upwards and downwards. Avoid using momentum.
- Respiració: Exhale as you curl up and inhale as you lower back down.
- Repeticions: Start with a manageable number of repetitions and gradually increase as your strength improves.

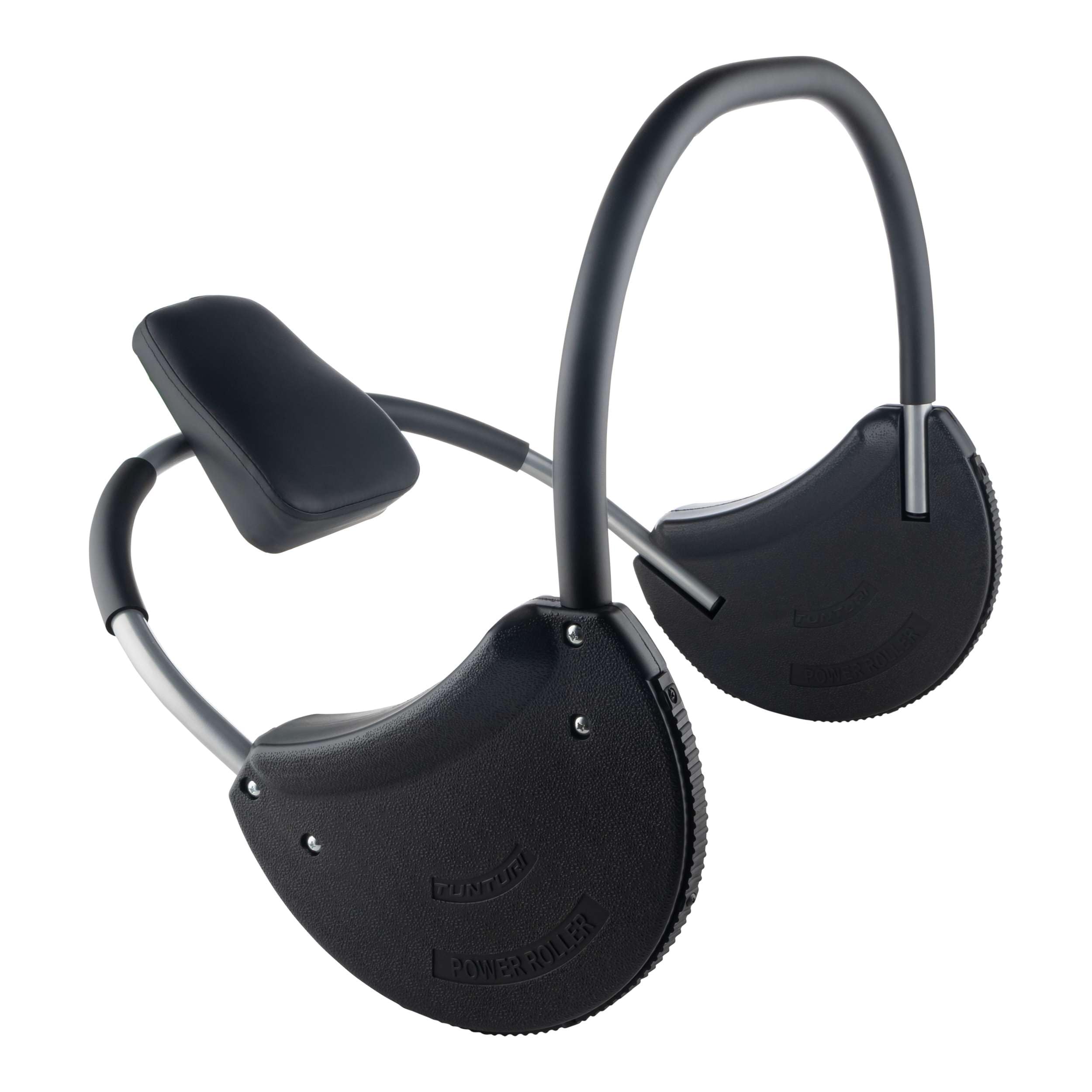

Image: Proper usage of the Tunturi Power Roller for abdominal exercises.
The unique design of the Power Roller provides resistance and assistance, making abdominal exercises more effective and reducing strain on the neck and back.
Manteniment
Regular maintenance ensures the longevity and safe operation of your Power Roller.
- Neteja: Netegeu el marc i les zones encoixinades amb anuncisamp drap després de cada ús per eliminar la suor i la brutícia. Feu servir sabó suau si cal i després netegeu amb un drap net i sec.
- Inspecció: Periodically check all bolts and screws to ensure they are tight. Re-tighten as needed. Inspect the foam grips and headrest for any signs of wear, tears, or damage.
- Emmagatzematge: Store the Power Roller in a cool, dry place away from direct sunlight and extreme temperatures.
Resolució de problemes
If you encounter any issues with your Tunturi Power Roller, refer to the following common solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| Unit feels unstable or wobbly | Loose assembly bolts/screws. | Check and tighten all assembly bolts and screws using the provided tools. |
| Squeaking noise during use | Friction between metal parts or loose connections. | Ensure all parts are securely fastened. A small amount of silicone-based lubricant can be applied to contact points if necessary (avoiding grips). |
| Discomfort in neck/back | Incorrect form or improper headrest positioning. | Review "Operating Instructions" for proper form. Ensure headrest is supporting your neck comfortably. Stop if pain persists. |
Especificacions
| Característica | Detall |
|---|---|
| Marca | Tunturi |
| Model | 14TUSFU105 |
| Material | Acer d'aliatge |
| Pes de l'article | 4.2 kg (aproximadament 9.26 lliures) |
| Recommended Maximum User Weight | 400 lliures (aproximadament 181 kg) |
| GTIN (Número d'Identificació Comercial Global) | 08717842021033 |
Atenció al client
For further assistance, questions, or to report missing/damaged parts, please contact Tunturi customer support. Refer to the product packaging or the official Tunturi weblloc web per obtenir dades de contacte específiques a la vostra regió.
Please note: Warranty information may vary by region and retailer. Keep your proof of purchase for warranty claims.
