Producte acabatview
The PROFLO PF92910 Sump Pump Back Up System is designed to provide reliable water removal in the event of a primary pump failure or power outage. This system includes a 12V DC backup pump, an alarm/control panel with a fuse, and a thermoplastic battery box. It is engineered to pump up to 23 gallons per minute, ensuring your basement remains dry.

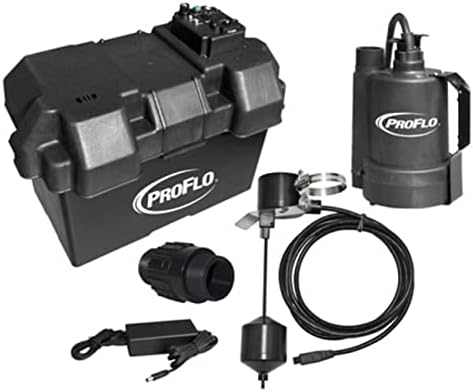

Image: Components of the PROFLO PF92910 Sump Pump Back Up System, showing the main pump unit, the battery box, and various connecting parts like the float switch and power adapter.
Configuració i instal·lació
Proper installation is crucial for the optimal performance of your PROFLO PF92910 Sump Pump Back Up System. All necessary hardware for installation is included with the product.
For detailed, step-by-step installation instructions, please refer to the official Installation Manual provided by PROFLO. A digital version of the manual can be accessed via the following link:
PROFLO PF92910 Installation Manual (PDF)
Ensure the 12V DC backup pump is correctly connected to the thermoplastic battery box and the alarm/control panel. The system requires a 12-volt power supply for operation.
Instruccions de funcionament
The PROFLO PF92910 system operates automatically when the primary sump pump fails or during a power outage, detecting rising water levels via its float switch. The alarm/control panel will alert you to system activation.
- Activació automàtica: The backup pump will automatically engage when water levels rise above the primary pump's activation point, typically due to power loss or primary pump malfunction.
- Sistema d'alarma: The integrated alarm/control panel will sound an alert when the backup system is active, indicating that it is pumping water. This allows for timely intervention to address the primary issue.
- Capacitat de bombament: The system is capable of pumping up to 23 gallons per minute, providing significant protection against basement flooding.
Manteniment
Regular maintenance ensures the longevity and reliability of your sump pump backup system. Perform these checks periodically:
- Comprovació de la bateria: Ensure the 12V battery (not included with product, but required for operation) is fully charged and in good condition. Test the battery charge regularly, especially before seasons with heavy rainfall.
- Float Switch Test: Manually lift the float switch to ensure the backup pump activates. This confirms the switch and pump are functioning correctly.
- Clean Sump Pit: Periodically inspect and clean the sump pit to remove any debris, dirt, or sediment that could obstruct the pump or float switch.
- Discharge Line Inspection: Check the discharge line for any blockages or leaks. Ensure water can flow freely away from your home.
Resolució de problemes
If your PROFLO PF92910 Sump Pump Back Up System is not functioning as expected, consider the following common issues and solutions:
| Problema | Causa possible | Solució |
|---|---|---|
| La bomba no s'encén. | Dead or low battery; faulty float switch; blown fuse in control panel. | Check battery charge and connections; test float switch manually; inspect and replace fuse if necessary. |
| La bomba funciona contínuament. | Stuck float switch; check valve issue; continuous water inflow. | Ensure float switch moves freely; check and clear check valve; investigate source of water inflow. |
| Alarm sounds but pump does not activate. | Pump motor issue; disconnected pump. | Verify pump is securely connected to the control panel; consult a qualified technician if motor issues are suspected. |
| Low pumping capacity. | Clogged intake or discharge line; low battery power. | Clear any obstructions from the pump intake or discharge line; ensure battery is fully charged. |
If problems persist after attempting these solutions, it is recommended to contact PROFLO customer support or a qualified plumbing professional.
Especificacions
| Característica | Detall |
|---|---|
| Marca | PROFLO |
| Número de model | PF92910 |
| Color | Sense acabat |
| Material | Polipropilè (PP) |
| Estil | Bomba de dipòsit |
| Font d'alimentació | Corded Electric (for charger/control panel) |
| Pes de l'article | 20 lliures |
| Caudal màxim | 23 galons per minut |
| Voltage | 12 Volts (DC pump operation) |
| UPC | 781889224960 |
| Dimensions del paquet | 19.2 x 15.5 x 12.3 polzades |
| Components inclosos | 12V DC backup pump, alarm/control panel with fuse, thermoplastic battery box |
Informació de la garantia
Specific warranty details for the PROFLO PF92910 Sump Pump Back Up System are typically provided with the product packaging or can be obtained directly from the manufacturer. Please retain your proof of purchase for warranty claims.
For the most current and comprehensive warranty information, please visit the official PROFLO weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
Suport i Contacte
For further assistance, technical support, or inquiries regarding your PROFLO PF92910 Sump Pump Back Up System, please utilize the following resources:
- Official PROFLO Store: Visit the PROFLO Store on Amazon
- Manual d'instal·lació (PDF): Download the Installation Manual
- Contacte del fabricant: Refer to the product packaging or the official PROFLO website for direct customer service contact information.
