Manual de substitució del segell de l'eix de la bomba Speck S90

Producte acabatview

The Speck 2920343310 Shaft Seal is a critical replacement component designed for use in Speck pool and spa pumps. This high-quality shaft seal is engineered to provide a reliable and durable seal, preventing water leakage and ensuring the efficient operation of your pump system. It is manufactured to withstand the demanding conditions typically found in pool and spa environments, ensuring longevity and consistent performance.

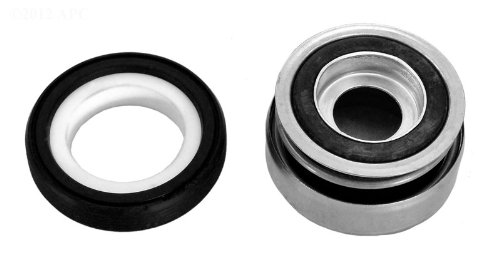

Imatge 1: The Speck S90 Pump Shaft Seal Replacement kit, showing both the stationary ceramic seat and the rotating spring-loaded seal assembly. These components work together to create a watertight seal around the pump shaft.

Informació de seguretat

Always disconnect power to the pump before attempting any installation, maintenance, or repair. Failure to do so can result in serious injury or death. Wear appropriate personal protective equipment, such as gloves and eye protection, during installation. If you are unsure about any step, consult a qualified professional.

Configuració i instal·lació

Replacing a pump shaft seal requires careful attention to detail. The following steps outline a general procedure. Specific pump models may have variations.

1. Preparació: Ensure the pump is completely disconnected from all power sources. Close any valves leading to and from the pump to prevent water flow. Drain the pump housing.
2. Desmuntatge: Remove the motor from the pump wet end. Carefully detach the impeller from the motor shaft. Note the orientation of all components as you disassemble them.
3. Old Seal Removal: Gently pry out the old shaft seal components. The stationary ceramic seat is typically pressed into the pump housing, and the rotating spring-loaded seal is on the motor shaft. Be careful not to scratch or damage the pump housing or motor shaft during removal.
4. Neteja: Thoroughly clean the seal cavity in the pump housing and the motor shaft. Any debris or residue can compromise the new seal's integrity.
5. New Seal Installation (Stationary Part): Lightly lubricate the rubber outer edge of the new stationary ceramic seat with a small amount of water or silicone lubricant. Press the ceramic seat firmly and evenly into the pump housing cavity. Ensure it is seated squarely and completely. Do not touch the polished ceramic face with your fingers.
6. New Seal Installation (Rotating Part): Slide the rotating spring-loaded seal assembly onto the motor shaft, ensuring the spring side faces the motor and the polished carbon face will meet the ceramic face.
7. Remuntatge: Reattach the impeller to the motor shaft. Carefully reassemble the pump wet end to the motor, ensuring all gaskets and O-rings are properly seated. Tighten all bolts according to the pump manufacturer's specifications.
8. Prova: Once reassembled, slowly open the valves and allow the pump to prime. Inspect for any leaks before restoring full power.

Consideracions de funcionament

After installing the new shaft seal, ensure the pump is properly primed before starting. Running a pump dry, even for a short period, can cause immediate damage to the new seal due to lack of lubrication and cooling. Monitor the pump for any unusual noises or leaks during its initial operation.

Manteniment

Shaft seals are wear components and will eventually require replacement. Regular inspection of your pump for leaks around the shaft area can help identify a failing seal early. Ensure proper water chemistry in pools and spas, as imbalanced water can accelerate seal degradation. Avoid running the pump dry.

Resolució de problemes

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified pool or spa technician.

Especificacions

• Número de peça: 2920343310
• Tipus: Segell d'eix
• Fabricant: Taca
• Compatibilitat: Designed for specific Speck pool and spa pump models (refer to your pump's manual for exact compatibility).

Garantia i Suport

This Speck replacement part is typically covered by a manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the documentation provided with your original pump or contact Speck customer support directly. For technical assistance or further inquiries, please visit the official Speck Pumps weblloc web o poseu-vos en contacte amb els seus centres de servei autoritzats.

Nota: Improper installation or use outside of recommended operating conditions may void the warranty.
