Hoover FH51101 Power Path Pro Corded Carpet Cleaner User Manual

Introducció

The Hoover Power Path Pro Corded Carpet Cleaner, model FH51101, is designed to provide deep cleaning for carpets and upholstery. It features a combination of a rotating brush roll and SpinScrub technology to effectively lift and remove tough stains. The unit includes a removable 13-inch dual V nozzle and a 1.25-gallon clean water tank for efficient cleaning of large areas. An 8-foot hose and upholstery tool are provided for cleaning furniture and stairs. Heated cleaning and dual tank technology contribute to faster drying times and simplified cleanup.

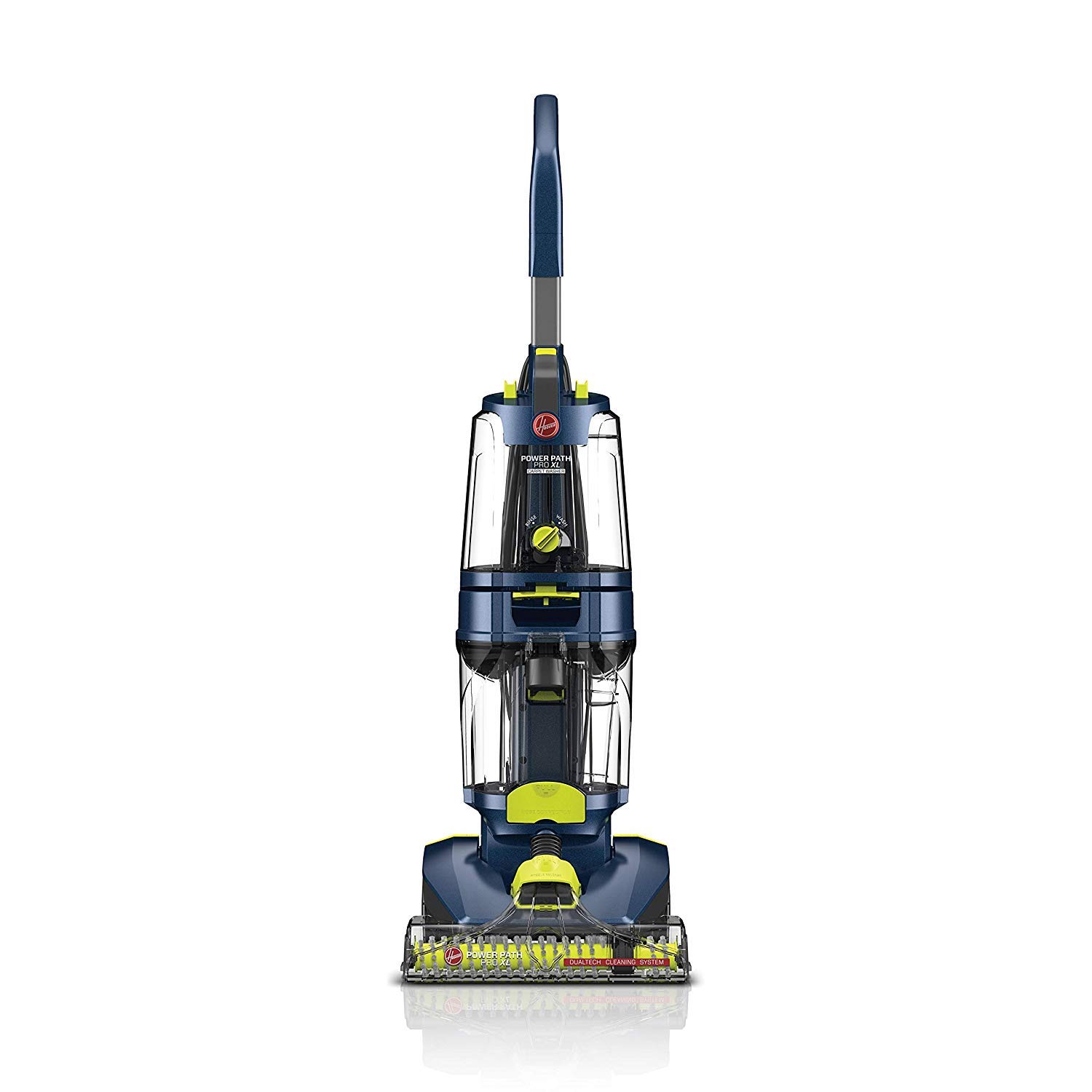

Figura 1: Frontal view of the Hoover FH51101 Power Path Pro Corded Carpet Cleaner.

Informació important de seguretat

Before operating this appliance, read all instructions thoroughly. Failure to follow these instructions may result in electric shock, fire, or serious injury. Save these instructions for future reference.

• Connecteu sempre a una presa de corrent amb connexió a terra. Vegeu les instruccions de connexió a terra.
• No deixeu l'aparell quan estigui endollat. Desconnecteu-lo de la presa de corrent quan no l'utilitzeu i abans de fer-ne el servei.
• No l'utilitzeu a l'aire lliure ni sobre superfícies humides.
• No permetre que s'utilitzi com a joguina. Cal prestar molta atenció quan l'utilitzen nens o a prop dels nens.
• Use only as described in this manual. Use only Hoover recommended attachments.
• No l'utilitzeu amb un cable o un endoll danyats. Si l'aparell no funciona com hauria, s'ha caigut, s'ha fet malbé, s'ha deixat a l'exterior o ha caigut a l'aigua, torneu-lo a un centre de servei.
• No estireu ni porteu el cable, no utilitzeu el cable com a nansa, no tanqueu una porta al cable ni estireu el cable per vores o cantonades afilades. No feu passar l'aparell per sobre del cable. Mantingueu el cable lluny de les superfícies escalfades.
• No desconnecteu estirant del cable. Per desconnectar, agafa l'endoll, no el cable.
• No manipuleu l'endoll o l'aparell amb les mans mullades.
• No introduïu cap objecte a les obertures. No utilitzar amb cap obertura bloquejada; mantenir lliure de pols, pelusa, cabells i qualsevol cosa que pugui reduir el flux d'aire.
• Mantingueu els cabells, la roba solta, els dits i totes les parts del cos lluny de les obertures i les parts mòbils.
• Apagueu tots els controls abans de desconnectar.
• Tingueu molta cura quan netegeu les escales.
• No l'utilitzeu per recollir líquids inflamables o combustibles, com ara la gasolina, ni l'utilitzeu en zones on puguin estar presents.
• No agafeu res que estigui cremant o fumant, com ara cigarrets, llumins o cendres calentes.
• No utilitzeu sense tancs al seu lloc.

Configuració

1. Muntatge

Your carpet cleaner may require minor assembly. Follow the instructions provided in the packaging for attaching the handle and any other components. Ensure all parts click securely into place before use.

2. Omplir el dipòsit d'aigua neta

1. Traieu el dipòsit d'aigua neta de la unitat.
2. Unscrew the cap and fill the tank with warm tap water up to the indicated fill line.
3. Add the recommended amount of Hoover cleaning solution to the tank. Do not overfill.
4. Securely replace the cap and reinsert the tank into the cleaner until it locks into position.

Figure 2: Filling the clean water tank with water and cleaning solution.

Instruccions de funcionament

1. Pre-Cleaning Steps

• Aspira bé la catifa per eliminar la brutícia i els residus solts.
• Proveu una petita zona poc visible de la catifa per comprovar la resistència del color abans de l'aplicació completa.
• Move furniture out of the area to be cleaned.

2. Neteja de catifes

1. Connecteu el netejador a una presa de corrent amb connexió a terra.
2. Enceneu l'interruptor d'alimentació.
3. Press the solution trigger on the handle and make a slow, forward wet stroke. Release the trigger and make a slow, backward dry stroke over the same area.
4. Overlap each cleaning path by one inch to ensure thorough cleaning.
5. Continue cleaning until the dirty water tank is full or the clean water tank is empty.

Figure 3: The carpet cleaner applying solution and scrubbing the carpet.

3. Using the Upholstery Tool

1. Attach the 8-foot hose and upholstery tool to the designated port on the cleaner.
2. Ensure the main cleaning nozzle is disengaged or lifted to direct suction to the hose.
3. Press the trigger on the upholstery tool to spray solution and scrub the fabric. Release the trigger and use suction to remove dirty water.
4. Do not oversaturate fabric. Allow upholstery to dry completely before use.

Figure 4: Cleaning upholstery with the attached hose and tool.

Manteniment

1. Buidar i netejar el dipòsit d'aigua bruta

• Apagueu i desconnecteu la netejadora.
• Traieu el dipòsit d'aigua bruta de la unitat.
• Obriu el dipòsit i aboqueu-hi l'aigua bruta.
• Rinse the tank thoroughly with clean water. Ensure the gasket is properly seated and sealed to prevent loss of suction.
• Deixeu que el dipòsit s'assequi a l'aire abans de tornar-lo a muntar.

2. Cleaning the Nozzle and Brushes

• The 13-inch dual V nozzle is removable for easy cleaning. Detach it and rinse under running water to remove any debris.
• Inspect the rotating brush roll and SpinScrub brushes for tangled hair or debris. Use scissors to cut away any obstructions.
• Ensure all components are dry before reattaching.

3. Emmagatzematge

Store the cleaner in a dry, indoor area. Ensure both tanks are empty and clean before storage. Wrap the power cord neatly around the cord hooks.

Resolució de problemes

Especificacions

• Model: FH51101
• Marca: Hoover
• Clean Water Capacity: 1.25 galons
• Package Dimensions (Approximate):
  • Alçada: 26.8 polzades
  • Longitud: 19.8 polzades
  • Amplada: 15.6 polzades
• Font d'alimentació: Elèctric amb cable
• Tecnologia de neteja: Rotating Brush Roll, SpinScrub Technology, Dual V Nozzle
• Accessoris inclosos: 8 ft. Hose, Upholstery Tool

Garantia

This Hoover FH51101 Power Path Pro Corded Carpet Cleaner is covered by a Garantia limitada d'2 any. For specific terms and conditions, please refer to the warranty card included with your product or visit the official Hoover weblloc.

Atenció al client

For assistance with your Hoover FH51101 Power Path Pro Corded Carpet Cleaner, including troubleshooting, parts, or warranty claims, please contact Hoover Customer Service:

• Weblloc: www.hoover.com
• Telèfon: Refer to the Hoover weblloc per als números de contacte regionals.

Please have your model number (FH51101) and purchase date available when contacting support.
